Core Functions and Features

1. Communication Protocols and Speed

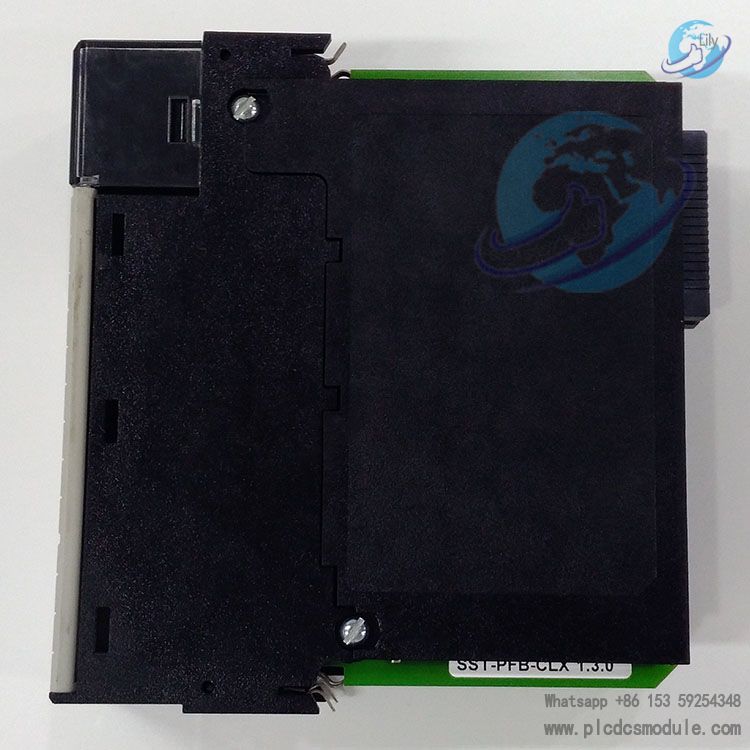

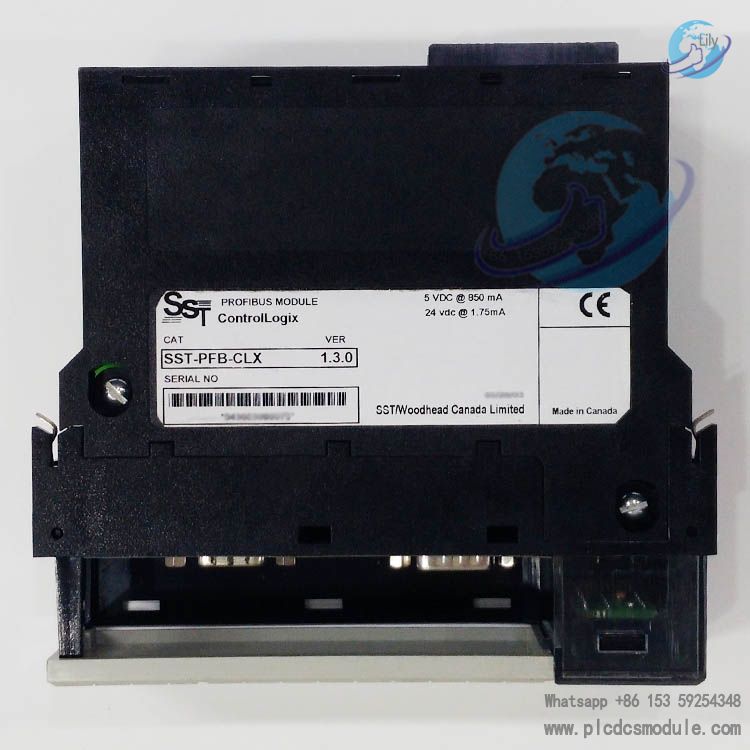

The SST-PFB-CLX module is fully compatible with mainstream PROFIBUS protocol standards, including DP-V0 and DP-V1. It can connect to conventional DP slave devices and also support intelligent devices with acyclic communication functionality (e.g., frequency converters, valve positioners). It features a maximum communication speed of 12 Mbps, which can be flexibly adjusted based on on-site network load, and supports up to 126 PROFIBUS slaves (the actual number is subject to network load), meeting the connection requirements of medium and large industrial control systems. In addition, the module is equipped with a built-in DB9 interface (RS-485) and an optional terminal resistor switch, facilitating quick connection of PROFIBUS cables and reducing the complexity of on-site wiring and commissioning.

2. Deep Integration with the Rockwell Ecosystem

Adopting the 1756 module form factor, this module can be directly inserted into any I/O slot of the ControlLogix chassis and achieves high-speed communication with the Logix controller via the backplane bus, eliminating the need for additional hardware adaptation. Its core advantage lies in the native support for CIP (Common Industrial Protocol, the core protocol of the Rockwell Automation ecosystem). Users can add PROFIBUS slaves in the Studio 5000 software just like adding local I/O, and the system automatically generates data tags to realize seamless data mapping between the ControlLogix controller and PROFIBUS devices. There is no need to write complex ladder logic or scripts, which greatly reduces the workload of programming and commissioning. Meanwhile, the module supports remote configuration and monitoring via Rockwell RSLinx™ software, further improving the convenience of operation and maintenance.

3. Diagnostic and Reliability Design

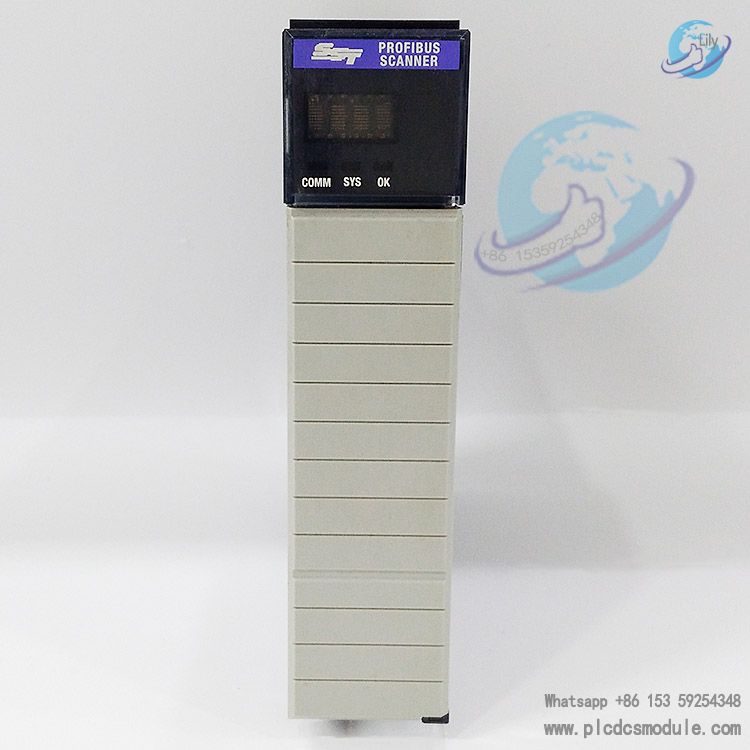

To ensure stable operation in industrial scenarios, the SST-PFB-CLX is equipped with comprehensive diagnostic functions: it real-time monitors the communication status of each PROFIBUS slave, module self-faults and channel errors, and generates fault codes readable by the controller for quick problem location. The front panel is fitted with LED indicators including PWR (Power), RUN (Operation), IO (I/O Status), BF (Bus Fault) and SF (System Fault). On-site staff can intuitively judge the operation status of the module and the network through the indicator status, shortening the fault troubleshooting time. In addition, the module complies with multiple industrial standards such as UL 508, CE and IEC61131-2, and is certified by the PROFIBUS User Organization (PNO), ensuring reliability in harsh industrial environments (e.g., electromagnetic interference, temperature fluctuations). It has an operating temperature range of 0°C to 60°C, adapting to the requirements of most industrial scenarios.

4. Convenient Configuration and Maintenance

In terms of configuration, the SST-PFB-CLX supports loading device files via Anybus Configuration Manager software and automatically parses the I/O structure, reducing the tedious work of manual configuration. Meanwhile, the module features the Device Replacement Recognition function: when a PROFIBUS slave device (e.g., valve terminal module) fails and is replaced, the gateway can automatically complete reconfiguration without manual intervention, greatly shortening equipment downtime and improving production efficiency. For power supply and power consumption, the module is supplied with +5 V and +24 V power by the ControlLogix backplane with a power consumption of approximately 2.5 W, eliminating the need for an additional external power supply and simplifying system wiring.
