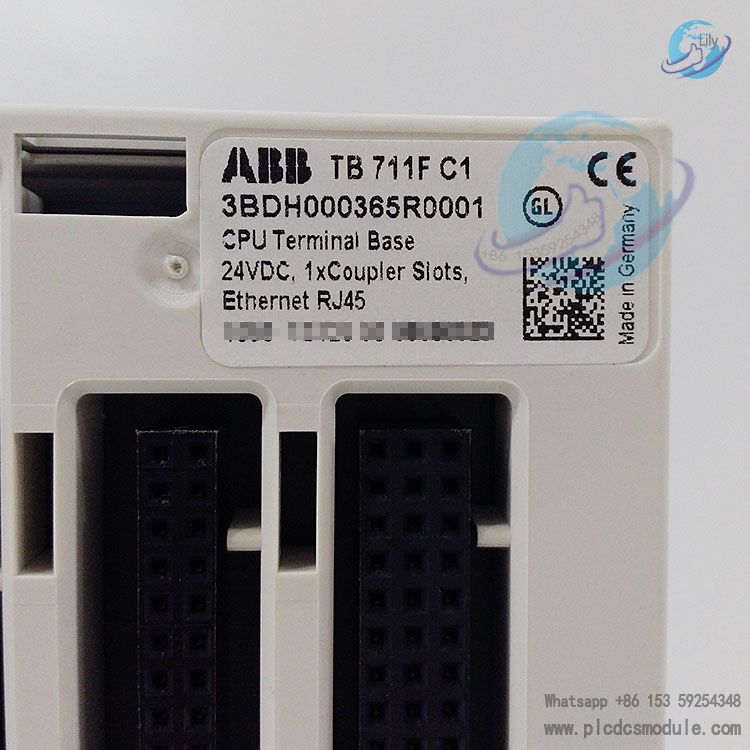

ABB TB711FC1 (3BDH000365R0001)
CPU terminal base exclusively designed for the AC 700F controller, serving as a core connection and supporting component in the AC 700F control system hardware architecture.
Technical Specifications
Mechanical and Mounting Specifications
Dimensions and weight: 175 g weight; 95.5 mm (W) × 135 mm (H) × 75 mm (D) with CPU module inserted.
Electrical Specifications
Terminal specifications: Screw/spring-type connections, supporting 0.08-2.5 mm conductors (0.25-1.5 mm for stranded with ferrules).
Core Functions and Positioning
Device Compatibility & Adaptation
Compatible CPU Modules
Compatible Communication Modules
System Compatibility
Application Scenarios & Core Advantages
Typical Application Scenarios
Small-Scale Process Control Systems
Single equipment control, small production line monitoring - compact control system architecture with sensor/actuator interaction.
On-Site Intelligent I/O Stations
Deployment with remote I/O (e.g., S700 I/O) near on-site equipment, reducing wiring costs and improving signal efficiency.
Core Advantages
Easy Installation
DIN rail/wall mounting, screw/spring terminals, plug-in module design for easy maintenance.
Stable Signal Transmission
Module-level isolation and anti-ripple design resist industrial electromagnetic interference and voltage fluctuations.
Flexible Expansion
PROFIBUS and I/O expansion support, adapting to later system capacity increase.
