Built on a field-proven architecture, this product is fully compatible with electronic marshalling technology. It enables efficient integration of field devices and control network nodes, delivering stable communication and control functions.

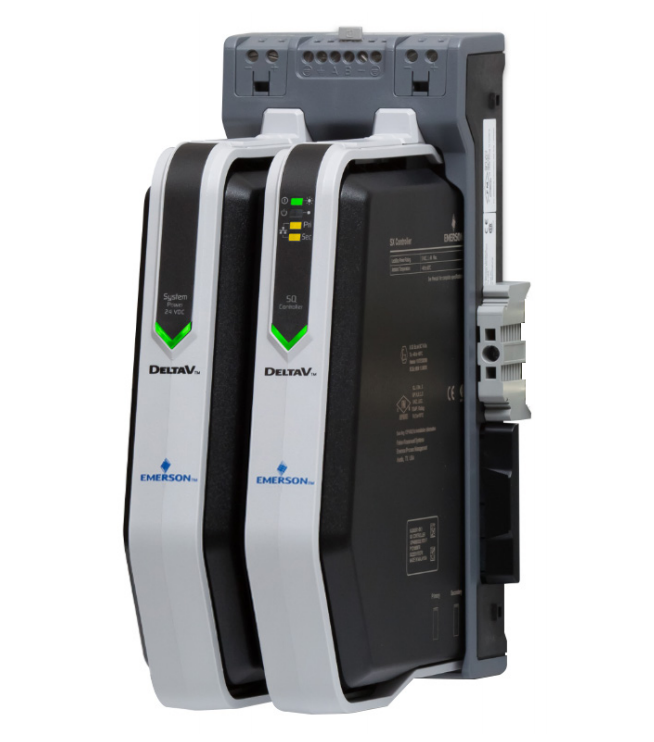

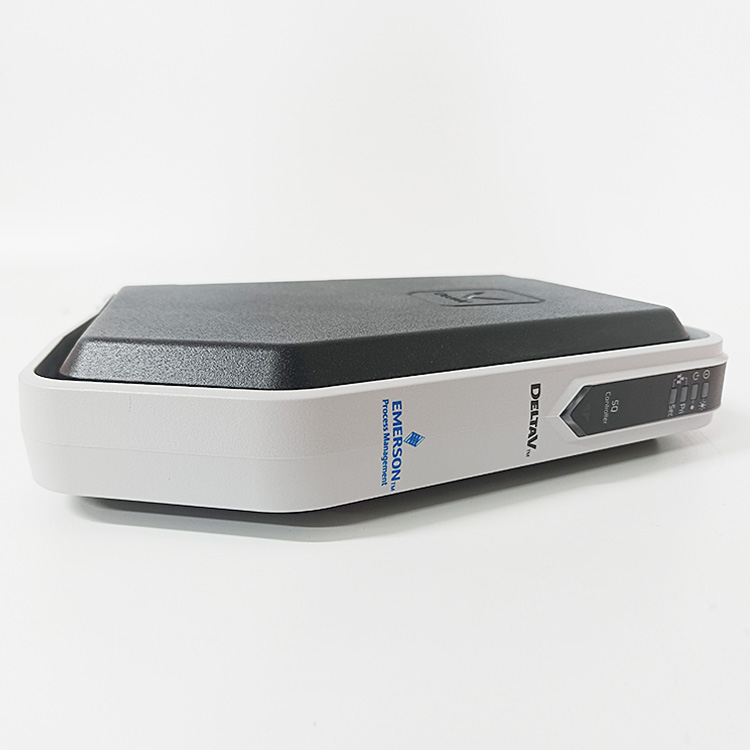

Key features of the SE3008 DeltaV SQ Controller include:

• Compatibility with control strategies and configurations of earlier DeltaV systems

• Screwless installation and automatic addressing for streamlined setup and commissioning

• Broad applicability across diverse industrial control scenarios

related documents

SE3008 DeltaV SQ Controller.pdf

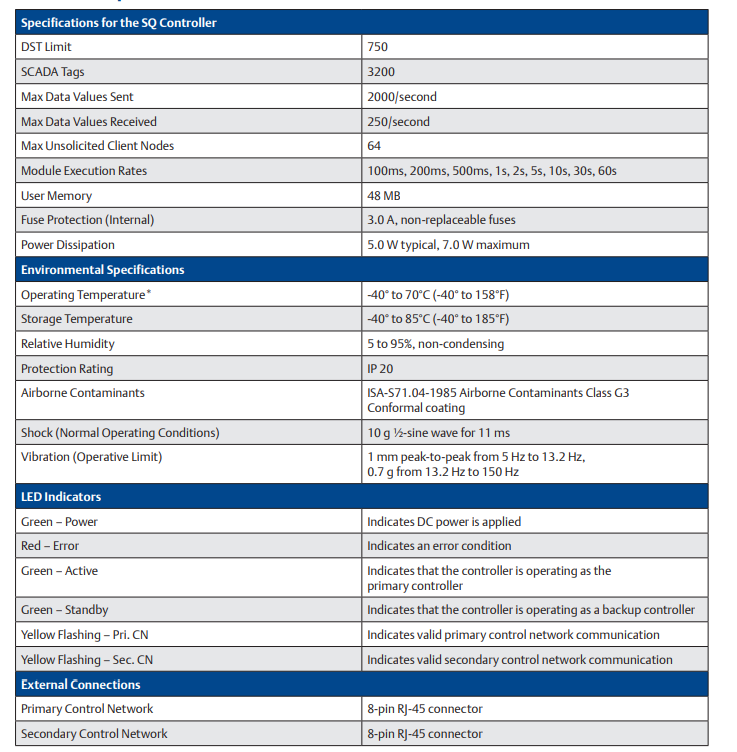

Technical Specifications

Performance Parameters

Control Module Scan Time: Supports multi-gear adjustment of 100ms, 200ms, 500ms, 1s, 2s, 5s, 10s, 30s, 60s. The control response speed can be dynamically optimized according to the process requirements.

Maximum I/O Signal Capacity: Designed for small-to-medium-sized applications, supporting up to 750 independent I/O signals.

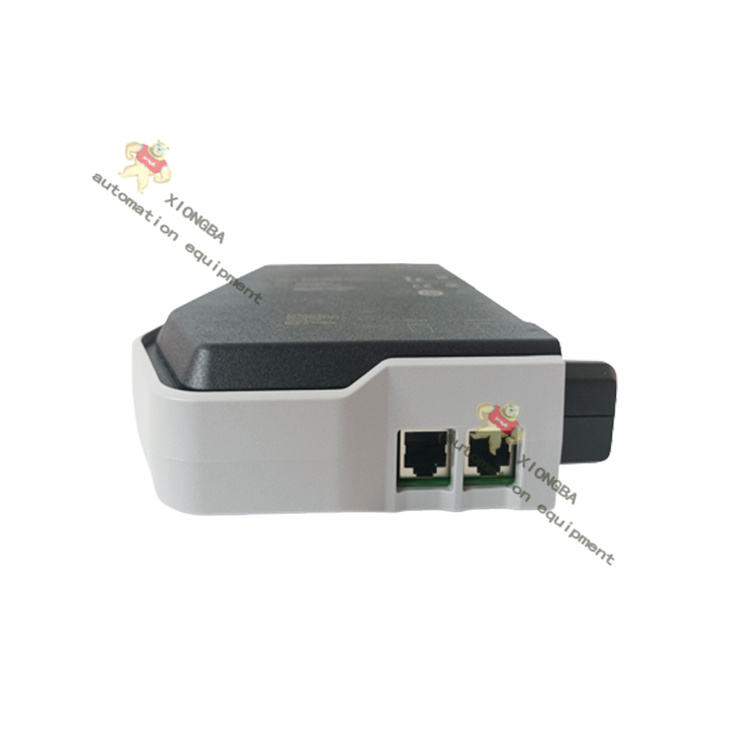

Communication Capability: Supports a maximum of 64 unsolicited client nodes; Equipped with redundant control network, configured with dual 8-pin RJ-45 interfaces for primary and secondary control networks respectively.

Memory Configuration: 48MB memory with enhanced memory processing capability. Provides capacity and memory-related hardware alarms via indexing.

Hardware Specifications

Physical Dimensions: 16.2 cm (W) × 4.18 cm (H) × 19.93 cm (D) (i.e., 6.38 in × 1.65 in × 7.85 in)

Power Supply Parameters: Typical power consumption: 5.0W; Maximum power consumption: 7.0W;

Operating current: 3.0A, equipped with non-replaceable fuse.

Environmental Adaptability: Operating temperature range: -40°C to 70°C (Storage temperature: -40°C to 85°C);

Relative humidity: 5% - 95% (non-condensing);

Protection class: IP20; Complies with ISA-S71.04-1985 Grade G3 corrosive environment standard, with conformal coating.

Anti-interference & Mechanical Performance: Withstands 10g half-sine wave shock (duration: 11ms) under normal operating conditions;

Vibration resistance: 1mm peak-to-peak at 5Hz - 13.2Hz, 0.7g at 13.2Hz - 150Hz.

Interface & Expansion

Local I/O Expansion: Supports up to 8 I/O carriers, each carrier compatible with 8 conventional I/O cards, totaling 64 conventional I/O cards.

Remote I/O Expansion: In addition to local carriers, it can communicate with 16 additional remote I/O units (supporting conventional card-type I/O).

Protocol Support: The local bus is compatible with fieldbus technologies such as FOUNDATION Fieldbus, Profibus DP, DeviceNet, and AS-i, while supporting serial interface cards and Ethernet I/O interfaces; Compatible with CHARM I/O solutions based on electronic marshalling, supporting up to 16 CHARM I/O Cards (CIOC), each CIOC providing 96 independently configurable signal types.
