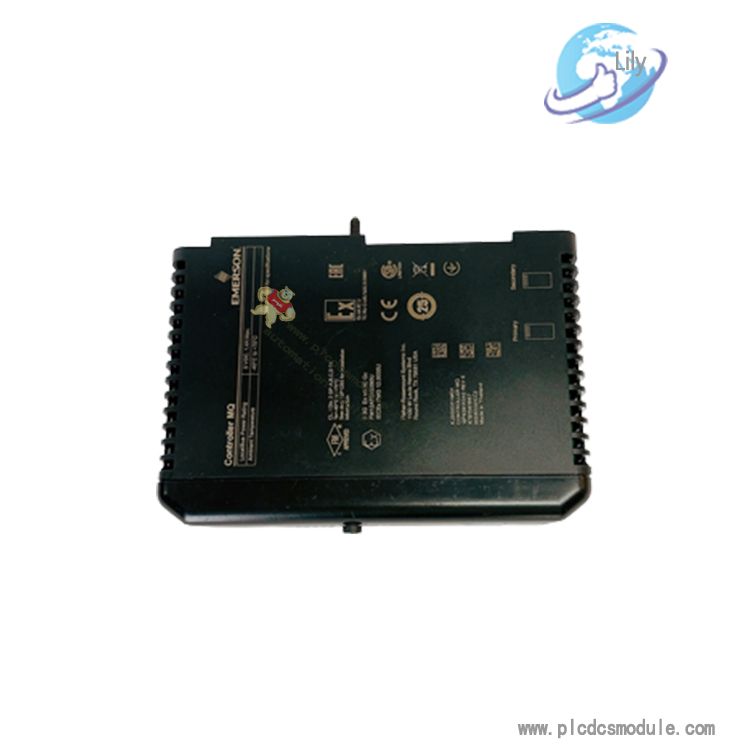

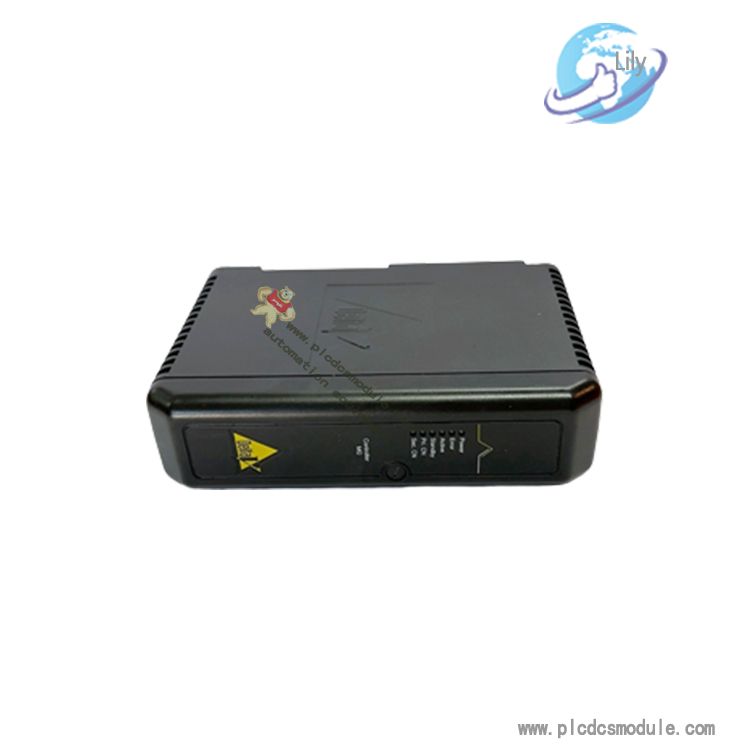

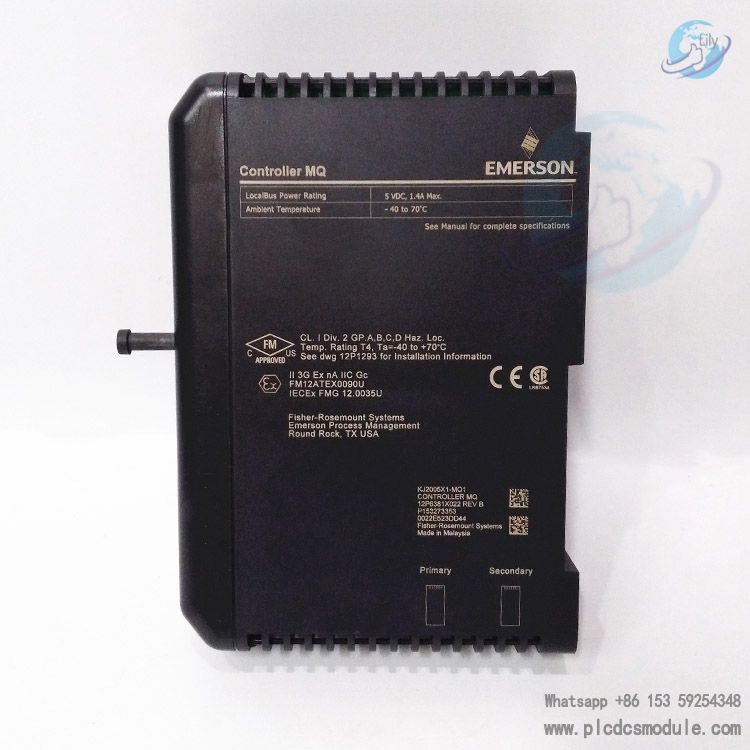

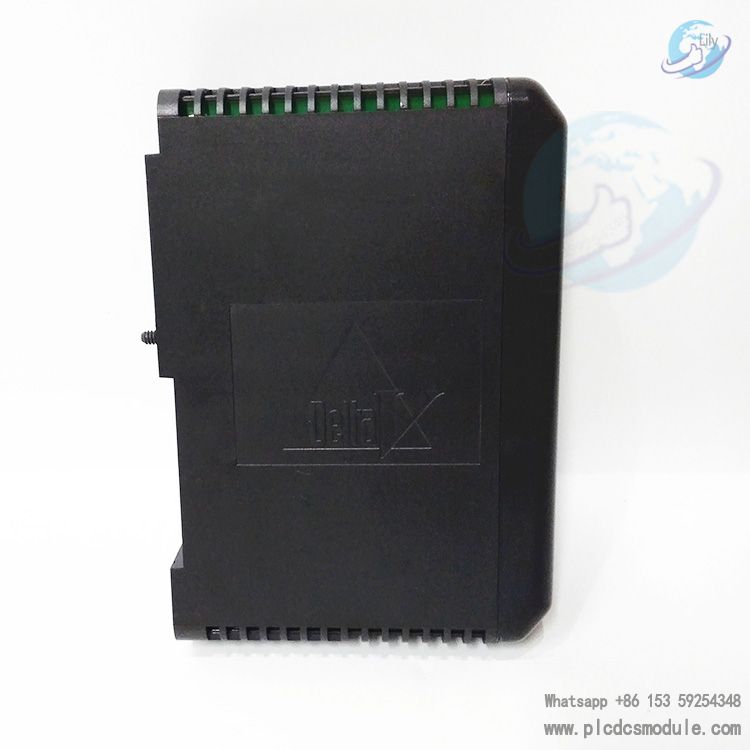

EMERSON VE3008 CE3008 KJ2005X1-MQ1 12P6381X042 DeltaV MQ Controller

EMERSON CE3008  KJ2005X1-MQ1 12P6381X042 and DeltaV MQ Controller are part of the DeltaV Distributed Control System. They provide communication and control between field devices and other nodes on the control network.

Control strategies and system configurations created on earlier DeltaV systems can be used, and they have the same features, functions and amount of memory as the MD Plus Controller.

DATA SHEET

EMERSON VE3008.pdf

Enhanced Productivity

• Matches the speed of the MD Plus controller with the same memory configuration.
• Equipped with a full-duplex Ethernet port boasting a maximum throughput of 100MB/s, reducing CPU utilization and increasing control strategy capacity.
• Features self-addressing, self-locating, and automatic I/O detection capabilities, supporting connection to electronic marshalling for easy I/O expansion.

Ease of Use

• Manages control activities across all I/O interface channels, communication functions of the network, as well as timestamp, alarm, and trend objects. Control strategies execute at speeds up to once every 100 milliseconds.
• Control parameters modified online are automatically stored, facilitating subsequent upload to the engineering database.
• Includes a cold restart function, enabling automatic reboot after power failure.

High Flexibility

• Capable of handling DeltaV Batch options and advanced control functions such as neural control and model predictive control.
• Transmits intelligent HART information from field devices to any workstation node in the control network.
• Software licenses can be expanded to increase the number of Device Signal Tags (DSTs) from 50 to 750.
• Supports the addition of redundant controllers for online backup, with seamless, disturbance-free automatic switching to the standby controller.
• Adopts a plug-and-play system architecture, suitable for installation in Class 1, Div 2 or ATEX Zone 2 environments.

Support for Legacy Migration

• Provides a DeltaV platform for migrating PROVOX and RS3 controllers, with support for PROVOX and RS3 migration I/O interfaces.
• Existing PROVOX I/O can be retained via migration I/O interfaces, supporting up to 750 actual I/O signals.
• Serial datasets are migrated to DeltaV serial cards without the need for virtual I/O.

Specifications

• Powered by the system power supply via a 2-wide power/controller carrier.
• Equipped with a non-replaceable 3.0A fuse.
• Typical power consumption: 5.0W; maximum: 7.0W.
• Installed in the right slot of the power/controller carrier.
• User memory: 48MB.
• Features 8-pin RJ-45 connectors for the primary control network and redundant control network.

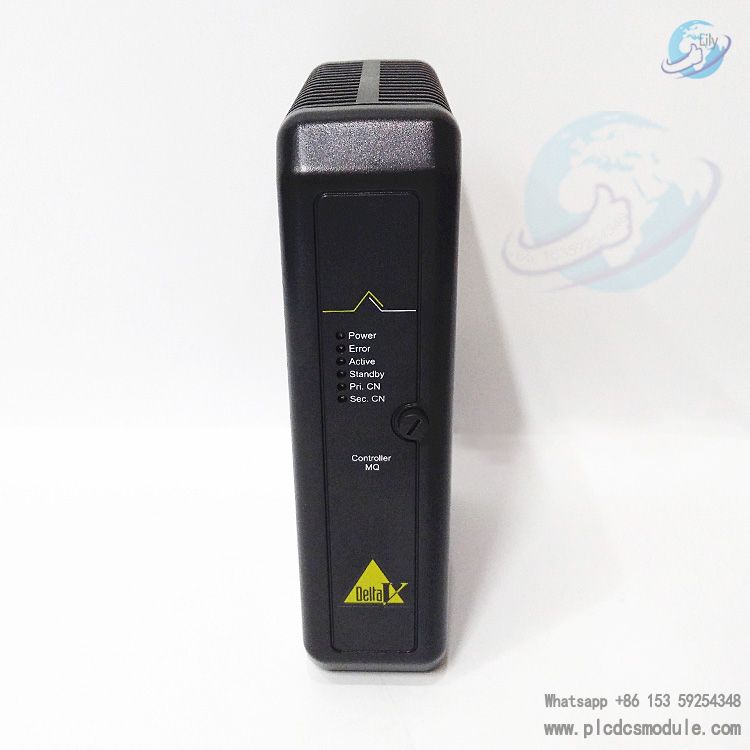

• Multiple LED indicators are provided to show statuses such as power, error, activity, standby, primary/secondary control network communication, controller identification, and firmware upgrade.

• Operating temperature: -40°C to 70°C; storage temperature: -40°C to 85°C.
• Relative humidity: 5% to 95% (non-condensing).
• Complies with air pollutant requirements for ISA-S71.04-1985 Class G3 conformal coating.
• Shock (under normal operating conditions): 10g half-sine wave for 11ms duration.
• Vibration (operating limit): 1mm peak-to-peak at 5Hz to 16Hz; 0.5g at 16Hz to 150Hz.

• Holds multiple certifications including CE, FM, CSA, ATEX, IEC Ex, marine certifications (IACS E10, ABS Design Evaluation Certificate, DNV Type Approval Certificate), and Wurldtech Achilles Communications Certification Level 2.
