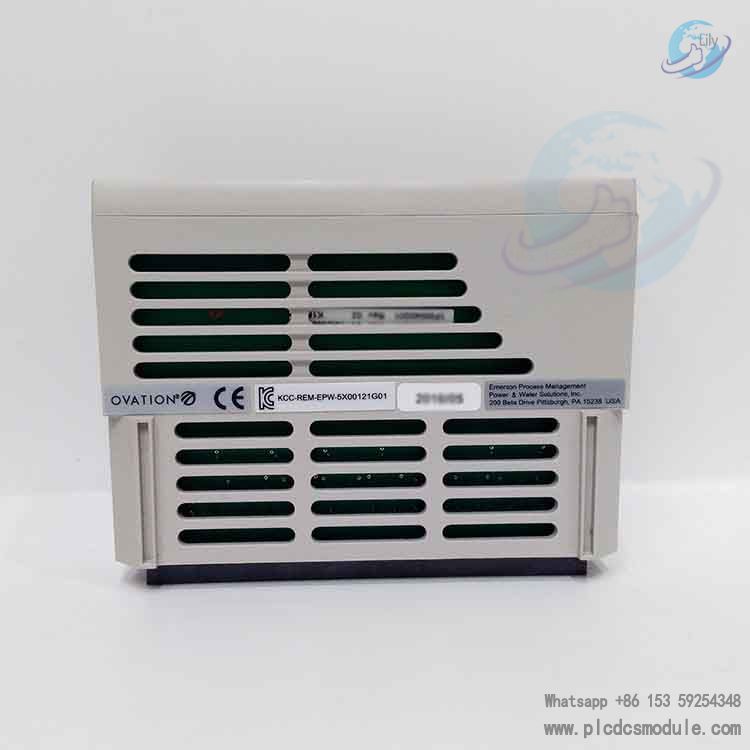

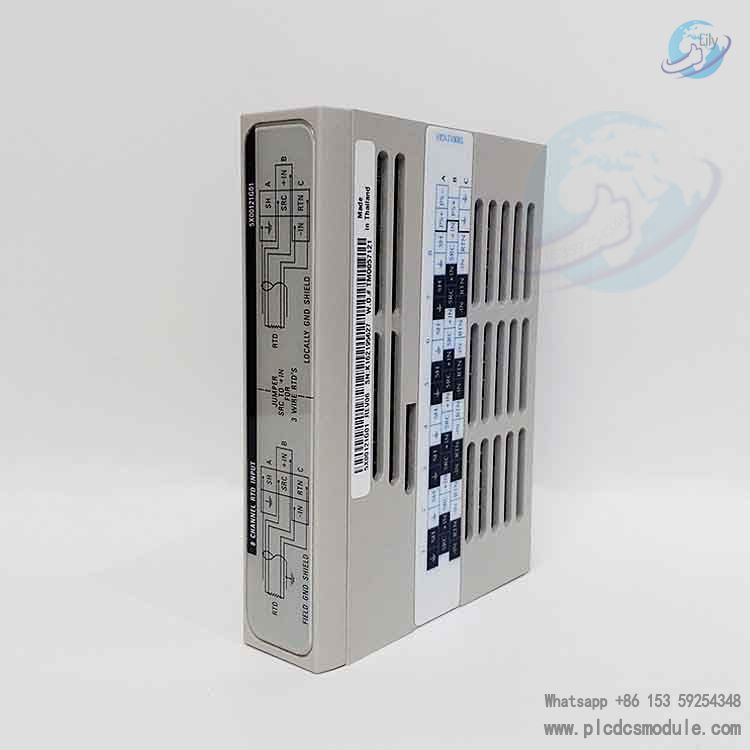

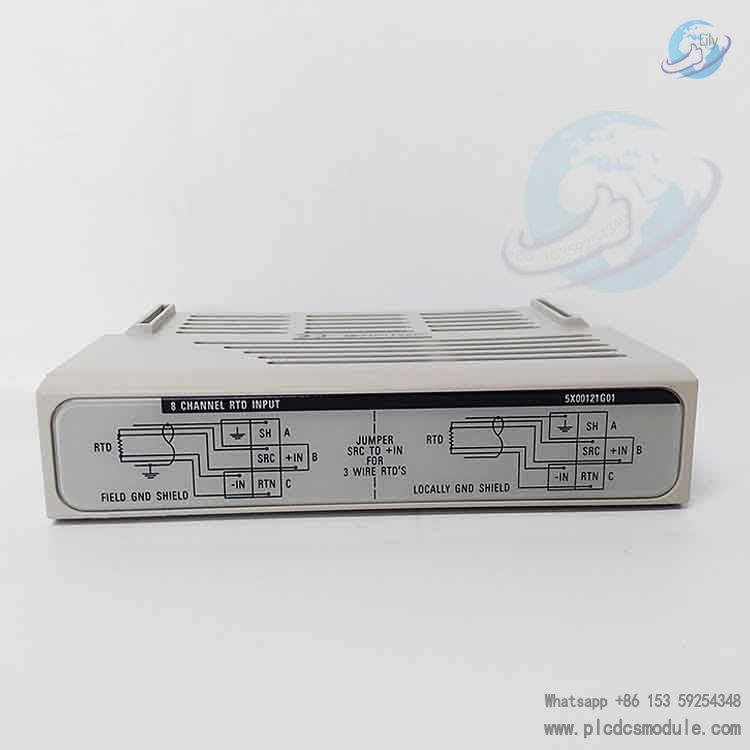

EMERSON OVATION 5X00121G01 is an 8-channel RTD input module for temperature measurement in Emerson's Ovation distributed control system (DCS), primarily used for temperature measurement in industrial control systems. It can connect 8 RTD (Resistance Temperature Detector) sensors, convert the resistance readings of RTD sensors into signals usable by the control system, realize simultaneous temperature measurement at 8 different positions, and provide data support for temperature monitoring and control in industrial production processes.
Data Sheet
Technical Parameters
Channel Quantity: 8 RTD input channels.
Temperature Measurement Range: Varies across sources, ranging from -200°C to 850°C or -200°C to 800°C, meeting temperature measurement needs in diverse industrial scenarios.
Accuracy: Typically ±0.1% of full scale (some sources indicate ±0.05%), ensuring reliable temperature measurement with high-precision characteristics.
Noise: <0.1% of full scale, minimizing interference for more accurate and stable measurement signals.
Response Time: <2 seconds, enabling rapid adaptation to temperature changes and timely feedback of measurement data.
Power Supply: Normally 24V DC; some sources specify power from the Ovation DCS system (subject to configuration).
Dimensions: Approximately 80 x 40 x 25mm or 12.1cm x 2.5cm x 9.5cm.
Weight: 200g, 250g, or 320g (slight variations across sources).
Product Features
Multi-Sensor Support: Accommodates up to 8 RTD temperature sensors for simultaneous multi-point monitoring, enhancing comprehensive temperature coverage.
Wide Temperature Range: Operates across an extended temperature spectrum, suitable for industries with stringent monitoring requirements (e.g., oil & gas, power generation).
High-Precision Measurement: Ensures reliable temperature data for precise process control and decision-making.
Easy Installation & Configuration: Designed for quick deployment on standard DIN rails, with seamless integration into existing systems for user-friendly operation.
Application Areas
Oil & Gas Industry: Monitors temperatures during extraction, refining, and processing to enhance safety and operational efficiency.
Power Generation: Tracks equipment temperatures in power plants to optimize performance and prevent overheating-related failures.
