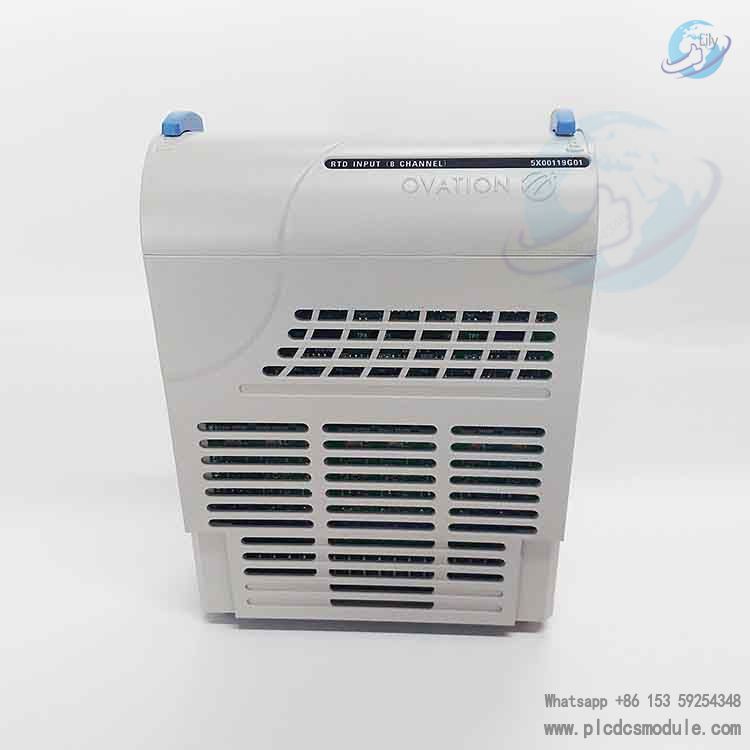

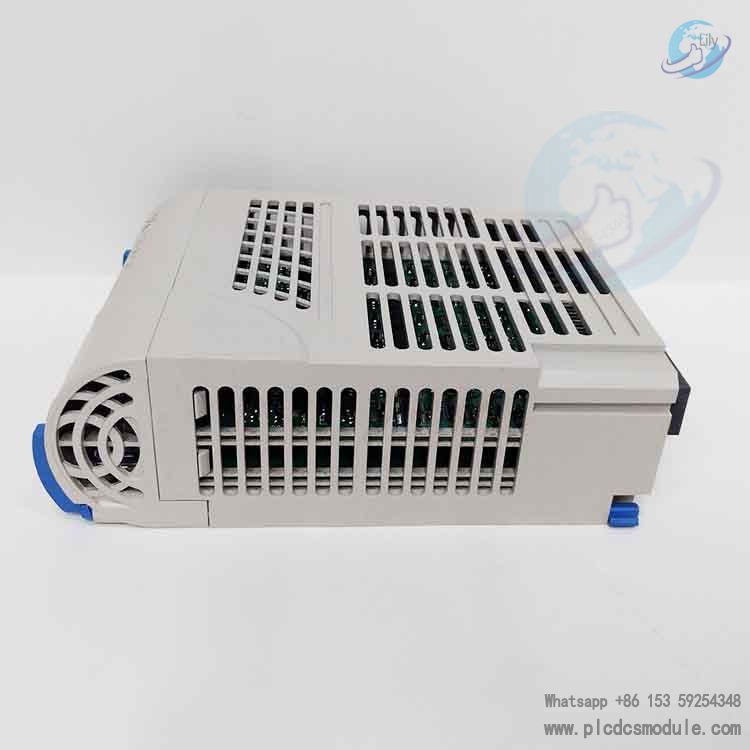

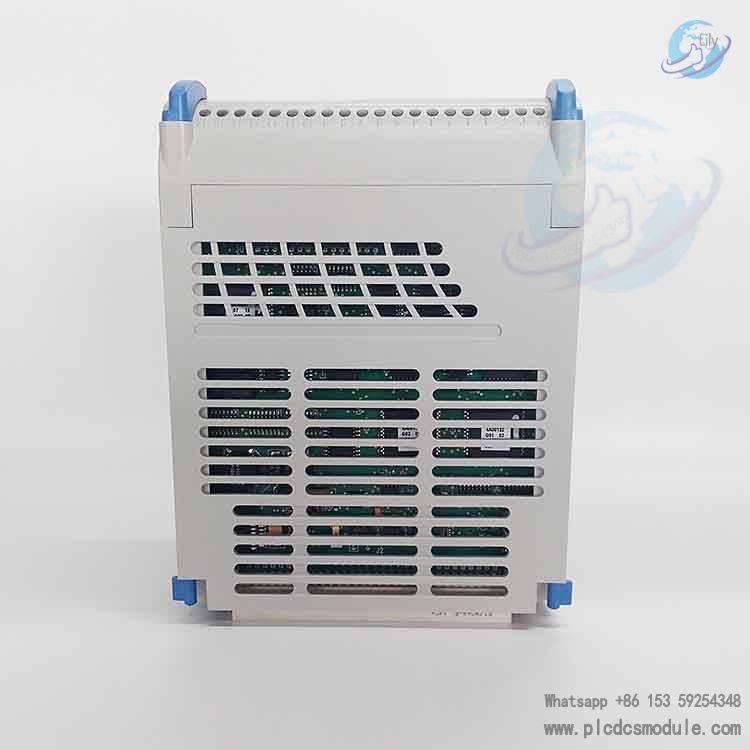

The EMERSON Ovation 5X00119G01 is an 8-channel RTD input module in the Ovation control system, which is used to convert resistance temperature detector (RTD) inputs into digital data and transmit them to the controller, realizing the digital acquisition and processing of temperature signals. It is composed of an electronic module (5X00119G01) and a personality module (5X00121G01), and the two need to be used supporting each other (except for CE certified systems).
Technical Specifications
Channel Quantity: 8 RTD input channels, supporting simultaneous connection of 8 RTD sensors.
Sampling Rate:
50Hz System: Normal: 16.67 samples/second; 3-wire mode: 3 samples/second (lead resistance measured every 6.45 seconds).
60Hz System: Normal: 20 samples/second; 3-wire mode: 2 samples/second.
Self-Calibration Mode: Triggered on demand, reducing rate to 1 sample/second during calibration.
Measurement Range: Supports various RTD types and ranges (e.g., 10Ω platinum: -18°C to 649°C; 100Ω platinum: 0°C to 561°C). See Table 19A-3 in documentation for details.
Accuracy & Resolution: 12-bit resolution, with guaranteed accuracy of 0.10% ±[0.045 (Rcold/Rspan)]% at 25°C (cumulative error from multiple factors).
Electrical Characteristics:
Channel-to-channel isolation: 200V AC/DC; Channel-to-logic isolation: 1000V AC/DC.
Input impedance: 100MΩ (normal), 50kΩ (power-down).
Power consumption: 3.6W (typical), 4.2W (max); Power supply: 24V DC.
Operating Environment:
Operating temperature: 0°C to 60°C; Storage temperature: -40°C to 85°C.
Humidity: 0–95% (non-condensing).
Functional Features
Self-Calibration Function
Triggered on demand by the Ovation controller, the module enters a "warming" state during calibration, which ends after approximately 8.16 seconds.
Communication & Configuration
Module parameters (e.g., 50/60Hz system selection, 3/4-wire mode for channels) are configured via address registers (e.g., Address 13, 0xD).
Addresses 12 (0xC) and 14 (0xE) set channel scales. Note: Reconfiguring during operation may cause channels to return an attention status for up to 2 seconds.
Diagnostic Functions

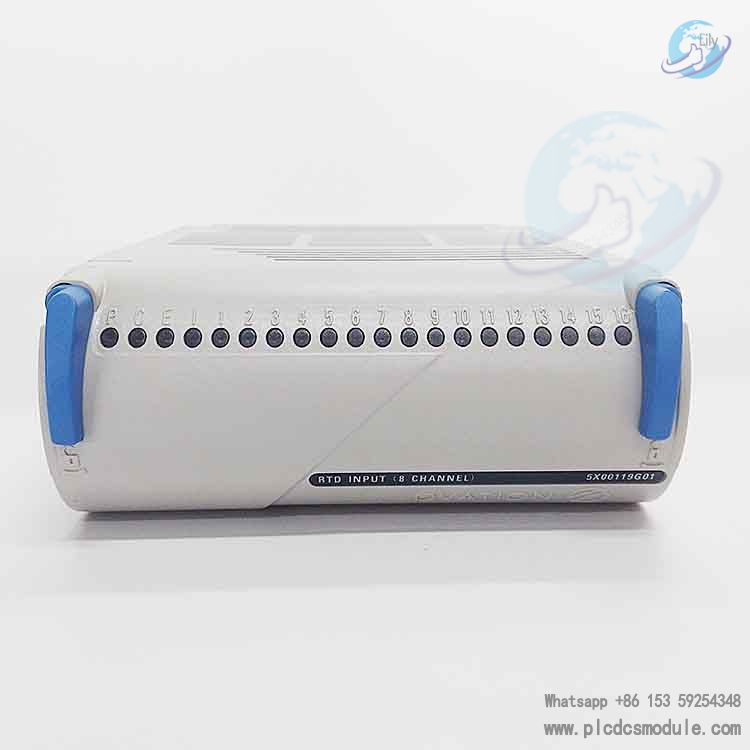

Indicator LEDs: Power OK (P, green), Communications OK (C, green), Internal Fault (I, red), and Channel Faults (CH1-CH8, red).
Fault types: Initialization in progress, I/O bus timeout, checksum errors, uncalibrated status, forced errors, etc.
Wiring & Terminal Definitions
Personality Module Wiring
Terminal block labels include +IN/-IN (positive/negative inputs), RTN (current source return), SRC (current source), SH (shield), etc. PS+/PS- auxiliary power terminals are unused.
Module Block Diagram
Comprises Logic Board (LIA), Field Terminal Board (FTD), and Personality Board (PTD), supporting 3-wire or 4-wire RTD connections.
Range Configuration
Supported Types
Includes 10Ω platinum/copper, 100Ω platinum, 120Ω nickel RTDs, etc. Each type corresponds to specific temperature ranges, cold resistance (Rcold), hot resistance (Rhot), and accuracy parameters.
Configuration Method
Channel scales are set via register bits (HEX codes). For example:
Scale 1: 3-wire 10Ω platinum RTD
Scale 22: 3-wire 100Ω platinum RTD (0°C to 269°C)
