GE Fanuc IC695CRU320 RX3i Redundancy CPU Module, as a core component of the RX3i PacSystem series, is specifically designed to meet the rigorous demands of industries such as chemical, power, and manufacturing, where system fault tolerance and data integrity are critical. Centered around a 1 GHz processor, this module integrates advanced features including dual-CPU hot standby redundancy, dual serial port communication, and Error Checking and Correction (ECC). Through the synergistic optimization of hardware and software, it provides a stable and reliable control hub for industrial automation systems, helping enterprises achieve efficient and safe production objectives under complex operating conditions.
Data Sheet:
Basic Module Information and Core Functions

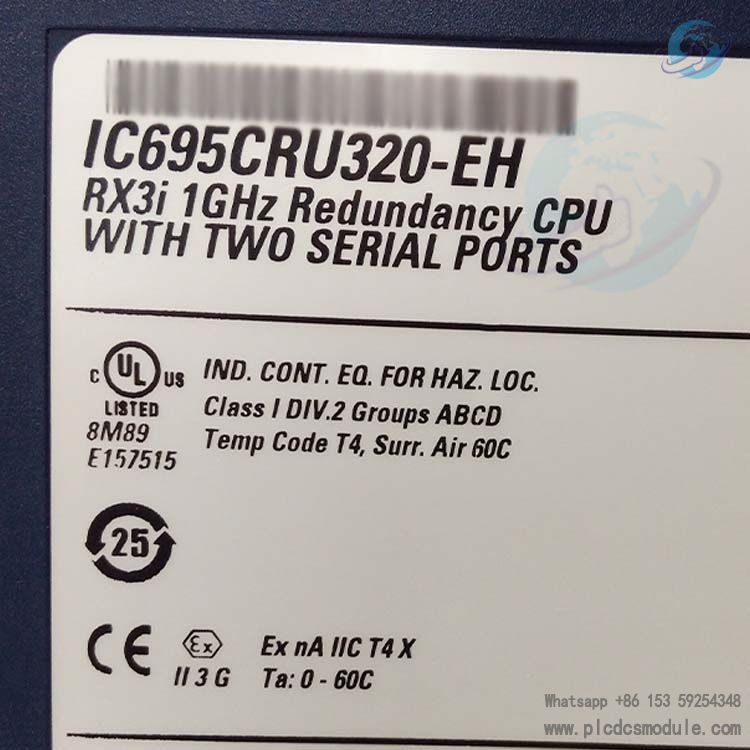

Model: IC695CRU320
Series: RX3i PacSystem
Positioning: A dual-CPU hot standby redundancy module designed for high-reliability industrial automation scenarios.
Core Functions:
Equipped with a 1 GHz processor, supporting redundancy switchover and data synchronization. The switchover time ranges from a minimum of 3.133 ms to a maximum of 1 logic scan cycle. It enables data synchronization of up to 2 MB via redundancy links (such as IC695RMX128) and supports up to 2 redundancy links.

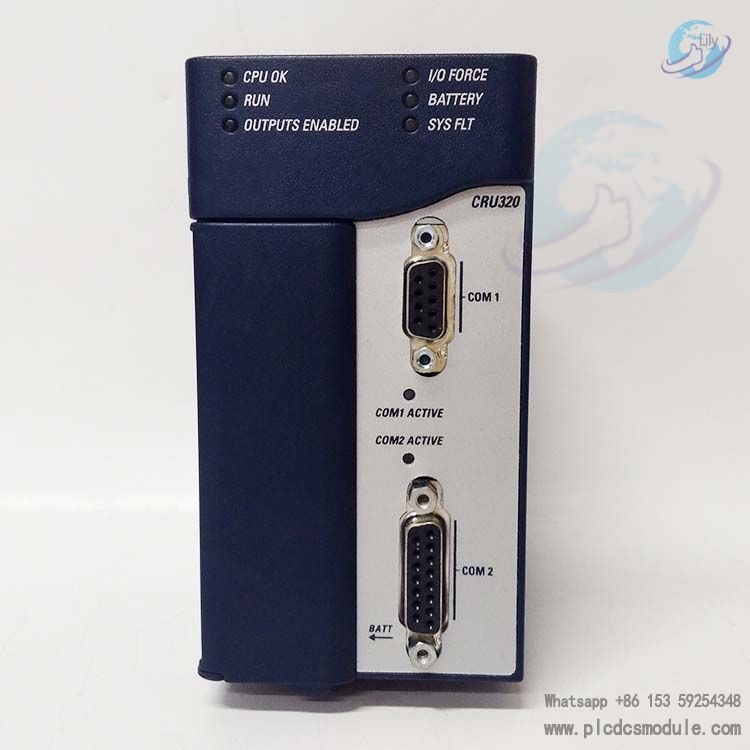

Features two built-in serial ports (COM1/COM2, compatible with RS-232/RS-485), supporting protocols such as Modbus RTU Slave, SNP Slave, and Serial I/O. These ports can be used for firmware upgrades and communication with external devices (e.g., HMIs, sensors), with port activity indicated by LEDs.
Incorporates Error Checking and Correction (ECC) functionality, supporting single-bit error correction and multi-bit error detection to enhance memory data reliability.
Features and Performance Parameters of IC695CRU320
Processor and Memory
Performance Parameters
| Parameter | Value |
|---|---|
| Boolean Instruction Speed | Typical 0.047 ms per 1,000 instructions |
| Real-Time Clock Accuracy | Maximum drift of ±2 seconds per day; synchronizable to SNTP timestamp (error ±2 ms) |
| Internal Timing Accuracy | ±0.01% maximum error |

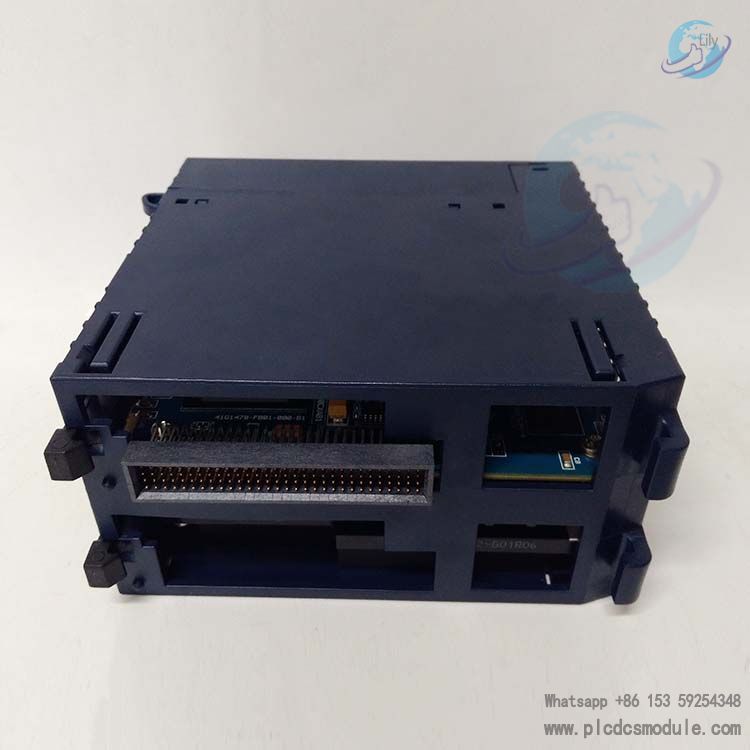

| Backplane Compatibility | Supports dual backplane buses (RX3i PCI and 90-30 series serial bus) |
| Program Blocks (Quantity/Size) | Up to 512 program blocks, with a maximum size of 128 KB per block |
Customers who purchased this product are also browsing the following products:
GE FANUC IC660EPM100J ELECTRONIC MODULE

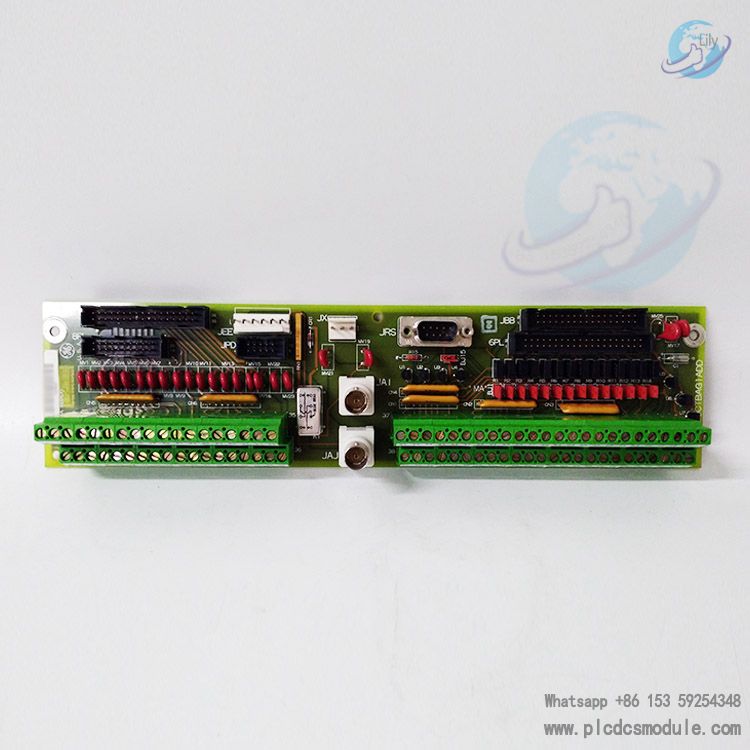

GE IS200TVBAH2ACC Mark VI Turbine control module
