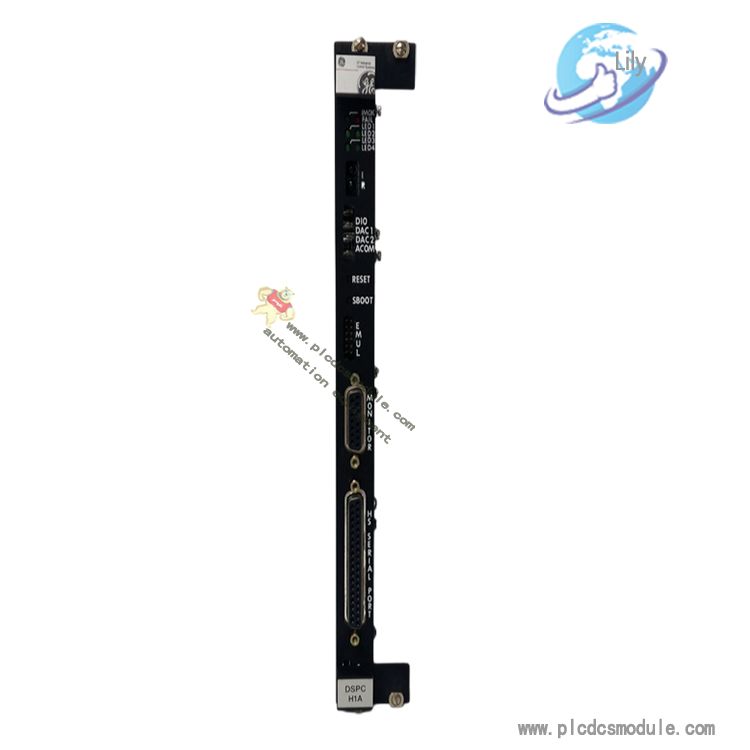

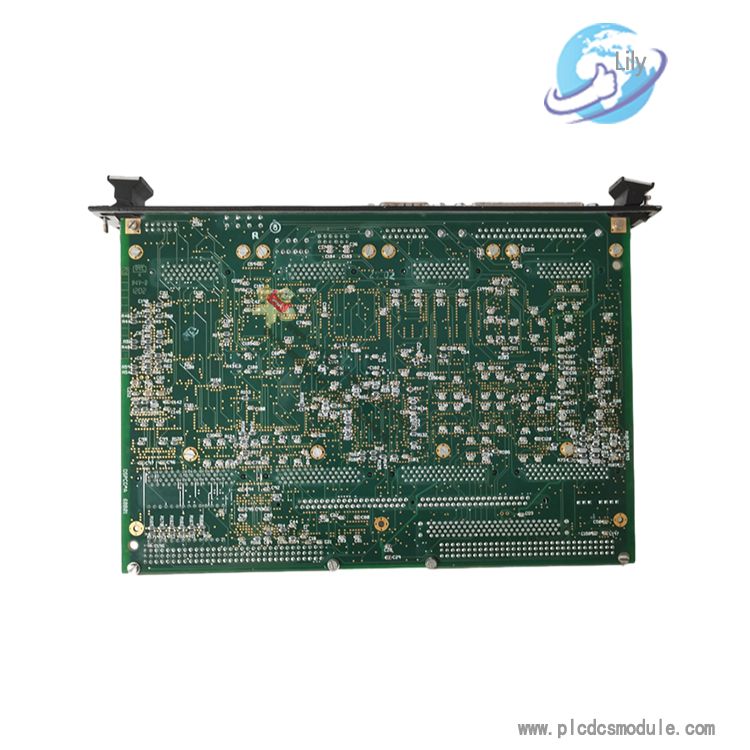

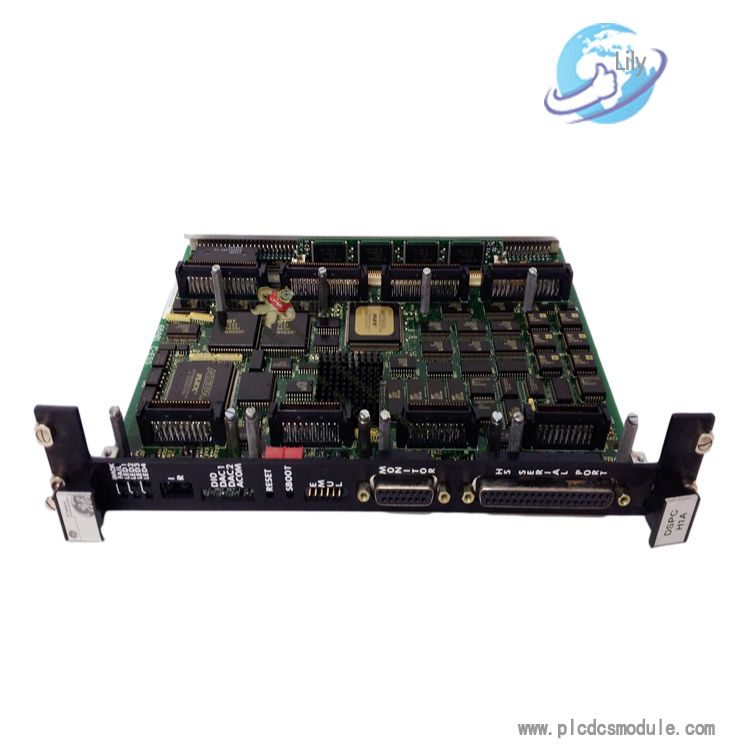

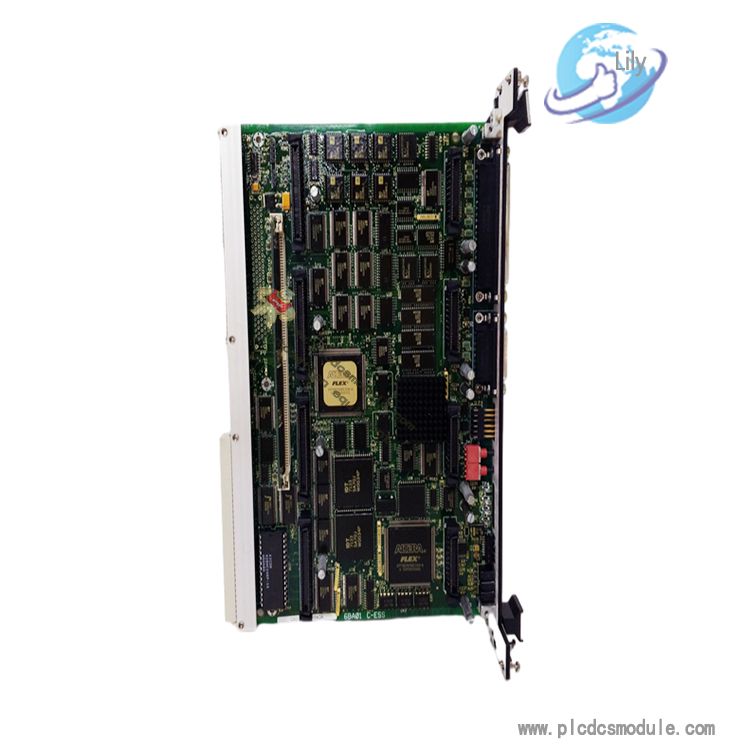

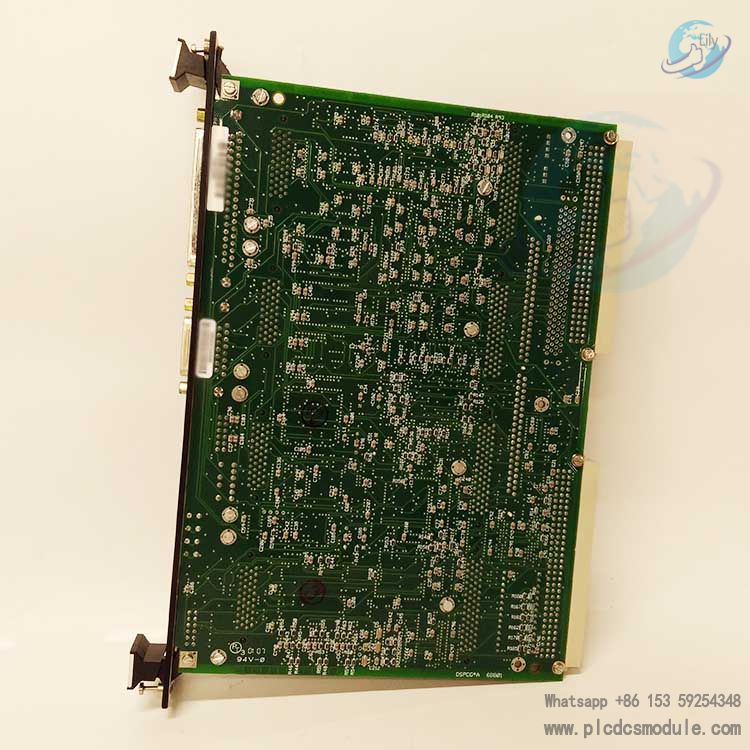

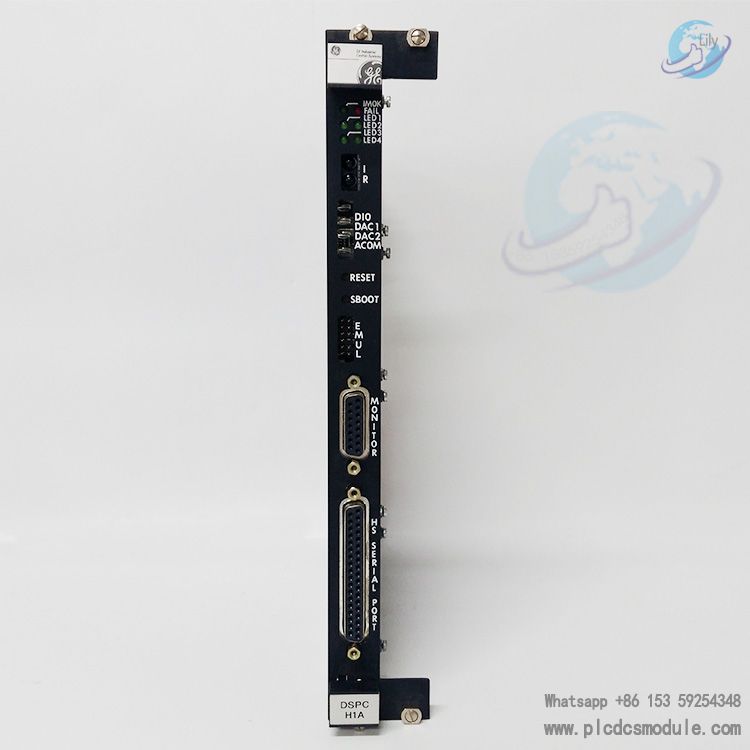

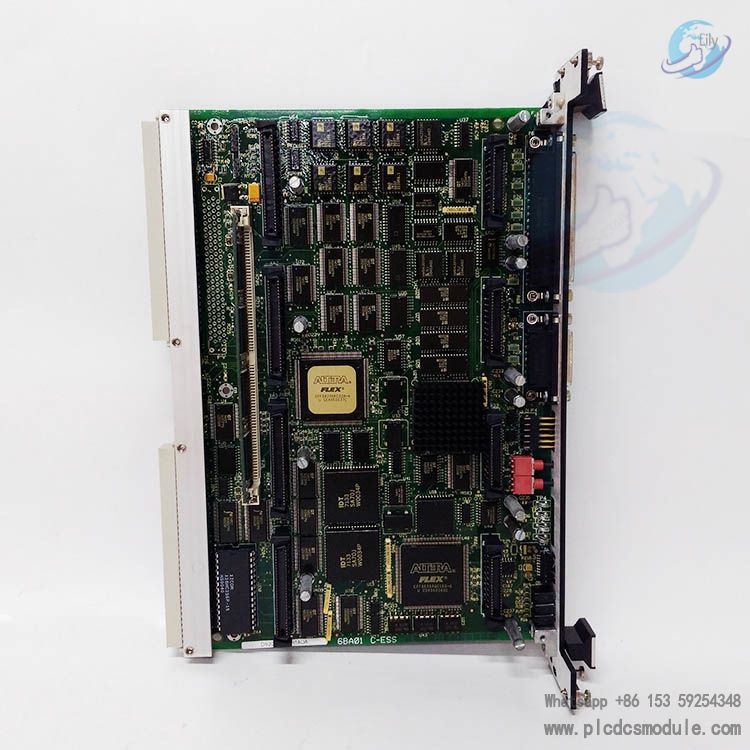

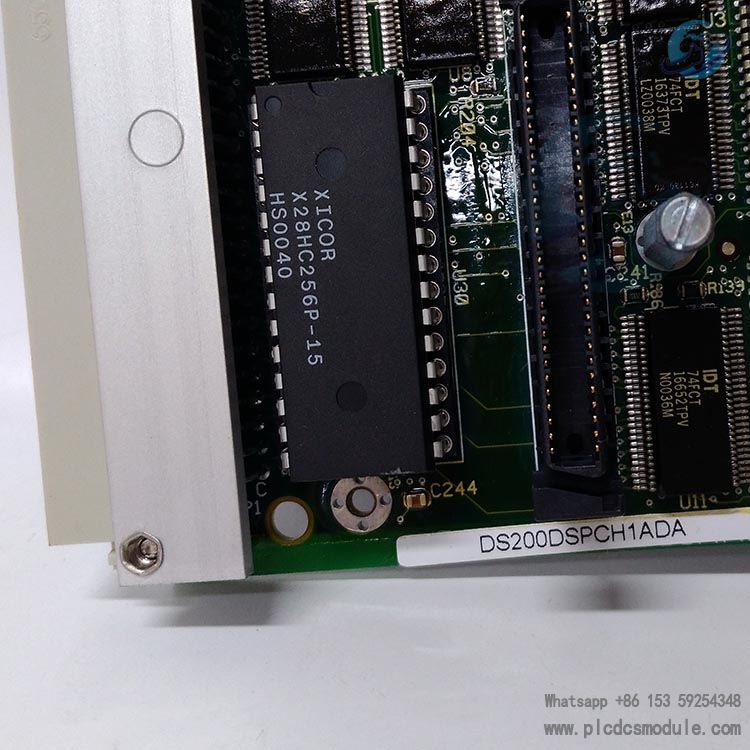

DS200DSPCH1ADA Mark V Digital Signal Processor Control Boards.The DS200DSPCH1ADA, manufactured and designed by General Electric, is a Digital Signal Processor Control Board (DSPC), a high-performance digital signal processor-based processor board that provides the computational power and communications bandwidth for direct control of high-performance power converter applications, such as uninterruptible power supplies (UPSs), active filters, dynamometers, wind turbines, high-performance drives, and large multibridge power converters. The DSPC board can be used as a master or slave device, but it provides programme memory and scalable local high-speed I/O for direct interface control signals without the need for a VME data path.(DS200 Other models in the series:DS200TCTGG1AFF、DS200TCPDG1BEC)

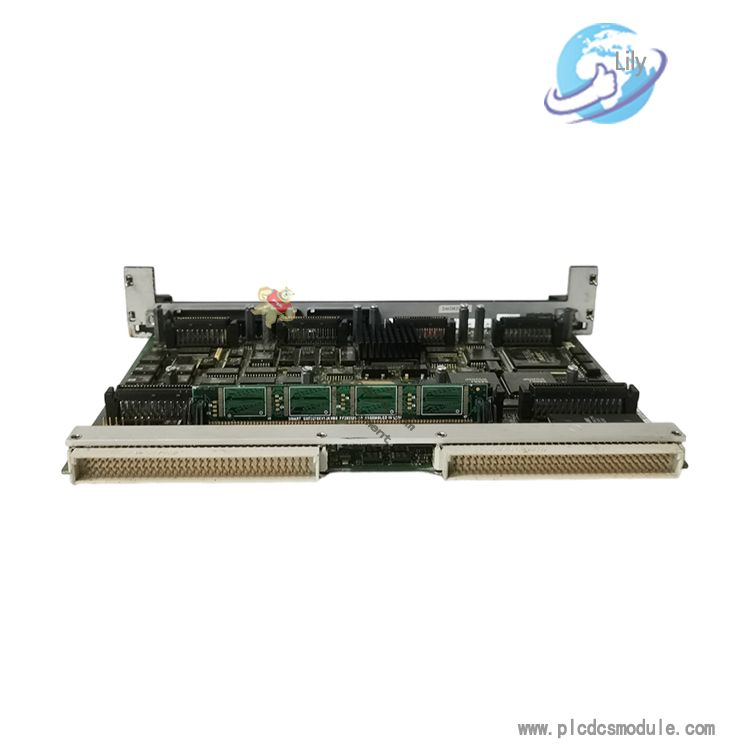

The DS200DSPCH1ADA is a complex board with multiple daughter boards. One board is mounted parallel to the board surface using brackets, and the other board is mounted vertically. One of the daughter boards is used to provide signal scaling, buffering, isolation, and conditioning so that the signals can be accessed and used by the DS200DSPCH1ADA's digital signal processor.
Frequently Asked Questions:
What is a Digital Signal Processor (DSP) control board?
A DSP control board is a hardware component that contains a Digital Signal Processor, which is a specialised microprocessor designed for efficient processing of digital signals. It is used in a variety of applications such as audio processing, telecommunications and control systems.
What is the role of the DSP control board in the system?
The DSP controller board is responsible for executing signal processing algorithms in real time. It receives analogue or digital signals, processes them using DSP algorithms and generates output signals. It plays a critical role in applications that require high-speed, high-precision signal processing.
How is a DSP controller board different from a general-purpose microcontroller?
DSP controllers are optimised for processing signals and performing tasks such as filtering, modulation and convolution efficiently. They often have dedicated instruction sets and hardware accelerators for these tasks, making them better suited to real-time signal processing than general-purpose microcontrollers.
