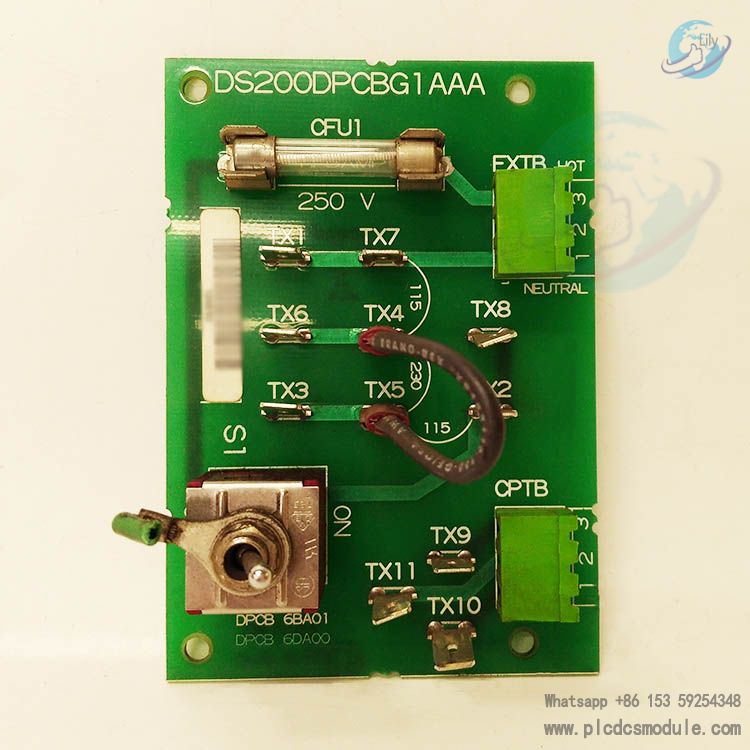

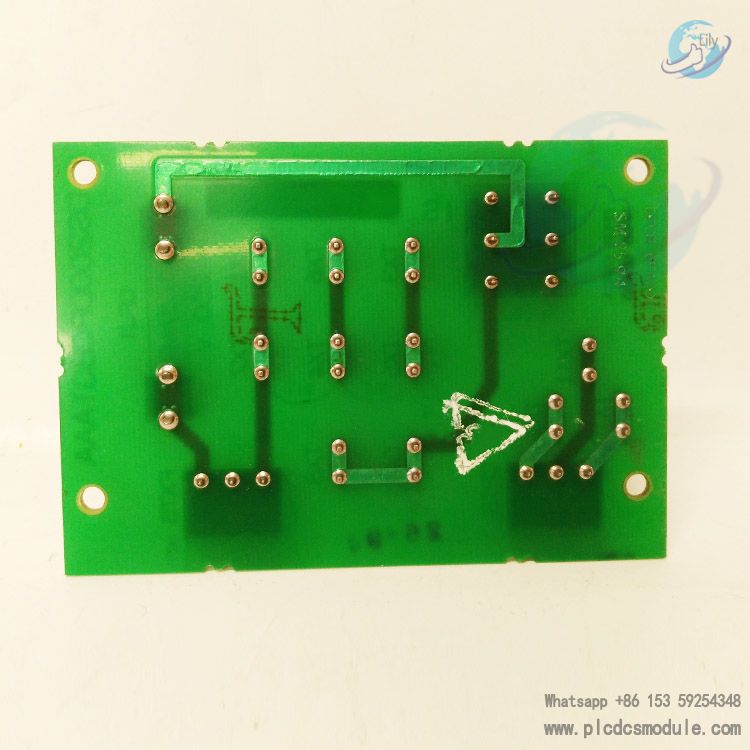

DS200DPCBG1AAA is a direct power connection board in the GE Mark V series, mainly used in the field of industrial automation. It provides stable power supply for equipment in the system and ensures communication between I/O modules and controllers.
Technical parameters of DS200DPCBG1AAA Mark V Direct Power Connect Board:
Input voltage range: 85~264VAC
Output voltage: 24VDC
Output power: 360W
Maximum output current: 10A
Operating temperature range: -25℃~70℃
Storage temperature range: -40℃~85℃
Protection class: IP30
Dimensions: 115mm×48mm×150mm
Weight: approximately 1.2kg
Functional features of DS200DPCBG1AAA Mark V Direct Power Connect Board:
Power supply: Provides stable power for I/O modules to ensure the normal operation of industrial automation systems.
Communication function: Equipped with an Ethernet connection interface and supports the Modbus RTU protocol, enabling data transmission between I/O modules and controllers.
Signal isolation: Has a signal isolation function, which enhances the system's anti-interference capability and improves system safety.
Fuse protection: Equipped with 1 fuse, which can protect the circuit board from damage when excessive current is applied to it. Whether the fuse is blown can be judged by visually inspecting whether the internal components of the fuse are intact; if it is blown, a fuse with the same rating needs to be replaced.
Redundant design: Supports redundant power input to improve system reliability, ensuring the normal operation of the system even when some power supplies fail.
