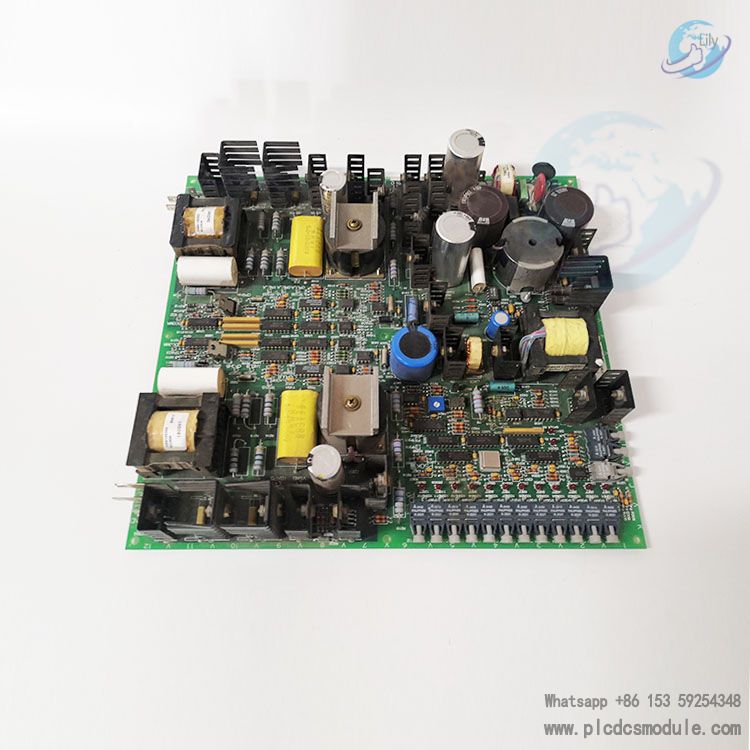

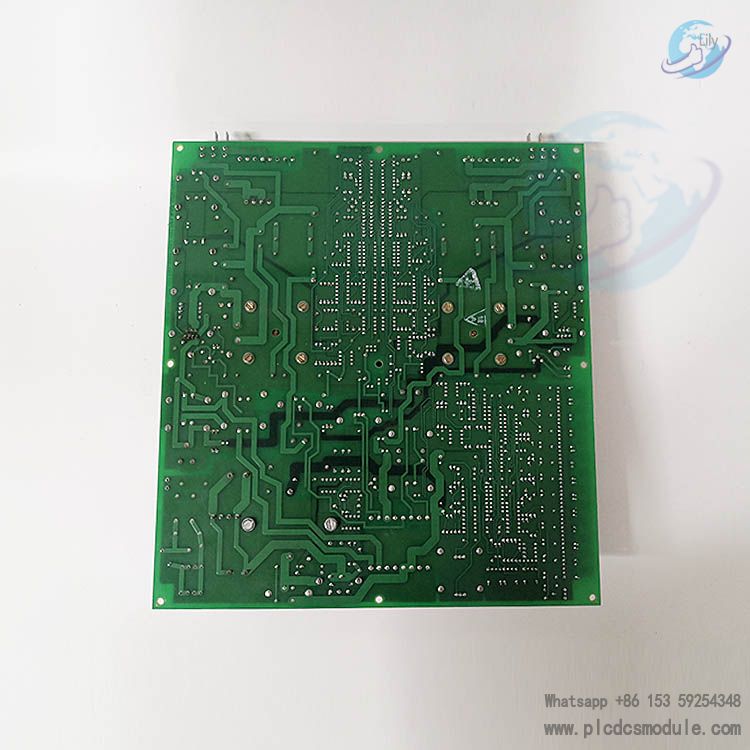

DS200FGPAG1AHD is a high-performance gate pulse amplifier board manufactured by General Electric (GE). It belongs to the LS2100 series and is mainly used to drive power semiconductor devices such as IGBTs and MOSFETs, with wide applications in fields like industrial drives and power conversion.
Technical Parameters:
The input voltage range is typically 115-230VAC, which can be extended to 90-260VAC.
The output voltage is ±25V, the output current is ±10A, and the power consumption is 250W.
The operating temperature range is generally -40°C to 85°C, and the storage temperature range is -40°C to 85°C.
The protection grade is IP20.
The dimensions are approximately 170mm × 105mm × 32mm, and the weight is about 120g.
It has 16 input/output channels, and the communication interface is Modbus TCP/IP.
Functional Features of GE DS200FGPAG1AHD Mark VI Gate Pulse Amplifier Board:
This amplifier board has a built-in gate driver and status circuit, with SCR status monitoring, switching power supply and gate driving functions. It can accumulate battery voltage information through up to 12 FHVA devices and send it back to the load commutated inverter device via an optical data link. It is also equipped with 15 optical fiber connectors to ensure reliable data transmission.
