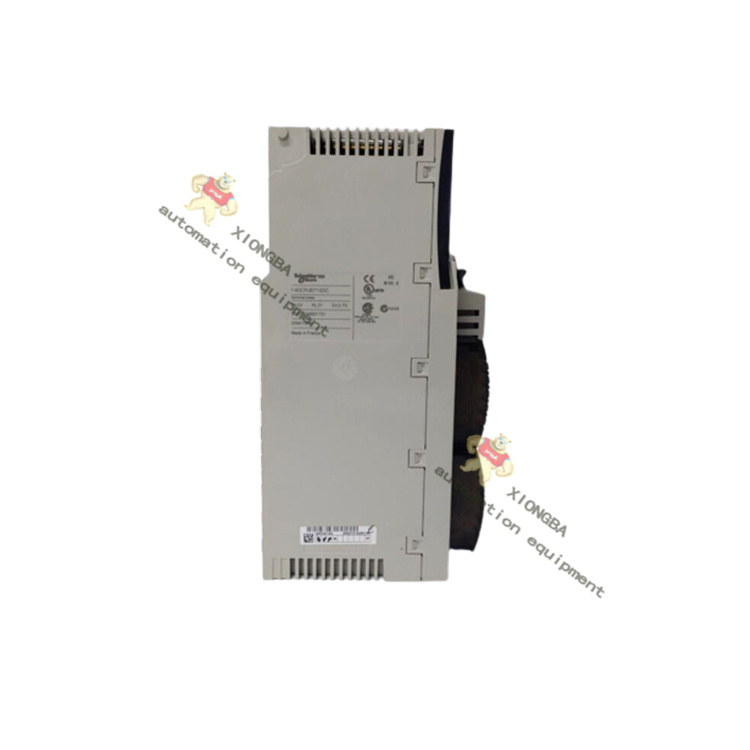

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. 140CPU67160C Processor Overview
The 140CPU67160C is a Unity hot-standby processor of Schneider Electric Modicon Quantum automation platform. Equipped with a multimode Ethernet interface, 1024 kB memory, and a 266 MHz clock frequency, it is designed for high-reliability control scenarios in industrial automation. The processor supports hot-standby redundancy mode and multi-network communication, enabling robust and flexible system integration.
Data Sheet
Schneider 140CPU67160C datasheet.pdf
Specifications and Parameters
Hardware and Performance
- Processor Configuration: 266 MHz clock frequency, supports hot-standby protocol, equipped with mathematical coprocessor.
- Memory Structure: 1024 kB internal RAM (512 kB for data storage), expandable to 7168 kB program memory and 8 MB file storage via PCMCIA card.
- Instruction Execution Efficiency: 20 Kinst/ms for pure Boolean instructions, 15 Kinst/ms for a mix of 65% Boolean and 35% numerical instructions.
- I/O Capability:
- Discrete I/O: Unlimited Ethernet remote I/O (up to 31 branches, 28 slots per branch); local I/O disabled in hot-standby mode. Each distributed Modbus Plus network supports 31744 inputs/outputs.
- Analog I/O: Unlimited Ethernet remote I/O (31 branches × 28 slots); local I/O disabled in hot-standby mode. Each distributed Modbus Plus network supports 1984 inputs/outputs.
- Special Function I/O: Integrated high-speed interrupt inputs (supporting precise timestamping) and serial links.
Communication and Networking
- Built-in Interfaces: 1 Modbus Plus, 1 Modbus (RS232/485), 1 USB, and 1 multimode fiber optic interface (for hot-standby master-slave interconnection, up to 4 km).
- Expansion Modules: Supports 6 optional modules (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max).
- Connectivity: Local support for 6 Ethernet TCP/IP, 6 Modbus Plus, and 6 Profibus DP connections; distributed/remote support for networks like AS-Interface.
Hot-Standby Features
- Master and slave PLCs are interconnected via MT-RJ fiber optic interface. Functions such as fast tasks and I/O interrupt tasks are disabled in hot-standby mode.
Electrical and Environmental Parameters
- Power Requirement: Backplane current of 2500 mA, requiring external power supply.

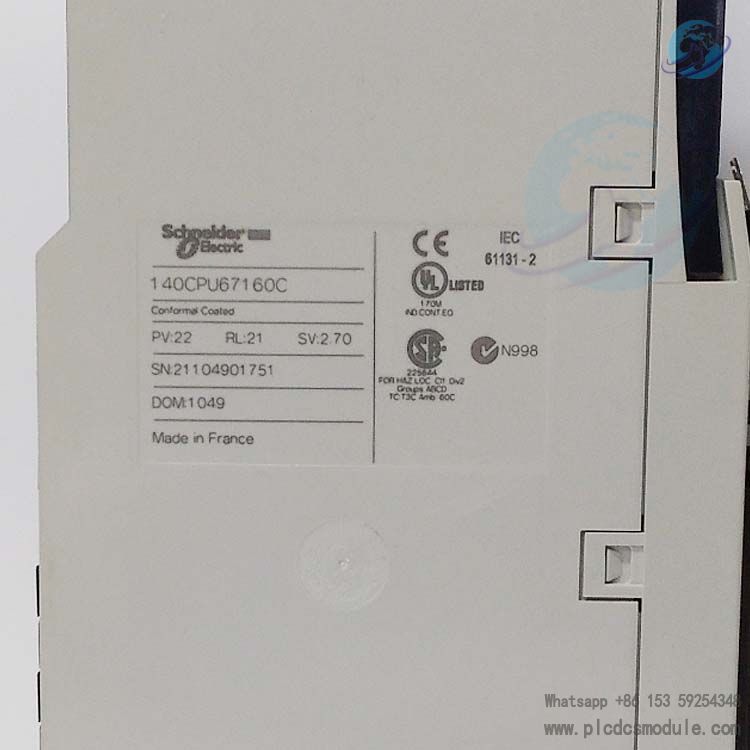

- Certifications and Compliance: Certified by UL, CE, CSA, GOST; RoHS compliant since 0901; SVHC-free per REACH; classified as a Green Premium product.
- Protective Treatment: Surface coated with Humiseal 1A33 conformal coating for adaptability to harsh environments.

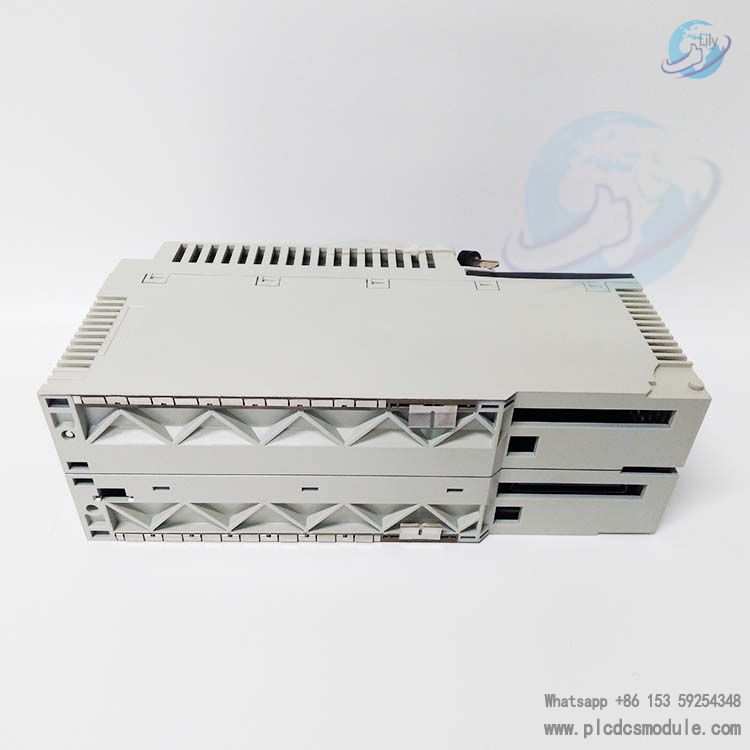

Physical Characteristics
- Installation: Compatible with 2/3/4/6/10/16-slot racks, supports 2 local racks.

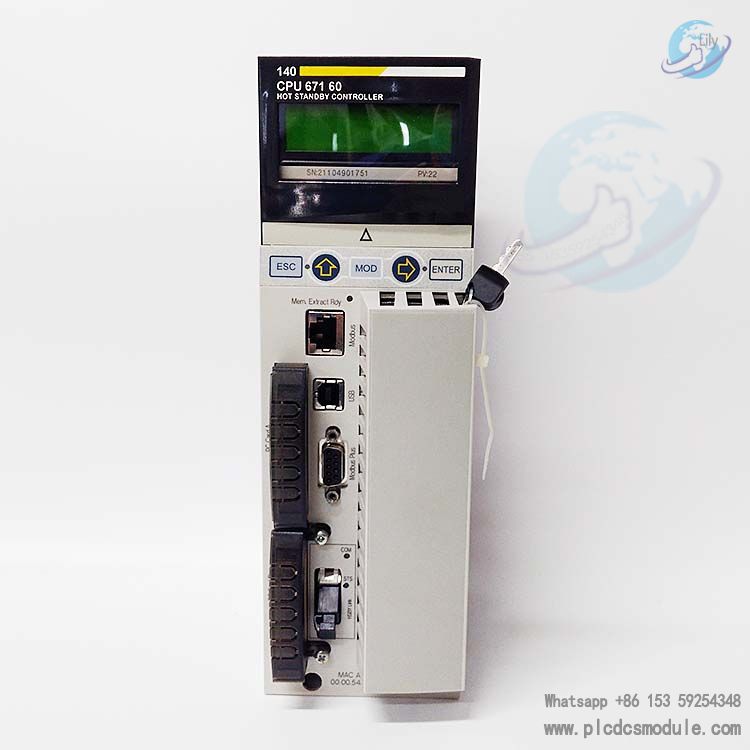

- Interface Types: RJ45 (Modbus bus), SUB-D 9 (Modbus Plus), MT-RJ (fiber optic).
- Status Indicators: Ethernet activity (green LED) and Ethernet collision (red LED).
Applications and Compatibility
- Industrial Scenarios: Suitable for automation systems requiring high reliability, such as redundant control in energy and manufacturing sectors.
- Network Deployment: Supports 63 distributed I/O stations and remote I/O stations (16 X80 Ethernet racks / 31 Quantum Ethernet racks / 31 S908 racks).
Notes
- Partial task functions are limited in hot-standby mode, requiring configuration based on actual requirements.
- Use PCMCIA cards for memory expansion to ensure compatibility and stability.
