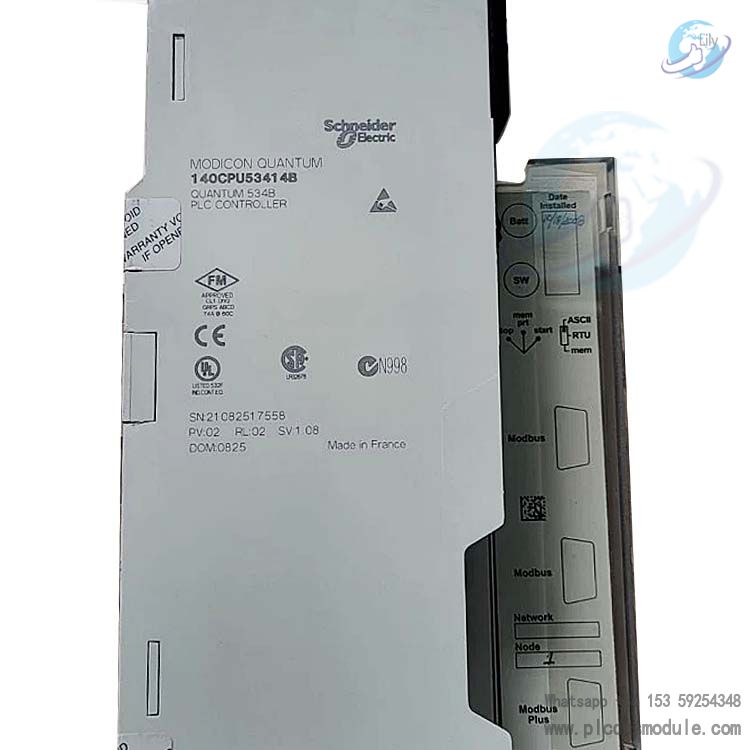

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The SCHNEIDER 140CPU53414B is a concept processor of the Modicon Quantum automation platform. Based on the 80486 chip and equipped with a mathematical coprocessor, it has now been discontinued. Its core functions include high-speed data processing, distributed I/O control, and multi-network compatibility, making it suitable for complex control tasks in industrial automation scenarios.
Data Sheet
SCHNEIDER 140CPU53414B.pdf
Specifications and Parameters
Hardware and Performance
- Processor Type: 80486 with a mathematical coprocessor, clock frequency 100 MHz.
- Memory: 2972 kB internal RAM, supporting efficient program operation and data storage.
- Instruction Execution Speed: LL984 instruction execution time of 0.1–0.5 ms, meeting real-time control requirements.
- I/O Capability:
- Distributed: 30 inputs / 32 outputs.
- Local Maximum: 64 inputs / 64 outputs.
- Remote: 64 inputs / 64 outputs.
- Network: 500 inputs / 500 outputs (distributed), supporting 63 distributed nodes and 31 remote nodes.
- Communication Networks: Supports 2 remote networks and 3 distributed networks, suitable for multi-device collaborative control.
Electrical and Environmental Parameters
- Power Requirements: Backplane current 1250 mA, requiring external power supply.
- Operating Temperature: 0–60°C (32–140°F); storage temperature -40–85°C (-40–185°F).
- Humidity: 95% non-condensing environment, adaptable to humid industrial field conditions.
- Anti-Interference Capability:
- Electrostatic discharge: 4 kV contact, 8 kV air (compliant with IEC 801-2).
- Electromagnetic field: 10 V/m at 80–2000 MHz (compliant with IEC 801-3).
Battery and Storage
- Battery Type: Lithium battery with a capacity of 1.2 Ah, typical current 10 µA (standby) to 420 µA (operating).
- Battery Life: Approximately 10 years, used for backing up real-time clocks and configuration data.
Physical Characteristics
Dimensions and Weight
- Weight: 1.87 lbs (0.85 kg); packaging weight: 1.37 lbs.
- Compatible with 2-slot, 3-slot, 4-slot, 6-slot, 10-slot, and 16-slot rack mounting.
Interfaces and Control
- Equipped with a key switch to support hardware-level operational authority management.
Ordering and Support
- Product Number: 140CPU53414B, belonging to the 18150-class Quantum controller.
- Ordering Information: GTIN code 00785901639107, single package contains 1 unit, origin France.
- Service Status: Discontinued; contact the customer service center for alternative solutions.
Notes
