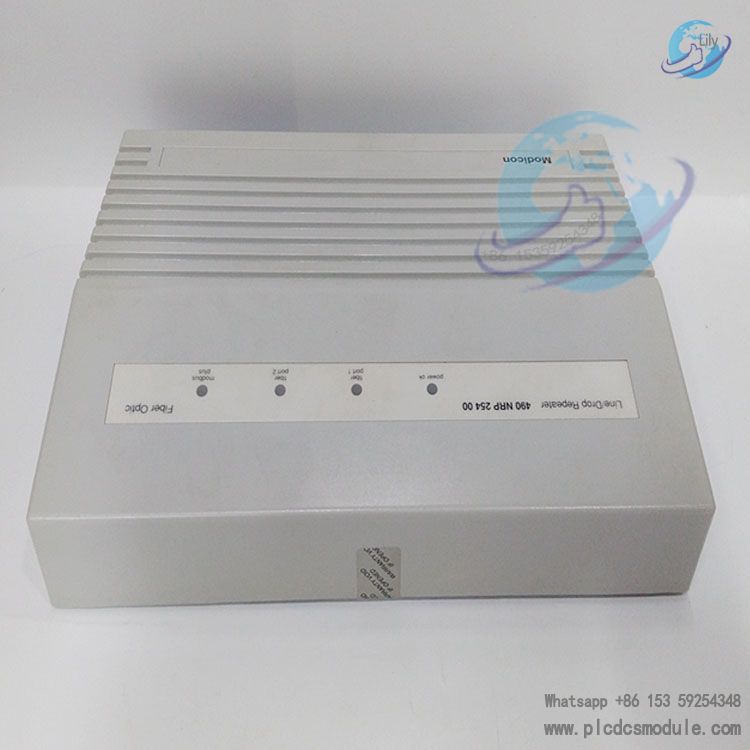

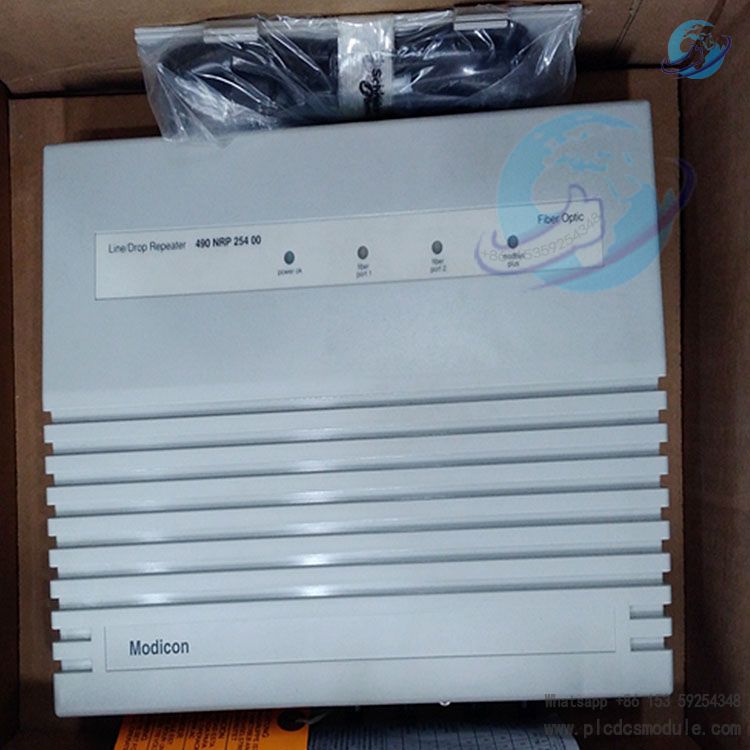

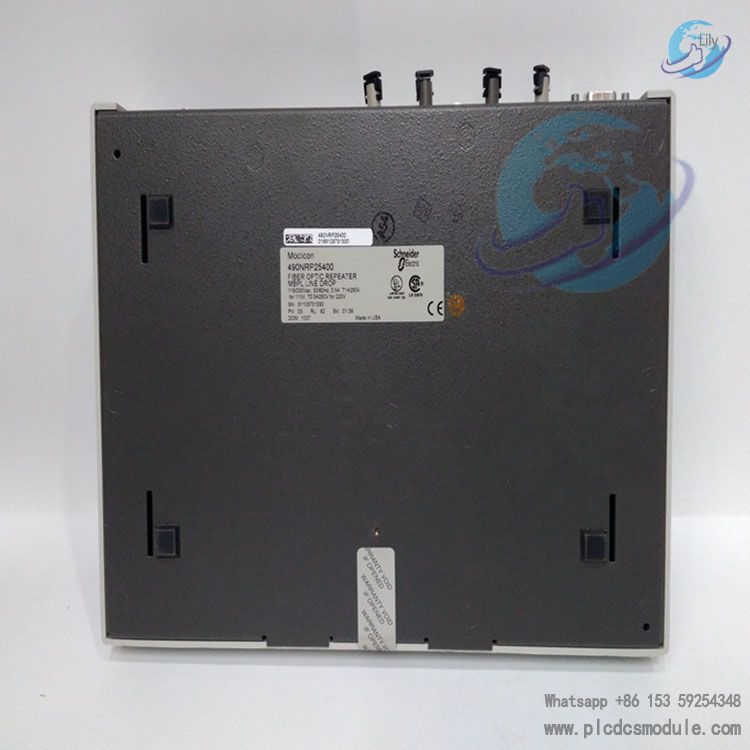

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The 490NRP25300 is a high-performance fiber optic repeater exclusively developed by Schneider Electric for the Modicon Premium/Quantum automation platforms. It is positioned as a long-distance data transmission solution tailored for industrial environments, leveraging professional optical signal amplification and regeneration technologies to address the pain points of signal attenuation and limited transmission distance in industrial sites. As a key communication component connecting PLCs, HMIs, DCSs and other devices, it delivers stable and high-speed communication support for automation systems.
As an industrial-grade communication device, its core value is reflected in three key dimensions:
Breaking distance limitations: Significantly extending the coverage of fiber optic networks to meet the communication needs of large-scale factories and long-distance production lines.
Ensuring transmission reliability: Industrial-grade design with electromagnetic interference resistance, dustproof and moisture-proof features, guaranteeing zero packet loss during data transmission in harsh environments.
Seamless system integration: Compatible with mainstream industrial communication protocols, enabling easy integration into existing automation architectures and reducing upgrade costs.
Core Functions and Technical Features
- Long-Distance Transmission and Signal Optimization
- Signal Regeneration Capability: Automatically detects and amplifies weakened optical signals to avoid data distortion during transmission, enabling long-distance attenuation-free communication.
- Dual Fiber Type Support: Compatible with single-mode fiber (maximum transmission distance of 2km) and multi-mode fiber (maximum transmission distance of 500m), flexibly adapting to different scenario requirements.
- High-Speed Transmission Performance: Supports a maximum transmission rate of 100Mbps, meeting the low-latency needs of industrial real-time control and equipment monitoring.
- Industrial-Grade Reliability Design
- Wide Operating Temperature Range: Operating temperature from -20℃ to +60℃, storage temperature from -40℃ to +85℃, suitable for high and low-temperature industrial environments.
- Strong Anti-Interference Capability: The fiber optic transmission medium inherently isolates electromagnetic interference (EMI), adapting to high-interference scenarios such as machine tools and welding equipment.
- Protection Level and Durability: IP20 protection level for effective dust resistance; adopts high-quality aluminum alloy housing with high mechanical strength and long service life.
- Flexible Compatibility and Easy Deployment
- Multi-Protocol Support: Compatible with mainstream industrial protocols such as Modbus Plus, TCP/IP, and EtherNet/IP, adapting to Schneider and third-party automation equipment.
- Modular and Compact Design: Dimensions of only 125mm×72mm×60mm (wall-mounted installation) and weight of approximately 2.14-2.875kg, saving installation space.
- Simple Installation Method: Supports wall-mounted or rack-mounted installation, requiring no complex debugging and enabling quick integration into existing systems.
Detailed Technical Parameters
- Product Model: 490NRP25300
- Product Type: Fiber Optic Repeater (Point-to-Point Communication)
- Compatible Platforms: Modicon Premium/Quantum Automation Platforms
- Transmission Rate: Up to 100Mbps
- Operating Wavelength: 1310nm or 1550nm (single-mode); 850nm or 1310nm (multi-mode)
- Transmission Distance: Single-mode fiber: 2km; Multi-mode fiber: 500m
- Power Input: 24V DC
- Power Consumption: ≤6W (low-energy consumption design)
- Protection Level: IP20
- Dimensions (Length × Width × Height): 125mm×72mm×60mm (standard type); 130mm×272mm×350mm (wall-mounted type)
- Weight: 2.14kg-2.875kg

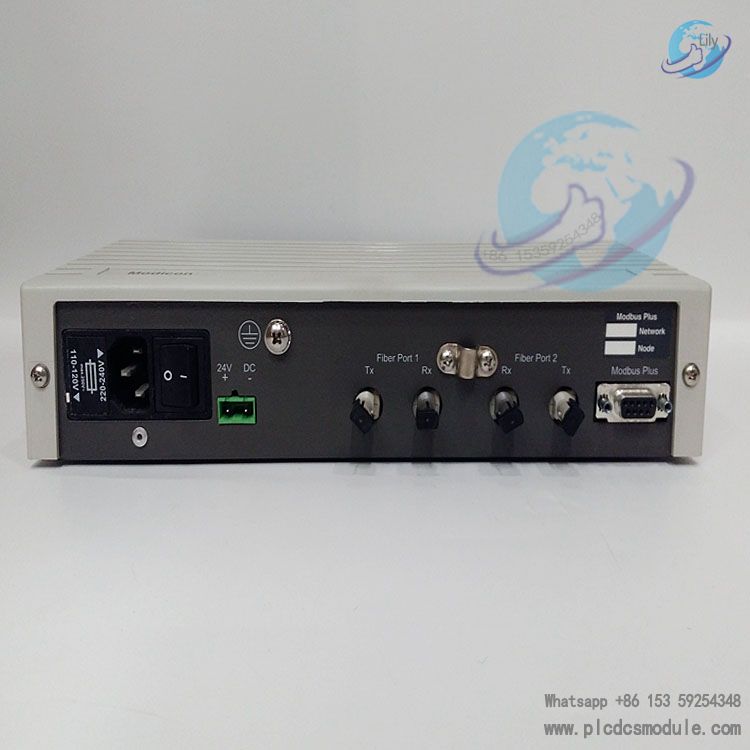

- Connector Type: ST-type fiber optic connector
- Applicable Altitude: Up to 1000 meters (above sea level)
- Relative Humidity: Maximum 80% RH (non-condensing)
