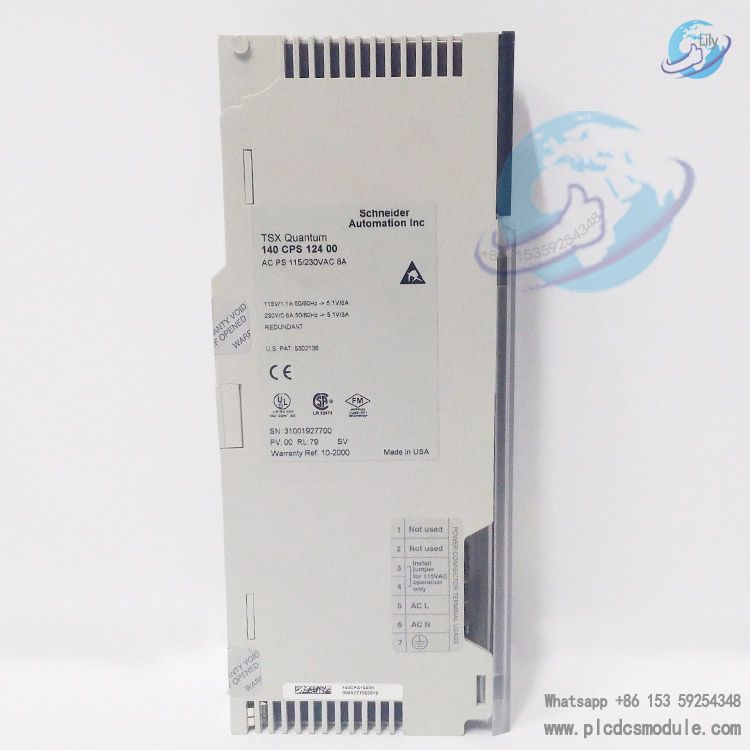

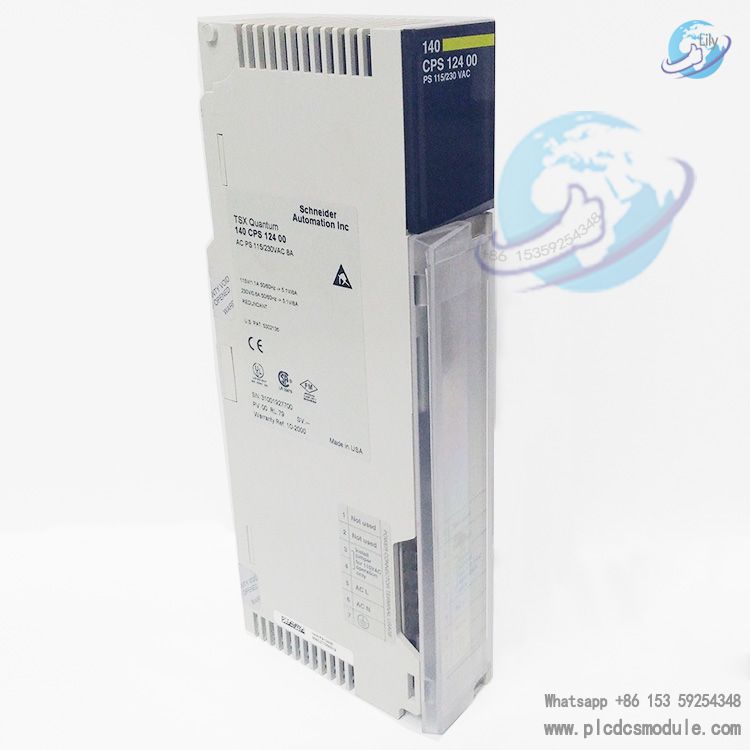

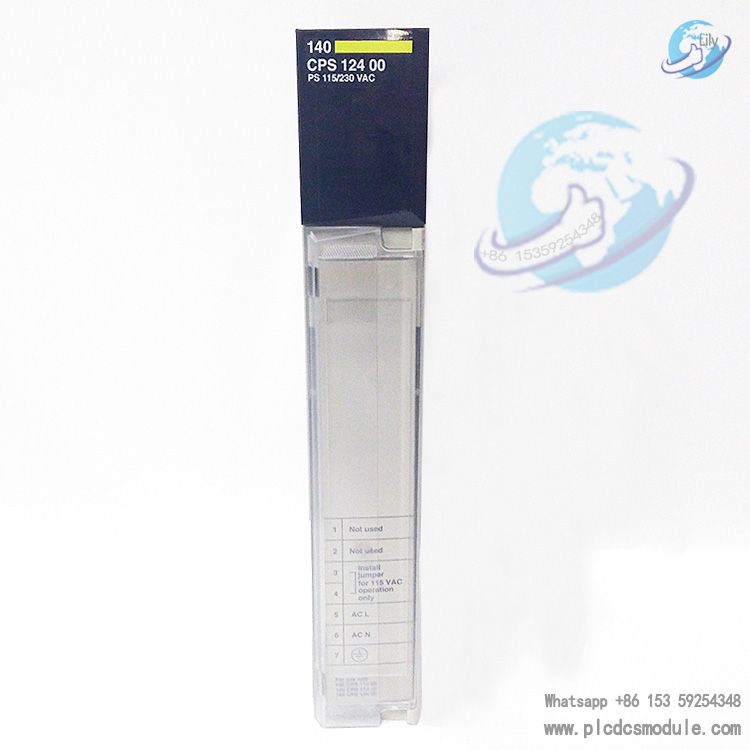

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The Schneider 140CPS12400 is a high-reliability redundant power supply module designed exclusively for the Modicon Quantum automation platform, engineered to deliver stable 5.1V DC power for industrial control systems. As a Green Premium product compliant with global standards, it’s ideal for critical applications requiring uninterrupted power, making it a top choice for manufacturing, energy, and infrastructure projects worldwide.
Data sheet download:
Schneider 140CPS12400.pdf
Key Specifications of Schneider 140CPS12400
Power Input & Output Parameters
- Input Voltage: Dual-range compatibility (115V AC: 93–138V; 230V AC: 170–276V) with 47–63Hz frequency support.
- Input Current: 1100mA (115V AC) / 600mA (230V AC); inrush current 38A (115V AC) / 19A (230V AC).
- Output Performance: 5.1V DC fixed output, 8A current capacity at 60°C (redundant mode) with 130VA rated power.
Protection & Safety Features
- Internal overvoltage and overload protection to safeguard connected automation components.
- Compliant with UL 508, CSA C22.2 No 142, and FM Class 1 Division 2 certifications for hazardous and industrial environments.
- Electrostatic discharge (ESD) resistance: 4kV contact / 8kV air (IEC 801-2); 10V/m electromagnetic field immunity (80–2000MHz, IEC 801-3).
Physical & Environmental Traits
- Standard module format, 0.65kg weight, fits Modicon Quantum racks (2–16 slots compatibility).
- Operating temperature: 0–60°C; storage temperature: -40–85°C; 95% relative humidity (no condensation).
- Maximum operating altitude: ≤5000m, suitable for high-elevation industrial sites.
Core Advantages of 140CPS12400
Redundant Power Assurance
Redundant design eliminates single points of failure, ensuring continuous power supply for critical automation processes. This minimizes downtime in mission-critical systems like production lines and power distribution networks.
Global Compliance & Sustainability
- RoHS compliant since date code 1350, meeting international environmental standards.
- REACh compliant (no SVHC above threshold) and labeled as a Schneider Green Premium product.
- Environmental product profile and end-of-life instructions available for eco-friendly disposal.
User-Friendly Design & Diagnostics
- Local green LED (PWR OK) for instant power status monitoring, simplifying on-site troubleshooting.
- Internal wiring for key connections (no external wiring required for core functions) reduces installation errors.
- Low power dissipation (6 + 1.5×Iout watts) for energy efficiency and reduced heat generation.
Application Scenarios
The 140CPS12400 is tailored for the Modicon Quantum automation platform, widely used in:
- Industrial manufacturing (assembly lines, robotic systems, process control).
- Energy sector (power plants, renewable energy facilities, grid management).
- Infrastructure (water treatment plants, transportation systems, building automation).
- Hazardous locations (FM Class 1 Division 2 certified for safe operation in potentially explosive environments).
Substitution Information
Note: The Schneider 140CPS12400 has reached end-of-life (EOL) with a substitution date of December 31, 2021. It is replaced by the BMXCPS4002 power supply module (X80 platform), featuring:
- 100–240V AC wide input voltage range.
- Embedded smart diagnostic functions for enhanced monitoring.
- Updated design (non-identical dimensions to 140CPS12400) with improved performance.
Why Choose Schneider 140CPS12400 (or Its Replacement)?
Schneider Electric’s legacy of industrial reliability ensures the 140CPS12400 (and BMXCPS4002) delivers consistent performance in harsh industrial conditions. With global certifications, redundant protection, and sustainability compliance, it’s a trusted power solution for automation systems requiring uncompromised uptime.
