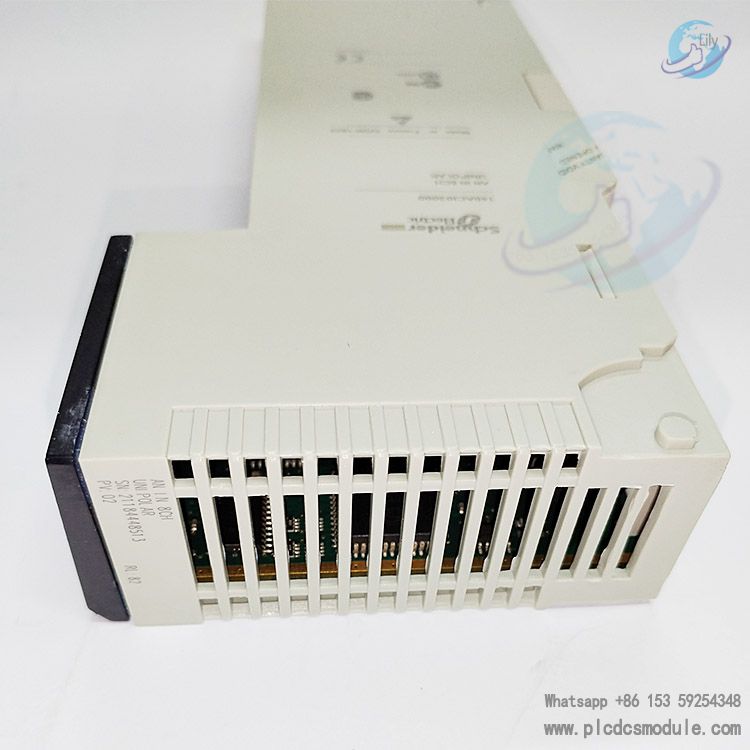

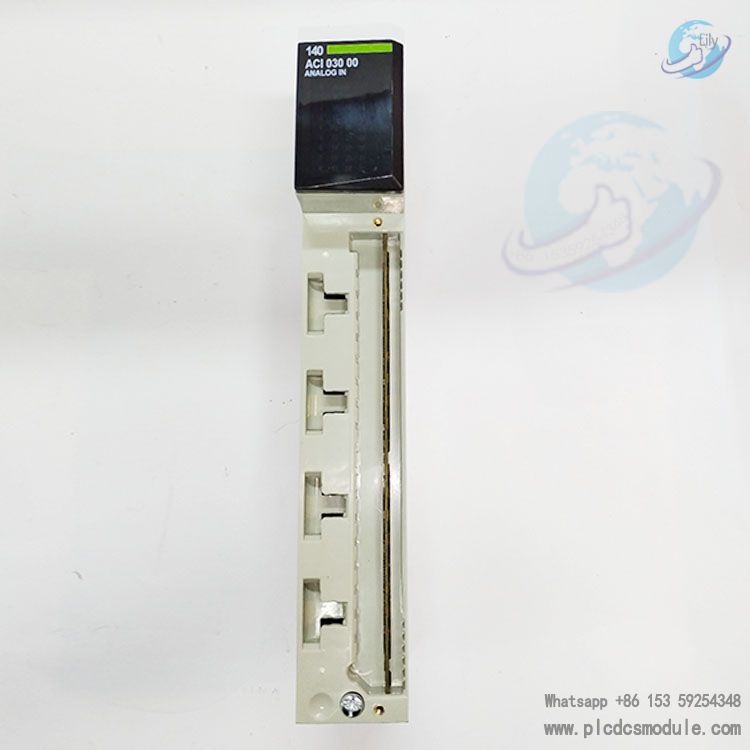

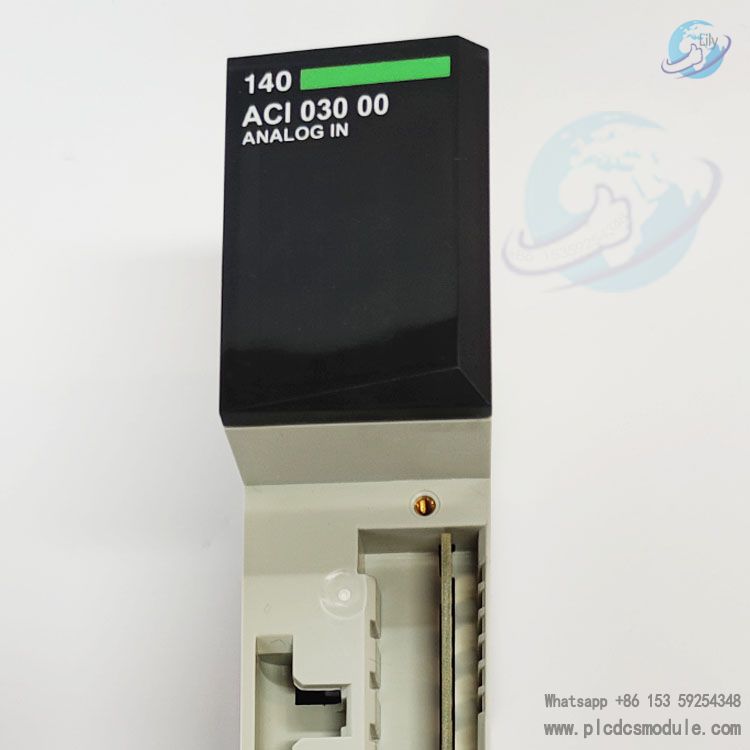

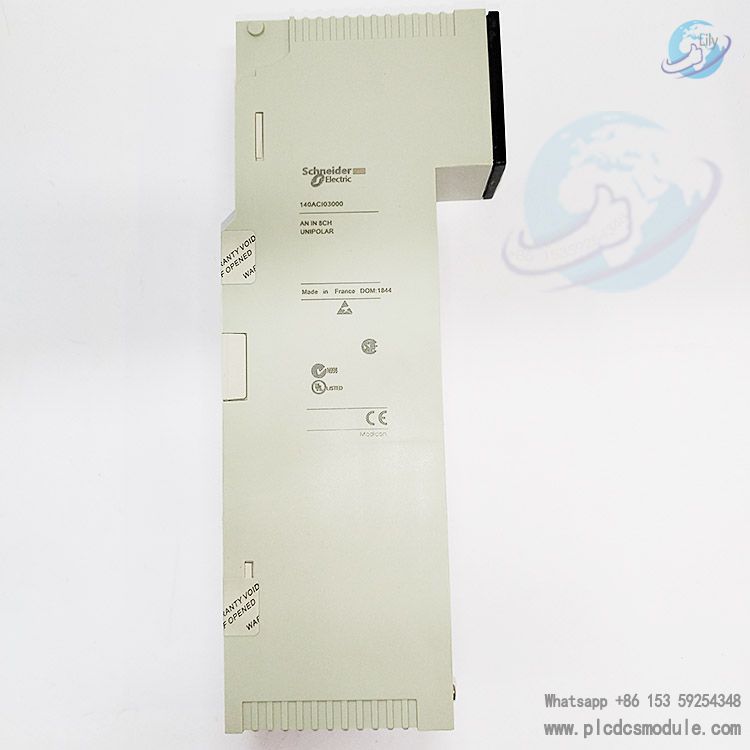

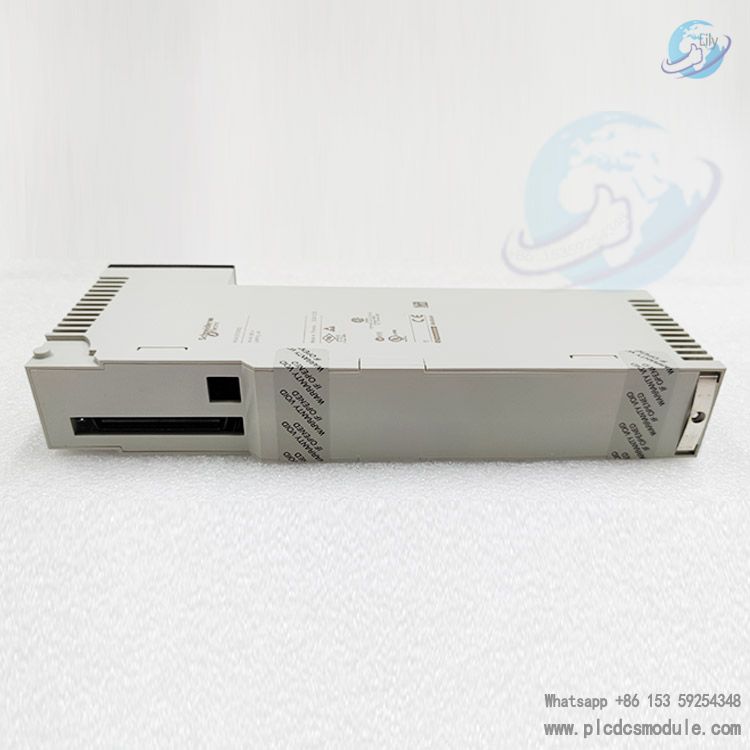

The 140ACI03000 analog input module is a key component of Schneider Electric's Modicon Quantum automation platform. It is widely used in the field of industrial automation, converting external analog signals into digital signals for PLC processing and control.
DATA SHEET
Superior core parameter performance: It has 8 analog input channels with a differential input method, requiring 9 input words for addressing and a resolution of 12 bits. The linear measurement range supports 1...5V voltage and 4...20mA current, with absolute maximum inputs of 50V DC and 25mA. In terms of input impedance, the current input is 250Ω±0.01% and the voltage input is greater than 20MΩ. The absolute accuracy error is controlled within ±0.1% (maximum) and ±0.05% of the full scale, the linearity error is ±0.04%, and the temperature accuracy drift is ≤0.005%/°C of the full scale and ±0.0025%/°C of the full scale. The common-mode rejection ratio is ＞-72dB (at 60Hz), ensuring the accuracy and stability of signal acquisition.
Significant advantages in isolation and update: The isolation voltage between channels and the bus is 3000V DC (sustained for 60s) and 1000V DC, with 30V DC isolation between channels, which can effectively resist electrical interference. The update time is only 5ms, enabling rapid response to signal changes and ensuring system real-time performance.
Strong environmental adaptability: It complies with standards such as CSA C22.2 No 142 and UL 508, and has obtained product certifications including CUL and FM Class 1 Division 2. The anti-electrostatic discharge capability is 8kV (air discharge) and 4kV (contact discharge), and the anti-electromagnetic field capability reaches 10V/m (80...1000MHz). The operating ambient temperature is 0...60°C, the storage ambient temperature is -40...85°C, the relative humidity is 95% (non-condensing), and the operating altitude is ≤5000m, enabling it to adapt to various harsh industrial environments.
Sustainability and warranty guaranteed: It is a green and environmentally friendly product, compliant with the RoHS standard, and does not contain substances of very high concern (SVHC) exceeding the threshold. The contractual warranty period is 18 months, relieving users of worries during use.
