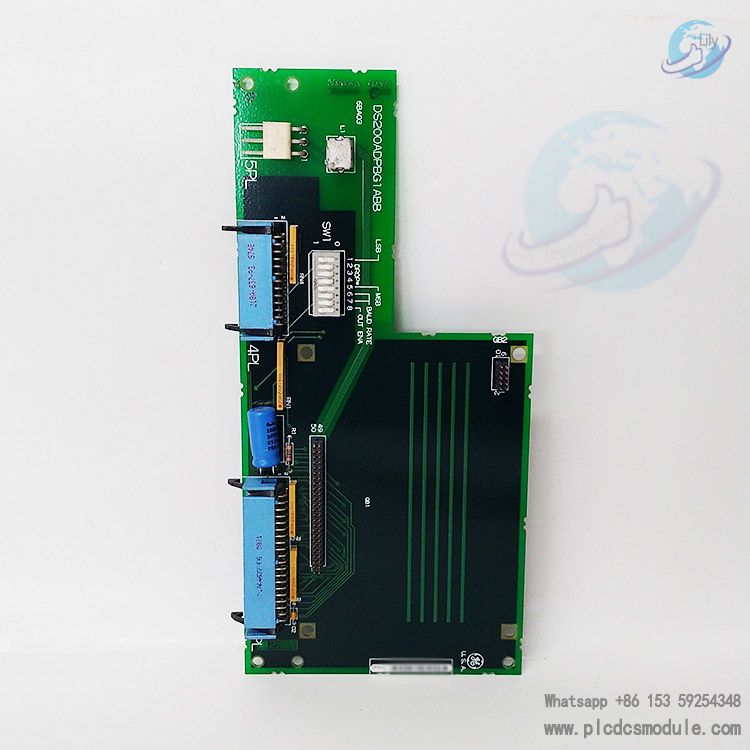

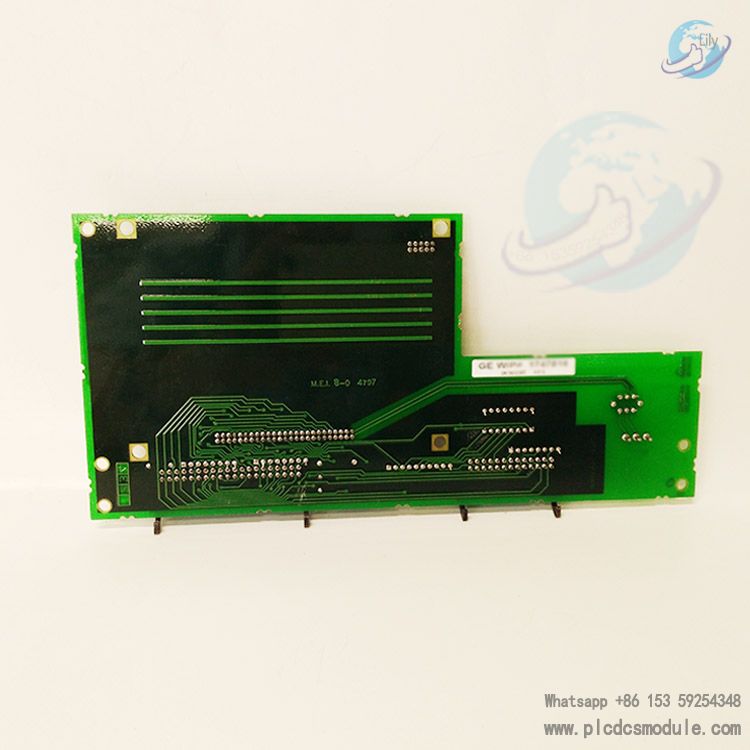

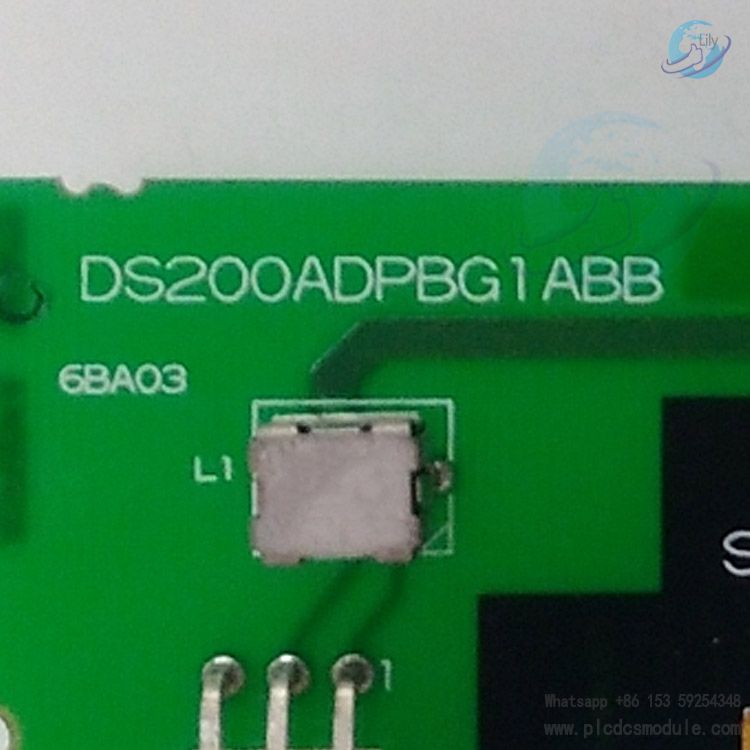

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The GE DS200ADPBG1ABB Genius I/O Adapter Board is an I/O adapter board launched by General Electric for drive control systems. It belongs to the Mark V series and is widely used in fields such as industrial automation and embedded systems.
Specifications
- Power supply: +5V DC, 6A
- Relay channels: 12
- Power supply: 28V DC
- Mounting method: DIN rail mounting
- Technology: Surface Mount Technology
- Operating temperature: -30°C to +65°C
- Dimensions: 15.9 cm in height x 17.8 cm in width
Functional Features of GE DS200ADPBG1ABB Genius I/O Adapter Board
I/O Interfaces: Provides analog and digital channels, capable of connecting various sensors and actuators such as temperature sensors, pressure sensors, potentiometers, motors, and solenoid valves.
Communication Capabilities: Supports communication interfaces including UART, SPI, I²C, and Ethernet, facilitating seamless communication with other devices, microcontrollers, or computers.
Signal Conditioning: Equipped with signal conditioning circuits for voltage adjustment, filtering, and amplification, ensuring accuracy and reliability of data exchange between connected devices.
Relays and Isolation: Features relay outputs for managing high-power equipment, with isolation functionality to protect the system from electrical noise and voltage surges.
Customizability: Can be programmed and configured according to specific requirements to meet different application scenarios.
Software Support: Typically comes with corresponding software drivers or libraries, facilitating integration with host systems and simplifying development and implementation processes.

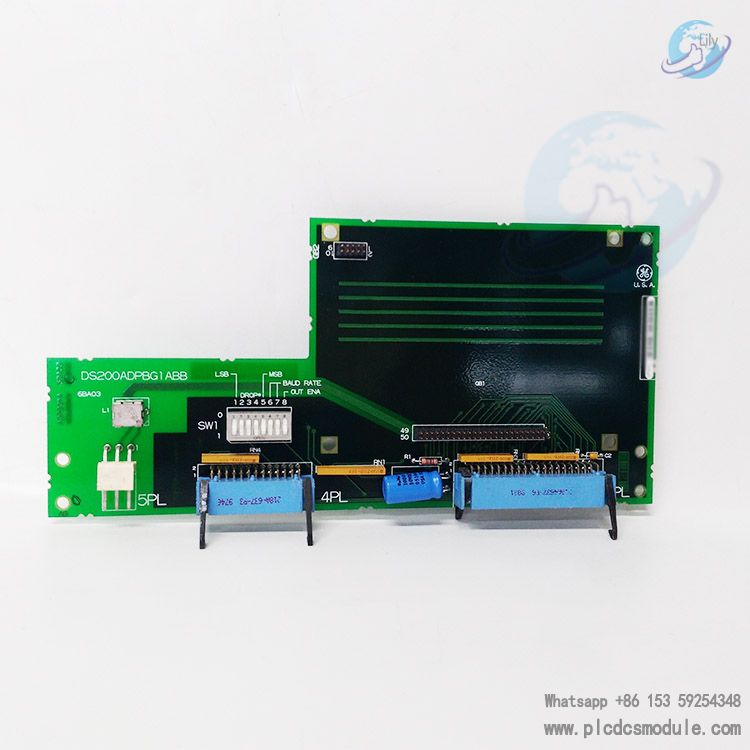

Design Details: Includes an 8-switch module for board configuration, a 40-pin connector, a 26-pin connector, and a cable fixing device to prevent accidental disconnection. The connected ribbon cable consists of multiple small wires; care must be taken during disassembly to avoid damage.
Application Fields: Widely used in industrial automation, embedded systems, robotics, etc., to realize the connection and integration of various I/O devices with central processing units or controllers.
