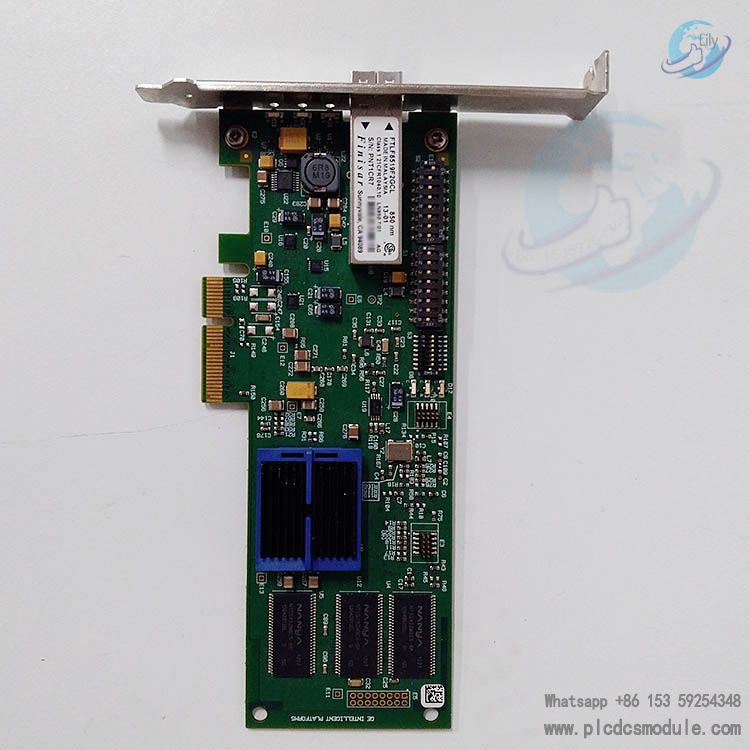

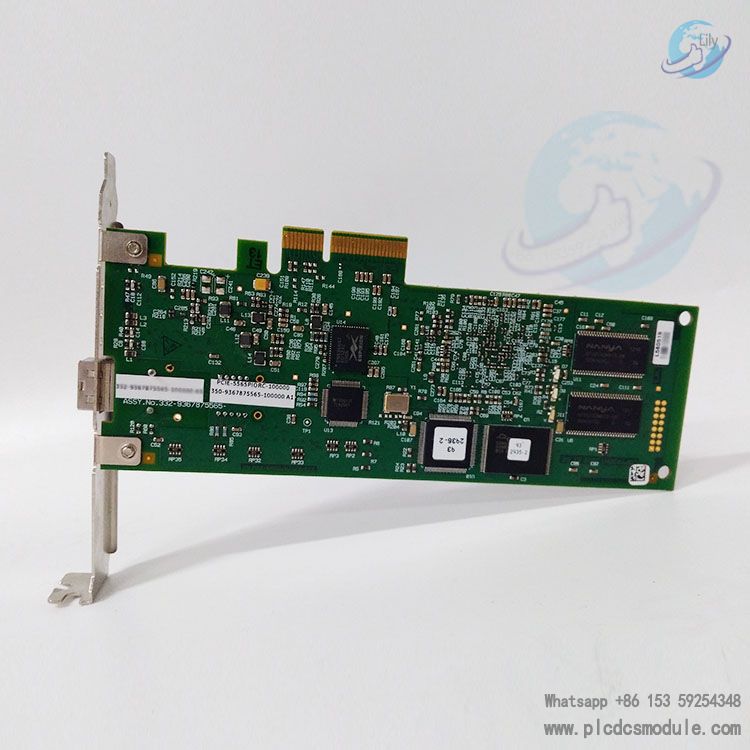

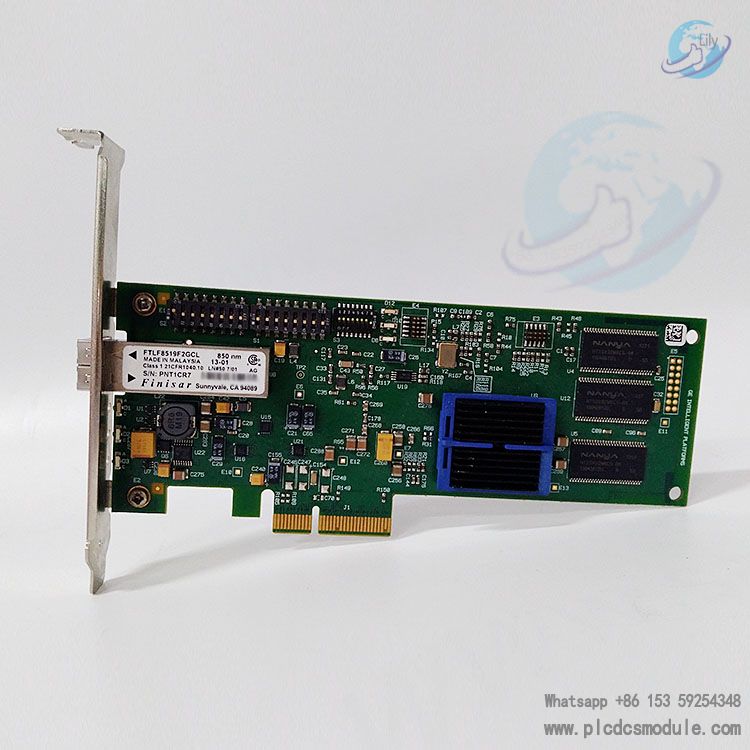

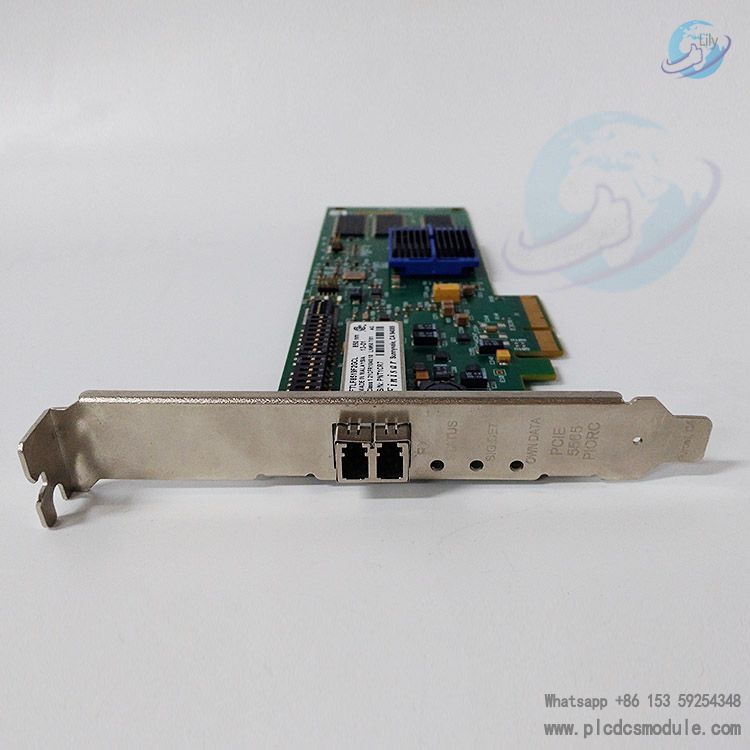

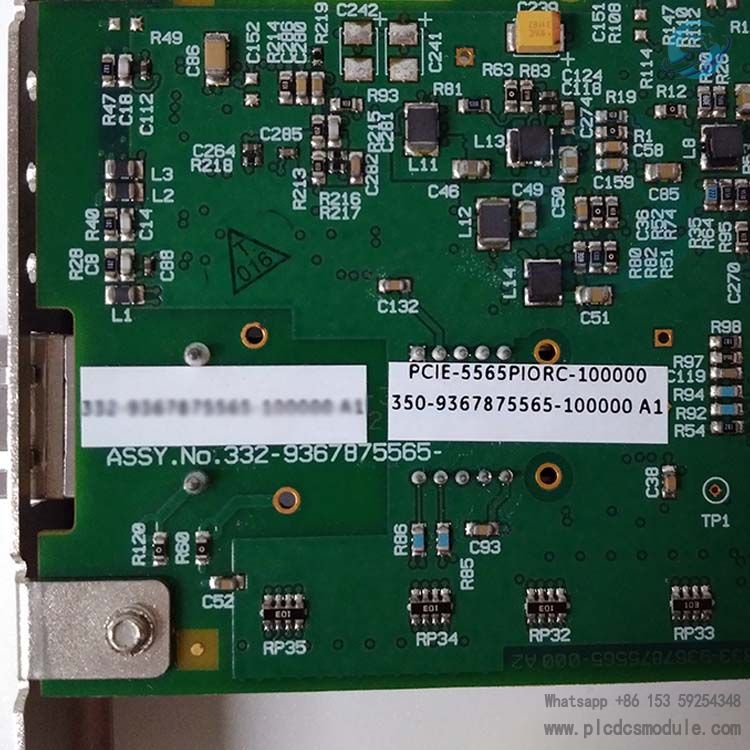

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. Launched by GE Intelligent Platforms, the PCIE-5565PIORC-100000 350-9367875565-100000 reflective memory (RFM) technology PCI Express interface node card is specifically designed for distributed processing scenarios to meet the application requirements of high real - time performance, determinism and the need for fast transmission of large amounts of data. Compared with general technologies such as Ethernet, it has core advantages such as low latency, no software overhead, bus and operating system independence, etc., and can realize real - time data sharing among multiple nodes.
Data Sheet
PCIE-5565PIORC.pdf
128MB onboard SDRAM, supporting multimode transmission.
- Non-redundant transmission rate: 43MB/s for single long-word access and 170MB/s for 64-byte burst mode.
- Redundant transmission rate: 20MB/s for single long-word access and 87MB/s for 64-byte burst mode.
- PCI transmission rate: Up to 528MB/s (66MHz/64-bit bus) depending on bus configuration, dynamically adjustable based on FIFO cache status.
- PCI Express transmission rate: 4 channels at 2.5Gbit/s.
- Operating temperature: 0°C to +65°C (requires forced air cooling).
- Storage temperature: -40°C to +85°C.
- Humidity: 20% to 80% (non-condensing).
+12VDC (±5%) with a maximum of 0.6A, and +3.3VDC with a maximum of 1.6A.
- Dimensions: 6.6 inches in length and 4.2 inches in height.
- Weight: 0.4 pounds.
- Cooling requirement: 300 LFM (feet per minute) air volume.
MTBF (Bellcore standard): 607,680 hours (approximately 69.4 years).
- Single-mode cable: Up to 820 feet (250 meters).
- Duplex cable: Up to 721 feet (219.7608 meters).
- Windows XP, Windows 7.
- Linux.
- VxWorks.
The product model is PCIE-5565RC-100000, which comes with 128MB memory and a multimode transmission configuration. It is suitable for scenarios requiring medium data capacity and multimode fiber transmission.
Features
- Low latency and deterministic transmission rate: Ensures predictable performance and high reliability for application deployment.
- Independent operating system and bus structure: Supports integration of different hardware platforms and operating systems into a unified shared memory network.
- Transparent data transmission between nodes: Eliminates processor overhead and improves performance.
- Error management and detection: Prevents data loss in memory space.
- Support for up to 256 nodes: Facilitates network expansion to meet application requirements.
- 2.12Gbaud serial connection speed: Accelerates data transmission between nodes.
- 128MB onboard SDRAM: Enables large-scale data sharing.
