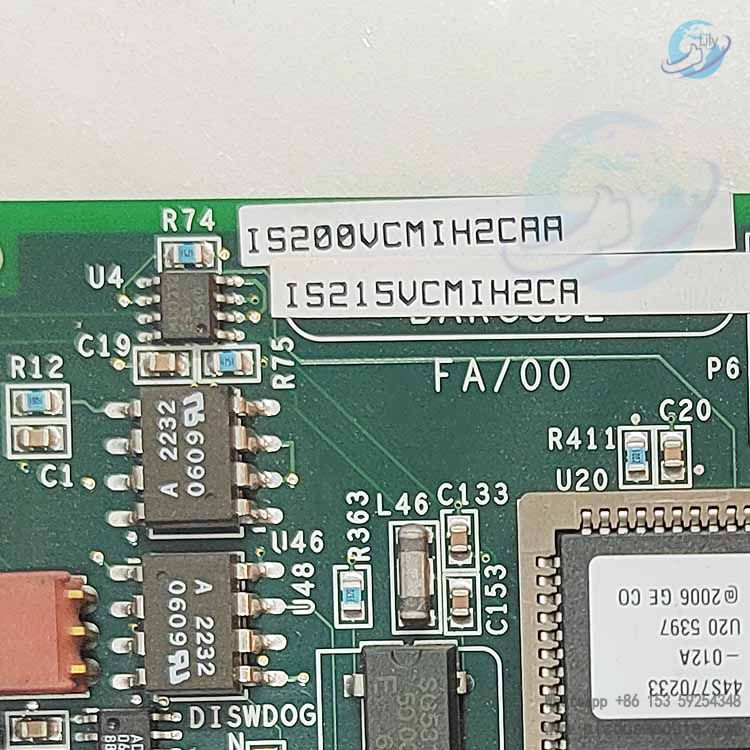

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The GE IS215VCMIH2CA IS200VCMIH2CAA are VME communication interface boards and crucial components of the Speedtronic Mark VI gas turbine control system. Their PCB boards serve as a connection between the I/O boards and the controller, as well as the communication interface for the system control network, IONet. The front panel is integrated with a four-port connector, including an RS-232C serial port, a D-type plug connector, and three IONet 10Base2 Ethernet connectors. Each IONet port is equipped with TX/RX/CD indicator lights. Additionally, there are LED indicators such as Status and Fail on the board. The design incorporates a TI 32-bit digital signal processor chip and three transformer components, which can effectively reduce high-frequency noise and ensure stable communication, playing an important role in fields such as industrial gas detection and gas turbine control.
As a link between I/O boards and controllers, and as the communication interface for the System Control Network (IONet), it enables communication between:
- Input/output (I/O) cards and other I/O cards installed on the VME backplane,
- I/O installed on expansion racks,
- I/O backup protection modules,
- Triple-redundant control modules, and
- Main processor modules.

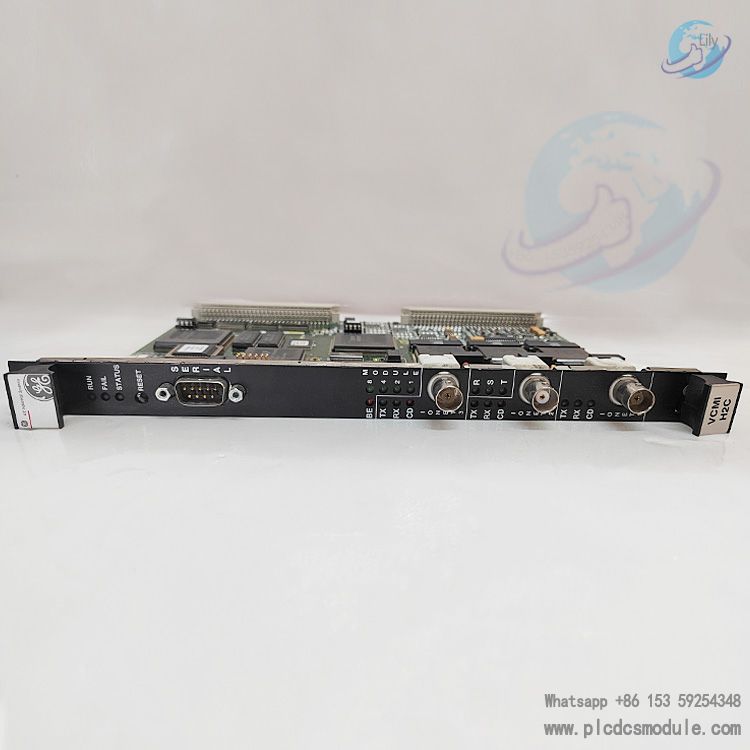

The front panel integrates a four-port connector, including:
- One RS-232C serial port,
- One D-type plug connector, and
- Three IONet 10Base2 Ethernet connectors.
Each IONet port is linked to three LED indicators labeled TX/RX/CD to display port status. Additionally, the board features LED indicators for Status, Fail, Run, and numerical indicators (1, 2, 4, 8) to show operational status.
- Design includes a TI 32-bit digital signal processor chip and three transformer components.

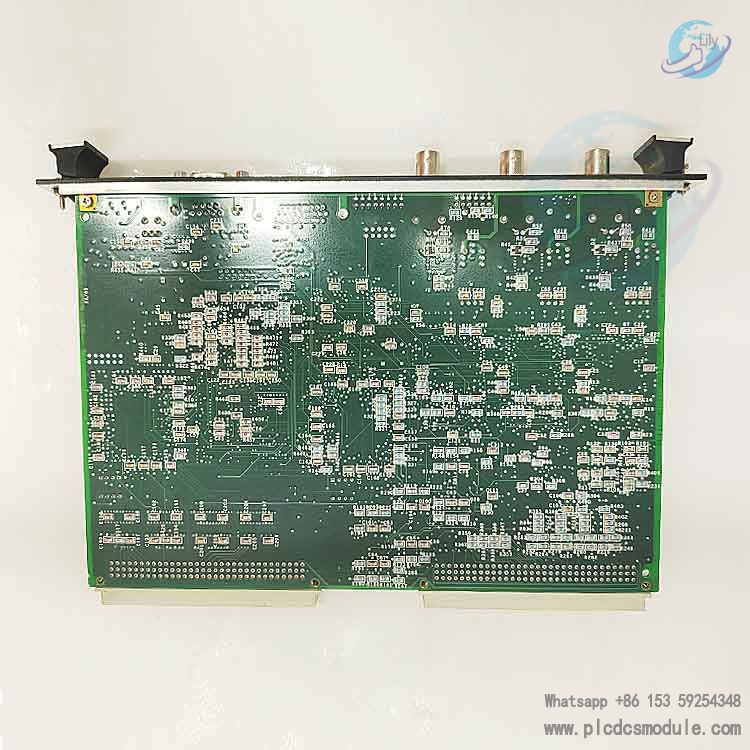

- The VME bus master control card contains over 50 integrated circuits (including oscillation chips). High-frequency noise on the circuit board is reduced via inductive beads.
Installation Location:
The IS200VCMIH2CAA is typically installed in the first slot of a VME rack.
Front Panel Features:
- An additional front panel is mounted to the front of the circuit board via screws.
- The panel features the GE logo and board identification number, along with:
- Three IONet connectors,
- One serial port (male) with screw terminals,
- A reset button, and
- Four sets of LED indicators.
Processor:
The IS200VCMIH2CAA is equipped with a Texas Instruments TMS320C32 processor, capable of handling complex control algorithms and data processing functions required in turbine control applications.
Operating Temperature:
- Operating temperature range: 0 to 60°C, suitable for various industrial environments.
