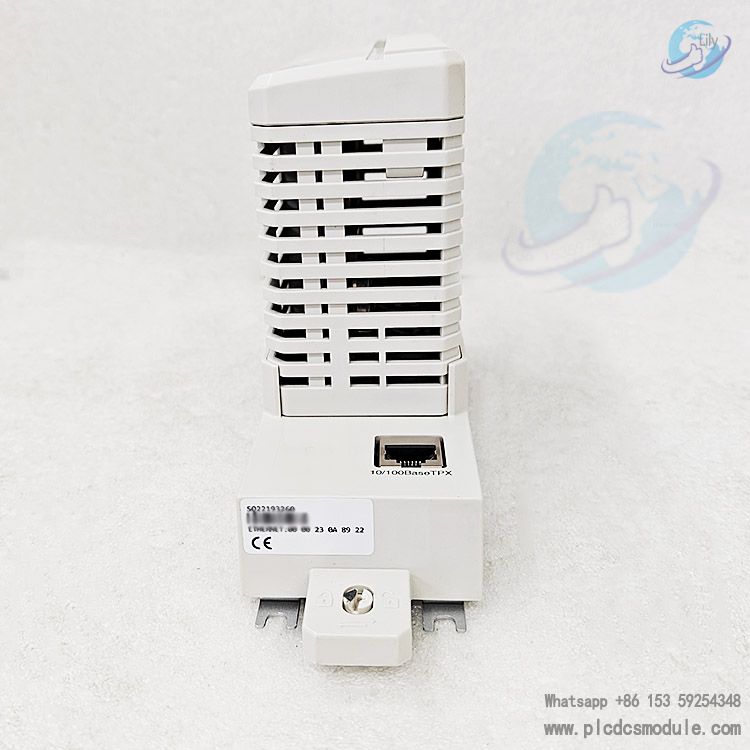

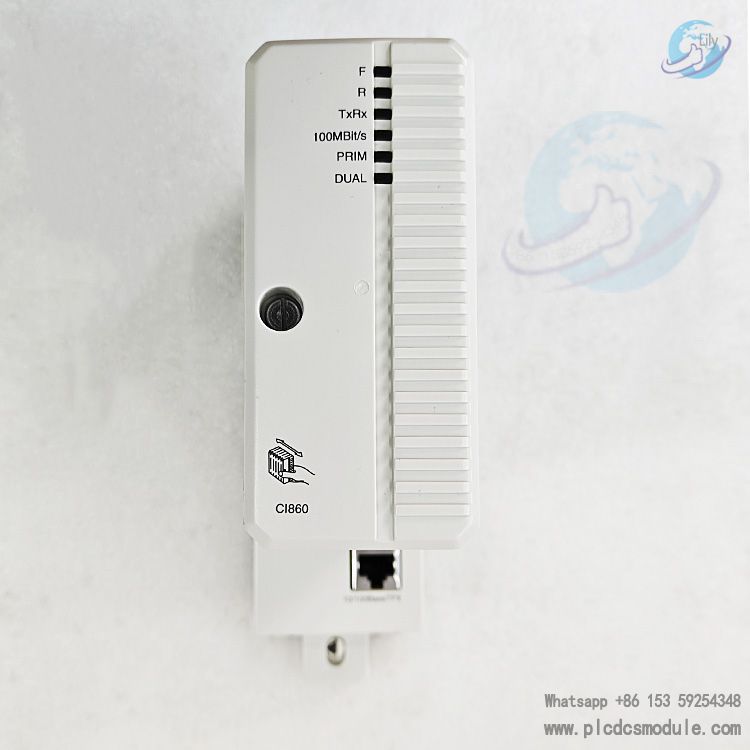

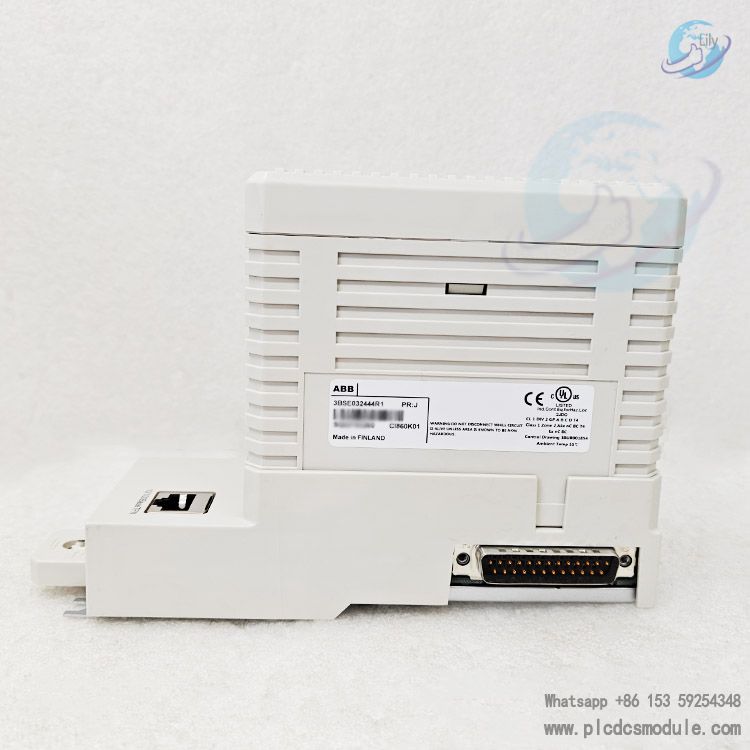

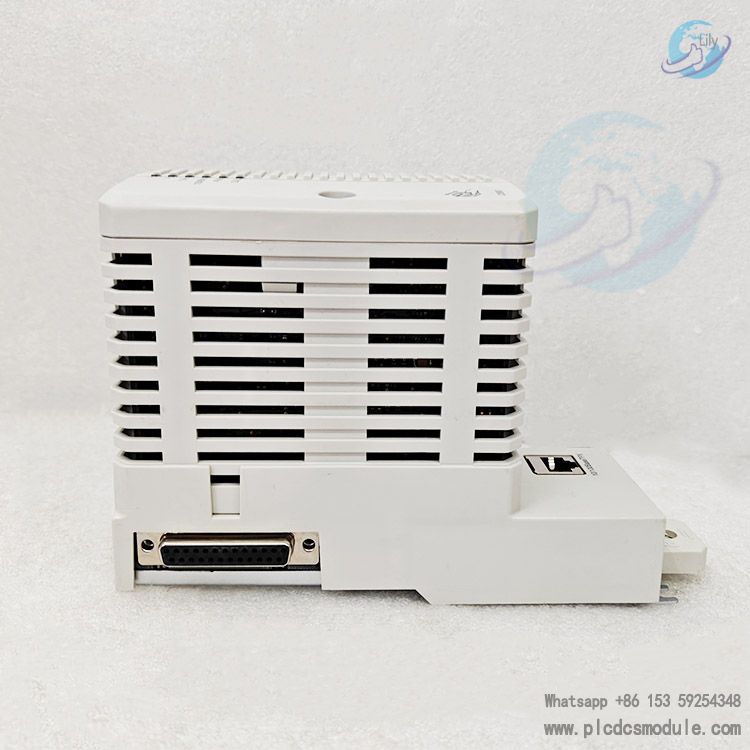

The CI860K01 3BSE032444R1 is a critical HSE interface module in the ABB 800xA system. It connects the FOUNDATION Fieldbus network to the AC 800M controller via high-speed Ethernet, supports data mapping and redundant configuration, and has industrial-grade environmental adaptability and compliance certifications. Its hot-swappable design and multi-module expansion capabilities make it suitable for complex industrial automation systems with high reliability requirements, enabling seamless integration between field devices and upper-level control systems.
Data Sheet
Core Functions
Data Communication:
Supports FOUNDATION Fieldbus HSE protocol with transmission rates of 10/100 Mbit/s.
Maps FF signal values and statuses to the AC 800M controller and transmits control commands in reverse.
Redundant Design:
Modules support redundant configuration to enhance system reliability.
Up to 12 CI860K01 modules (including redundant modes) can be installed in a single AC 800M controller, each connecting to the same or independent HSE subnets.
Gateway Collaboration:
Works with ABB FOUNDATION Fieldbus Link Devices LD800HSE/LD800HSE EX as a gateway between HSE subnets and up to four H1 links.
Technical Parameters
Communication Characteristics:
Master/Slave mode with RJ-45 female (8-pin) interface.
No wireless redundancy; modules themselves support redundancy.
Power Consumption:
24V DC, typical current 100mA, powered by the processor unit via the CEX bus (no additional external power required).
Interface Capacity: CEX bus supports up to 12 CI860K01 modules in parallel.
Environmental Adaptability
Operating Temperature: +5°C to +55°C (+41°F to +131°F).
Storage Temperature: -40°C to +70°C (-40°F to +158°F).
Protection Class: IP20 (protected against solid objects), compliant with EN60529/IEC 529.
Corrosion Resistance: G3 level, compliant with ISA 71.04, suitable for moderately corrosive industrial environments.
Physical Specifications
Dimensions
Weight
Installation Features
Application Scenarios
Industrial Automation
System Integration
