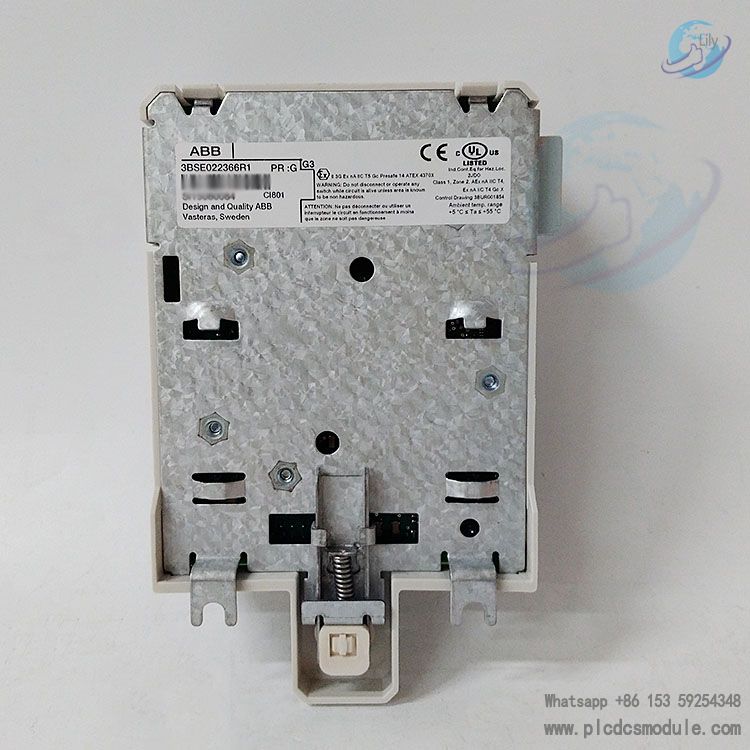

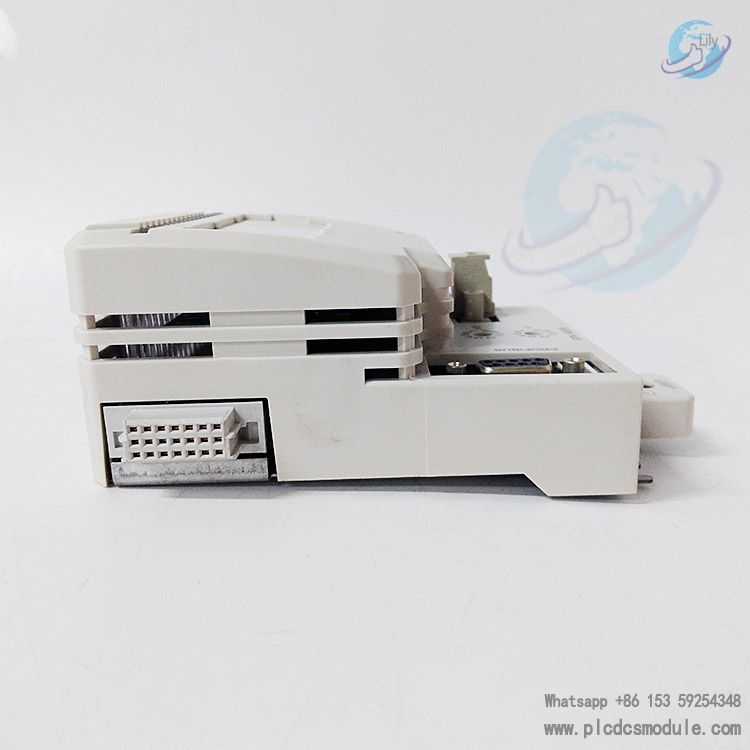

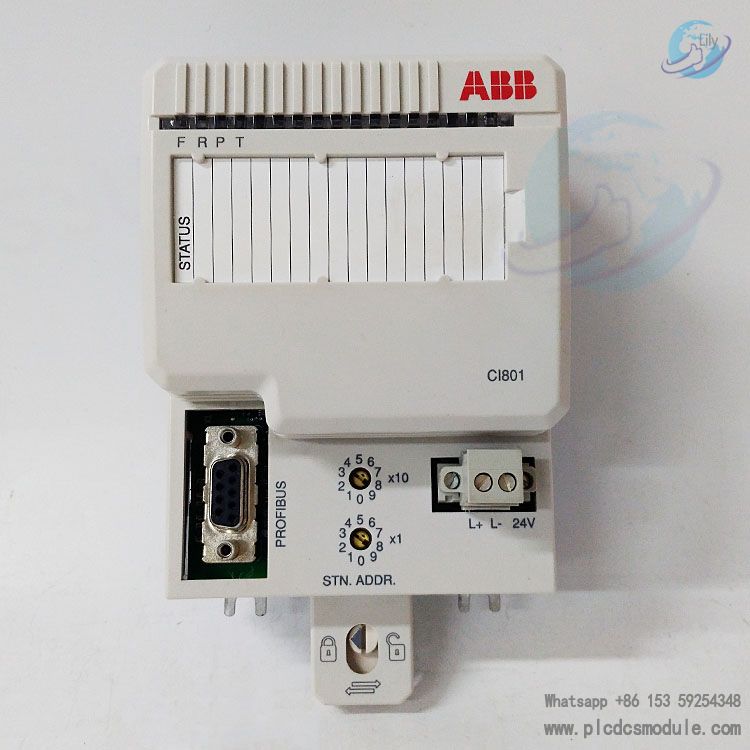

The CI801 3BSE022366R1 is a compact Fieldbus Communication Interface (FCI) module in ABB S800 I/O system. As a key component of the distributed modular process I/O system, it communicates with upper-level controllers and PLC via the PROFIBUS-DPV1 fieldbus. It can perform operations such as signal processing, monitoring information collection, OSP processing, hot configuration during operation, HART pass-through, and I/O module configuration.
Data Sheet
Core Functions and Advantages
Communication Capability: Equipped with a PROFIBUS DP-V1 fieldbus interface to enable efficient data interaction with controllers.
Monitoring Management: Monitors the I/O module bus to ensure real-time mastery of the system operating status.
Power Supply Characteristics: Provides isolated power to I/O modules, enhancing power supply stability and safety.
Operational Processing: Supports OSP (Operator Station) processing and configuration to meet requirements of different operational scenarios.
Safety Design: The input power is equipped with a fuse to effectively prevent damage to the module caused by faults such as overcurrent.
Flexible Configuration: Supports Hot Configuration In Run, allowing system configuration adjustments without shutdown.
Protocol Support: Supports HART protocol pass-through to enable communication and data transmission with intelligent devices.
Technical Parameters
Environmental Parameters
Operating Temperature: 0°C to +55°C (+32°F to +131°F); applicable temperature for some certifications: +5°C to +55°C.
Storage Temperature: -40°C to +70°C (-40°F to +158°F).
Pollution Degree: Class 2 (IEC 60664-1).
Corrosion Protection: Complies with G3 level of ISA-S71.04 standard.
Relative Humidity: 5% to 95% (non-condensing).
Maximum Ambient Temperature: 40°C (104°F) for vertical installation; 55°C (131°F) for conventional installation.
Protection Class: IP20 (in accordance with EN60529 and IEC 529 standards).
Physical Specifications
