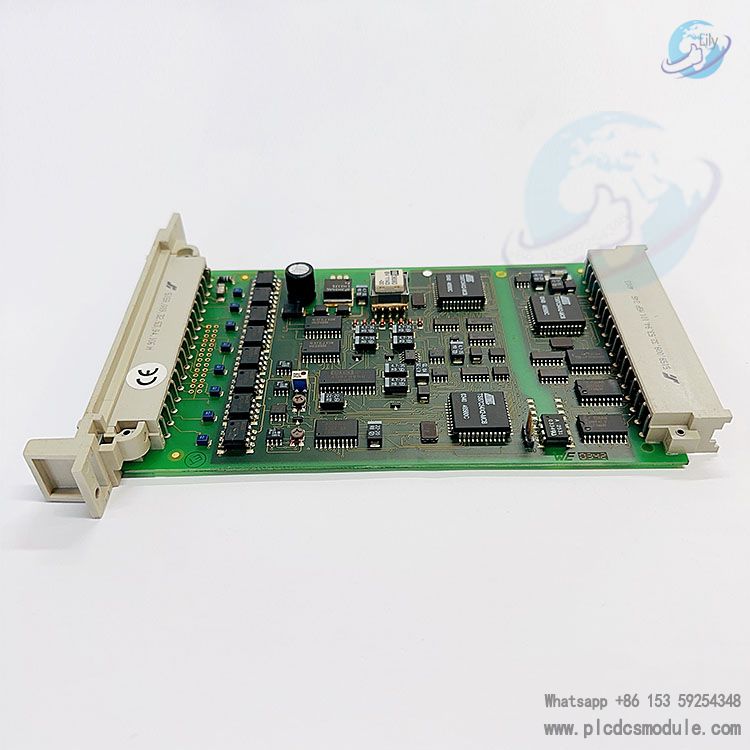

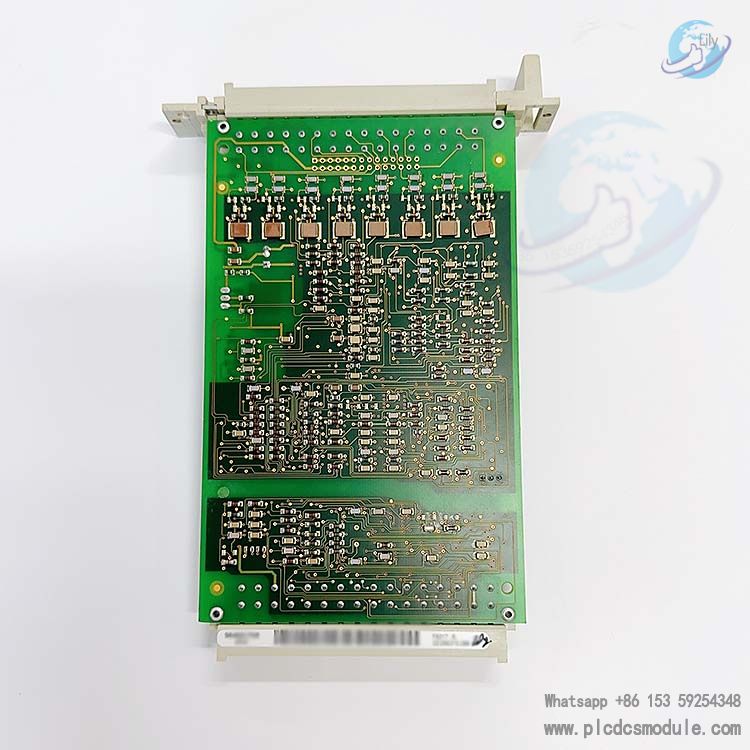

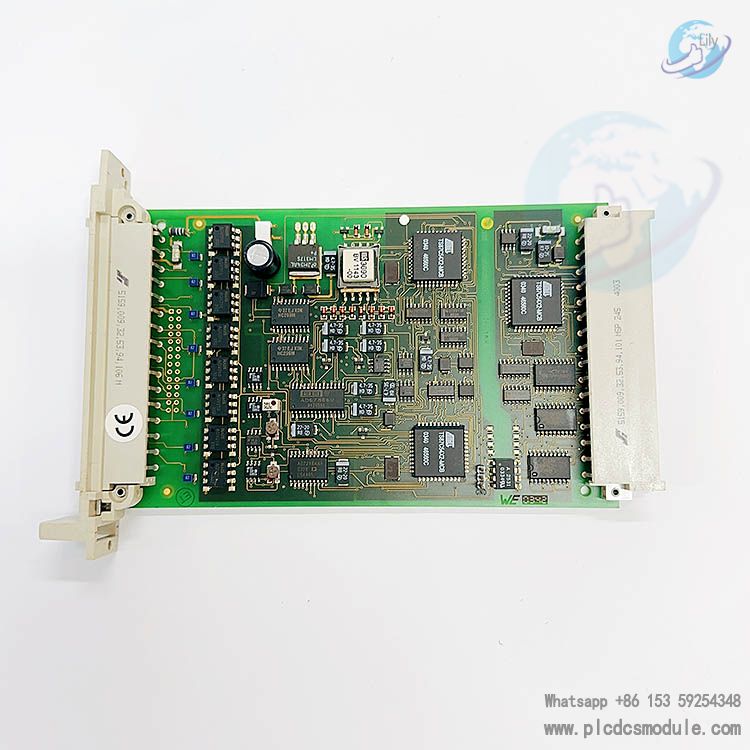

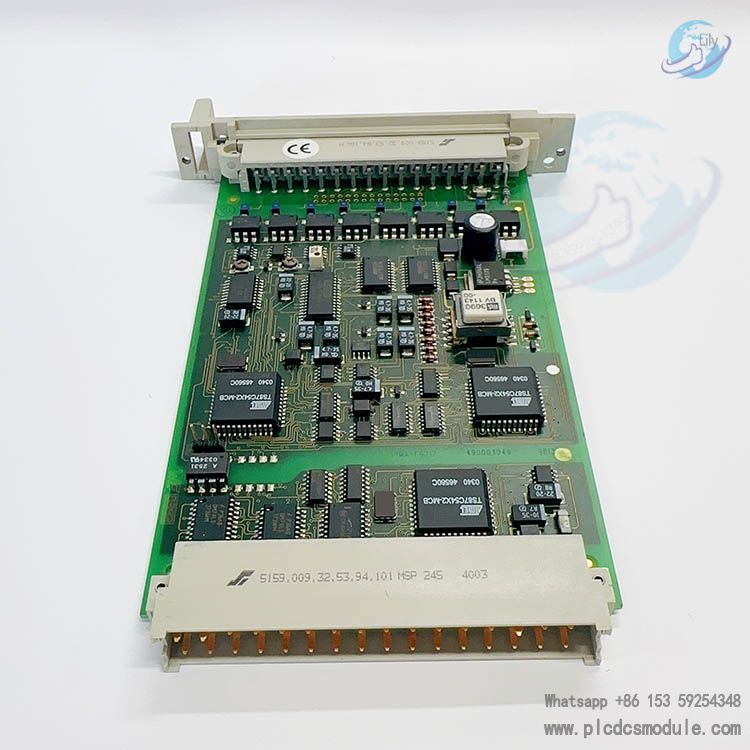

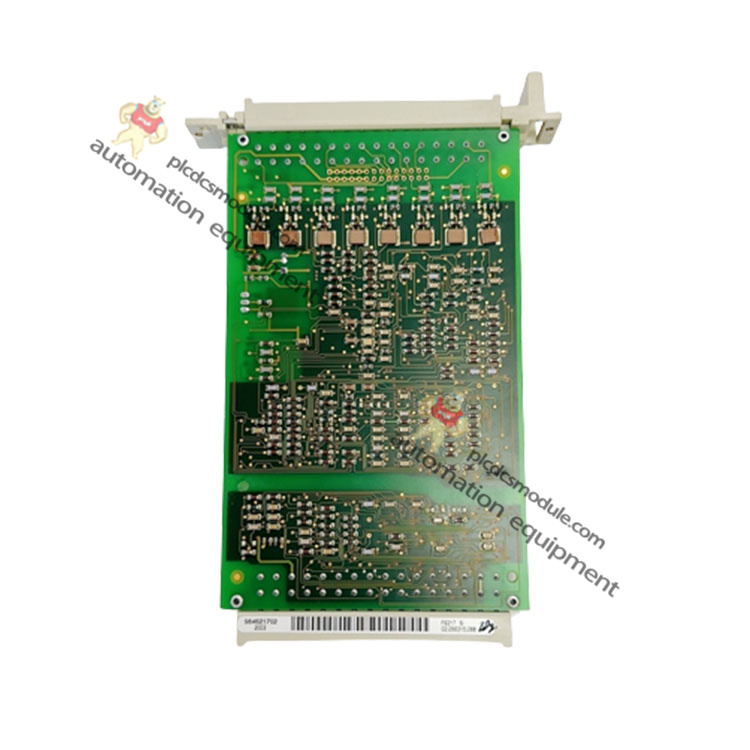

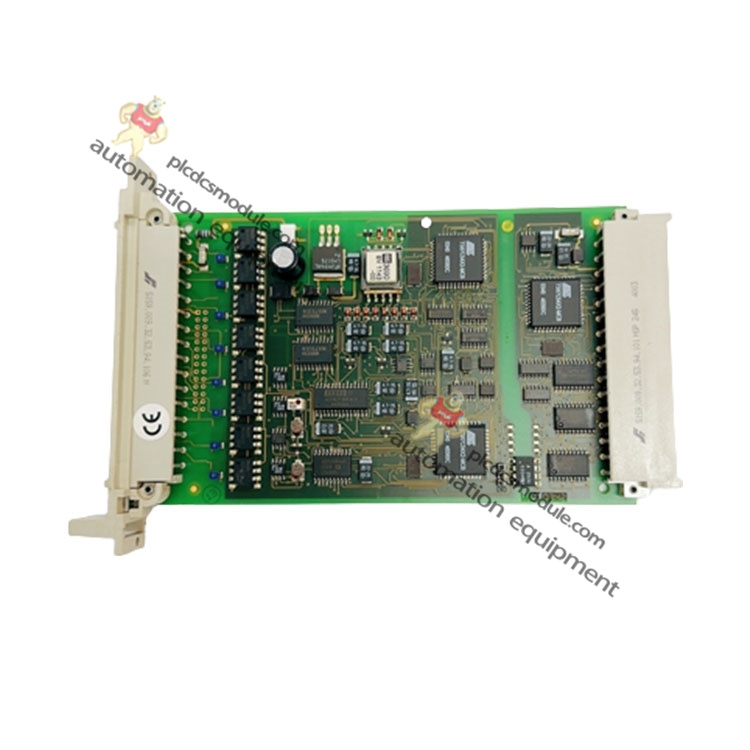

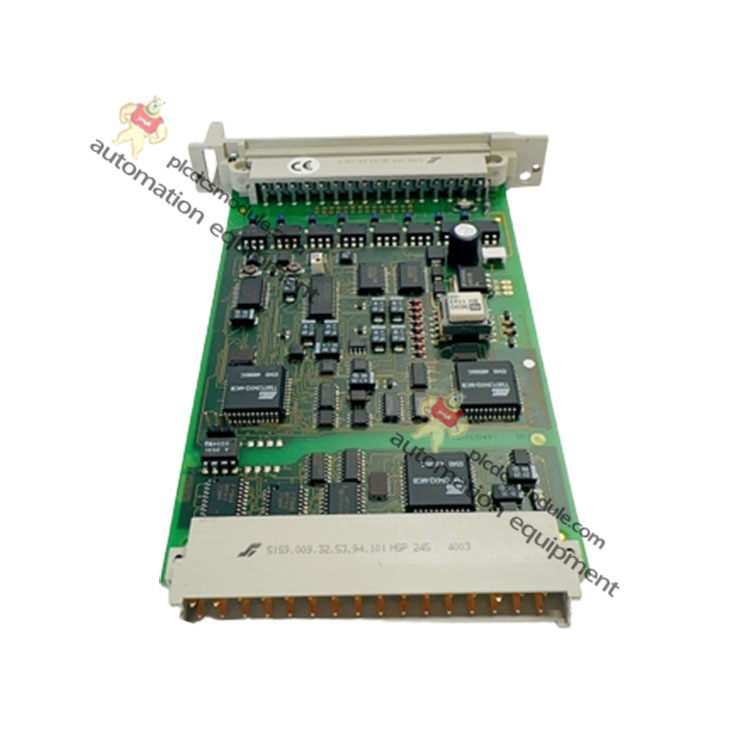

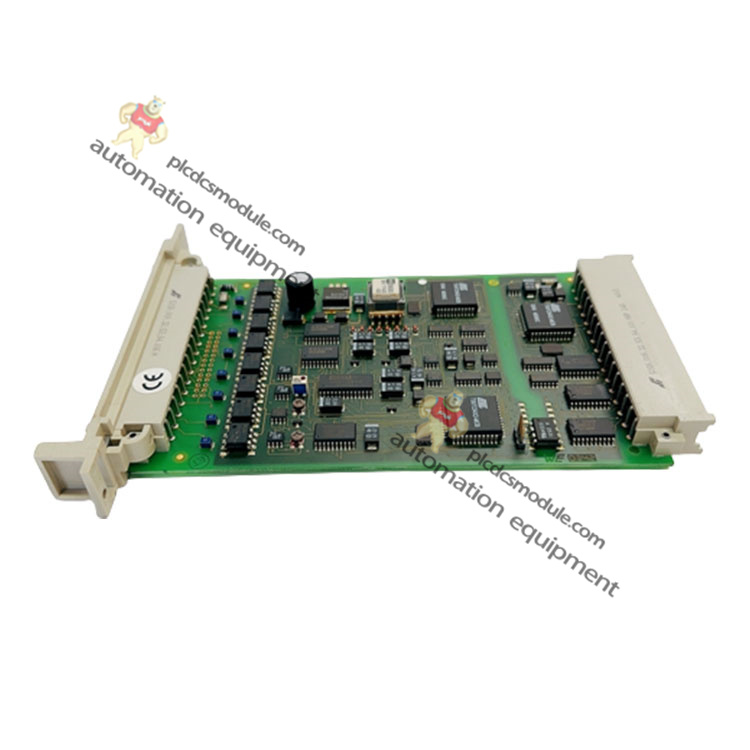

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The F6217 984621702 is an 8-channel analog input module by HIMA, compliant with the IEC 61508 standard and achieving a safety integrity level of SIL 3. It supports current inputs of 0/4…20 mA and voltage inputs of 0…5/10 V, with safe isolation and a 12-bit resolution. The module incorporates a redundant processor system, enabling self-tests for A/D converter linearity, channel crosstalk, etc. With a measurement update time of 50 ms, a safety time of < 450 ms, and a basic error of 0.1% at 25°C, it ensures high precision. Channel connections feature color coding, and unused inputs require termination. Redundant connections are supported, and shielded cables are needed for anti-interference, making it suitable for safety-critical industrial automation systems.
Data Sheet
HIMA F6217 984621702.pdf
Technical Parameters
| Parameter | Value |
|---|
| Input voltage range | 0…5.5 V (max. 7.5 V) |
| Input current range | 0…22 mA (22 mA corresponding to 4095) |
| Max. input current | 30 mA |
| Shunt (for current input) | 250 Ω, accuracy 0.05%, power 0.25 W |
| Resolution | 12 bits (0 mV=0, 5.5 V=4095) |
| Measurement update time | 50 ms |
| Safety time | <450 ms |
| Input resistance | 100 kΩ |
| Parameter | Value |
|---|
| Input filter time constant | Approx. 10 ms |
| Basic error (25℃) | 0.1% |
| Operating error (0…60℃) | 0.3% |
| Safety-related error limit | 1% |
| Electrical strength | 200 V (against GND) |
| Space requirement | 4 SU |
| Operating power | 5 VDC/80 mA, 24 VDC/50 mA |
- Signal cable: LiYCY 20×0.25 mm² (shielded), length 750 mm, cross-sectional area 1 mm².
- Power and shield cable: Flat pin (6.3×0.8 mm), grounding cable length 120 mm, cross-sectional area 2.5 mm².
- Equipped with a redundant safety-related processor system (μC1, μC2, μC3), enabling direct self-tests on the module.
- Block diagram shows components such as Analog Ground (GND-Analog), Analog Voltage (V-Analog), and Multiplexer (MUX).
- A/D converter tests: Linearity and overflow detection.
- Channel interference test: Crosstalk detection among 8 channels.
- Input filter function test: Validation of filter effectiveness.
- Bus communication test: Detection of I/O bus communication functionality.
- Microcontroller and memory test: Self-check of microcontroller and memory integrity.
- Fault indication: Channel error bits are set upon error detection, requiring evaluation in the user program.
- Range: 0/4…20 mA, 12-bit resolution (22 mA corresponds to 4095).
- Shunt parameters: 250 Ω, used to convert current to voltage for measurement.
- Current/voltage redundancy: Connect dual modules (e.g., module1 and module2) via Z7127/6217 cable plugs, suitable for safety systems.
- Voltage divider redundancy: Use 1.96 kΩ resistors (HIMA part number 000710192), considering the internal resistance of the transmitter power supply.
- Transmitter power supply: Provided via Z7128 cable plugs, applicable only for two-wire connections and not compatible with zener diode barriers.
- Unused 0…5 V voltage inputs must be terminated with jumpers.
- Unused current inputs are terminated with shunts, and unused 0…10 V voltage inputs are terminated with voltage dividers in the cable connector.
- Shielded cables are required for field input circuits, and twisted pair cables are recommended. If the environment from the transmitter to the module is interference-free and the distance is short (e.g., inside a cabinet), shielded or twisted cables can be omitted.
- Each channel corresponds to an analog input value and a fault bit, requiring safety-related responses (e.g., triggering safety actions upon faults) to be programmed in ELOP II.
- Physically separate power cables from input circuits.
- Ensure proper earthing and adopt heat dissipation measures outside the module (e.g., fans in the cabinet).
- Record operation and maintenance events in a logbook; replace the module directly in case of faults without requiring maintenance.
- Low-frequency interference (10 Hz): Interference from pressure measurements of nearby piston pumps may trigger channel error bits.
- Solutions: Use built-in digital filters in sensors or H 7017 low-pass filters (consider safety time calculation).
- Z7128 cable plug: With transmitter power supply, suitable for two-wire connections, providing power supply and signal transmission.
- Isolator application: When using transmitters with internal zener diodes (e.g., Saab/Rosemount 3300 GWR), use HIMA H 6200 analog isolators to eliminate interference.
