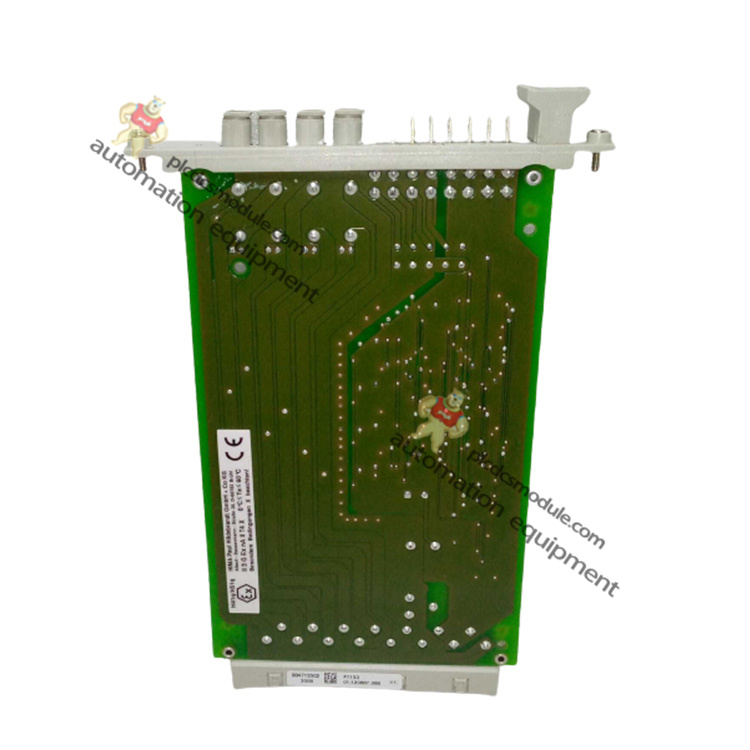

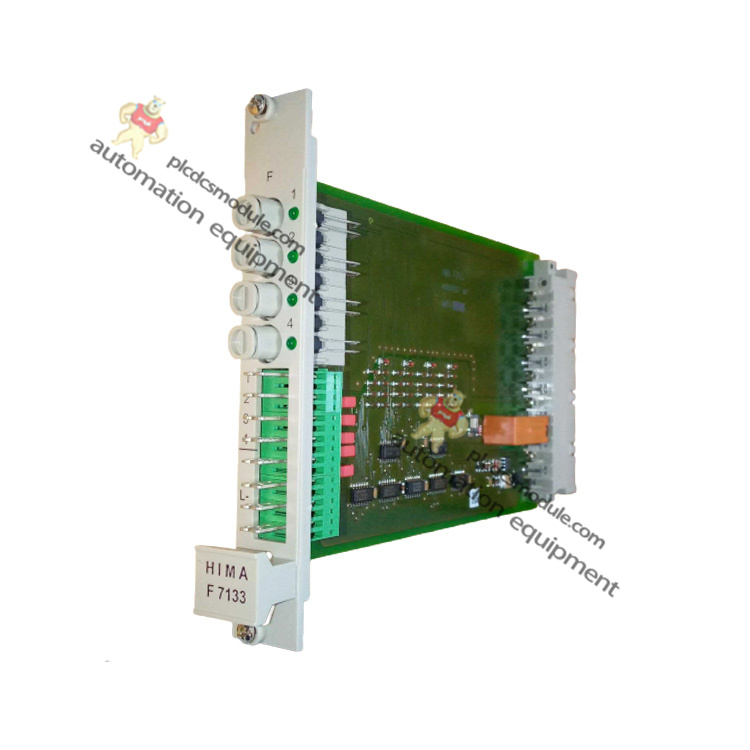

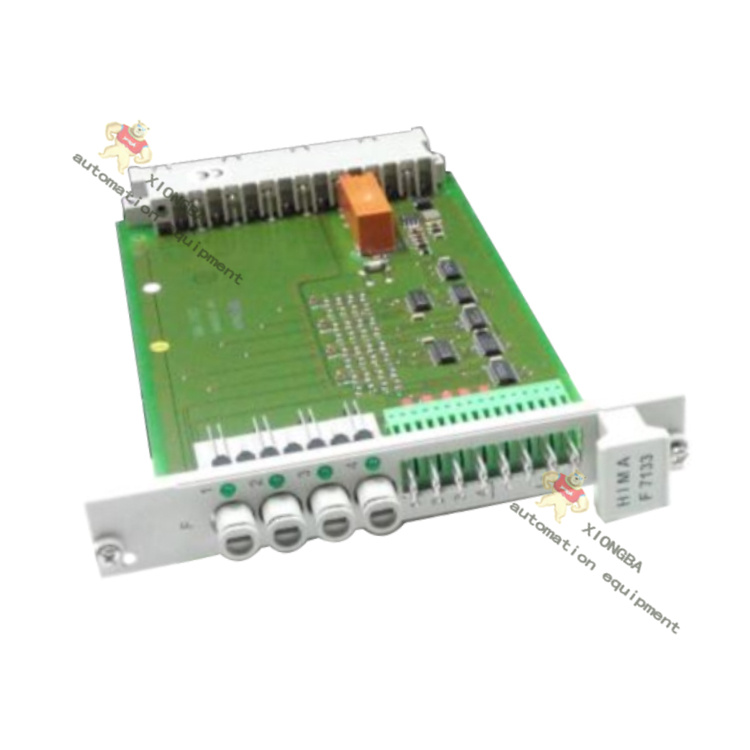

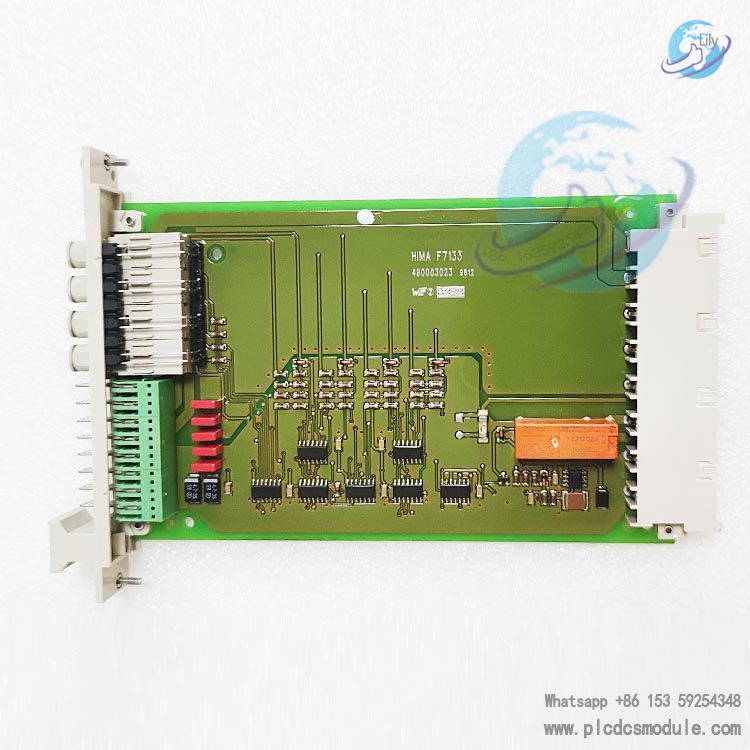

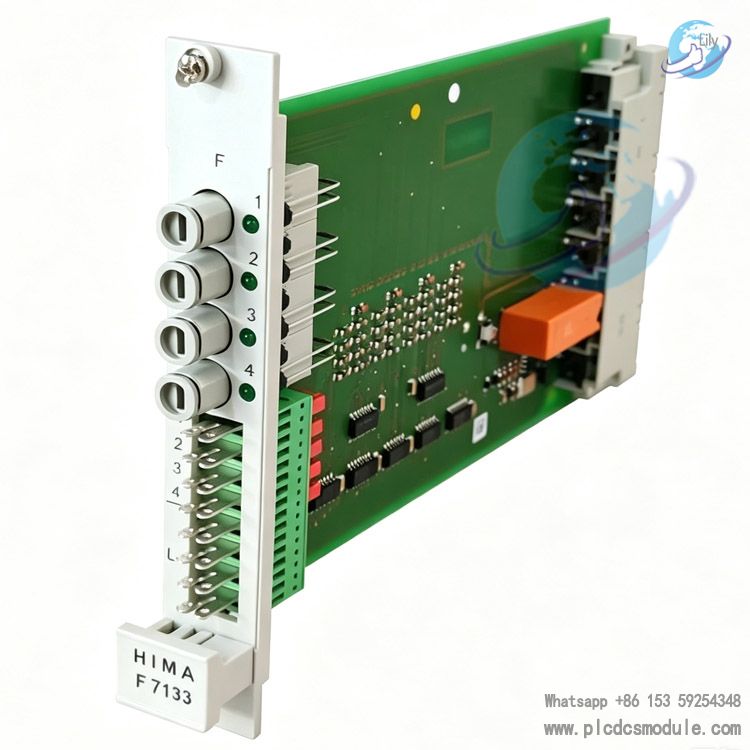

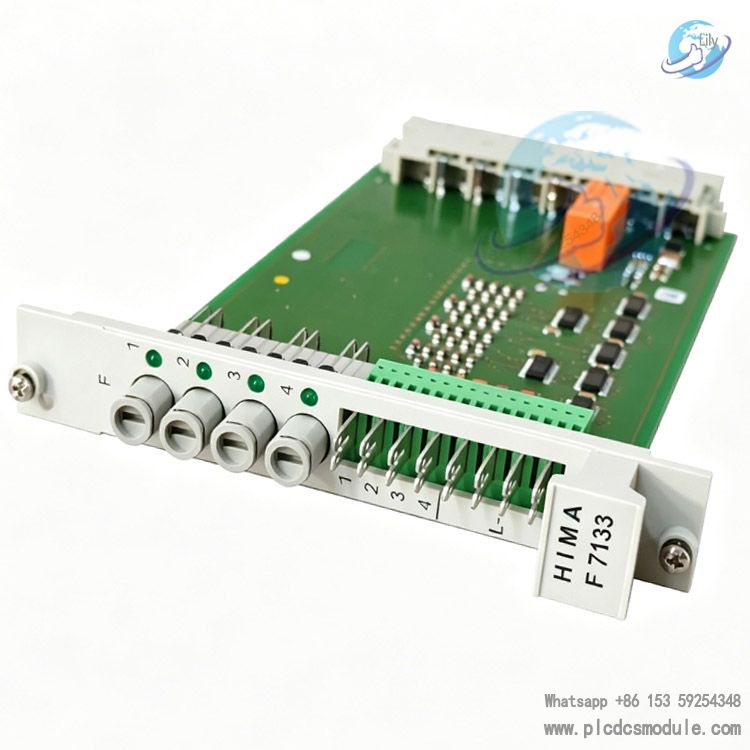

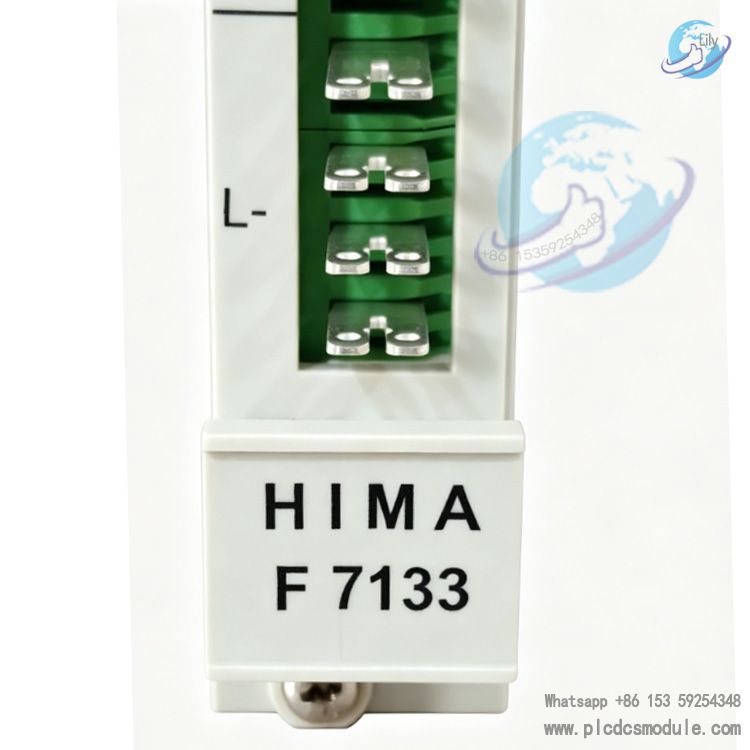

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The HIMA F7133 Power Distribution Module is a high-reliability industrial component designed for precise power distribution and fuse monitoring in industrial control systems. Featuring 4-fold power distribution with L- distribution functionality, it integrates miniature fuses, LED status indicators, and intelligent evaluation logic to ensure safe and transparent power supply for IO modules and sensor contacts. Compliant with CE standards, this module delivers stable performance, fast fault response, and compact design, making it an ideal choice for industrial automation environments requiring reliable power management.
File Download：
HIMA F7133.pdf
Core Functions & Key Features
4-Fold Power Distribution with Fuse Protection
- Equipped with 4 slow-blow miniature fuses (max. 4 A), each dedicated to a power path for independent line protection.
- Supports L+ (resp. EL+) and L- power supply connection, with front contact pins (1, 2, 3, 4, L-) for easy wiring to IO modules and sensors.
- Rear terminals (d6, d10, d14, d18) provide 24 V DC power for individual IO slots, ensuring targeted power supply.
Intelligent Fuse Monitoring & Status Feedback
- Integrated evaluation logic monitors the state of each fuse, with corresponding LEDs providing real-time status signals.
- LED indicators work as follows: LED on (fuse in order + supply voltage exists), LED flashing (fuse faulty/missing or supply voltage fails), LED off (module not wired).
- Relay contact (d22/z24) closes when all fuses are functional; de-energizes if any fuse is missing or faulty, enabling centralized fault alerting.
Reliable Performance & Low Residual Values
- Zero residual voltage (0 V) and residual current (0 mA) when a fuse trips, preventing secondary circuit damage.
- Max. 3 V residual voltage and < 1 mA residual current in case of missing supply, ensuring system safety.
- Relay switching time of approx. 100 ms for fast fault response, minimizing downtime.
Technical Specifications
| Parameter | Details |
|---|
| Supply Voltage | 24 V DC (60 mA operating current) |
| Fuse Type | 4 x slow-blow, max. 4 A |
| Relay Contact Loadability | 30 V/4 A (continuous load) |
| Space Requirement | 4 TE |
| Compliance | CE Certified |
| Residual Voltage (Fuse Tripped) | 0 V |
| Residual Current (Fuse Tripped) | 0 mA |
Industrial Applications
The HIMA F7133 Power Distribution Module is engineered for industrial automation scenarios that demand high reliability and precise power control. It is widely used in:
- IO module power supply systems in process control plants
- Sensor contact power distribution in manufacturing automation lines
- Industrial control cabinets requiring fuse monitoring and fault feedback
- Critical infrastructure with strict requirements for power stability and safety
Why Choose HIMA F7133?
- HIMA proven industrial expertise: Backed by HIMA Paul Hildebrandt GmbH + Co KG’s decades of experience in industrial control components.
- Compact & space-saving: 4 TE design fits seamlessly into standard control cabinets, optimizing installation space.
- Transparent fault diagnosis: LED indicators and relay feedback simplify maintenance and reduce troubleshooting time.
- Robust design: Built to withstand harsh industrial environments, ensuring long-term stable operation under varying conditions.
