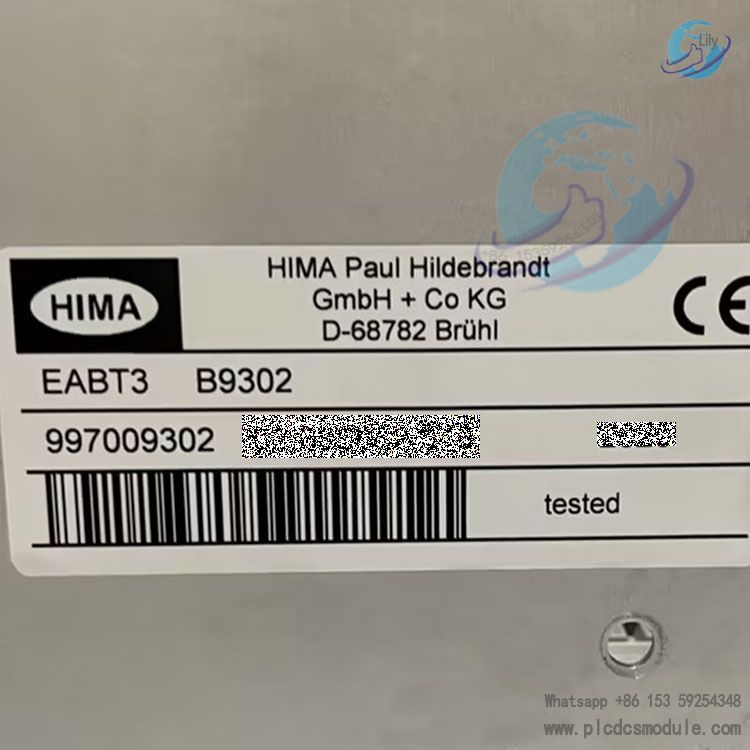

HIMA B9302 997009302 I/O Rack (H41q/H51q)
Basic Information

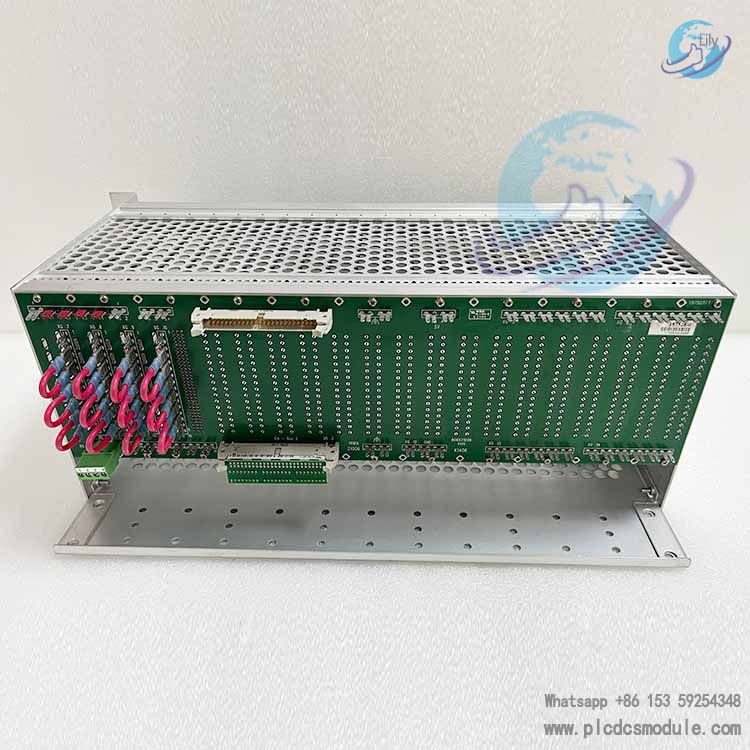

HIMA B9302 997009302 is a 4U‑height 19‑inch I/O expansion rack kit compatible with H41q/H51qsafety control systems, part number 997009302. The complete set includes FK1406 rack body, F7553 coupling module and BV7032 flat bus cable. It is used to expand I/O points of HIMA safety PLC and serves as the I/O sub‑carrier for H51q distributed systems. A single B9302 997009302 can accommodate up to 16 I/O modules. Up to 16 sets of such racks can be connected to the central main rack to build large‑scale safety instrumented systems. B9302 997009302 relies on a dedicated I/O bus for deterministic communication between the central rack and distributed I/O modules, and is widely applied in process‑industry safety interlock scenarios.
Technical Specifications
| Rack Specification: | 19‑inch standard, 4U (4 units) height, FK1406 rack body |
| Available Slots: | Slots 1‑16 for various I/O modules; Slot 17 pre‑installed with F7553 coupling module; Slots 18‑21 for optional F7133 power distribution module |
| Bus Accessories: | Standard BV7032 flat bus cable; B9302‑0.5 for 0.5 m, B9302‑1 for 1 m, B9302‑X for custom cable length; maximum total bus length: 30 m |
| Grounding Configuration: | Integrated rack ground bar; each slot equipped with 6.3×0.8 mm Faston ground terminal |
| Mounting: | Standard cabinet 19‑inch rack mounting |
| Protection Class: | IP20, for cabinet‑internal installation only |
| Compatible Systems: | HIMA H41q, H51q full‑range safety control systems |
| Safety Standards: | Complies with IEC61508 SIL3 system‑architecture hardware requirements, meets EMC industrial electromagnetic compatibility standards |
| Environmental Conditions: | For cabinet‑mount use, suitable for normal industrial cabinet temperature and humidity |
| Module Limitation: | Maximum 8 pcs F3330 output modules per B9302 rack, limited by rack power‑supply budget |
Core Advantages
- Flexible modular expansion: B9302 997009302 supports optional digital input, digital output and analog I/O modules. Up to 16 I/O sub‑racks can be configured for H51q system to easily expand system I/O capacity.
- Delivered as complete integrated kit: B9302 997009302 comes with pre‑integrated coupling module and bus cables, reducing on‑site wiring errors and shortening project commissioning time.
- Deterministic bus communication: Dedicated flat I/O bus ensures stable transmission of safety signals for SIL3 safety‑loop data exchange.
- High cabinet space utilization: 4U‑height 19‑inch standard form factor fits common industrial control cabinets. Built‑in cable trough keeps field wiring neat and orderly.
- Convenient maintenance: I/O modules can be hot‑swapped individually. Slots have no mandatory module‑position constraints, facilitating later expansion and modification.
Product Features
- The complete B9302 997009302 rack kit integrates cable storage trough and flip‑up label bracket for convenient on‑site module identification management.
- Slots 1‑16 have no physical mandatory module positioning; digital‑input and analog modules can be arranged freely, only output modules are subject to power‑quantity restrictions.
- F7553 coupling module is fixedly installed in Slot 17, responsible for bus‑signal transfer between sub‑rack and main rack.
- Reserved power‑distribution slots 18‑21 allow installation of F7133 four‑channel fuse‑protected power‑distribution modules to realize centralized power supply protection for field I/O loops.

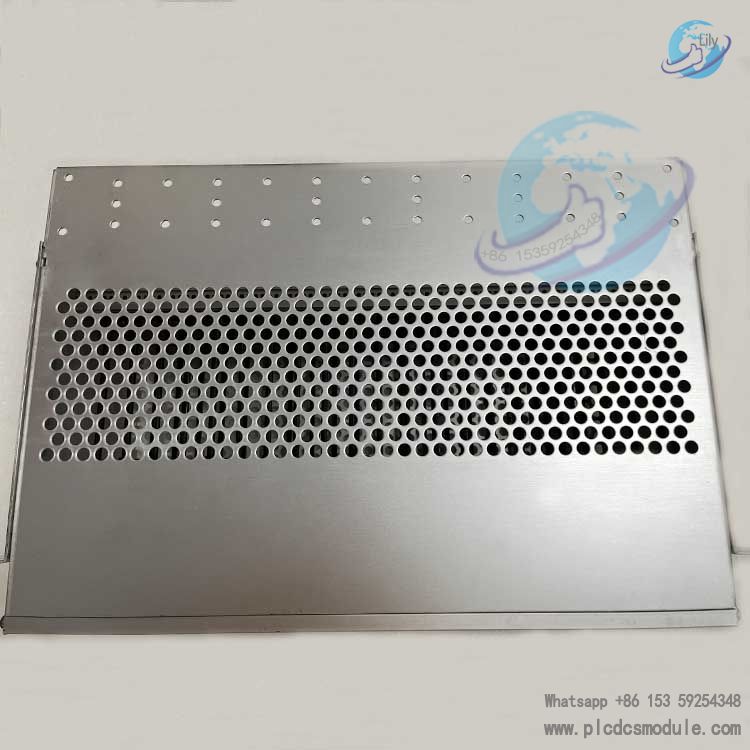

- High‑strength metal rack housing with vibration resistance, suitable for vibration conditions in factory control cabinets.
- The full B9302 set supports both single‑channel and redundant H41q/H51q system architectures, without restrictions on central‑unit redundancy configuration.
Application Fields
- Petrochemical: ESD emergency shutdown system, F&G fire‑and‑gas system, safety interlock I/O expansion for refining units.
- Oil‑gas production: Offshore platform safety control systems, distributed deployment of field I/O modules via B9302 racks.
- Power industry: Thermal‑power boiler protection, turbine safety interlock, I/O expansion for HIMA H41q/H51q safety PLC.
- Coal‑chemical industry: SIS safety instrumented systems for process plants, centralized installation of distributed I/O points.
- Pharmaceutical‑chemical: Safety interlock for high‑risk processes, complying with functional‑safety specifications.
- Papermaking & metallurgy: Emergency shutdown safety control for production units.
Peer Brand Model Comparison
| Item | B9302 997009302 | B9361 | H51q Central Rack B5230 |
|---|---|---|---|
| Rack Positioning: | I/O expansion sub‑rack kit | I/O rack kit | H51q system central main rack |
| Height: | 4U | 4U | 5U |
| Core Purpose: | Mount I/O modules for system point expansion | I/O sub‑rack for special cable‑requirement scenarios | Accommodate CPU, power supply and communication modules |
| Slot Focus: | 16 I/O module slots | 16 I/O slots | Mixed slots for CPU, power, communication and I/O |
| Compatibility: | Connect to H41q/H51q central rack | Connect to H41q/H51q central rack | Main control carrier for full H51q system |
Related Matching Products
- Coupling Module: F7553 (included in kit)
- Flat Bus Cable: BV7032
- Power Distribution Module: F7133
- Common I/O Modules: F6217 digital input module, F3330 digital output module, F3236 mixed I/O module
- H51q Central Rack Kits: B5230, B5231, B5232‑1, B5233‑1
- H41q System Kits: B4234, B4235
- CPU Modules: F8650X, F8652X
- Programming Software: ELOP II
Popular H41q/H51q Series Parts
B9361, B4234, B4235, B4236‑1, B4237‑1, B5230, B5231, B5232‑1, B5233‑1, F7553, F7133, F6217, F3330, F3236, F8652X
Frequently Asked Questions
Q: Can B9302 997009302 be used directly as a central main rack?
A: No. B9302 997009302 is an I/O expansion sub‑rack. It only carries I/O modules and cannot accommodate CPU or power‑supply units. It must work together with H41q/H51q central rack kit.
Q: Is there a mandatory order for module placement in slots 1‑16 of B9302 rack?
A: Digital‑input and analog modules can be freely placed in slots 1‑16. A maximum of 8 pcs F3330 output modules can be installed per B9302 rack due to rack power‑supply budget constraints.
Q: How many B9302 997009302 racks can one H51q system support?
A: H51q system supports up to 16 units of B9302‑type I/O sub‑racks, and total bus cable length shall not exceed 30 meters.
Q: What are the differences between B9302‑0.5, B9302‑1 and B9302‑X?
A: The rack body hardware is identical for all three versions; differences lie only in BV7032 flat bus cable. ‑0.5 stands for 0.5 m, ‑1 for 1 m, ‑X for customer‑specified custom length. Part number 997009302 corresponds to complete B9302 kit.
Q: Does B9302 997009302 support H41q compact system?
A: H41q compact system comes with built‑in I/O slots. B9302 is mainly intended for H51q distributed architecture. It is hardware‑compatible for H41q expansion, but total system I/O quantity limits need to be evaluated.
Q: Does B9302 997009302 kit include F7133 power‑distribution module?
A: Standard B9302 kit does not include F7133. F7133 is an optional accessory to be ordered separately. Standard kit includes FK1406 rack, F7553 coupling module and BV7032 bus cable.
Q: If B9302 rack fails and only FK1406 rack housing is replaced, can original F7553 still be reused?
A: F7553 coupling module can be removed and reused. Re‑insert it into Slot 17 after replacing rack housing and confirm proper bus‑cable connection.
Q: Can B9302 997009302 be used for new‑generation HIMax systems?
A: No. B9302 997009302 belongs exclusively to legacy H41q/H51q series; its hardware bus is incompatible with HIMax controllers.
Notes
- B9302 997009302 is for cabinet‑internal use only. It cannot be directly deployed in hazardous explosive areas; on‑site explosion‑proof application requires additional flame‑proof enclosures.
- Total bus length must be strictly kept within 30 meters; exceeding this limit will cause unstable bus communication.
- Slot 17 must be fitted with F7553 coupling module; sub‑rack cannot communicate normally if this slot is vacant.
- Rack ground terminals must be reliably connected to cabinet protective earth to guarantee EMC anti‑interference performance.
- Configuration shall be completed via ELOP II software; slot addresses in software must match actual physical module arrangement after hardware installation.
- Quantity of output modules shall not exceed per‑rack power‑supply limit, otherwise loop power‑supply insufficiency faults will occur.
