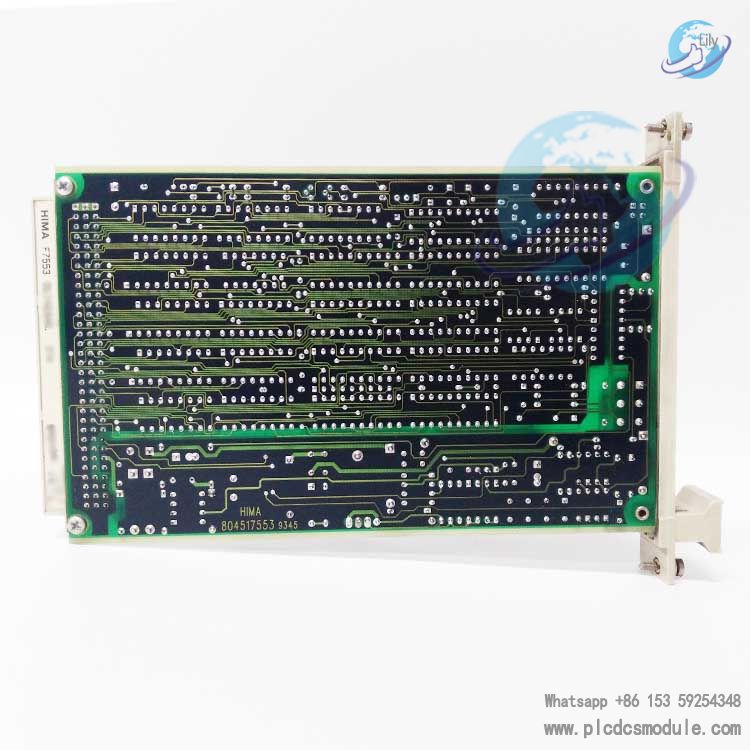

HIMA F7553 984755302 Coupling module F-7553

The HIMA F7553 984755302 is a specialized coupling module designed for PES H51q systems, integrated in assembly kit B 9302. TUV and CE certified, it combines watchdog signal control, IO subrack monitoring, and flexible coding capabilities to ensure seamless component integration and safe system operation. Engineered to HIMA strict industrial standards, it’s ideal for safety-critical and industrial control applications where reliable connectivity, diagnostic visibility, and minimal downtime are essential.

File Download:

HIMA F7553.pdf

Core Specifications

• Compatibility: Tailored for PES H51q systems, part of assembly kit B 9302.
• Power Requirements: 5 V DC (600 mA) and 24 V DC (750 mA) for stable operation.
• Mechanical Design: Space requirement of 4 TE, enabling compact rack integration.
• Certifications: TUV and CE certified, adhering to global industrial safety and performance regulations.

Key Features & Advantages

1. Watchdog Signal Control

Front-panel WD LED indicates fail-safe watchdog signal status. The shrouded WD switch allows signal shutdown, enabling module replacement without triggering system emergency-off.

2. IO Subrack Monitoring

Monitors the 5 V supply of the associated IO subrack and transmits real-time status signals to the central module for proactive diagnostics.

3. Flexible Coding Capabilities

Coding switches S1.1–S1.4 configure IO bus (cabinet) and subrack numbers, supporting customization for diverse system setups.

4. Intuitive Status Indicators

SEL LED signals access to the IO subrack’s IO modules, providing at-a-glance visibility of system connectivity.

5. Automatic Operational Testing

Undergoes continuous self-testing during operation, ensuring reliable performance and early detection of potential issues.

Technical Details

Operational Controls

• WD switch: Shrouded design prevents accidental activation, enabling safe module maintenance.
• Coding switches S1.1–S1.4: Switch upwards to set IO rack and subrack numbers (supports 8 IO rack configurations).

Manufacturing & Compliance

• Produced by HIMA Paul Hildebrandt GmbH + Co KG, a leader in safety-critical industrial components.
• Technology subject to updates without prior notice, aligning with HIMA’s product development standards.

Durability & Reliability

• Industrial-grade construction resists harsh environmental conditions, ensuring long-term stability in manufacturing, process automation, and energy sectors.

Application Scenarios

Perfect for PES H51q-based industrial control systems, safety instrumented systems (SIS), and process automation setups. It excels in environments requiring secure coupling between central modules and IO subracks, such as energy plants, manufacturing facilities, and chemical processing plants—where uninterrupted operation and safety compliance are critical.

Why Choose HIMA F7553?

Backed by HIMA’s legacy of engineering safety-focused industrial solutions, the F7553 (984755302) delivers unmatched compatibility with PES H51q systems, intuitive diagnostics, and safe maintenance capabilities. Its compact design, robust monitoring features, and flexible coding make it a cost-effective choice for integrating and safeguarding industrial control systems, minimizing downtime and ensuring regulatory compliance.
