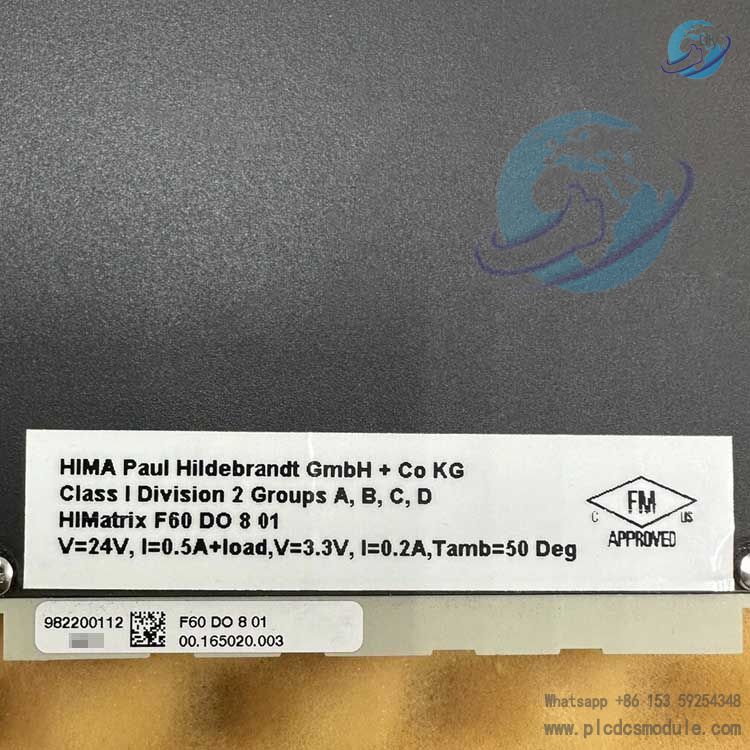

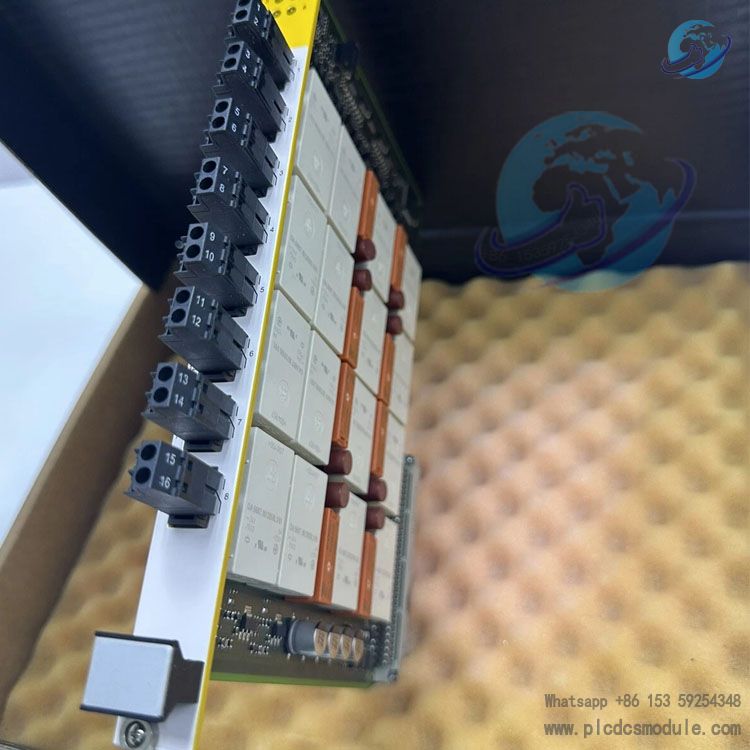

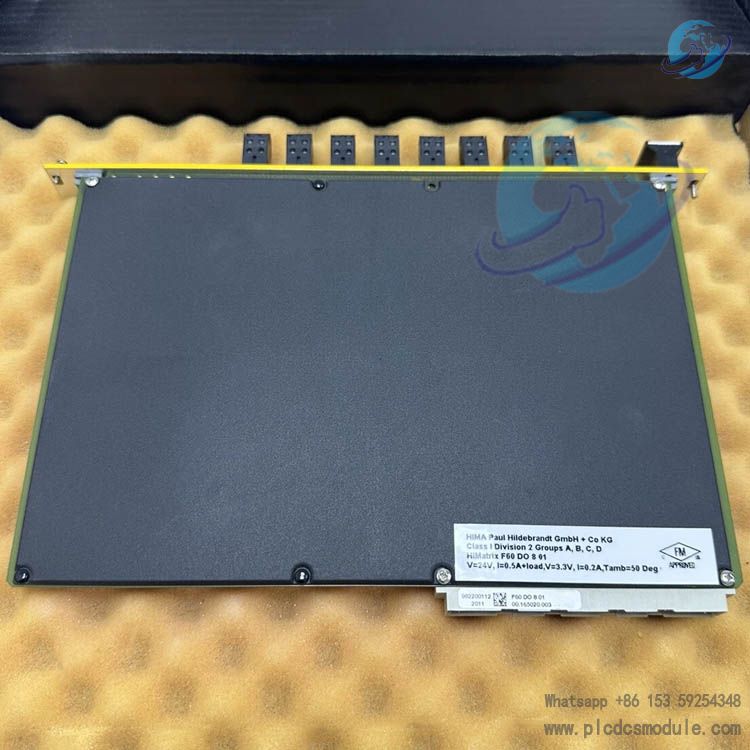

HIMA F60DO801 (Order No.: 98 2200112) is an 8-channel safety-related digital output module designed by Germany HIMA specifically for safety-critical industrial applications.It belongs to the HIMatrix F60 system platform and is mainly used to convert logic commands from the safety controller into highly reliable actuation signals.
This module has obtained internationally recognized safety certifications including SIL 3 (IEC 61508) and Cat.4/PL e (EN ISO 13849-1).It features channel-level short-circuit and overload protection, as well as comprehensive online diagnostics, and is fully compatible with HIMatrix F60 series safety controllers.
It is widely applied in core safety loops such as:
- Emergency Shutdown Systems (ESD)
- Burner Management Systems (BMS)
- Fire and Gas Detection Systems (F&G)
in industries including petroleum, petrochemical, oil & gas production, power and energy, and rail transit.
| Parameter | Specification |
|---|---|
| Core Identification | Model: F60DO801; Order No.: 98 2200112 |
| Channel Configuration | 8 independent digital output channels, support channel-level independent shutdown |
| Output Type | 24 V DC source output (Sink/Source configurable, subject to official manual) |
| Output Capacity | Max 0.5 A per channel, with short-circuit & overload protection |
| Safety Rating | SIL 3 (IEC 61508), Cat.4/PL e (EN ISO 13849-1) |
| Power Supply Requirement | System power: 24 V DC (tolerance: 19.2–28.8 V DC) |
| Diagnostic Function | Online channel status monitoring, short-circuit/break detection, power fault diagnosis |
| Environmental Specs | Operating temp: -20°C to +60°C; Storage temp: -40°C to +85°C; Humidity: 5%–95% (no condensation) |
| Mechanical Specs | Standard DIN rail mounting, passive air cooling, compliant with HIMatrix F60 module specs |
| Software Compatibility | SILworX, ELOP II (engineering & maintenance tools) |
Key Features & Advantages
Ultimate Safety & Redundancy DesignAdopts HIMA core safety architecture and supports Fail-Safe Output (FSO). In the event of a fault, all channels automatically switch to a preset safe state (normally de-energized/off), eliminating the risk of unintended operation.
Full-Lifecycle DiagnosticsIntegrates dual hardware and software diagnostics for real-time monitoring of the entire chain: module power, channel status, and load connection. Fault information is reported simultaneously via LEDs and system software, enabling early detection and quick localization.
High Industrial Environmental ResistancePassive air-cooling design suitable for sealed control cabinets. Wide operating temperature range and high EMC performance meet industrial-grade standards, enabling reliable operation in harsh chemical and oil & gas field environments.

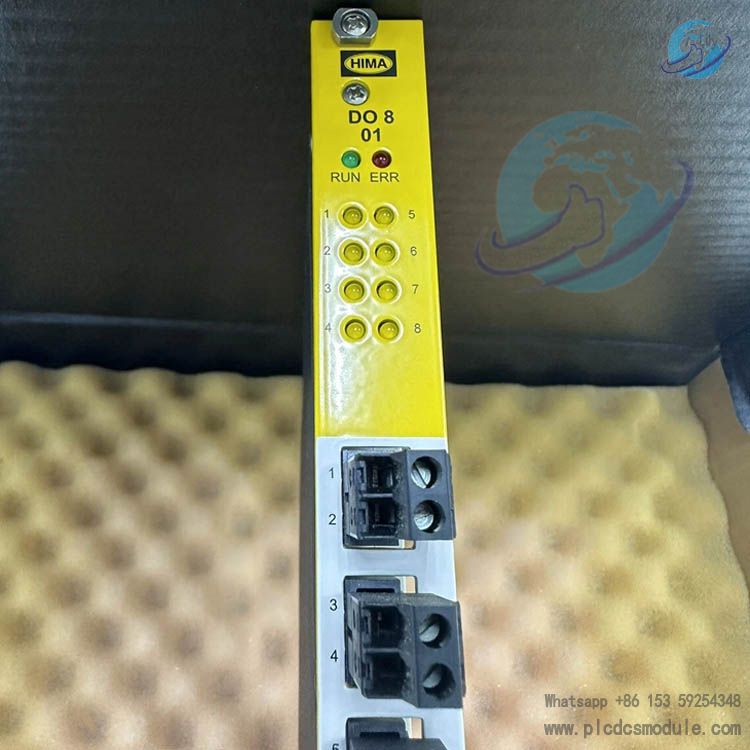

Efficient Operation & MaintenanceSupports hot swapping (in compliance with system safety regulations). Channel-level LED indicators clearly show operating status. Paired with SILworX software, it allows remote parameter configuration and troubleshooting, greatly reducing maintenance downtime.
Seamless Ecosystem CompatibilityFully compatible with the HIMatrix F60 platform. Works seamlessly with the same-series CPU, communication, and input modules without additional adapters, shortening system integration time.
Installation & Maintenance Specifications
1. Installation Requirements
Mechanical InstallationMount on standard 35 mm DIN rail. Maintain a clearance of ≥2 cm between modules for sufficient passive cooling. Tighten to the torque specified in the official manual to prevent poor contact.
Electrical ConnectionUse shielded cables for output channels and loads, with the shield grounded at one end. Strictly separate system power and load power to avoid damage from cross-connection. After wiring, perform continuity and insulation tests.
System ConfigurationUse SILworX or ELOP II software to set channel parameters (safety state, shutdown logic) and diagnostic thresholds. After downloading the configuration, conduct a safety function validation test.
2. Maintenance Guidelines
Routine InspectionQuickly check status via module LEDs (power, run, channel fault) and review diagnostic logs via software, focusing on short-circuit and overload alarms.
Periodic TestingPerform a full functional validation test every 10 years per safety standards (refer to HIMA safety manual HI 800 023 E). Shorten intervals for critical applications based on industry requirements.
Fault HandlingIn case of channel failure, first check load-side short circuit or overload, then verify module wiring and power. For replacement, ensure the system is in safe shutdown or hot-swap conditions. After replacement, re-download configuration and perform functional tests.
Spare Parts Management
Keep spare parts with the same model and firmware version as on-site units to avoid system abnormalities caused by firmware incompatibility.
Recommended Companion Products
As a core I/O component of the HIMA HIMatrix F60 safety system, F60DO801 must be used with the following devices to build a complete safety control loop:
- Main Controller: HIMatrix F60 series safety CPU modules (e.g., F60 CPU main module), responsible for logic processing and command output.
- Power Supply Module: F60PS01 (HIMatrix F60 system power supply), provides stable 24 V DC for CPU and I/O modules.
- Communication Module: F60GEH01 (Ethernet communication module), supports SafeEthernet, Modbus TCP, etc., for communication with HMI and remote devices.
- Input Modules: F60DI3201 (32-channel digital input), F60AI801 (8-channel analog input), for collecting sensors and emergency stop signals.
- Engineering Software: SILworX (mainstream configuration tool), ELOP II (legacy tool), for configuration, programming, diagnostics, and maintenance.
Field Components: Safety actuators (solenoid valves, shut-off valves), 24 V DC load power supply, shielded cables, DIN rails, etc.
Recommended Models – HIMA HIMatrix F60 Series
1. Digital Output Modules (F60 DO Series)
- F60DO1601: 16-channel 24 V DC digital output module, for medium-to-large safety loops.
- F60DO802: 8-channel 24 V DC digital output module, with enhanced vibration and salt fog resistance, ideal for rail transit and offshore platforms.
2. Digital Input/Output Combo Modules (F60 DIO Series)
- F60DIO24/1601: 24 DI + 16 DO combo module, suitable for concentrated signal applications.
- F60DIO16/801: 16 DI + 8 DO combo module, compact design for space-limited cabinets.
3. Other Core Platform Modules
- Input: F60DI3201 (32 DI), F60AI801 (8 AI)
- Power & Communication: F60PS01 (system power), F60GEH01 (Ethernet)
