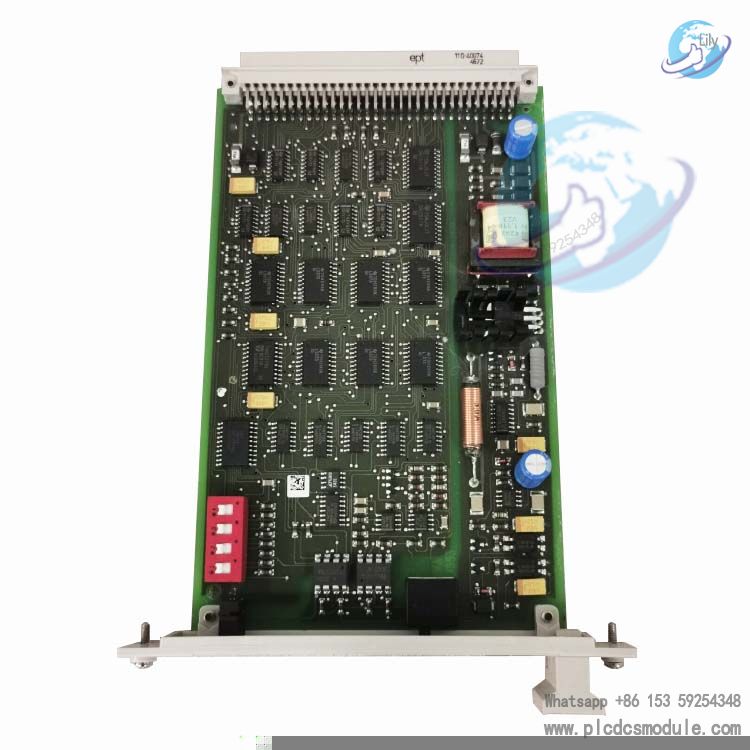

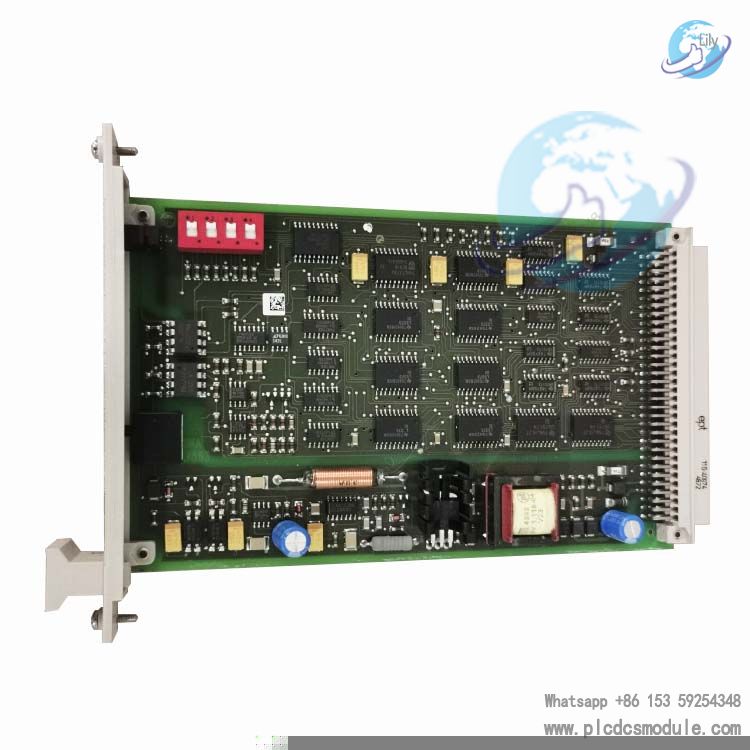

HIMA F7533 Analog Input Module
Product Details
The HIMA F7533 is an analog input module for safety instrumented system architecture. It is compatible with H41q and H51q safety PLC hardware racks. It is specially designed to acquire 4‑20mA analog signals from industrial field sites and convert transmitter signals into digital signals recognizable by the system. It delivers reliable signal acquisition for safety loops such as ESD emergency shutdown and fire & gas monitoring.
The HIMA F7533 supports channel‑level electrical isolation and comes with on‑board diagnostic detection. It ensures the integrity of safety signal transmission under high‑risk working conditions including petrochemical and power industries. Capable of constructing SIL3‑grade safety loops, the HIMA F7533 serves as a critical I/O acquisition unit within the complete HIMA safety control system.
Technical Specifications
Power Supply: 24VDC, powered via CEX system bus, typical power consumption 4.6W, maximum operating current 240mA
Input Signal: 4‑20mA analog current signal, electrical isolation between channels
ADC Resolution: 14‑bit, SAR successive approximation sampling mode
Single‑channel Sampling Period: 1ms, inter‑channel sampling delay less than 5μs
Safety Level: Complies with IEC61508, supports SIL1‑SIL3 application configuration
Operating Temperature: ‑20℃ ~ +60℃
Installation: Standard rack slot‑mounted installation, compatible with HIMA H41q/H51q racks
Status Indication: Green RUN indicator, red fault alarm LED, yellow transmit‑receive communication LED
Interface: On‑board DB9 communication port, backplane interfacing with CEX internal bus
Protection: Resists industrial electromagnetic interference, supports fail‑safe mode
Core Advantages
- The HIMA F7533 adopts independent channel isolation design. On‑site interference cannot propagate to the safety controller backplane, mitigating risk of misoperation triggered by external disturbances.
- Real‑time full‑channel self‑diagnosis identifies signal over‑range, open‑circuit and short‑circuit faults. Fault conditions are uploaded directly to the safety system to shorten troubleshooting time.
- Compatible with 1oo2 redundant system architecture. The HIMA F7533 runs stably under redundant configuration to improve overall safety system availability.
- Modular slot‑mount structure allows field replacement without modifying external wiring for simplified maintenance.
- Fully compliant with functional safety standards, it delivers stable acquisition accuracy for safety interlock logic in high‑risk process scenarios.
Product Features
- Identifies over‑range and under‑range status; abnormal signals generate status bytes and report to the controller.
- Electrical isolation for each analog input channel blocks ground‑loop interference.
- Hardware‑implemented fail‑safe: module switches to safe state upon abnormality.
- Seamless interoperability with HIMA H41q/H51q platforms; no additional conversion hardware required.
- Front‑panel LEDs provide intuitive indication for channel status, communication status and module faults for convenient on‑site inspection.
- Supports on‑line replacement within hot‑swap‑enabled rack systems to reduce plant downtime.
- On‑board filter circuit suppresses high‑frequency industrial noise impacting analog sampling.
Application Fields
- Oil & Gas: ESD emergency shutdown systems, acquisition of pressure and level transmitter signals.
- Chemical Process Plants: Safety interlock loops, signal access for toxic and flammable gas detectors.
- Power Generation: Analog signal acquisition for boiler protection and turbine safety protection.
- Pharmaceutical Plants: Safety instrumented SIS systems for high‑risk process sections.
- Fire & Gas Detection Systems: Acquisition and processing of analog signals from field sensors.
- Other industrial safety control scenarios requiring SIL‑certified performance.
Product Comparison
| Model | Product Type | Key Differences |
|---|---|---|
| HIMA F7533 | Analog Input Module | 4‑20mA acquisition, channel isolation, optimized for field analog signal reading |
| HIMA F7534 | Analog Output Module | Analog signal output for driving actuators such as control valves |
| HIMA F3236 | Digital Input Module | Digital contact input acquisition, no support for analog current signals |
| HIMA F7553 | CPU Processor Module | System computation core, does not handle field I/O acquisition; works in conjunction with F7533 |
Matching Part Numbers
HIMA F7553 CPU Module,
HIMA F8650 Power Supply Module,
HIMA F7130 Communication Module,
HIMA F3236 Digital Input Module,
HIMA F3330 Digital Output Module,
HIMA H41q System Rack,
HIMA H51q System Rack
FAQ
Q: Can the HIMA F7533 directly connect to 0‑10V voltage‑type transmitters?
A: The standard HIMA F7533 only supports 4‑20mA current input. Voltage signals require external signal conversion devices and cannot be directly connected.
Q: What is the maximum achievable SIL level for HIMA F7533?
A: The hardware meets SIL3 requirements. The final SIL level depends on overall system configuration, programming logic and redundant architecture design.
Q: How to troubleshoot when the HIMA F7533 fault LED illuminates?
A: First check 24V power supply, then verify field transmitter wiring for short‑circuit or open‑circuit faults, inspect backplane CEX bus contact, and refer to system diagnostic messages to locate specific channel faults.
Q: Does HIMA F7533 support hot‑swap?
A: Hot‑swap is available under HIMA H41q/H51q rack configurations that support hot‑swap. Follow the official maintenance manual during operation to avoid disrupting active safety logic.
Q: Is HIMA F7533 compatible with legacy H40q racks?
A: HIMA F7533 is designed for H41q and H51q platforms. It cannot be directly deployed on older H40q racks due to mismatched backplane bus protocols.
Q: How to distinguish used pull‑out units from genuine spare parts when purchasing HIMA F7533?
A: Verify board markings and hardware revision numbers, inspect PCB for corrosion or reworked solder pads, and confirm hardware version matches project drawing specifications.
Q: Can multiple transmitters be connected to one channel of HIMA F7533?
A: Each channel accepts only one 4‑20mA transmitter. Parallel connection of multiple transmitters is prohibited and will cause sampling distortion.
Q: Is dedicated software configuration required for HIMA F7533?
A: HIMA programming software is required for channel parameter setup, range definition and fault threshold configuration and download. The module cannot run out‑of‑the‑box without configuration.
Recommended HIMA Part Numbers
F7533, Analog Input Module; F7534, Analog Output Module; F3236, Digital Input Module; F3330, Digital Output Module; F7553, CPU Central Processing Module; F8650, Power Supply Module; F7130, Communication Interface Module; F3113, Safety Input Module; F3417, Relay Output Module; F8627, Redundant Power Supply Module; F7501, Coupler Module; F3211, Digital Input Card; F3322, Digital Output Card; F8806, Fan Monitoring Module; F7541, Bus Interface Module
Precautions
- Confirm integrity of rack backplane bus before installing HIMA F7533. Ensure proper cabinet grounding for metal housing to mitigate electromagnetic interference.
- Use shielded cables for analog signal wiring with single‑end shield grounding to reduce sampling noise.
- Do not disconnect external terminal wiring while powered‑on; surge events may damage module channels.
- Store under moisture‑proof and dust‑proof conditions to prevent PCB oxidation and corrosion.
- Replacement modules must maintain hardware version compatibility with existing project configuration; version mismatch leads to communication anomalies.
- After replacing HIMA F7533 on safety systems, perform loop testing to validate safety function performance.
Product Tags
HIMA F7533, F7533 analog input module, HIMA SIS card, H41q H51q I/O module, safety instrumented system analog acquisition card, 4‑20mA safety input module, HIMA safety PLC card
Why Choose HIMA F7533?
The HIMA F7533 is a mature functional‑safety I/O acquisition card engineered for high‑risk industrial safety instrumented systems. Featuring channel isolation, comprehensive on‑board diagnostics and hardware fail‑safe mechanism, it integrates seamlessly into the HIMA safety PLC platform. Balancing acquisition accuracy and system availability, the HIMA F7533 has been widely field‑proven across petrochemical, thermal power and other industries with complete spare‑part ecosystem. It serves as a reliable I/O selection for SIL‑rated safety loop construction.
