HIMA Z7108/3237/C5 is a prefabricated cable plug with LED diagnostic indicators developed by Germany-based HIMA exclusively for the F3237 digital safety input module. Classified as a wiring marker connector of the Z7108 series, it comes factory-fitted with a standard 5-meter shielded signal cable and is compatible with the HIQuad H41/H51 series SIL 3 safety instrumented systems.
Integrated with LED indicators for circuit fault diagnosis, this product enables real-time monitoring of wire breakage, short circuits and abnormal impedance. It is engineered for signal transmission of safety proximity switches and field digital switches, and fully manufactured in compliance with the industrial safety circuit standard DIN 19234.
Each unit undergoes full factory testing covering continuity, impedance and insulation performance. On-site secondary crimping and wiring are unnecessary, allowing standardized direct interconnection between safety I/O modules and field primary equipment. It serves as a standard matching spare part for field wiring of SIS (Safety Instrumented System) in process industries.
Core Advantages
Built-in Visual LED Diagnostics for Greatly Improved Maintenance Efficiency

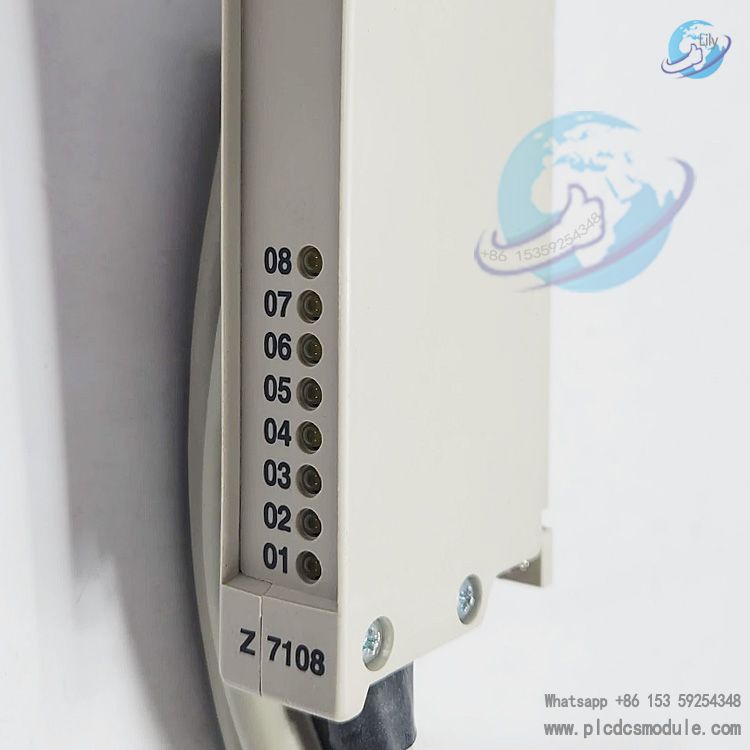

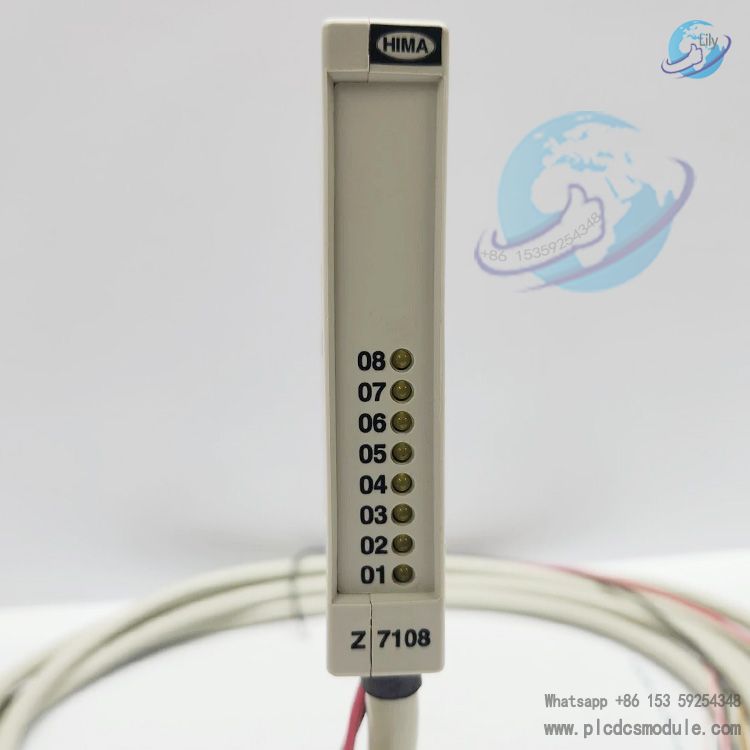

Channel status LEDs are integrated into the plug body. The corresponding LED will light up automatically in case of circuit short circuits, wire breaks or excessive impedance. Technicians can quickly locate field wiring faults without checking each wire one by one with a multimeter, effectively reducing equipment downtime for maintenance.
Factory Prefabricated Integrated Cable Eliminates On-Site Wiring Risks

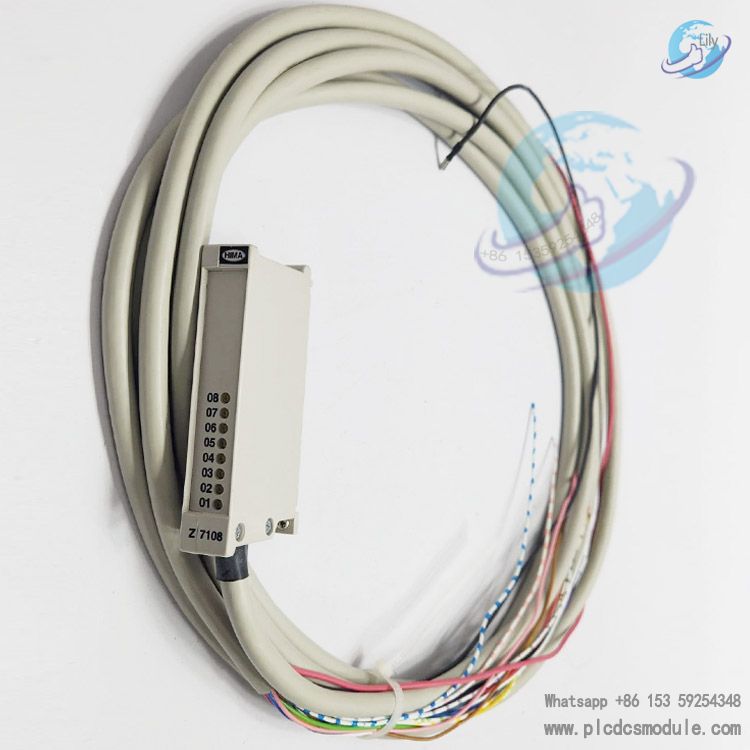

The 5-meter shielded cable is crimped and formed in one single factory process with gold-plated terminals for reliable contact. It prevents false actuation of safety circuits caused by loose manual wiring or damaged insulation, and complies with SIL 3 safety circuit wiring specifications.
Standardized Impedance Matching Ensures Stable Long-Distance Signal Transmission
Circuit impedance is strictly controlled at ≤50 Ω. When paired with 0.5 mm² conductors, it supports signal transmission up to 1,000 meters. The switch response time is steadily maintained at 10 ms, delivering lag-free and distortion-free signals from remotely located field devices.
High Resistance to Harsh Industrial Operating Conditions
The housing is made of oil-resistant and flame-retardant thermoplastic material, operating reliably across a wide temperature range of -40 °C to +85 °C. It resists dust and minor vibration, enabling long-term stable operation in dusty and high-temperature environments such as explosion-proof facilities, chemical plants and power stations.
Plug-and-Play Modular Design for Easy Assembly and Disassembly

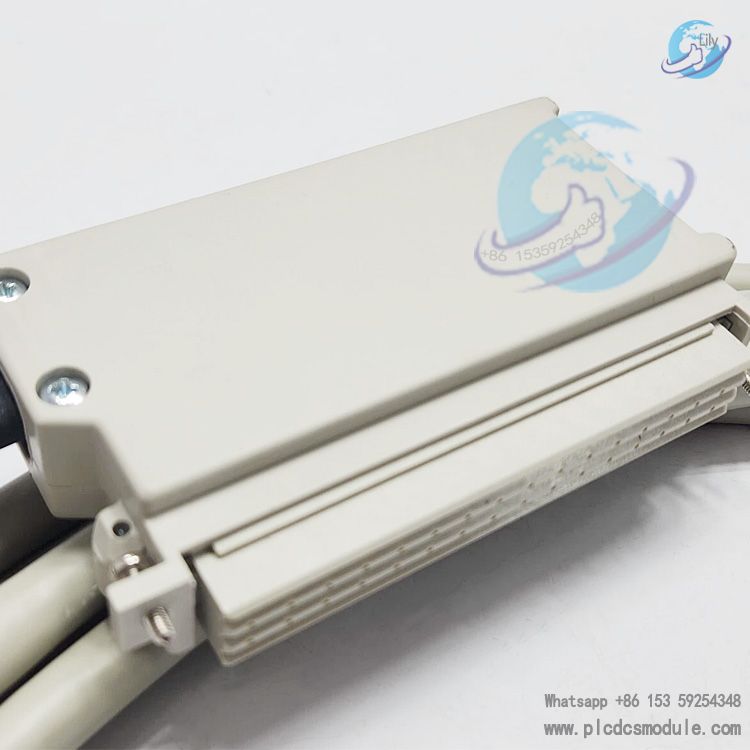

With a standard 4TE width, it fits 19-inch standard safety racks. The plug adopts a snap-lock structure that requires no special tools for installation and removal. Spare parts can be replaced in redundant systems without powering down or disassembling the entire wiring set.
Fully Certified for Compliance with High-Risk Industry Standards
The complete matching HIMA SIS system holds TÜV SIL 3 certification and meets process safety standards IEC 61508 and IEC 61511. It is applicable to high-safety circuits including ESD emergency shutdown and F&G fire & gas interlock systems.
Model Code Breakdown (Z7108/3237/C5)
Z7108: Base product series code, denoting dedicated cable plugs for digital inputs equipped with LED fault diagnosis. The base variant of the same series without LED indicators is Z7116; the core distinction between the two lies in the presence of channel diagnostic LEDs.
3237: Compatible module code, indicating this plug is exclusively designed for the HIMA F3237 safety digital input card. Each digital I/O module corresponds to a unique middle segment code, and cross-module compatibility is not supported.
C5: Cable length identifier. "C" stands for factory pre-assembled cable, while the digit "5" signifies a standard factory-fitted 5-meter shielded cable. Alternative length options of the same specification include C3 (3 meters) and C8 (8 meters) for customized selection.

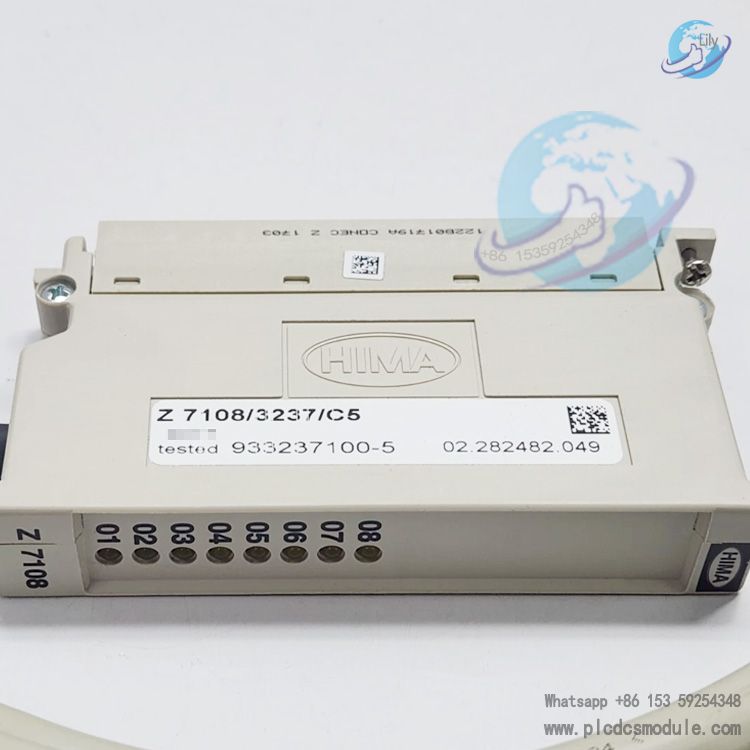

Full order model: Z 7108/3237/C5Original factory part number: 933237100-5
Manufactured at HIMA’s original facility in Germany.
Detailed Technical Specifications
Electrical Parameters
Nominal supply voltage: 8.2 V DCOperating current: 90 mA at 5 V operating condition, 170 mA at 24 V operating conditionSignal discrimination thresholds:
- Logic 0 signal: 0.35~1.2 mA
- Logic 1 signal: 2.1~6.0 mA
- Wire break current: ≤0.28 mA
- Short-circuit current: ≥6.5 mAMax. allowable circuit impedance: 50 Ω (compliant with DIN 19234 standard)Signal switching response time: approx. 10 msMaximum transmission distance: up to 1000 m when using 0.5 mm² conductors
Mechanical & Environmental Characteristics
Rack occupancy width: 4 TE (standard Eurocard width)Matched cable: multi-core shielded safety signal cable with oil-resistant and flame-retardant outer sheathContact material: high-purity gold-plated terminals with anti-oxidation performance and low contact resistanceOperating temperature range: -40 ℃ ~ +85 ℃Ingress protection rating: IP54 when the plug is fully locked; IP67 when fitted with matching sealing accessoriesUnit weight: approx. 0.3 kg per set (including complete 5 m cable)Safety certifications: TÜV SIL 3, CE industrial EMC certification
Functional Features
Independent per-channel LED fault indication to distinguish wire break and short-circuit faultsSupports two wiring schemes: single loop and redundant dual channelFactory pre-terminated cables with standardized color-coded conductors for easy on-site circuit verificationEMI-shielded construction to eliminate signal interference near power plant inverters and high-power chemical industry motorsSnap self-locking design prevents accidental loosening or disconnection under operational vibration
Application Industries
Petrochemical Industry
Signal acquisition for safety proximity switches, level switches and pressure interlock switches in SIS emergency shutdown systems of refinery units, ethylene plants and LNG tank farms, applied to ESD interlocks, high/low liquid level protection and overpressure cut-off circuits.
Thermal & Gas Power Generation Industry
Furnace Safety Supervisory System (FSSS) for boilers, gas turbine protection interlocks, digital signal transmission for position feedback of fans and valves, and wiring of safety circuits against boiler overtemperature and flameout.
Coal Chemical & Fine Chemical Industry
Safety interlocks for reactors in synthetic ammonia and methanol plants, collection of signals from safety switches for installations with toxic and hazardous media, complying with SIL3 safety standards for high-risk chemical zones.
Offshore Oil & Gas Platforms
Fire and Gas (F&G) systems for offshore drilling platforms and FPSOs, wiring of on-site safety sensors in explosive hazardous areas, adaptable to wide temperature and high salt spray environments.
Pharmaceutical Chemical & Lithium Battery Plants
Safety access control for explosion-proof clean workshops, emergency stop switches for equipment, and digital feedback circuits for combustible gas detection.
Metallurgy & Steel Industry
Safety limit switches for blast furnaces and converters, and wiring of safety interlock signals for equipment operating under high-temperature working conditions.
Supporting Products
Core Matching Modules
HIMA F3237 SIL3 Digital Safety Input Module (exclusive matching I/O module; no alternative models are compatible)F8650X / F8627X Central CPU Controllers (main controllers for HIQuad systems)F7133 Power Distribution Module, F7131 Power Monitoring Module
Racks & Structural Accessories
B9302 19-inch 4U Standard Safety Rack (universal for H41 / H51q systems)Cable fixing clips, shielded grounding terminals, field explosion-proof junction boxes
FAQ
Q: Are there any differences in parameters between Z7108/3237/C5 and Z7108/3237/C8 apart from cable length?A: Their electrical specifications, LED diagnostics and impedance standards are completely identical. The only difference is the factory prefabricated cable length: C5 is 5 meters and C8 is 8 meters. Select the C5 model for short on-site wiring distances and the C8 model for long-distance cable tray routing. Do not cut or extend the cable on site, as this will invalidate the factory-implemented impedance matching specifications.
Q: Can this connector be used with SIS modules of other brands or the HIMA F3236 module?A: No. The middle code 3237 indicates compatibility exclusively with the F3237 digital input card. It features dedicated hardware interfaces, channel definitions and circuit impedance parameters. Mixed use across different modules or brands will lead to signal misjudgment and safety loop failure, failing SIL safety acceptance inspection.
Q: For redundant safety loops in projects, do we need to purchase two sets of Z7108 connectors as a pair?A: It is recommended to purchase them in pairs for 1oo2 redundant safety loops. The two independent cable connectors operate without mutual interference; a fault in one circuit will not disrupt signal transmission of the other, meeting the design requirements of SIL3 redundant architecture.
Q: What fault does a steady red LED light on the connector indicate, and how to troubleshoot it quickly?A: A constant red light falls into two fault categories: open circuit or short circuit. First disconnect the wiring of field switches and test cable continuity separately. Replace the entire prefabricated connector for open circuits. For short circuits, check damaged insulation and overlapping wire cores at field terminals.
Q: If the outer jacket of the connector cable cracks after long-term operation under high-temperature conditions, can the cable be replaced separately?A: Separate cable replacement is not recommended. The product is integrally crimped and formed at the factory. Manual re-crimping will alter circuit impedance and compromise SIL safety certification parameters. If the outer sheath is damaged, replace the complete Z7108/3237/C5 connector assembly directly.
Q: Can bent gold-plated terminals caused by careless plugging and unplugging be repaired for continued use?A: Bent gold-plated terminals will result in unstable contact resistance. Signal fluctuations are highly likely under vibrating operating conditions, triggering false ESD shutdowns. The entire assembly must be replaced if terminals are damaged; straightening bent terminals and reusing them in safety loops is prohibited.
Q: How should cabinet shield grounding be implemented to eliminate interference from motor inverters?A: Apply single-point grounding to cable shields only at the cabinet side, while leaving the shield ends at field sensors floating. Collect shield ground wires of all Z7108 cables to the dedicated rack grounding bar uniformly. Distributed multi-point grounding is forbidden to prevent circulating current that distorts digital signals.
