HIMA H41q B4237-2 Chassis | Rack Product Introduction
Overview

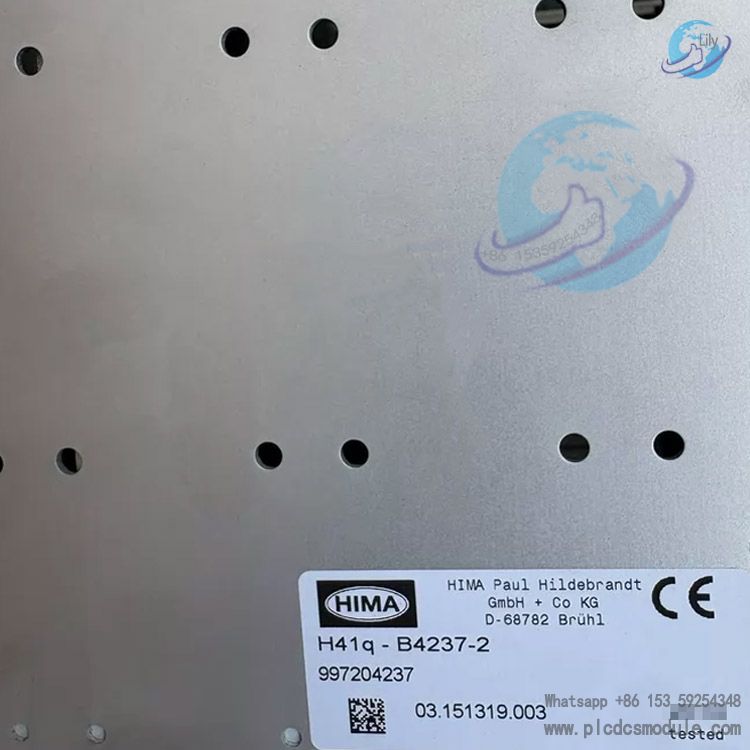

HIMA H41q B4237-2 is a standard 19-inch 5U chassis designed for H41q-HRS architecture. As a physical backplane carrier for safety instrumented systems, it accommodates redundant CPU, power cards, I/O modules and communication assemblies. H41q B4237-2 is equipped with two groups of independent redundant I/O backplane buses and supports 2oo4D quadruple redundant safety architecture. The rack contains two independent signal channels and can be fitted with up to 13 I/O modules. It supports the construction of SIL3 safety control systems and serves for hardware assembly of emergency shutdown units in chemical and oil & gas industries.
Technical Features
- Form factor: Standard 19-inch rack, 5HU height, integrated industrial metal frame
- System architecture: Compatible with H41q-HRS, dual-channel isolated redundant I/O backplane bus
- Slot allocation: Channel 1 supports 7 I/O modules, channel 2 supports 6 I/O modules, total 13 I/O slots
- Power supply: Backplane supports 24VDC power supply, compatible with F7130A power module
- Safety specification: The matched complete system meets IEC61508 SIL3 certification
- EMC standard: Complies with EN50082-2 industrial anti-interference specification
- Temperature range: Operating temperature 0℃~+60℃, storage temperature -40℃~+85℃
- Mechanical structure: Supports cabinet embedded installation with standardized grounding terminals
- Maintenance design: Backplane bus allows hot-swap expansion of field I/O modules
Model Code Analysis
HIMA H41q B4237-2
- HIMA: Brand name
- H41q: Series code of HIQuad 4th generation safety programmable electronic system
- HRS: Sub-model code, meaning redundant controller + redundant I/O bus architecture
- B: Identification for chassis and rack assembly kit
- 4237: Basic part number
- -2: Revision code, stands for H41q-HRS dual redundant bus model, different from B4237-1 HS single bus version
Product Characteristics
- Two physically independent backplane buses with isolated channels to reduce common cause failure
- Jumper terminals integrated on backplane for fast hardware configuration of redundant architecture
- Flexible slot layout, compatible with digital and analog I/O modules
- Reserved fan mounting positions at chassis rear for heat dissipation during long-term continuous operation
- Standard European backplane connectors to guarantee stable signal transmission in industrial sites
- Shock-resistant frame, suitable for harsh environments such as offshore platforms and petrochemical plants
Application Fields
- Hardware base for ESD emergency shutdown systems of oil and gas stations
- FGS fire and gas safety control systems for chemical plants
- Safety instrumented systems for boiler protection in gas power stations and thermal power plants
- Process interlock control systems for refineries and coal chemical facilities
- Safety monitoring systems for offshore wind farms and offshore platforms
- Safety interlock devices for pressure protection of long-distance transmission pipelines
Operation Guide
Mount HIMA H41q B4237-2 into a standard 19-inch industrial cabinet, fasten bracket screws and complete reliable grounding.Install two F8652X redundant CU central modules in designated slots according to H41q-HRS specifications.Install two sets of F7130A power modules and check wiring status of 24VDC backplane power circuit.Install DI/DO/AI/AO I/O modules on two bus slots following channel allocation rules.Check Z6007 jumper component at chassis rear. Bus combination jumper is not required for HRS redundant architecture.Insert F8627X/F8628X communication modules, connect engineering computer and power on for hardware self-test.Scan all modules inside HIMA H41q B4237-2 via ELOP II software and ensure stable bus communication.
Working Principle
HIMA H41q B4237-2 builds a dual-channel hardware platform with two independent built-in backplane buses. Each redundant controller occupies one backplane bus to collect I/O signals from corresponding channels. Two channels execute safety logic operation synchronously and conduct continuous data cross verification. If bus or module fault occurs on one channel, the other channel maintains safety functions continuously. The chassis backplane realizes power distribution, signal routing and module interconnection, fulfilling 2oo4D quadruple modular redundancy fail-safe mechanism. The system triggers predefined safety shutdown action once double faults are detected.
Intra-brand Comparison of H41q Series Racks
- B4234(H41q-M): Single CPU, single bus basic model without redundancy, for small projects with low reliability requirements
- B4235(H41q-MS): Single CPU with basic diagnosis function, no redundant I/O bus
- B4236-1(H41q-H): Single CPU single bus, fail-safe design without redundant signal channels
- B4236-2(H41q-HR): Single CPU with redundant I/O bus, non-redundant controller
- B4237-1(H41q-HS): Redundant CPU, single I/O bus, limited channel expansion capability
- B4237-2(H41q-HRS): Redundant CPU equipped with dual redundant I/O bus, high-availability rack of H41q series
Compatible Components
FAQ
Q1: Can HIMA H41q B4237-2 directly replace B4237-1?A1: Direct replacement is not available. B4237-1 adopts single I/O bus HS architecture, while H41q B4237-2 uses dual-bus HRS architecture. Differences exist in backplane layout and jumper configuration, hardware configuration and control program need to be reconfigured.
Q2: What is the maximum quantity of I/O modules supported by HIMA H41q B4237-2 rack?A2: The rack supports up to 13 I/O modules, 7 modules for channel 1 and 6 modules for channel 2. Random cross-channel arrangement will lead to bus communication failure.
Q3: Can I/O modules installed on HIMA H41q B4237-2 support hot swap?A3: I/O modules support hot swap under normal operating status. Hot plugging of CU central modules and power modules is not recommended.
Q4: What safety integrity level can the system built with H41q B4237-2 reach?A4: The complete H41q-HRS control system built based on H41q B4237-2 meets IEC61508 SIL3 safety integrity level.
Q5: Can H51q series modules be mixed with HIMA H41q B4237-2?A5: Mixed installation is forbidden. H41q backplane bus protocol is incompatible with H51q, and pin definitions differ. Mixed assembly will cause complete communication interruption.
