Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The GE IS200ERIOH1ABB EX2100 board is an I/O regulating board of the EX2100 excitation control system, used for customer and system I/O interfaces, supporting simplex and redundant regulator control. In simplex mode, it is installed on the ERBP backplane to connect customer I/O signals of ECT BG2 and EPCT terminal boards, as well as system I/O signals of EROC and ERDD boards. In redundant mode, it also connects system I/O signals of ERRR. It controls data storage and acquisition to DPM through FPGA, connects with EROC and ERDD boards via ERBP/ERRB backplanes, links to EPCT and ECTB through 25-pin connectors, is manufactured by GE Fanuc, and adopts conformal coating to protect hardware components.
Functional Purpose: Provides interfaces for customer and system I/O, applicable to simplex and redundant regulator control systems. In simplex applications, the I/O is installed in the Excitation Regulator Backplane (ERBP) to connect customer I/O signals for ECT BG2 terminal board and EPCT terminal board, and system I/O signals for Excitation Regulator Option Card (EROC) and Excitation Regulator Interface & Dynamics Discharge Board (ERDD). In redundant applications, it also connects system I/O signals for Excitation Regulator Redundant Relay (ERRR).
Working Principle: Controls data storage and acquisition to Dual-Port Memory (DPM) via Field-Programmable Gate Array (FPGA).
Connection Method: Connects to EROC and ERDD boards through ERBP or ERRB backplane, links to ERBP and ERRB via two 25-pin connectors, and further connects to EPCT and ECTB.
Protection Feature: Adopts conformal coating for protection, effectively safeguarding hardware components on the board and enhancing reliability in complex environments.

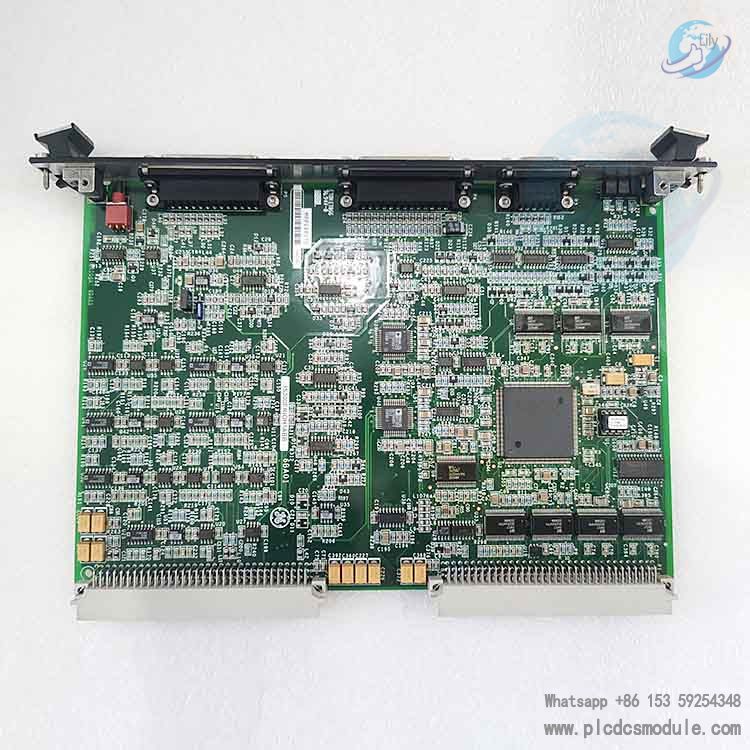

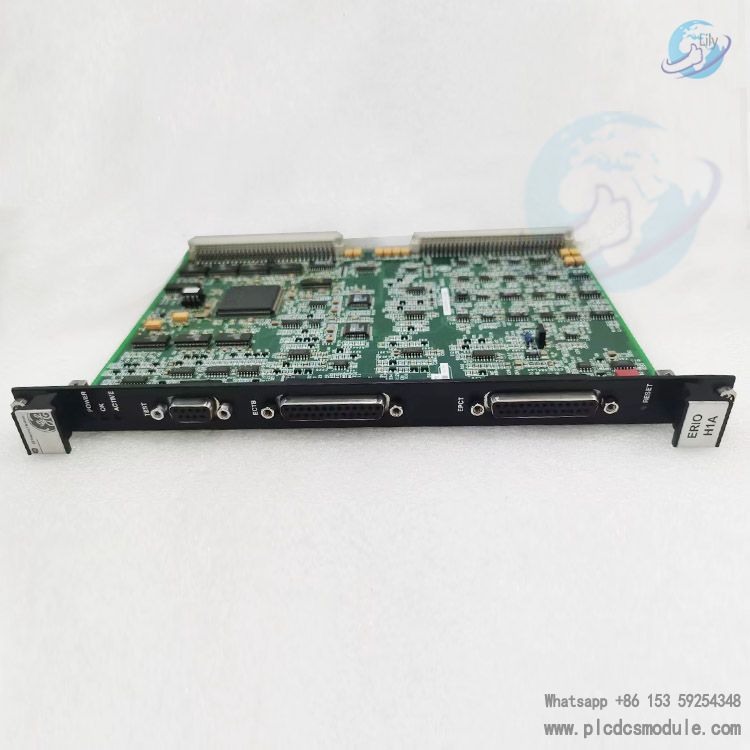

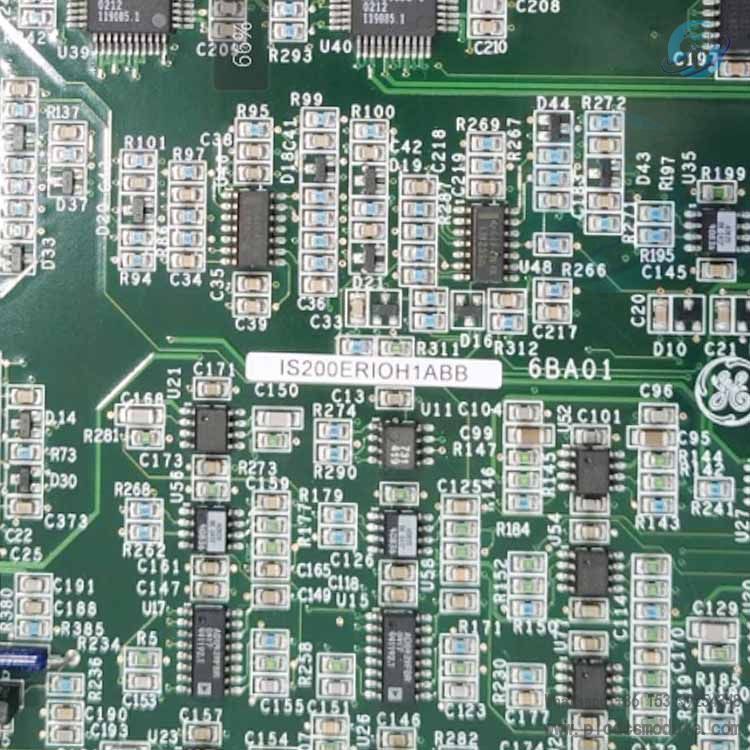

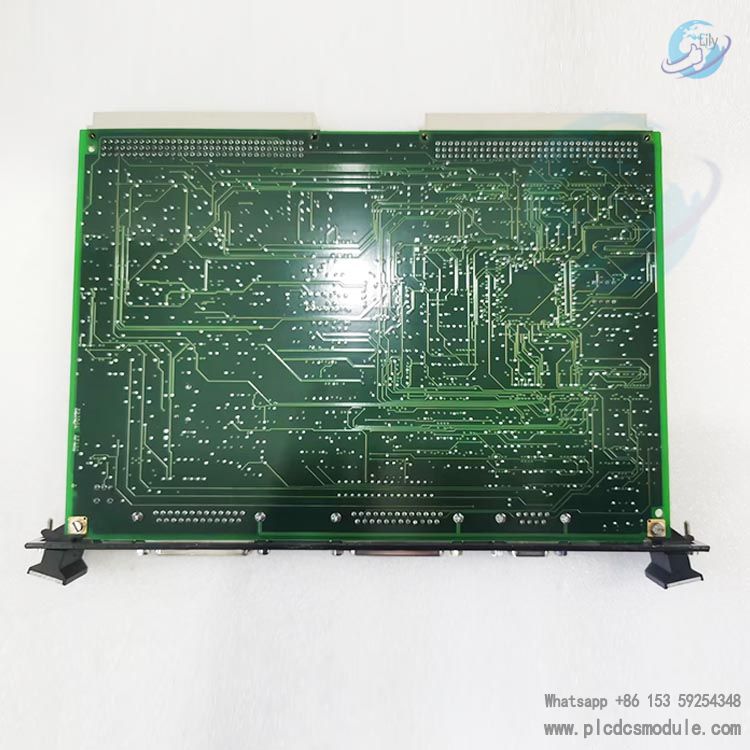

GE IS200ERIOH1ABB EX2100 board card
