Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The GE IS200WETAH1AEC is a printed circuit board (PCB) exclusively designed by General Electric (GE) for the Speedtronic MARK VI control system. As a key core component of gas turbine and steam turbine management systems, it undertakes core functions such as signal processing, voltage regulation, and equipment interconnection, and is widely used in industrial scenarios with extremely high requirements for control accuracy and reliability, such as power generation and petrochemical industry.
Core Technical Parameters
- Adaptable System: GE Speedtronic MARK VI gas/steam turbine control system; needs to be used with the sub-board IS210BPPBH2C to achieve function expansion and signal interaction.
- Power Supply Specifications: Relies on the total power supply of the MARK VI system: 125 VDC (derived from a 125 VDC battery pack or 120/240 VAC rectification); no independent power supply interface, power must be obtained through the system bus to avoid voltage instability caused by separate wiring.
- Hardware Core Components: 7 fuses, 4 transformers, over 100 voltage regulators, over 25 test points, 6 terminal blocks; 3 of the transformers are arranged side by side, and 1 is independently located on the other side of the board to optimize signal isolation and heat dissipation.
- Connector Configuration: Over 45 plugs/connectors, including: vertical male pin connectors; 2~20-position female plugs; conductive point/wire connectors; some connectors are marked with unified identifiers (such as P29A, P29B, P29C) for easy wiring identification and maintenance.
- Environmental Adaptability: Operating temperature: -40℃~70℃ (wide temperature design); storage temperature: -40℃~85℃; protection level: IP20; suitable for harsh industrial environments such as high-temperature workshops and outdoor substations, with a metal shell and dust-proof design to reduce dust erosion.
- Physical Specifications: Dimensions: approximately 10.5 inches × 6.5 inches × 2.5 inches (length × width × height); weight: approximately 0.3~0.5 kg; supports DIN rail mounting or cabinet fixing, with a compact design to save installation space.
- Certification and Compliance: Complies with ISO 9001 quality standards and CE safety certification; meets the electromagnetic compatibility (EMC) requirements of industrial control equipment, reducing signal distortion in high-interference environments.

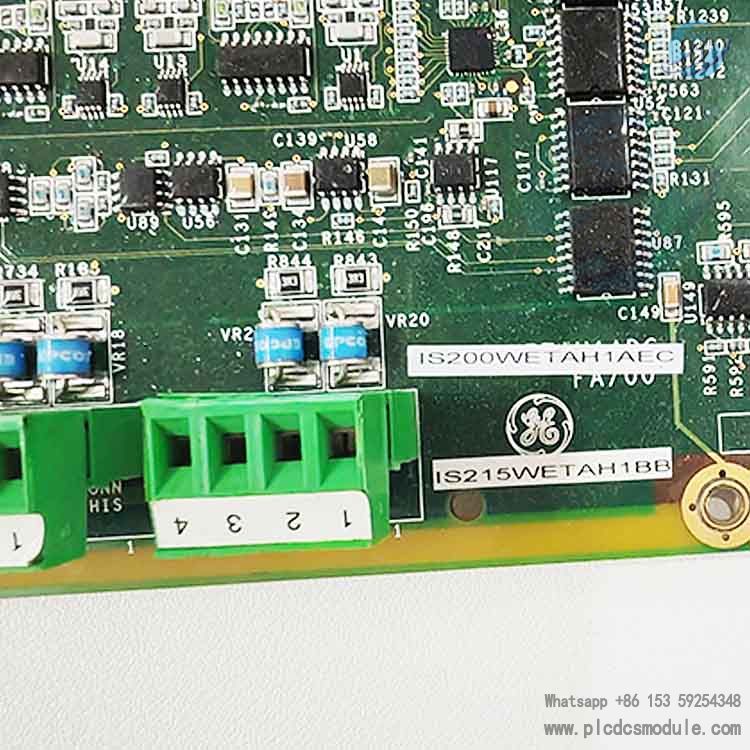

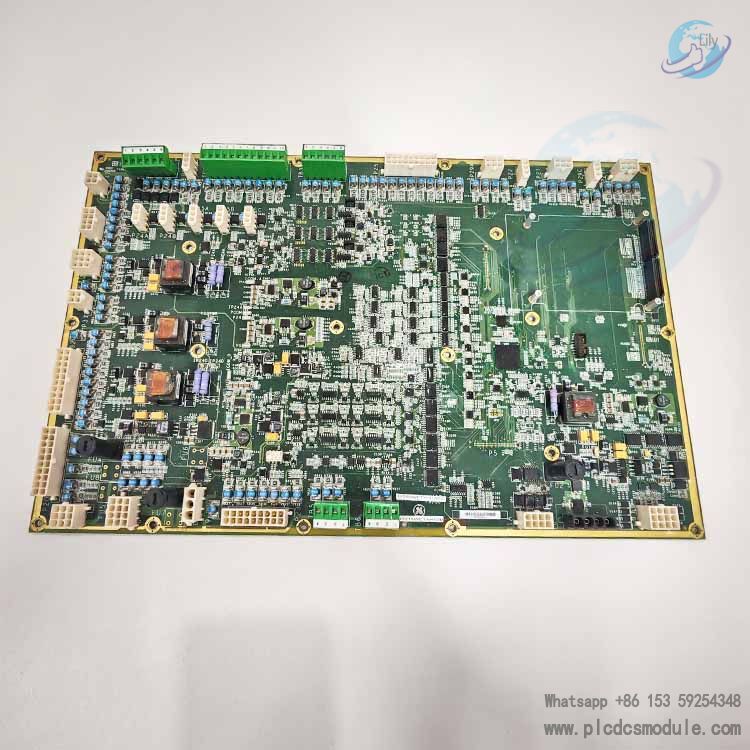

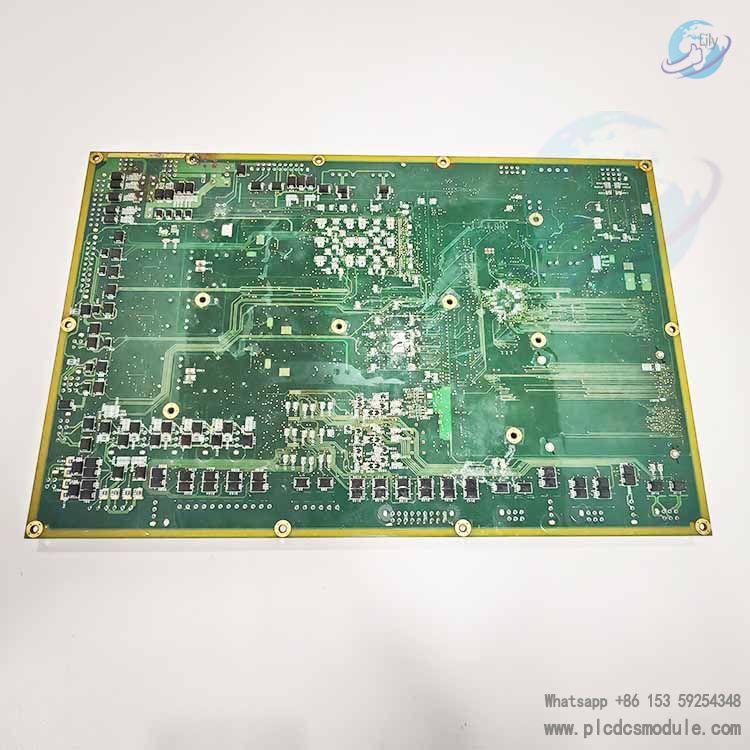

GE IS200WETAH1AEC MARK VI circuit board
