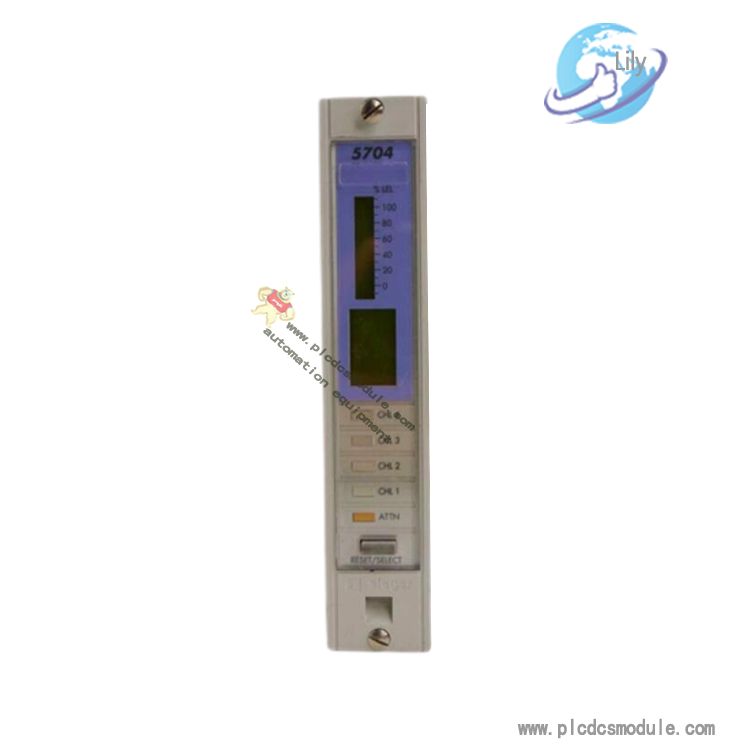

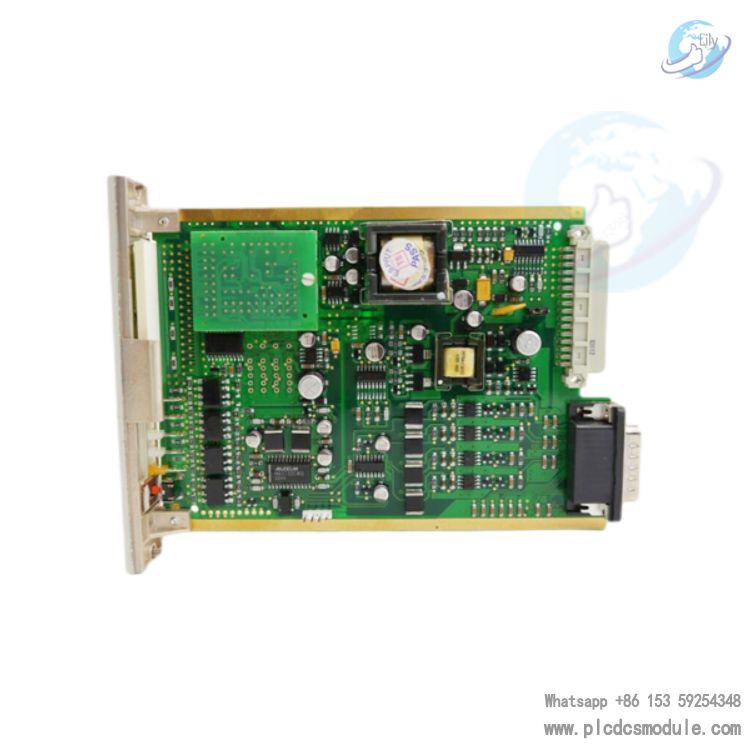

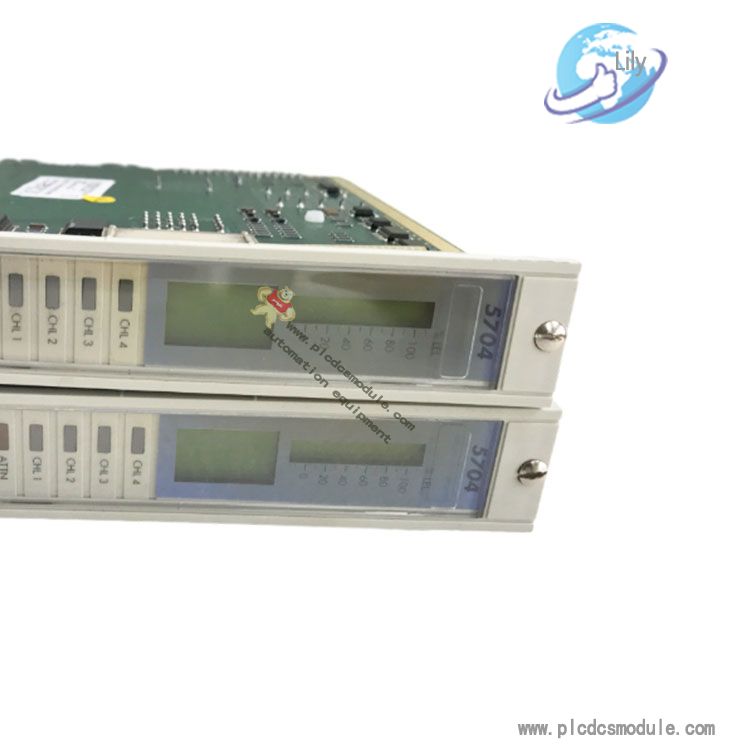

Honeywell 05704-A-0145 4 Channel Control Card

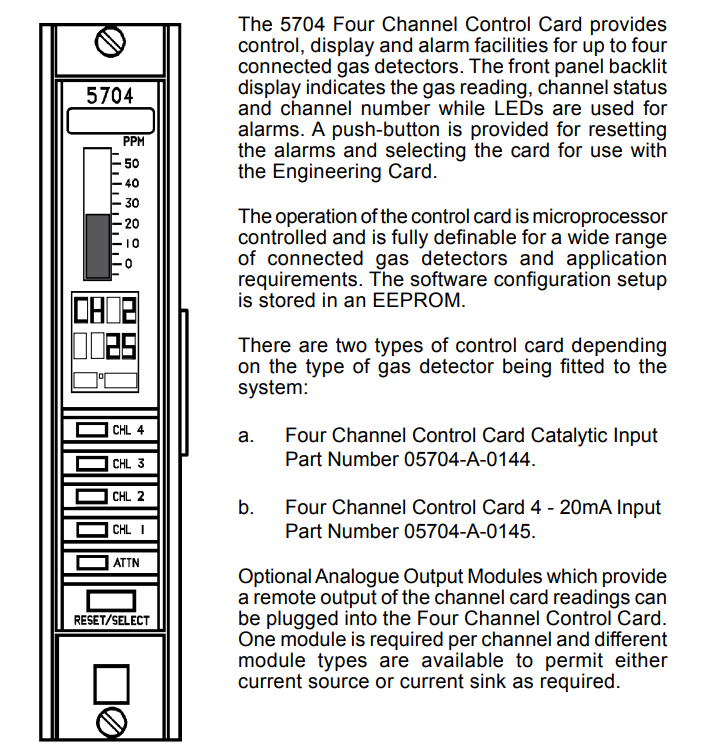

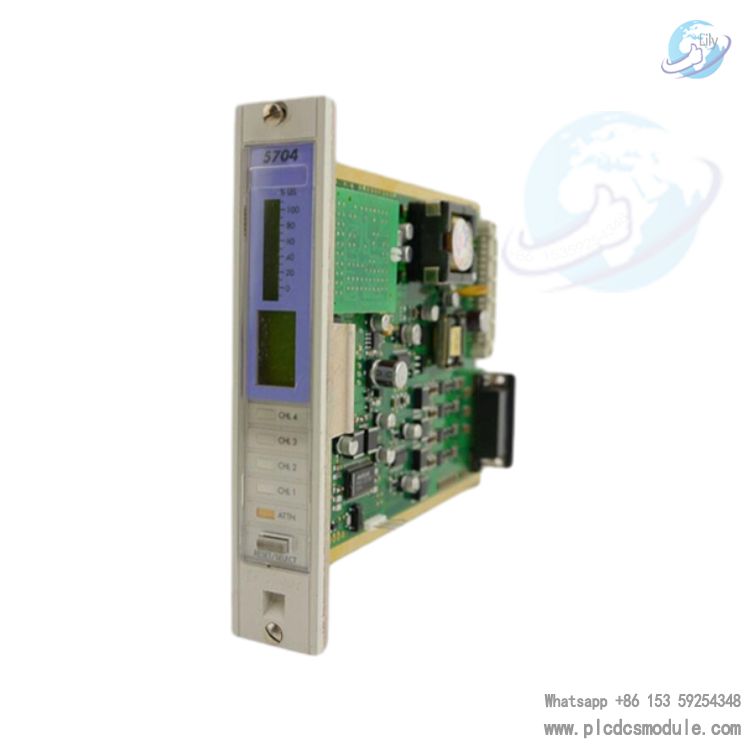

As a member of the System 57 family, the gas detection and monitoring device Honeywell 05704-A-0145 4 Channel Control Card is designed to monitor field-installed industrial gas detectors. It connects to remote sensors via 4-20mA input interfaces, processes sensor signals, and displays gas readings and statuses. The device adopts a 3U card format, providing up to 32 detection channels in a half 19-inch sub-rack and up to 64 channels in a standard 19-inch sub-rack. Its signal processing and display functions indicate gas readings, channel statuses, and channel numbers through a front-panel backlit display. LEDs are used for alarms, and buttons reset alarms and select cards for use with engineering cards. The alarm functions include A1, A2, A3 level alarms and alarm outputs such as STEL, LTEL, rise, fall, and update, supporting multi-alarm modes like main alarm, zoned alarm, and vote alarm. For remote control, each card has remote disable and reset inputs, and each channel offers optional 0-20mA or 4-20mA isolated monitoring outputs.

Data Sheet

05704-A-0145.pdf

Hardware Characteristics of 05704-A-0145 4 Channel Control Card

Physical Specifications

• Dimensions: 132mm in height, 25mm in width, 172mm in depth.
• Weight: 170g.

Interface Types

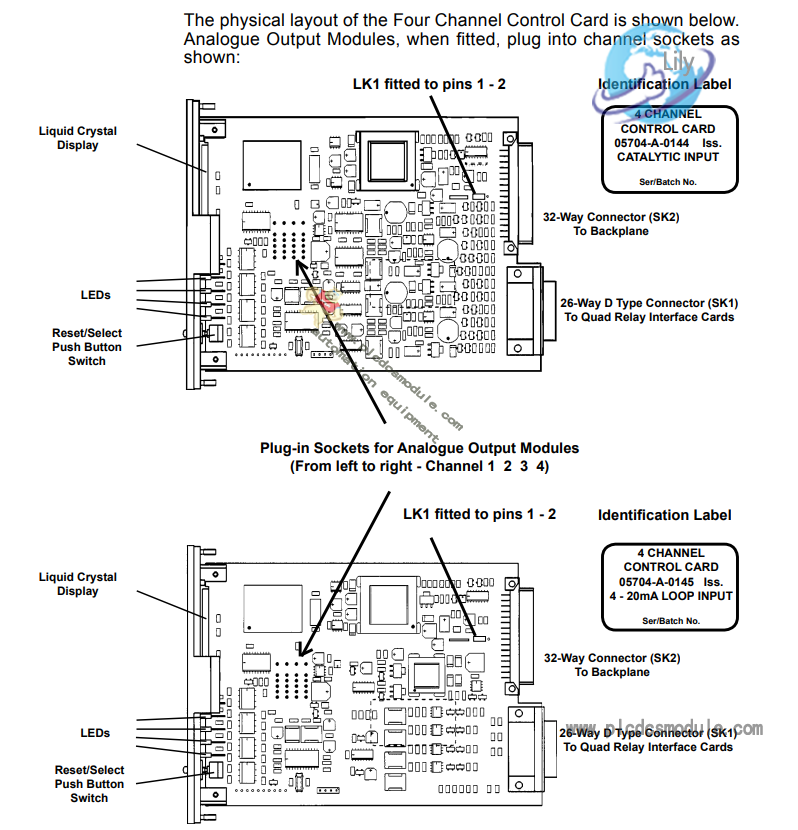

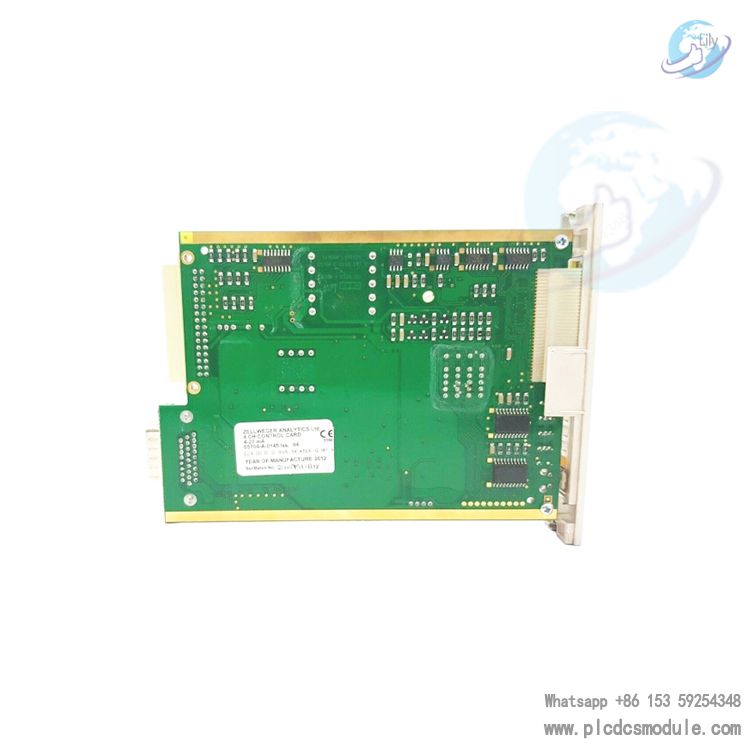

• 26-way D-type connector (SK1): Connects to the Quad Relay Interface Card.
• 32-way connector (SK2): Connects to the backplane.
• Front-panel plug-in sockets for Analogue Output Modules: Arranged from left to right for Channel 1 to 4.

Input Characteristics

• Measurement signal range: 0–25mA.
• Maximum line resistance: 500 ohms (loop resistance including the sensor).

Power Requirements

• Power consumption: 8.3W (maximum), 7.5W (typical).
• DC supply: 18–32V dc.

Operation and Configuration

Calibration and Maintenance

• Calibration and operation are performed using a dedicated Engineering Card, supporting zero and span calibration. The first-time span calibration is for new catalytic sensors.

Engineering Card Functions

• With the Engineering Key inserted, the Engineering Card enables operations such as channel inhibition, alarm configuration and relay testing, catalytic sensor bridge current adjustment, sensor signal monitoring, and clock/calendar setting.

Alarm Settings

• Alarm setpoint resolution: 1% full-scale steps.
• Initial accuracy: ±1%.
• Linearity: ±2% full scale.
• Repeatability: ±2% full scale.

Related Accessories and Compatibility

Analogue Output Modules

• Optional modules:
• 04200-A-0145 (Current Sink type).
• 04200-A-0146 (Current Source type).
• Features: Provide a current loop output following the sensor signal level, configurable for 0–20mA or 4–20mA output, suitable for operating chart recorders, data loggers, PLCs, etc.

Relay Interface Cards

• Works with the Quad Relay Interface Card (05704-A-0121) or Relay Interface Assembly (05704-A-0131) to provide alarm output connections.

System Compatibility

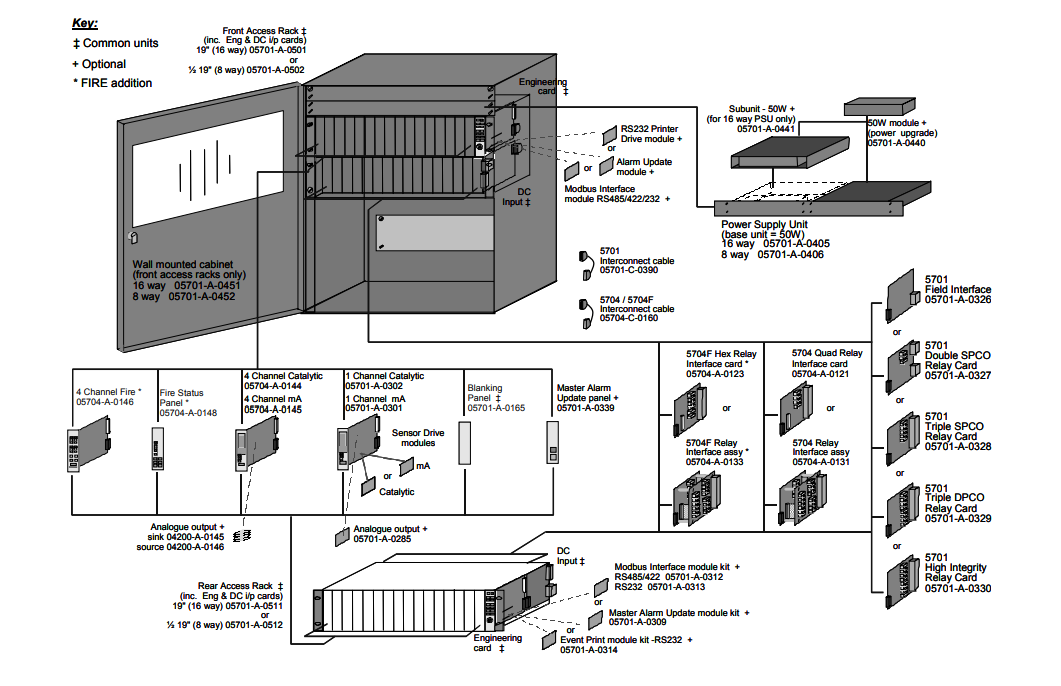

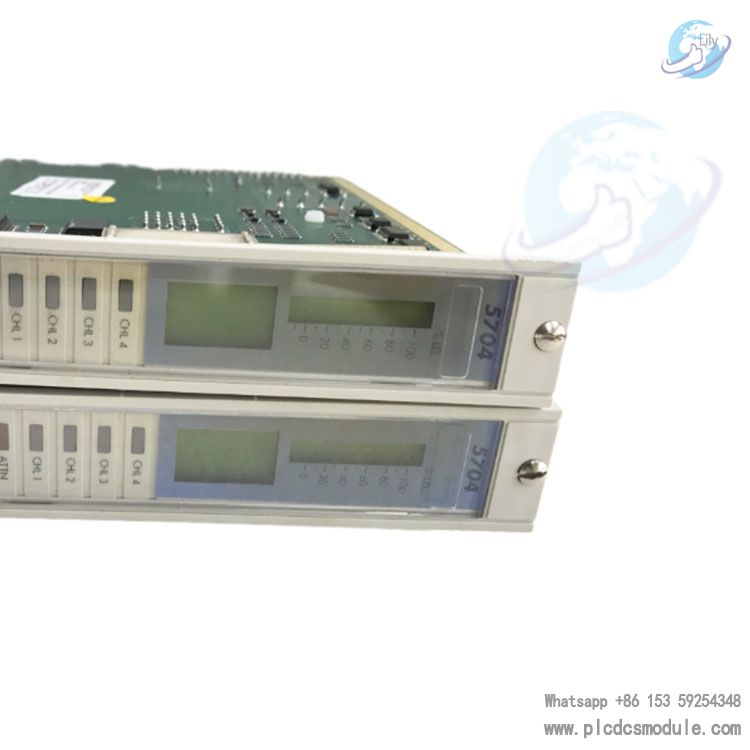

• Can be mixed with 5701 Control Cards in the same System 57 rack, compliant with EMC standards.

05704-A-0145 4 Channel Control Card is applied in industrial gas detection, focusing on safety monitoring, process automation, petroleum/chemical sectors, and environmental/municipal engineering. It monitors flammable/toxic gases (methane, CO, chlorine) via catalytic/4-20mA sensors in factories and workshops. Integrated with PLC/DCS via 4-20mA, it uses analog modules (04200-A-0145/0146) for signal conversion. Suitable for petroleum/chemical leakage detection in tanks/pipelines, compliant with EMC/ATEX. Monitors sewage/landfill gases and indoor air quality. 19-inch rack supports 64 channels, with A1/A2/A3 alarms, STEL/LTEL limits, and relay-linked alerts. Engineering card enables calibration, remote control, reducing maintenance.
