Honeywell DC‑TAIX01 (51307597‑176) Analog Input Module
Product Basic Information

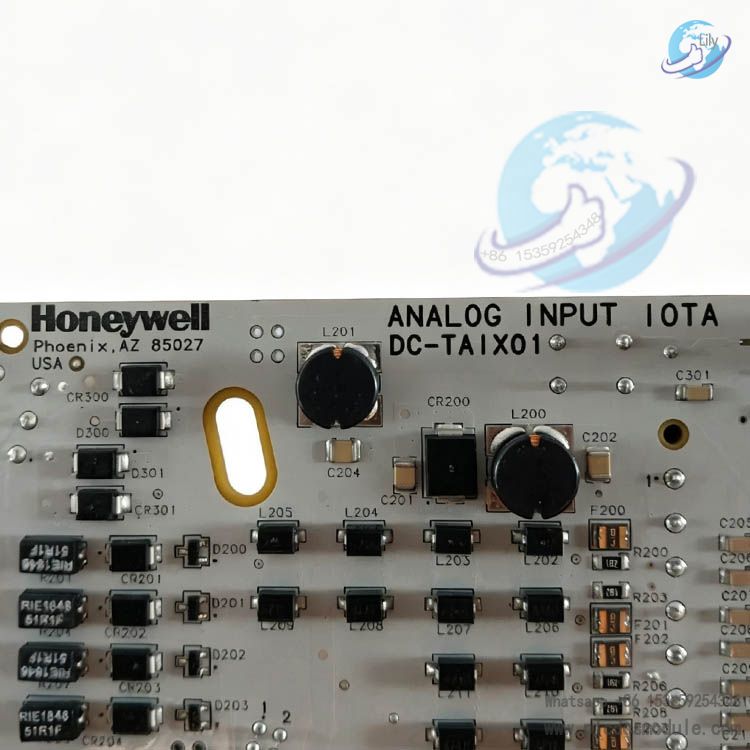

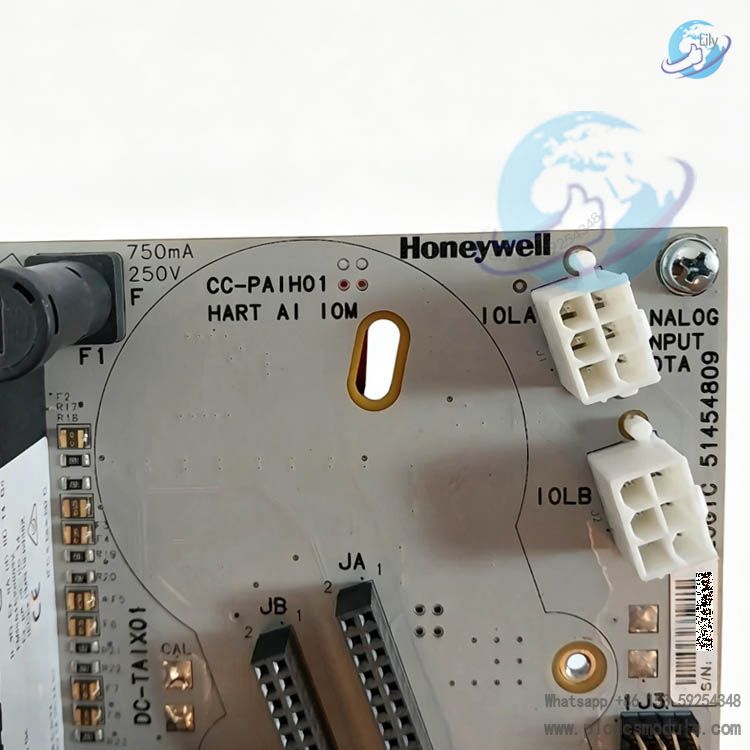

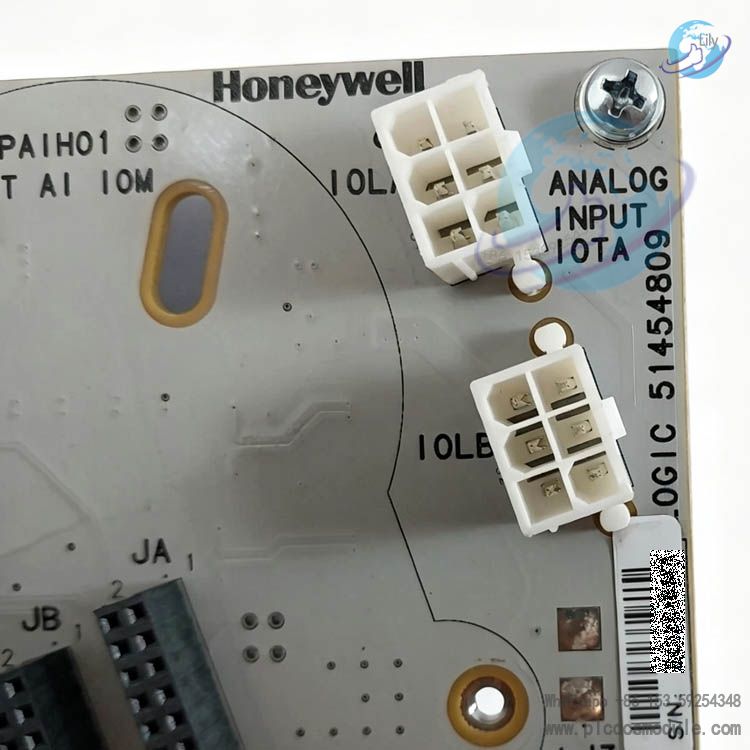

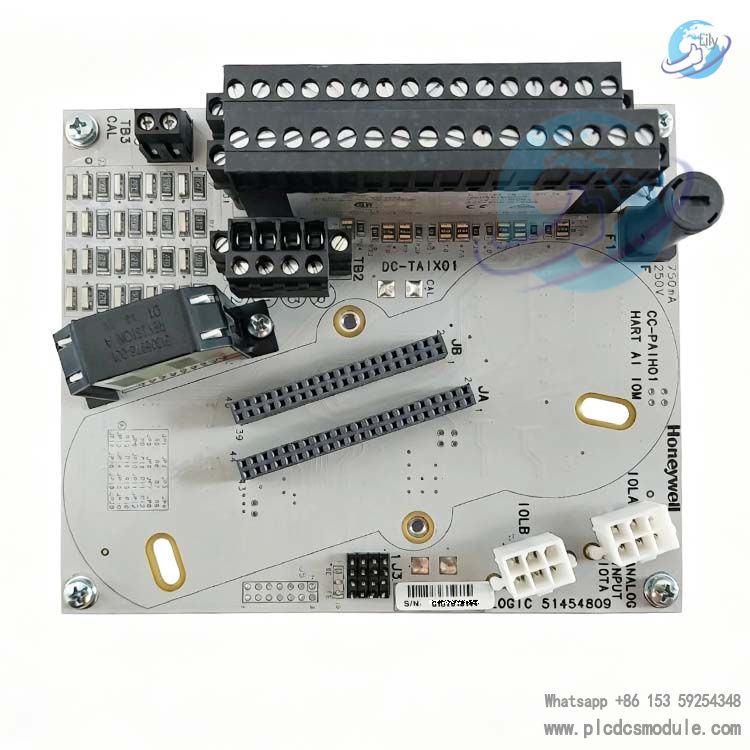

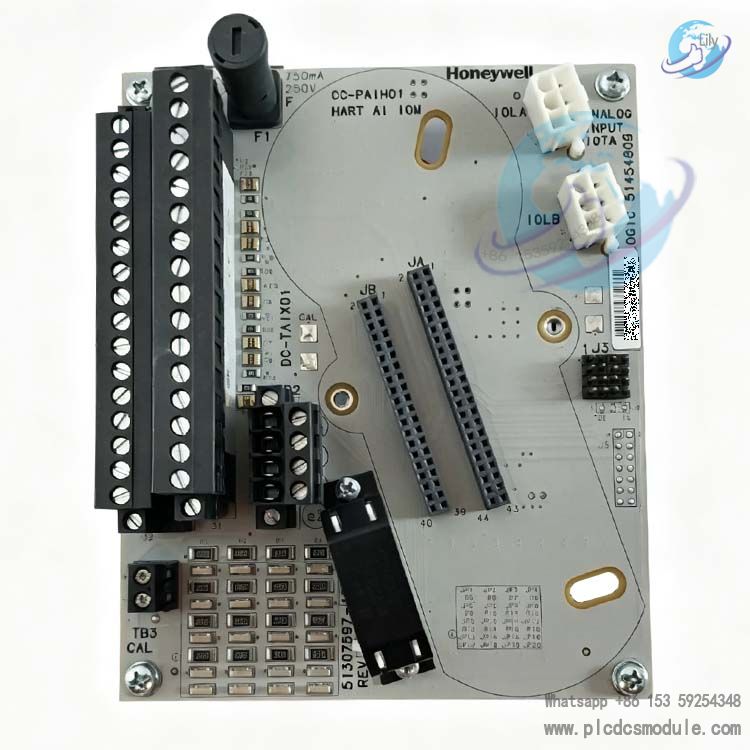

DC‑TAIX01, part number 51307597‑176, is an analog input module matching Honeywell TDC‑3000 DCS system. It collects analog signals from industrial field, converts analog signals output by field sensors into digital signals recognizable by the system, and uploads them to the DCS controller for calculation, display and loop control. The module features rated electrical specifications of 250V, 750mA, and it is a rack‑mounted single‑slot I/O card. Mainly applied in process industries such as petrochemical, power plant and metallurgy. It belongs to the traditional I/O hardware family of TDC‑3000 system, widely used for spare part replacement and expansion renovation of existing old projects. It can only operate inside the matched TDC‑3000 I/O rack and cannot be directly used for Experion PKS C200/C300 platform. The hardware appearance adopts standard industrial control card PCB structure with metal front panel, on‑board status LED indicators. The backplane interface connects to I/O rack bus, and front‑end terminal blocks link to field transmitters and sensors.
Technical Specifications
| Model | DC‑TAIX01 |
| Part Number | 51307597‑176 |
| Product Type | Analog Input Module |
| Rated Electrical | 250V, 750mA |
| Affiliated System | Honeywell TDC‑3000 DCS |
| Installation Method | Rack slot mounting, single‑slot occupation |
| Communication Bus | TDC‑3000 I/O backplane bus |
| Compatible Rack | TDC‑3000 series standard I/O sub‑rack |
| Acquired Signal Type | Industrial standard analog input signal, supports voltage / current transmitter signal acquisition |
| Module Status Indication | On‑board LED status indicators for module running, communication and fault status |
| Operating Ambient Temperature | 0℃ ~ +60℃ (inside cabinet) |
| Storage Temperature | ‑40℃ ~ +85℃ |
| Relative Humidity | 5%‑95% RH, non‑condensing |
| Protection Grade | IP20, cabinet‑mount application only |
| Certifications | UL, CE, Class I Div 2 hazardous area certification (complete system matching) |
| Hardware Features | Channel fault detection, module self‑diagnosis, fault reporting to DCS operator station; hot‑swap support (comply with TDC‑3000 operation specifications) |
Main Functions & Features
- Field analog signal acquisition: Receive analog signals transmitted from field temperature, pressure, liquid level and flow transmitters, complete analog‑to‑digital conversion, convert field physical quantities into digital data and upload to controller.
- Hardware self‑diagnosis: Built‑in diagnostic circuit identifies module hardware failure, channel abnormality and wire break fault. Fault information is uploaded to operator station for operation & maintenance staff to quickly locate issues.
- Backplane bus interaction: Communicate with TDC‑3000 controller via I/O rack backplane bus to finish data upload and configuration parameter download.
- Hot‑swap maintenance: Card plug‑and‑replace is supported under non‑stop system condition for on‑site spare part maintenance and reduces unit downtime. Operations shall strictly follow Honeywell TDC‑3000 maintenance manual procedures.
- Existing system adaptation: Serves as spare hardware for legacy TDC‑3000 systems for old unit expansion and damaged card replacement. It cannot be directly used for new‑generation Experion PKS controllers.
Application Scenarios
- Temperature, pressure, flow and liquid level loop signal acquisition for petrochemical plants
- Spare part replacement and renovation of legacy DCS systems in thermal power & cogeneration plants
- I/O expansion for existing TDC‑3000 projects in metallurgy and paper‑making industries
- Class I Div.2 hazardous area environments, collect intrinsically‑safe transmitter signals with matched safety barriers
Installation & Configuration Points
- The module must be installed in corresponding I/O rack slot of TDC‑3000, confirm matched backplane bus version. Do not mix I/O racks of other series.
- Field wiring is connected via matched terminal assemblies. Distinguish signal loops and grounding loops. Route cables strictly per official wiring diagram, implement shield grounding to mitigate industrial EMI interference.
- Module channel range and signal type shall be configured and downloaded inside TDC‑3000 system software. Configuration parameters are not stored locally on module but saved in controller database.
- Perform channel bypass on operator station before hot‑swap operation to avoid disturbance to control loops.
- The module does not support hardware redundancy. Software redundancy configuration on system side is required for redundant acquisition loops.
Frequently Asked Questions
Q1: Can DC‑TAIX01 51307597‑176 be directly used on Experion PKS C300 system?
A: No. This module belongs to TDC‑3000 hardware family. Its backplane bus protocol is incompatible with C200/C300. TC‑series I/O modules shall be selected for PKS platform and direct replacement is unavailable.
Q2: What does module indicator alarm mean?
A: Steady red light indicates module hardware fault; flashing light means communication abnormality; no light output requires inspection on rack backplane power supply. Refer to official maintenance manual for further fault location combined with TDC‑3000 system alarm codes.
Q3: What input signals are supported?
A: Industrial standard voltage and current analog inputs are supported. Specific ranges are defined via system software configuration. Refer to channel specifications in official manual for practical accessible signals.
Q4: Does it support hot‑swap?
A: Hot‑swap is hardware‑supported. Nevertheless, bypass critical control loops in advance and strictly follow TDC‑3000 maintenance operation procedures to prevent loop disturbance.
Q5: Can hardware with old and new revision of part number 51307597‑176 be directly interchanged?
A: Hardware with identical part number can be directly interchanged under TDC‑3000 system. Verify channel configuration and confirm valid acquisition data after replacement.
