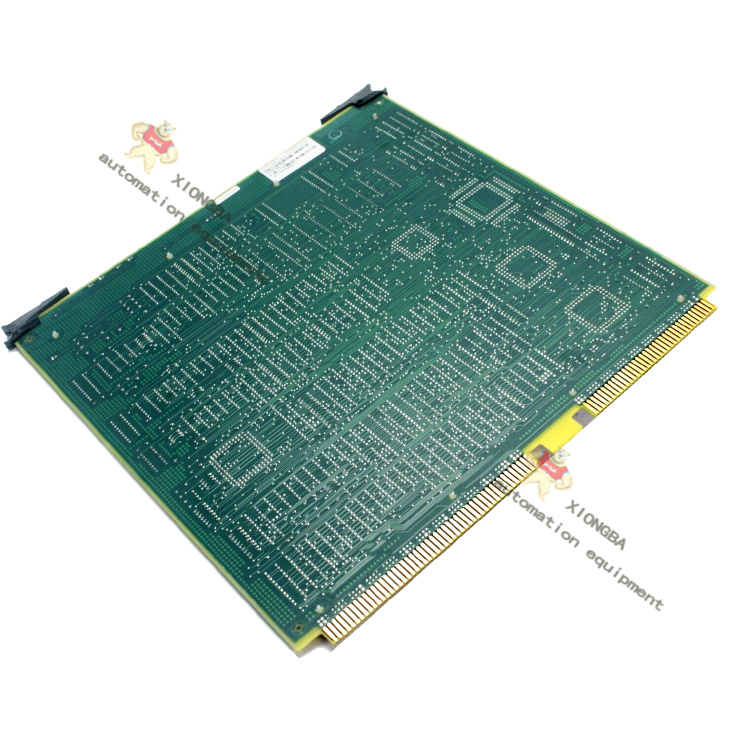

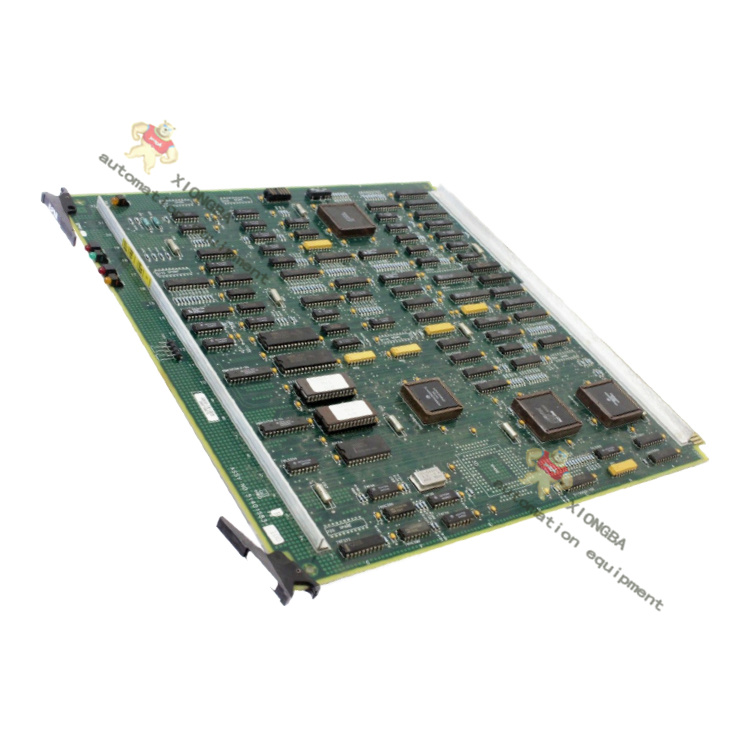

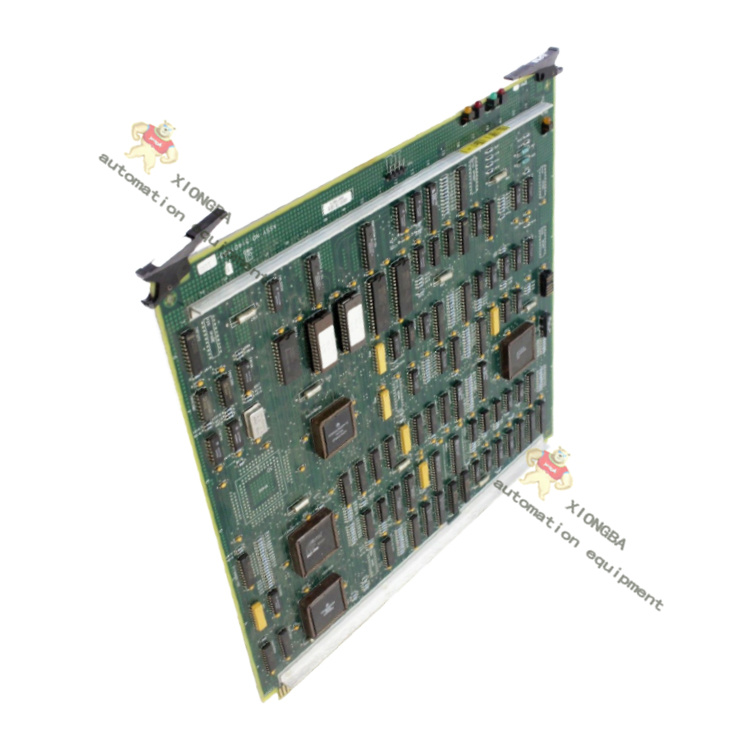

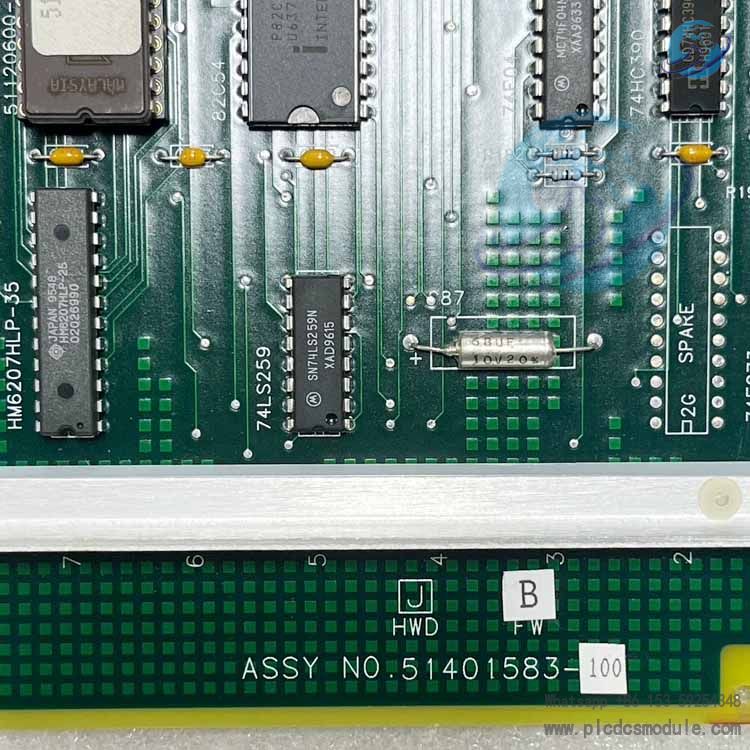

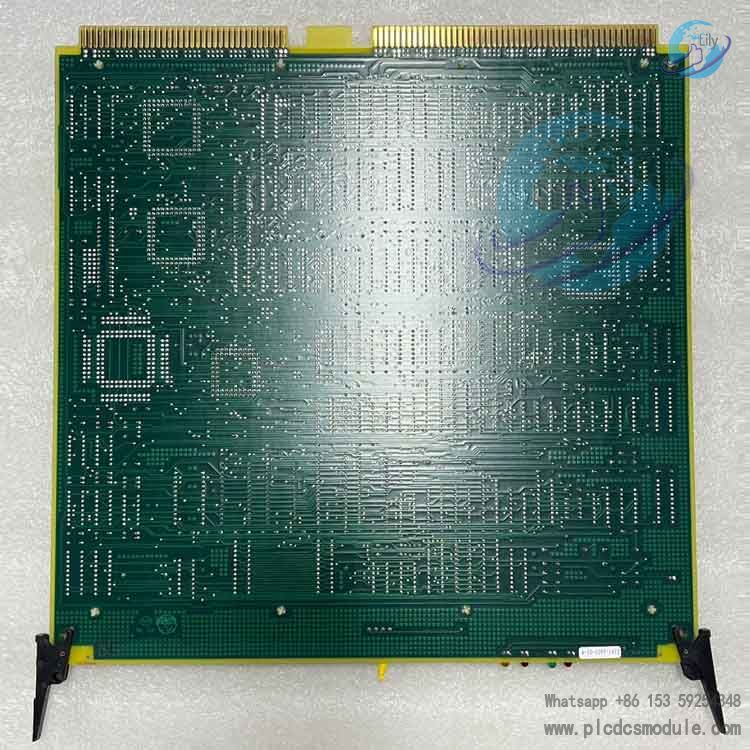

EPNI 51401583-100 is an enhanced process network interface board developed by Honeywell for the TDC 3000 / Micro TDC 3000 control system.As a core component of the Multinode Module, it adapts to the LCN (Local Control Network) architecture. It is mainly used to realize high-speed and stable communication interconnection between nodes within the control system, as well as between the system and external process networks.Compliant with standard and CE-certified hardware environments, it serves as the core functional board for TDC 3000 system Network Interface Module (NIM) and redundant NIM, ensuring reliable data transmission and coordinated node operation of industrial process control networks.
Basic Information
Product Model: EPNI 51401583-100Full Product Name: Enhanced Process Network Interface BoardApplicable System: Honeywell TDC 3000 / Micro TDC 3000 Distributed Control SystemCompatible Module: 8 Node Multinode ModuleSoftware Compatibility: Supports TDC 3000X R430 and higher versions, with downward compatibility for earlier releasesCompliance Standards: Supports CE-compliant configuration and meets EU EMC, health and safety directive requirements
Functions and Application Scenarios
(1) Core Functions
Core Network InterfaceAs the core board for NIM (Network Interface Module) and redundant NIM, it performs protocol conversion and data forwarding between the LCN network and process control network, and establishes communication links inside and outside the system.
Node Communication SupportIt ensures stable data interaction between multiple nodes (AM, US, NIM, HM, etc.) in the Multinode Module and the LCN network, including control commands, process data and status information transmission.
Redundant Communication CapabilityCompatible with redundant NIM configuration, it provides redundant backup for communication links to prevent network interruption caused by single-point failures and improve overall system reliability.
Hardware-Level Fault DiagnosisCooperating with module LED indicators and alphanumeric displays, it enables rapid localization of communication errors and board abnormalities, and simplifies daily maintenance and troubleshooting.
(2) Application Scenarios
It is installed in the Multinode Module slot of TDC 3000 / Micro TDC 3000 systems for the construction of NIM and redundant NIM nodes.
Widely used in distributed control systems for petroleum, chemical, power and other process industries, realizing seamless network connection between the control layer and process layer.
Applicable to standard NEMA rack and vertical cabinet installation, and suitable for CE-compliant industrial site environments.
Hardware Specifications and Installation Configuration
Slot Positioning
It is a front plug-in board for the Multinode Module, installed in Slot b of NIM / Redundant NIM nodes. The rear slot is used in conjunction with the NIM MODEM adapter board (51304511-100).
Node Configuration Rules
Non-CE ComplianceFor redundant NIM nodes, front Slot b is equipped with EPNI 51401583-100, and front Slot a with the K2LCN-3 processor board.
CE ComplianceFor redundant NIM nodes, front Slot b is equipped with EPNI 51401583-100, and front Slot a with the K2LCN-4 processor board.
Installation Requirements
The module power supply must be cut off before board insertion and removal to avoid backplane circuit burnout and electrostatic damage to the board.Operations shall be performed with anti-static wristbands and on anti-static workbenches; anti-static containers shall be adopted for storage and transportation.The version of the replacement board shall not be lower than that of the original part to ensure compatibility.
Fault Diagnosis and Maintenance
(1) Judgment via Fault Indicators
- SELF TST/ERR steady on: Self-test failure. Prioritize replacing the EPNI board and check whether the rear NIM MODEM adapter board is properly installed.
- BUS TRAN ERR on plus DTAK timeout of the K2LCN board: Bus transmission fault. Replace the EPNI board first, then troubleshoot the processor board.
- Communication interruption: Check board fixation and adapter board connection, and confirm that LCN network cables are free from looseness.
(2) Maintenance Specifications
It is classified as an Optimum Replaceable Unit (ORU). In case of failure, direct overall replacement is required without on-site repair.After replacement, perform module power-on self-test and RESET reset test, and confirm the green PASS indicator is on with no error codes.
When applied to CE-compliant modules, match corresponding EC-version I/O adapter boards to guarantee electromagnetic compatibility performance.
Frequently Asked Questions (FAQ)
Q: Which boards can be replaced by EPNI 51401583-100?A: It only supports replacement with the original Honeywell board of the same model, with no officially released alternative models. During replacement, ensure the software version is R430 or above, and the hardware is compatible with CE and non‑CE environments.
Q: What to do if the module reports errors or communication fails after installation?A:① Power off the device and check whether the EPNI board is fully inserted and the rear NIM MODEM adapter board is installed in the correct slot;② Replace the EPNI board;③ Troubleshoot the corresponding K2LCN processor board and backplane bus.
Q: Is this board compatible with non‑TDC 3000 systems?A: No. It is exclusively designed for the Multinode Module of Honeywell TDC 3000 / Micro TDC 3000, and is incompatible with control systems of other brands or models.
Q: What are the installation differences between CE‑compliant and non‑compliant environments?A: CE‑compliant environments require the EC‑version NIM MODEM adapter board (51304511-200) and K2LCN-4 processor board to meet EU electromagnetic compatibility and safety standards. Standard adapter boards and the K2LCN-3 processor board are applicable for non‑CE environments.
Q: Is EPNI 51401583-100 a wearing part?A: It is an industrial-grade high-stability board and not a consumable wearing part. Most failures are caused by static electricity, hot swapping, and network short circuits. Standardized maintenance can effectively extend its service life.
