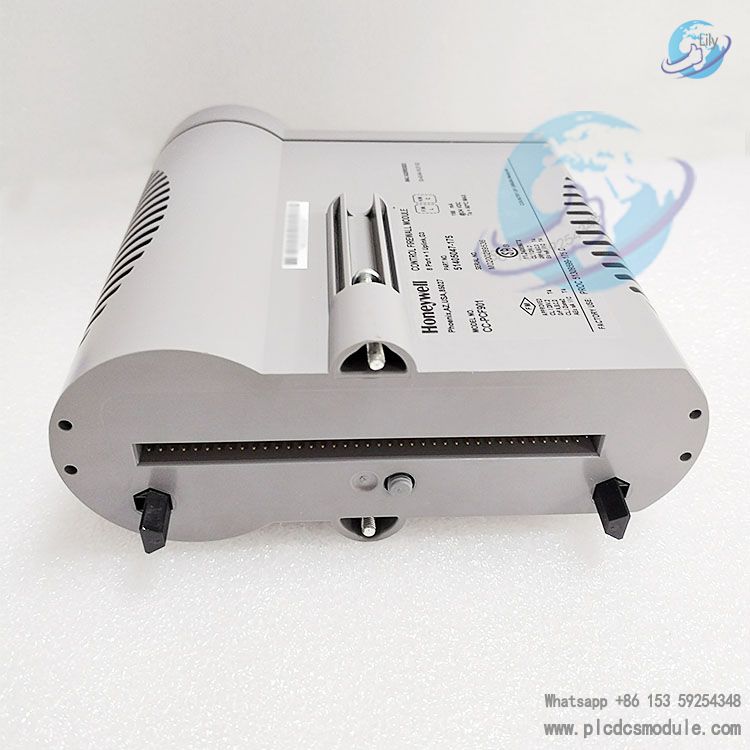

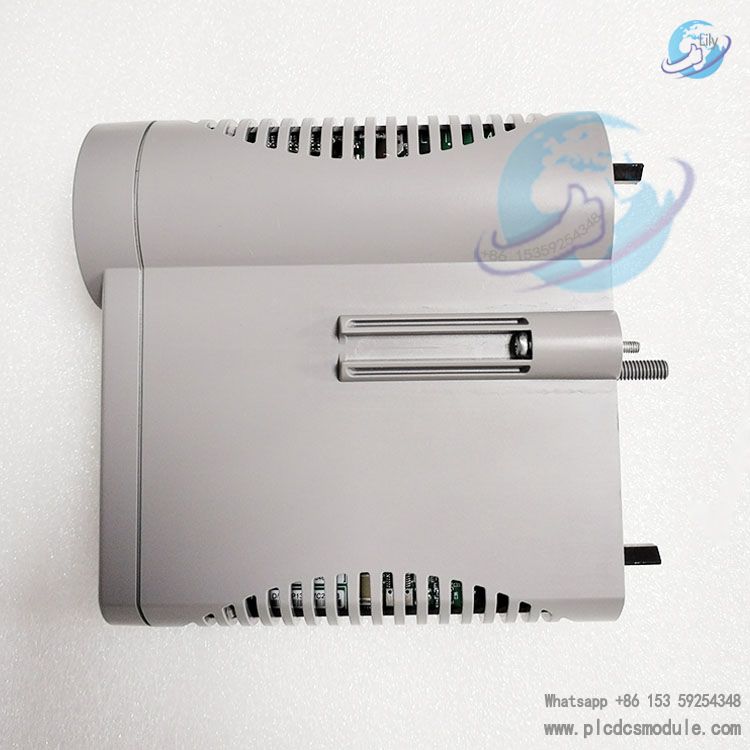

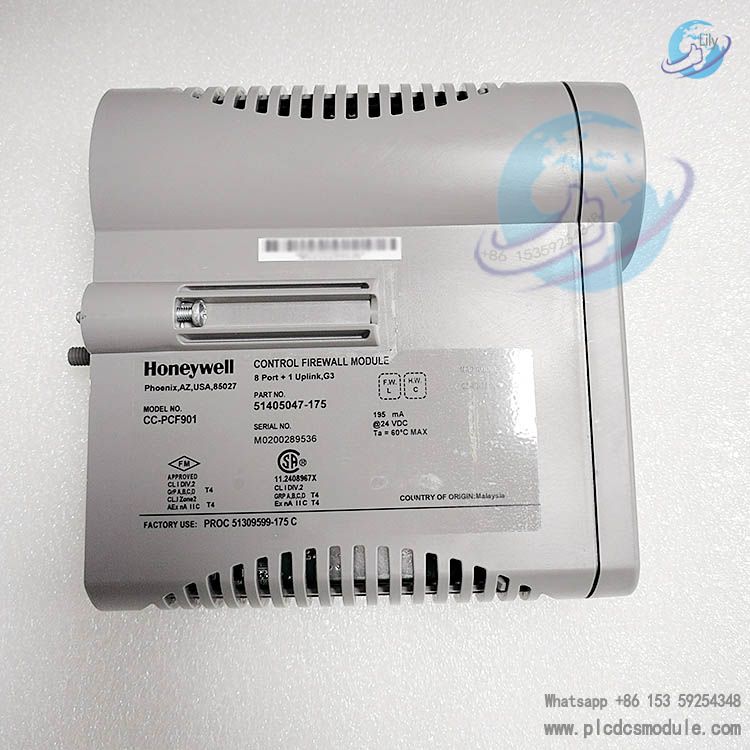

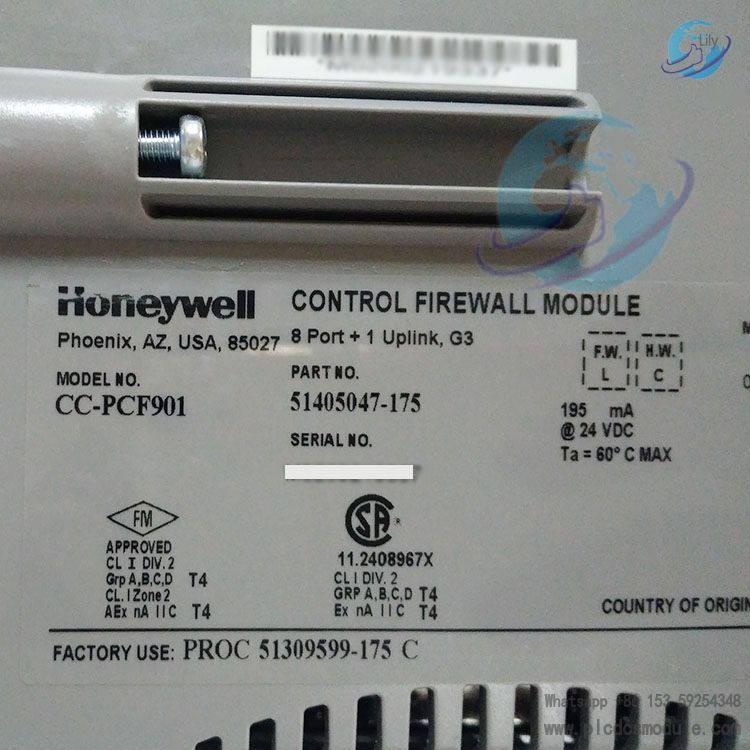

The Honeywell CC-PCF901 51405047-175 Control Firewall Module is part of the Experion PKS Series C hardware ecosystem. Its core function is to establish a security boundary between the "control layer" and "monitoring layer" in industrial control networks. Through refined access control policies, real-time traffic filtering, and redundant communication guarantees, it prevents unauthorized access, malicious attacks, or network storms from interfering with the C300 Controller and on-site I/O modules, ensuring the stable operation of critical industrial processes.
Core Positioning
Network Isolation: Physically isolates the "control side" of the C300 Controller from the "monitoring side" of the FTE network, allowing only pre-defined legitimate communication traffic (such as control commands and data acquisition) to pass through;
Security Policies: Supports Access Control Lists (ACL) based on IP addresses, ports, and protocols, blocking illegal protocols (e.g., Telnet, FTP) and abnormal traffic;
Redundancy Compatibility: Natively supports FTE redundant networks (A/B networks); a single module can connect to 2 FTE links simultaneously, with a switchover time of ≤100ms;
System Adaptability: Seamlessly integrates with Experion PKS R410 and above versions, is compatible with Series C family components such as the C300 Controller and UIO modules, and supports hot-swap replacement.
Performance Parameters
Network Interfaces: Equipped with 9 10/100Base-TX Ethernet ports, enabling high-speed and stable data transmission and facilitating connection with a variety of devices and systems.
Transmission Medium: Supports twisted-pair copper cable connection, adapting to common industrial wiring environments and ensuring the stability of data transmission.
Topology Structure: Supports ring, star, or bus topology structures. Users can flexibly select according to actual network architecture requirements, enhancing the product's applicability.
Data Rate: Supports a data transmission rate of 10/100 Mbps, meeting the requirements for data transmission speed in different industrial scenarios. Whether it is low-speed monitoring data or high-speed control commands, all can be transmitted quickly and accurately.
Protocol Support: Fully supports a variety of commonly used network protocols such as TCP/IP, UDP, IPv4, and IPv6, ensuring compatibility with various industrial devices and systems and seamless integration into existing network architectures.
Security Functions: Integrates multiple security protection mechanisms including firewall, data encryption, and access control, protecting network security from multiple levels and preventing unauthorized intrusion and data theft.
Power Requirements: Operating voltage is 24 VDC, with a power rating of 0.112 A. Stable power input ensures the module operates continuously and reliably under various working conditions.
Operating Environment: Operating temperature range is -20°C to +60°C, and relative humidity is 5% to 95%. It can adapt to harsh industrial environments and operate stably whether it is beside high-temperature industrial furnaces or in humid production workshops.
Dimension Specifications: The product dimensions are 19" x 7" x 1.75". Its compact design makes it easy to install in various control cabinets, saving space without affecting performance.
Advantages and Features
High Security: Multi-layer security protection mechanisms are adopted. It restricts unauthorized users from accessing the network at the access control level, ensures the confidentiality of transmitted data through data encryption, and the intrusion detection function monitors network traffic in real time to detect and block attack behaviors promptly, providing all-round protection for network security.
High Reliability: With redundant design and industrial-grade hardware, the system can still maintain stable operation even if some components fail. This reduces downtime caused by equipment failures and improves production efficiency.
Easy Configuration: An intuitive configuration interface is provided, allowing users to easily perform settings without complex professional knowledge. Security policies and network parameters can be flexibly adjusted according to actual needs, lowering the threshold for use.
Flexible Expansion: It supports a variety of network protocols and interfaces, facilitating integration with devices of different brands and types. Moreover, it can be flexibly expanded according to the development of enterprises and the expansion of network scale, protecting the early investment of enterprises.
Compliance with Industrial Standards: It strictly adheres to relevant industrial security standards, such as IEC 62443. The product quality and security have obtained authoritative certification, making it reliable for application in industrial fields with extremely high security requirements.
Application Fields
Industrial Control Systems: In industrial automated production lines, this module can protect the control network from external attacks and ensure the precise control and stable operation of the production process. For example, in automobile manufacturing plants, it safeguards the security of the control system for automated assembly lines, preventing production halts caused by network failures or attacks.
Energy Industry: It is used in energy production and transmission links such as petroleum, natural gas, and electric power. On oil extraction platforms, it protects the network security of monitoring and control systems, prevents production accidents and data leakage caused by hacker intrusions, and ensures the safe and stable supply of energy production.
Manufacturing Industry: It helps manufacturing enterprises safeguard the network security of automated production equipment and improve production efficiency and product quality. For instance, in electronic manufacturing enterprises, it protects the control network of high-precision production equipment, avoiding production errors and equipment damage caused by network issues.
Building Automation Systems: In smart buildings, it provides protection for the networks of systems such as heating, ventilation, and air conditioning (HVAC), lighting, and access control. It ensures the normal operation and data security of various devices in the building, providing users with a comfortable and safe environment.
Fire Protection and Security Systems: It guarantees the secure network connection of security equipment such as fire alarm systems and surveillance cameras. It ensures that the system can operate normally in emergency situations, transmit key information in a timely manner, and protect the safety of personnel and property.
Frequently Asked Questions (FAQs)
Q: Does this module support remote configuration?
A: Yes, the Honeywell CC-PCF901 Control Firewall Module supports remote configuration. Users can perform parameter setting and management for the module on a remote terminal via a secure network connection, which is convenient and efficient—especially suitable for widely distributed industrial networks.
Q: How to troubleshoot when the module malfunctions?

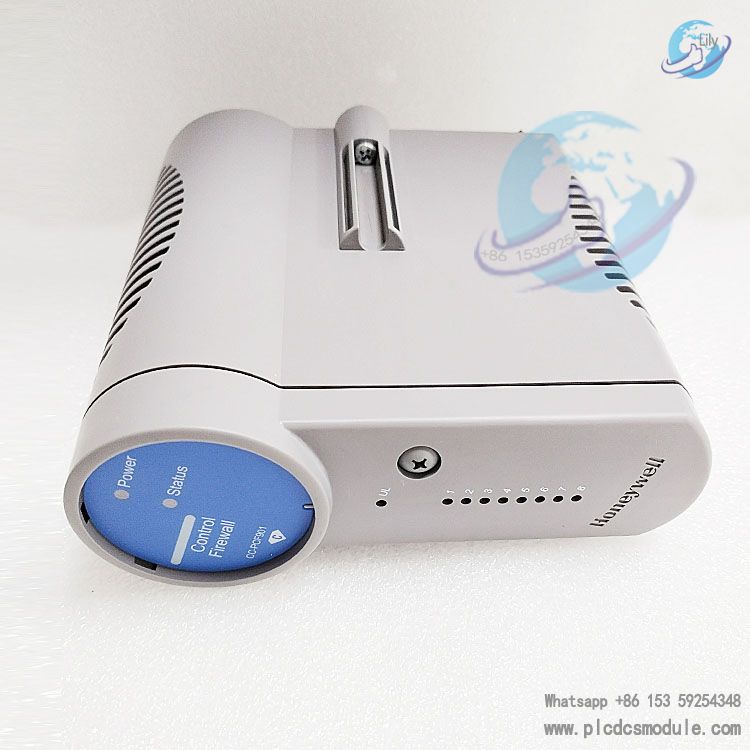

A: The module is equipped with fault indicator lights; when a malfunction occurs, the corresponding indicator light will illuminate. Users can make an initial judgment based on the status of the indicator lights and refer to the troubleshooting guide in the product manual. Common causes of malfunctions may include loose cable connections, power supply failures, configuration errors, etc. If the issue cannot be resolved independently, users can contact Honeywell's technical support team, who will provide professional assistance.
Q: Is it compatible with older versions of control systems?
A: The Honeywell CC-PCF901 has excellent compatibility and can be integrated with various older versions of control systems. Due to differences between different older versions of systems, it is recommended to check the product's compatibility list or consult Honeywell technical staff before integration to ensure smooth integration.
Q: Can the security functions of this module be customized for different scenarios?
A: Yes. The module provides a wealth of security policy configuration options. Users can customize security functions such as access control rules, encryption methods, and intrusion detection sensitivity according to the security requirements of actual application scenarios, meeting personalized security protection needs.
Q: What is the product warranty period?
A: The Honeywell CC-PCF901 Control Firewall Module typically comes with a [X]-year warranty. During the warranty period, if the product has quality issues, Honeywell will provide free repair or replacement services in accordance with relevant regulations. For specific warranty terms, please refer to the product purchase contract or consult the sales channel.
