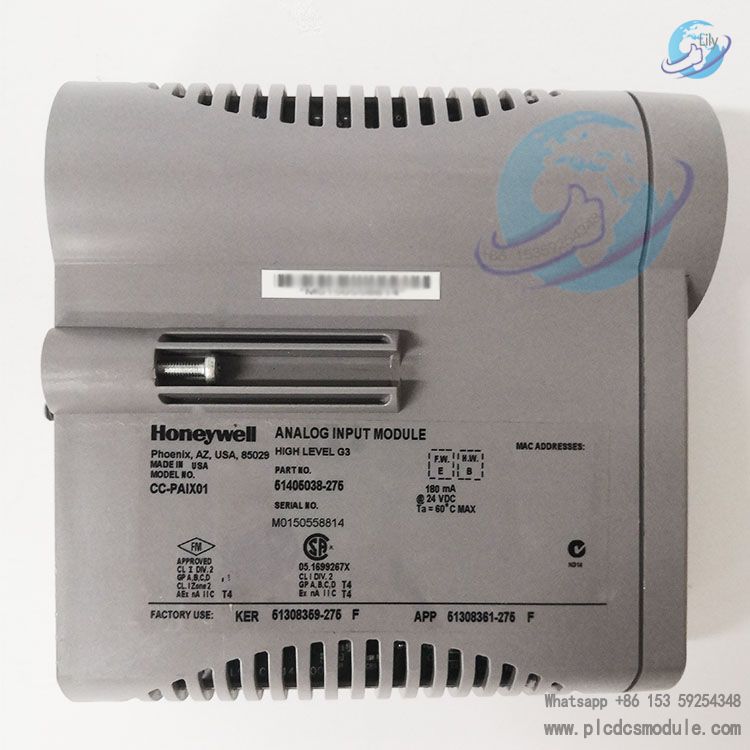

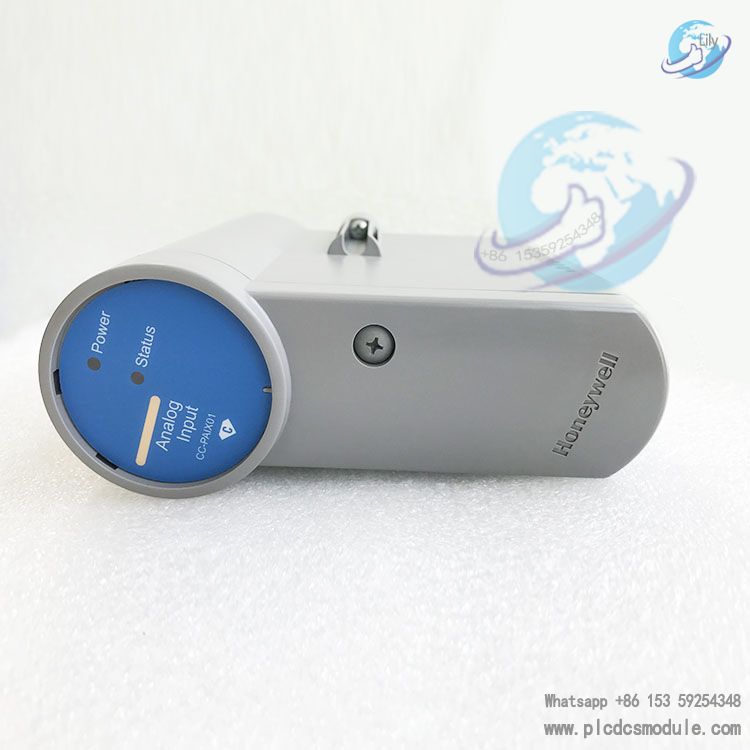

The Honeywell CC-PAIX01 51405038-275 Analog Input Module is a high-precision signal processing device specifically designed for industrial control systems. It is mainly used to process high-level current or voltage signals from transmitters and sensing devices, providing critical data acquisition support for industrial automation and process control. Relying on its advanced technology and reliable performance, this module plays an important role in various industrial scenarios.

Performance Parameters

Input Range

Accuracy

• At 23.5°C, the accuracy can reach ±0.075% of full scale.
• Within the operating temperature range of 0 to 60°C, the accuracy is ±0.15% of full scale.

Advantages and Features

• Comprehensive Self-Diagnostic Function: The module is equipped with full-featured self-diagnostic capabilities, enabling continuous monitoring of its own operating status. It can promptly detect and resolve potential issues, reducing the risk of system failures.
• Optional Redundant Design: Supports redundant configuration to enhance system reliability. In critical application scenarios, it ensures uninterrupted data acquisition and minimizes production downtime caused by module malfunctions.
• Intrinsically Safe Field Power Supply: Provides non-incendive power for on-site equipment, with separately protected current-limiting circuits. It complies with the Class 1, Div 2 standard and can operate safely in hazardous areas.
• Fast Cyclic Scanning: The fast cyclic scanning function accelerates data acquisition speed, enabling real-time capture of the latest sensor data to meet application scenarios with strict real-time requirements.

• High-Precision Measurement: The 16-bit A/D converter and wide input range ensure high-precision measurement results, delivering reliable data even in complex industrial environments.

Application Fields

• Industrial Automation: In factory automated production lines, it is used to collect data from various sensors (such as temperature, pressure, and flow sensors), providing accurate data feedback for control systems and enabling precise control of the production process.
• Energy Industry: During the production and transmission of energy such as petroleum, natural gas, and electricity, it can monitor and collect various process parameters to ensure the safe and efficient operation of energy production.
• Chemical Industry: It is applied in links such as reaction monitoring and material flow control in the chemical production process. By accurately collecting analog signals, it helps chemical enterprises optimize production processes and improve product quality.
• Intelligent Buildings: In intelligent building systems, it can collect data from environmental parameter sensors (such as temperature and humidity sensors, light sensors, etc.), providing data support for building automation control systems and realizing intelligent environmental regulation.

Frequently Asked Questions (FAQs)

Q: Can the CC-PAIX01 module be used in hazardous areas?
A: Yes. This module provides an intrinsically safe power supply for on-site equipment, complies with the Class 1, Div 2 standard, and can operate safely in hazardous areas.
Q: Can the input channels of the module accept both voltage and current signals simultaneously?
A: The input channels of the CC-PAIX01 module are divided into single-ended and differential channels. Each channel can be connected to a voltage or current signal as needed, but two different types of signals cannot be connected to the same channel at the same time. When wiring, please make correct connections according to actual requirements and the wiring diagram.
Q: How to calibrate the module?
A: The module is usually accurately calibrated at the factory. In practical use, if recalibration is required, you can perform the calibration operation using professional calibration equipment and software in accordance with the steps in the relevant operation manual. The calibration process needs to be carried out by professional personnel to ensure the accuracy of calibration.
Q: Which communication protocols does the module support?

A: The Honeywell CC-PAIX01 module can be integrated with a variety of control systems and supports common industrial communication protocols such as Modbus. The specific configuration can be adjusted according to the actual application scenario and the connected control system.
