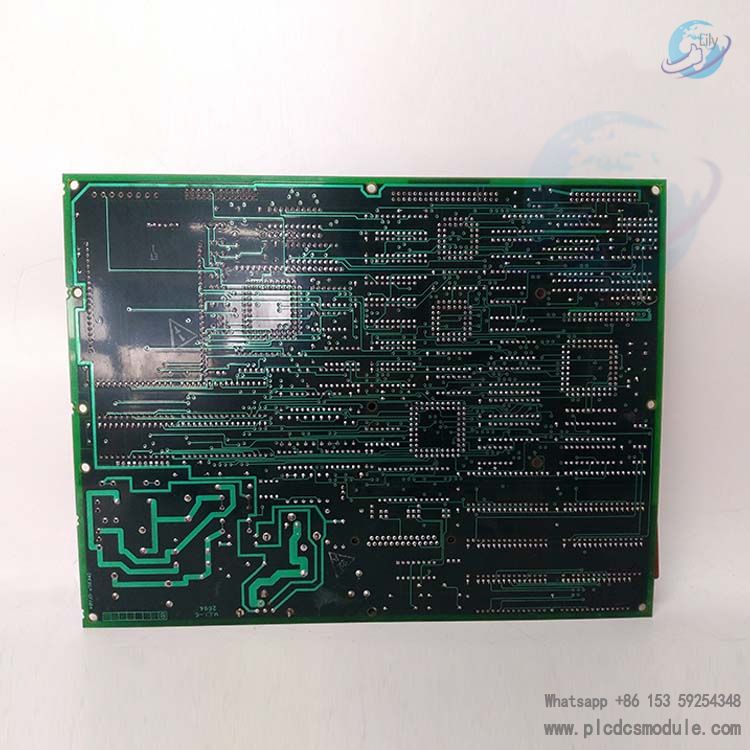

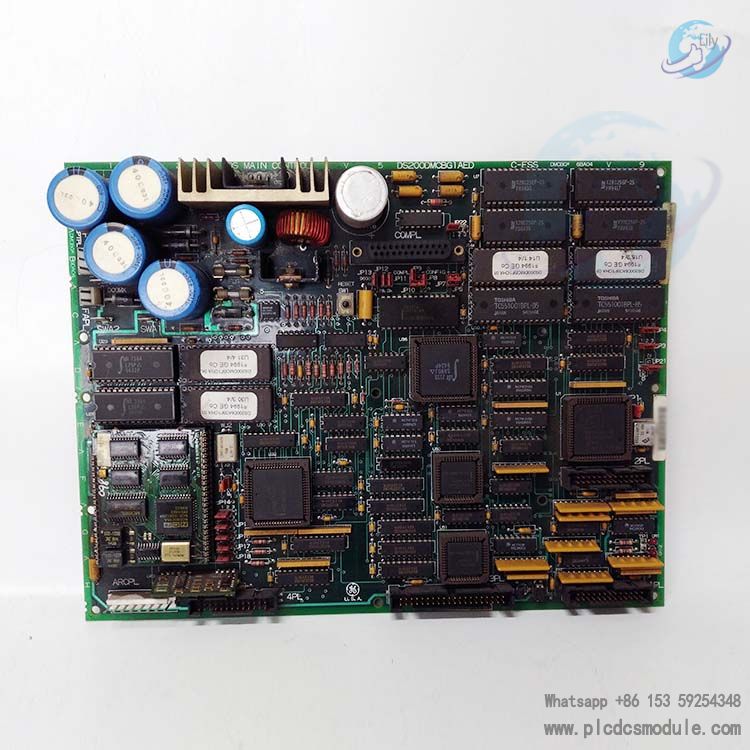

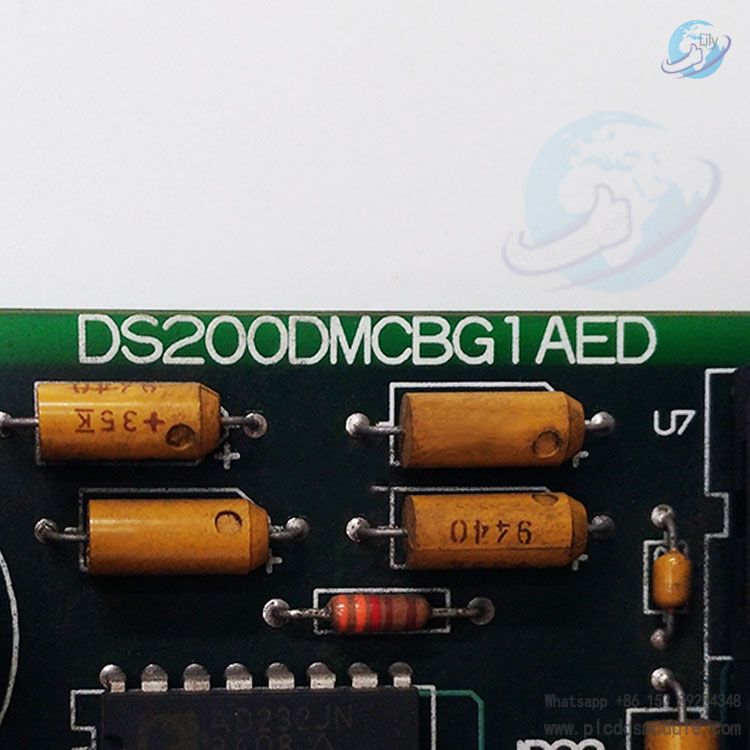

GE DS200DMCBG1AED processor board belongs to the Mark V DS200 series. It is equipped with three 26-pin connectors, one 40-pin connector, 19 jumpers, two red indicator lights, and a reset button. This board can connect 24 dry contact inputs to contact input terminal boards with group isolation, supporting simplex and TMR applications. It is powered by an 18-36V DC, 12-watt power supply and has an operating temperature range of 0 to 65°C. In industrial automation, power generation and other fields, it undertakes key signal processing and control tasks to help systems operate stably. Although the series it belongs to has been discontinued, it is still widely used in related industries due to its excellent performance.
Connectors and Jumpers: Includes three 26-pin connectors, one 40-pin connector, and 19 jumpers, which can be used for connecting other devices or parameter configuration, etc.
Indicator Lights and Fuses: Equipped with two indicator lights, labeled CR2 and CR12, which turn red when lit and can be used for fault indication. It is also fitted with two fuses to provide overvoltage protection, preventing damage to circuit board components from transient power surges.
Reset Button: Features a reset button. Qualified maintenance personnel can restart the board's operation without rebooting the drive by pressing and holding the button for three seconds and then releasing it, allowing the board to clear all signals and resume normal operation.
Input Connections: As a contact input group isolation terminal board, it can connect 24 dry contact inputs to two barrier terminal blocks on the contact input (TBCI) terminal board with group isolation, supporting simplex and TMR applications, with a nominal voltage of 24V DC.
Power Requirements: Powered by an 18-36V DC, 12-watt power supply.
Operating Temperature: Its robust design gives it a rated operating range of 0 to 65°C (32 to 149°F).
Installation Method: Can be installed in the printed circuit board cabinet of the frequency converter. The wiring for 24 dry contact inputs is directly connected to the two I/O terminals of the terminal board. The terminal blocks are secured in place by two screws and can be unplugged for maintenance.
