GE IS200HSLAH2ADE (Part No. MRP646325) is a High-Speed Serial Link Interface Board (HSLA) dedicated to the Speedtronic Mark VI/VIe turbine control system. As a core communication component of the system, it is specially designed for mainframe application boards to realize high-speed and highly reliable real-time data interaction. It is widely used in the control and protection systems of heavy-duty gas turbines and steam turbines.
Basic Information
Manufacturer: General Electric (GE)Model: IS200HSLAH2ADEMaterial Part Number: MRP646325Product Series: Mark VI (Speedtronic)Functional Abbreviation: HSLA (High-Speed Serial Link Interface Board)Place of Origin: United States

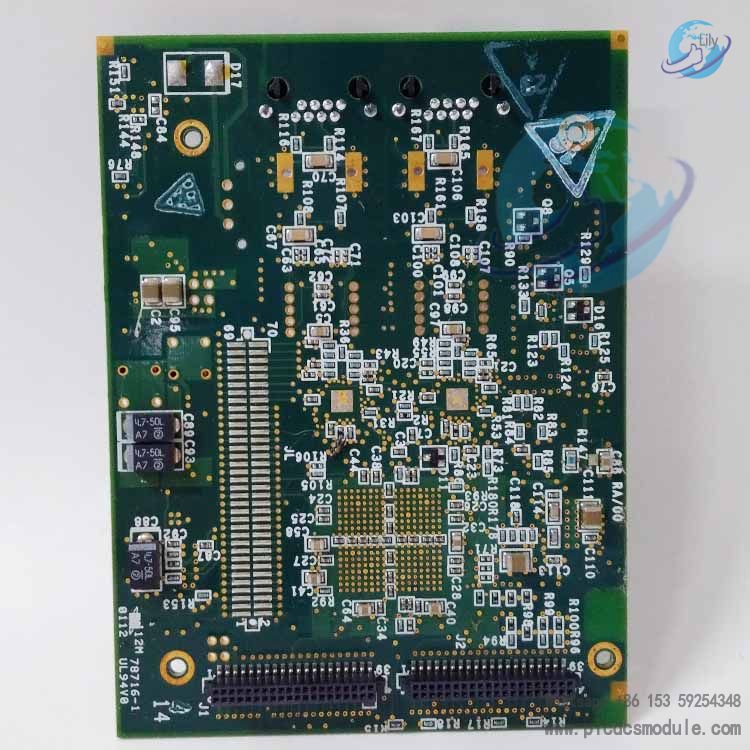

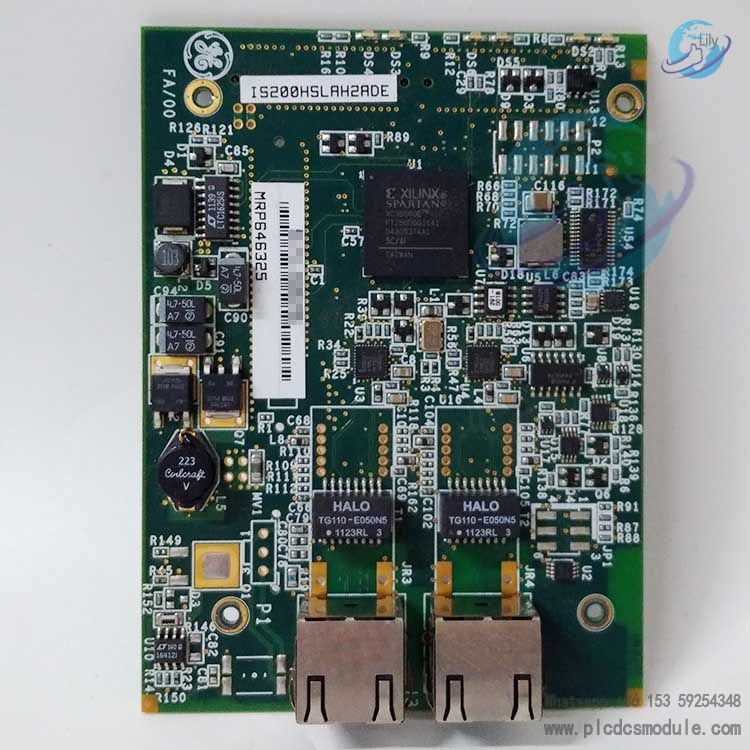

Appearance Features: Adopts double-sided PCB layout and surface mount technology; equipped with 2 transformers (Halo TG 110-EO 50N5), 6 inductance coils, and more than 20 integrated circuits (including FPGA). It features pin connectors on the top without a standard VME panel.
Core Functions
- High-Speed Serial CommunicationServes as the core of the HS SLR LNK interface, enabling high-speed data transmission within the system and ensuring the real-time performance of turbine control.
- Multi-Device ConnectionSupports access to HS series high-speed servo drives, SLR series safety relay systems, and field I/O devices (analog/digital/discrete and dedicated sensors), with a maximum connection capacity of 8 HS servo drives.
- Real-Time Data ExchangeQuickly collects data from field devices and uploads it to the CPU, while issuing downlink control commands to support the whole process of turbine protection, control and monitoring.
- Redundancy & ReliabilitySupports redundant connection design; it automatically switches over when a communication link fails, reducing the risk of system shutdown.
- Fault DiagnosisIntegrated with hardware self-inspection and communication status monitoring, it can locate faults such as link failure and device offline, facilitating daily maintenance.
Technical Specifications
Operating Temperature: -30℃ ~ 65℃Relative Humidity: 5% ~ 95% (Non-condensing)PCB Coating: Conformal CoatingInterface Type: Dedicated HS SLR LNK high-speed serial interfaceCommunication Protocol: GE proprietary high-speed serial protocol (compatible with Mark VI/VIe)Dimensions: 210mm × 188mm × 26.2mmWeight: Approximately 0.3kgMounting Type: Dedicated slot for Mark VI system (non-standard VME rack)
Design & Structure
- Modular DesignFits the Mark VI system architecture, supports plug-and-play, and is compatible with new system deployment and legacy system upgrading.
- Industrial-Grade Anti-InterferenceWith double-sided PCB layout, transformer isolation and inductance filtering design, it operates stably in strong electromagnetic environments (such as near gas turbines) with excellent EMI resistance.
- Durable ConstructionAdopts high-quality electronic components and conformal coating, resistant to vibration, dust, temperature and humidity fluctuations, extending service life.
Application Scenarios
- Power Generation Industry: Control and protection systems for heavy-duty gas turbines, steam turbines and combined-cycle power plants.
- Petrochemical Industry: Automatic control of turbine-driven equipment and compressor units in refining and chemical plants.
- Industrial Drive: Communication and data interaction for large high-speed servo systems and safety relay systems.
FAQ
Q1: Is IS200HSLAH2ADE compatible with the Mark VIe system?A1: Fully compatible. It is developed exclusively for the Mark VI/VIe platform and serves as the standard communication interface board for this series.
Q2: Does this board support standard VME rack mounting?A2: No. It has no standard VME panel and must be installed in the dedicated slot of the Mark VI system.
Q3: Are different versions of IS200HSLAH2ADE mutually compatible?A3: There are 3 versions in total. The first two versions are mutually compatible, while the third version is incompatible with the previous two. It is required to check the version number during replacement.
Q4: What is the operating temperature range, and can it operate in low-temperature environments?A4: The operating temperature ranges from -30℃ to 65℃. It can run stably in low-temperature conditions, suitable for outdoor power stations and industrial sites in cold regions.
Q5: How to quickly troubleshoot communication failures?A5:
- Check whether the board power supply and connection slot are loose;
- Check the status of board indicator lights to locate link faults;
- Use system diagnostic tools to detect communication protocols and data frames;
- Switch to the backup link in redundant mode to determine if it is a hardware failure.
