GE IS2020RKPSG2A is a VME Rack Power Supply Module developed by General Electric (GE) for the Speedtronic Mark VI gas and steam turbine control system. Its core function is to supply multiple regulated DC outputs to the VME backplane, powering processors, I/O cards and field devices. It serves as the central power unit of the control system.
Product Features
Basic Specifications: Input: 125VDC (24VDC low-voltage version available); Total output power: 400W; Dimensions: 6.25 × 4.25 inches; Weight: approx. 7 lbs.
Output Configuration: 5 channels of PSA 28VDC, 1 channel of remote 28VDC, 1 channel of 335VDC (for flame detector dedicated use), 1 channel of status ID output.

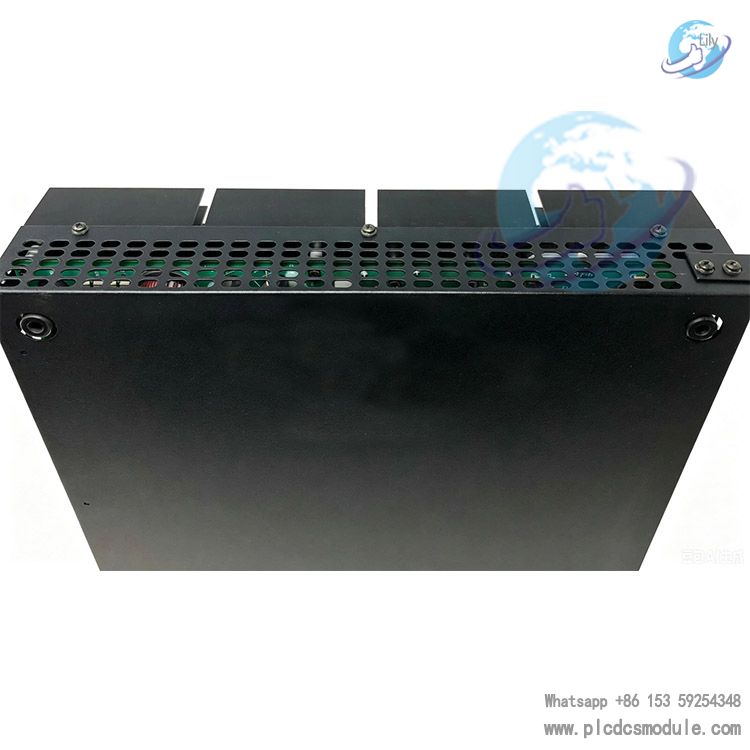

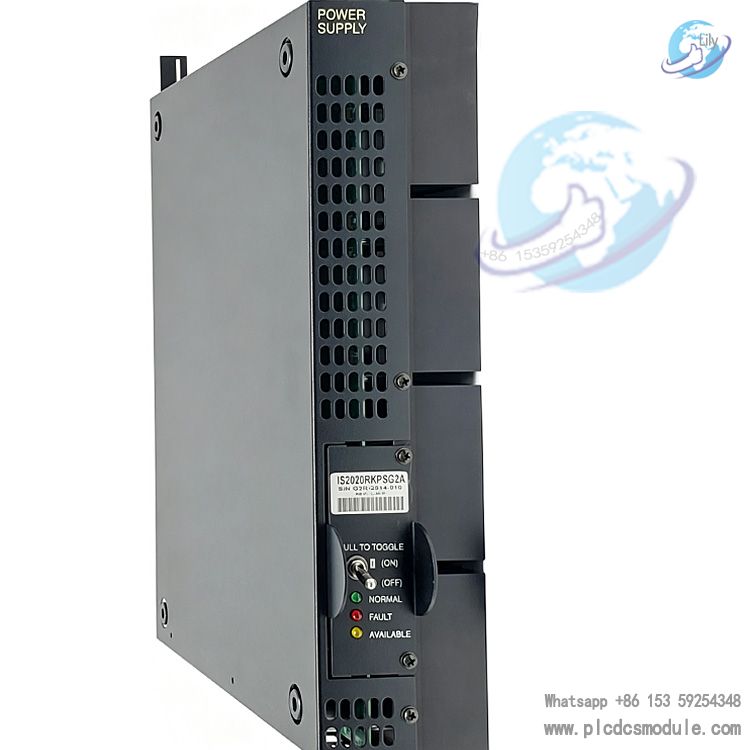

Status Indicators: 3 LED indicators on the front panel (Green = Normal, Yellow = Input Fault, Red = Output/Protection Fault). Equipped with a latching power switch which also functions as fault reset.

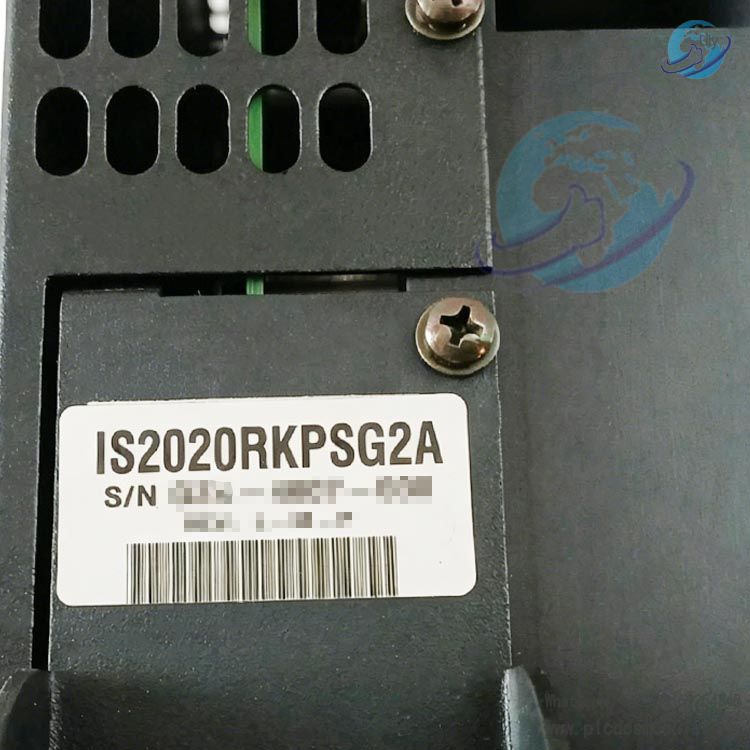

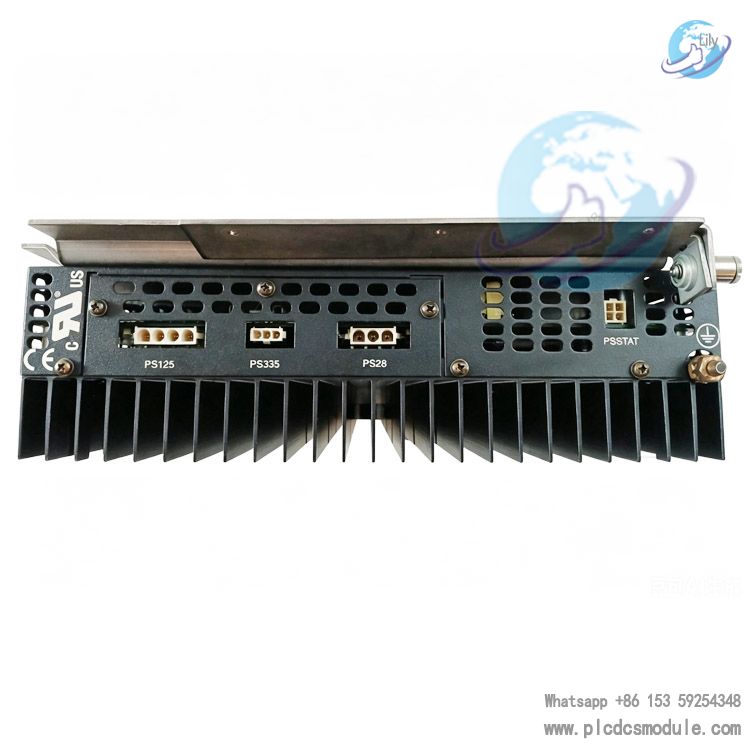

Interface Layout: PSA/PSB connectors on the top for VME rack power supply; PS125/PS24, PS335, PS28 and PSSTAT ports on the bottom for input, peripheral connection and status signal.
Protection Design: Corrosion-resistant coated PCB, metal fin heat dissipation, excellent anti-EMI performance. Compliant with industrial safety regulations and EMC standards.
Product Advantages
Industrial-grade High ReliabilityEngineered for harsh operating conditions with a wide operating temperature range of 0–60°C. It features overvoltage, overcurrent and short-circuit protection, and is suitable for high-interference environments such as power generation and petrochemical industries.
Multiple Precision OutputsIt provides DC outputs including +5V, ±12V, ±15V, ±28V and optional 335V, fully meeting the power supply requirements of control boards, sensors, flame detectors and other equipment.
Redundancy & Easy MaintenanceSupports redundant operation, so a single module failure will not disrupt the entire system. Adopting modular hot-swap design, it is equipped with status LEDs and a fault reset switch for quick fault diagnosis and recovery.
Original CompatibilityExclusively designed for GE original Mark VI series. Compatible with legacy models such as IS2020RKPSG1 for direct replacement, effectively cutting upgrade and replacement costs.
Application Scenarios
Gas Turbine Control SystemsApplied to GE Speedtronic Mark VI main control systems for gas turbines, supplying power to CPUs, I/O cards and communication modules inside VME racks.
Steam Turbine Control SystemsUsed in Mark VIe control cabinets for power plant steam turbines, ensuring stable power supply for monitoring and control of critical parameters including rotational speed, temperature and pressure.
Key Control Stations for Industrial AutomationServes as a core power module in VME cabinets of DCS/PLC systems across petrochemical, metallurgy, power and other industries to guarantee continuous operation.
Flame Detection & Safety Protection SystemsProvides dedicated 335VDC output for TRPG flame detectors, ideal for combustion monitoring and interlock protection of gas turbines.
FAQ
Q: What are the core differences between IS2020RKPSG2A and RKPSG1?A: RKPSG2A removes 2 channels of remote 28V output, and adds 335V output for flame detection as well as status ID output. It supports redundant operation, which is not available on RKPSG1.
Q: Is this module compatible with Mark VIe systems?A: Fully compatible. As an upgraded version of Mark VI, Mark VIe shares the same power interfaces and power supply logic, allowing direct replacement.
Q: What key parameters need to be confirmed during procurement to avoid mismatching?A: Verify the input voltage (125VDC/24VDC), output power (400W), VME interface type of the cabinet, and whether the 335V output for flame detection is required.
Q: How to distinguish original units from compatible alternatives, and what are the potential risks of using alternatives?A: Original modules are marked with GE serial numbers, PCB coating identifiers and come with the GEH-6421 manual. Non-original products lack official certification. They may suffer unstable output and failed protection functions, posing risks to unit safety.
Q: The red LED stays on after power-up and cannot be reset. What are the possible causes?A: Common causes include output short circuit (inspect the VME backplane and loads), overcurrent protection triggered (total load exceeds 400W) and internal circuit damage. Disconnect loads first and perform reset. Replace the module if the issue persists.
Q: The yellow LED flashes and the green LED occasionally turns off during operation. How to troubleshoot?A: This is caused by fluctuating input voltage. The normal operating range is 125VDC±10%. Check the PDM power supply and loose cable connections, and eliminate interference sources such as inverters and large motors.
Q: In redundant configuration, the standby module fails to switch over automatically when the main module malfunctions. What to do?A: Check the connection of redundant communication cables and module configuration parameters. Ensure the standby module is in standby mode. Conduct regular switchover tests to prevent function failure.
Q: The temperature of the module heat sink exceeds 60°C. How to resolve this problem?A: Clean dust on the heat sink, check the operation of cabinet cooling fans, ensure good cabinet ventilation, and avoid tangled cables around the module blocking heat dissipation.
