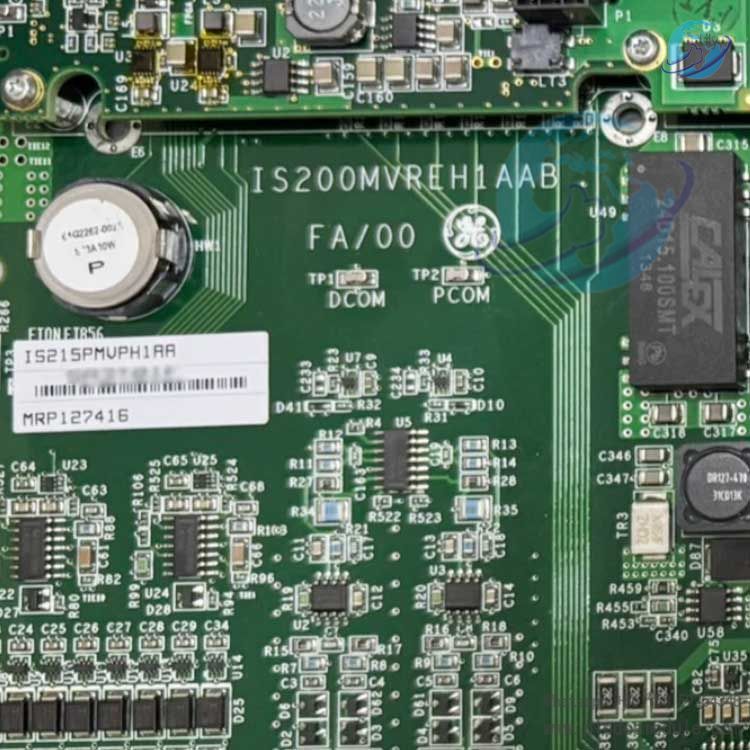

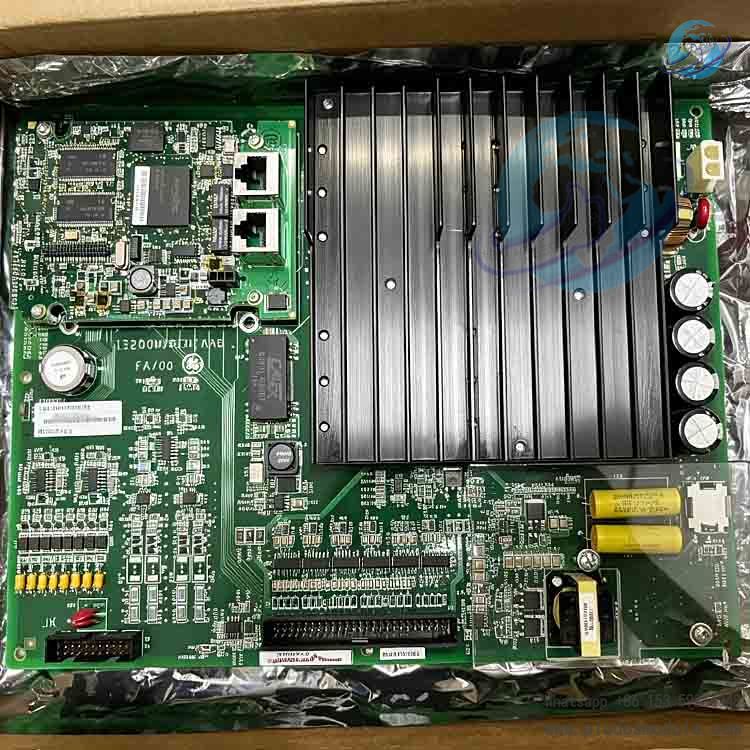

GE IS215PMVPH1AA and IS200MVREH1AAB are core protection I/O modules for the GE Speedtronic Mark VI/VIe turbine control platform. Designed for critical equipment such as gas turbines, steam turbines and generator sets, they undertake safety signal acquisition, protection logic operation and emergency trip output. As key hardware for system safety interlock and fault-tolerant control, the modules feature triple modular redundancy (TMR), high isolation and fast response, and are applicable to harsh power generation and industrial process environments.
Product Advantages
High Safety IntegrityCertified to SIL3 safety level and built with Triple Modular Redundancy (TMR) architecture. A single fault will not impair protection functions, complying with API670 and IEEE 344 standards.
Superior Environmental AdaptabilityOperating temperature ranges from -40℃ to +70℃. It features vibration resistance per MIL-STD-202G and anti-EMI performance, with IP20 protection rating, suitable for sites with high temperature, high humidity and dust.
Fast Response & High IsolationThe relay output acts within 10ms, equipped with 5kV optocoupler isolation to eliminate signal crosstalk and ensure reliable emergency tripping.
Hot-Swap & Onboard DiagnosticsModules can be replaced without system shutdown. LED status indicators and real-time monitoring via ControlST software enable rapid fault location and reduce maintenance risks.
Seamless System IntegrationNatively compatible with Mark VI/VIe backplane bus and supporting Modbus RTU. Plug-and-play design requires no additional configuration.
Product Features
Model Division
IS215PMVPH1AA: Main protection CPU board. Responsible for logic operation, data voting and redundancy management. Power rating: 250VDC/10A. Dimensions: 330×100×200mm. Weight: 2kg.
IS200MVREH1AAB: I/O expansion board. Provides 16 channels of Form-C isolated relay outputs with 5kV optocoupler isolation, powered by 24VDC.
Core Specifications
- Operating Temperature: -40℃ ~ +70℃
- Storage Temperature: -50℃ ~ +85℃
- Input Power: 125VDC (70~145VDC); Output: 5VDC/28VDC
- Channel Configuration: 16 digital input channels, 16 relay output channels; supports 4-20mA / 0-10V analog signal acquisition
- Communication: High-speed backplane bus, RS-485 (Modbus RTU)
Hardware Design
Adopts industrial-grade components and reinforced aluminum alloy enclosure for shock resistance. Built-in hardware watchdog, overvoltage, overcurrent and overheating protection circuits.
Software Functions
Supports signal filtering, fault voting, Sequence of Events (SOE) recording and online firmware upgrade.
Application Scenarios
Power GenerationOverspeed protection, exhaust overtemperature protection and vibration interlock for gas and steam turbines; grid connection protection and excitation system monitoring of generator sets.
Industrial ProcessesAnti-surge protection and emergency shutdown for compressor units; pressure, temperature and liquid level interlock for pump stations and chemical plants.
Critical EquipmentOverload, short-circuit and undervoltage protection for large motors, fans and water pumps; safety I/O expansion for DCS and PLC systems.
FAQ
Q: Are these modules compatible with Mark VI and Mark VIe systems?A: Fully compatible. Natively support Mark VI (VME bus) and Mark VIe (high-speed backplane) without adapters.
Q: What is the SIL rating of the modules? Can they be used in Safety Instrumented Systems (SIS)?A: They are rated SIL3 and compliant with IEC 61508. Applicable directly to SIS and meet the requirements of Emergency Shutdown (ESD).
Q: Must IS215PMVPH1AA be used together with IS200MVREH1AAB?A: IS215PMVPH1AA is the main CPU board and IS200MVREH1AAB is the I/O expansion board. Matching use is recommended. The main CPU can work independently, while the expansion board requires the main CPU or compatible controller.
Q: What is the operating temperature range? Can it start at -40℃?A: The operating temperature ranges from -40℃ to +70℃. It supports cold start at -40℃ with no preheating required, suitable for outdoor cabinets in extremely cold environments.
Q: Do the modules support hot swapping? Is system shutdown required for replacement?A: Hot swap is supported. Modules can be replaced directly without shutting down the system, and the operation of other modules will not be affected.
Q: What is the maximum load of the relay outputs? Can they drive 220VAC contactors directly?A: The relay output is rated 250VDC/10A. It can directly drive 220VAC contactors (≤10A) with no intermediate relay needed.
Q: How to diagnose module faults via ControlST software?A: After the software scans the rack, faulty modules will trigger red alarms. You can check fault codes (e.g. channel short circuit, communication loss) and historical logs, and remote diagnosis is also available.
