GE IS215VCMIH2CC is a core VME bus main controller board (VCMI) of GE Mark VI Speedtronic turbine control system. As part of the IS215 series, it undertakes VME bus master control, IONet network communication and I/O data exchange. It serves as a critical communication hub for gas, steam and wind turbine control. The CC version features upgraded hardware and firmware, delivering enhanced performance for harsh industrial environments.
Product Features
1. Hardware Specifications

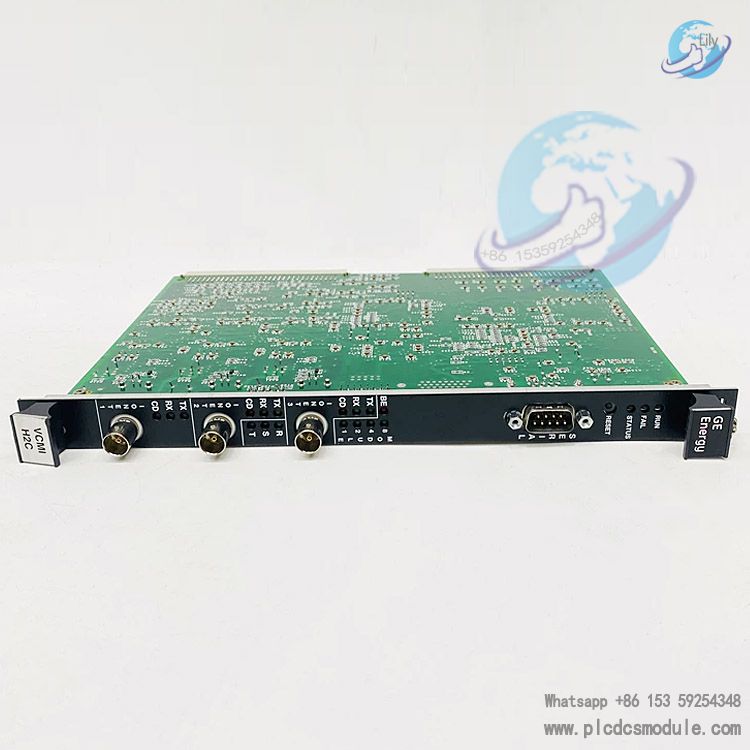

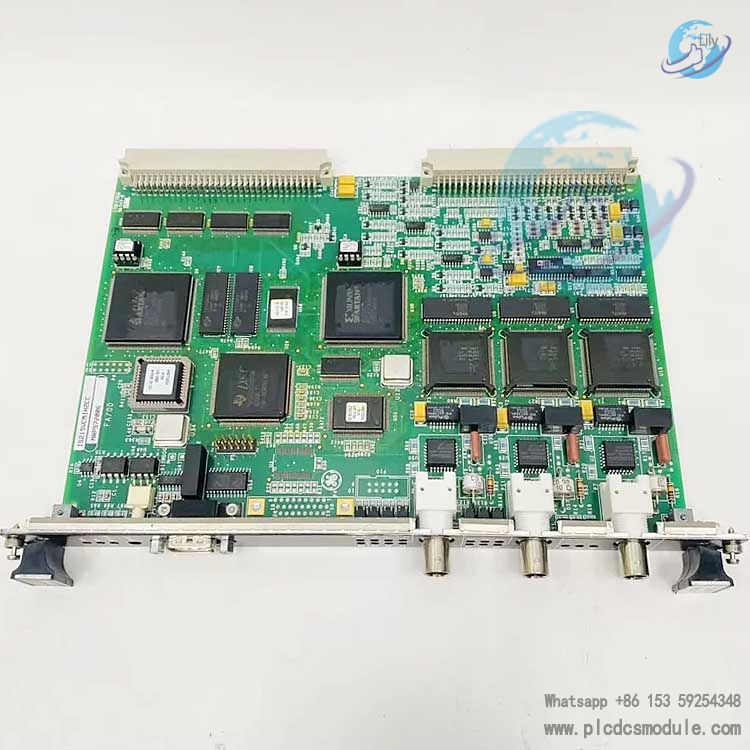

Model: IS215VCMIH2CC (upgraded version of IS215VCMIH2C)Bus: VME bus (6U board, 0.787 inches in width)Processor: TMS320C32 32-bit digital signal processorMemory: Dual-port memory for high-speed data cachingInterfaces: 1 × RS-232C serial port, 3 × IONet 10Base2 Ethernet ports (with TX/RX/CD indicators)Status Indicators: LED indicators for Status, Fail, Run and group indicators 1/2/4/8, plus reset buttonDimensions: 2.1 × 18.8 × 26.2 cm; Weight: approx. 0.3 kgProtection: PCB conformal coating, featuring moisture-proof, dust-proof and anti-corrosion performance
2. Software & Functional Features
Protocol Support: Natively compatible with IONet network and VME bus protocols, and works with Mark VI system firmware.Data Processing: Real-time I/O data acquisition, protocol conversion, fault diagnosis and alarm upload.Redundancy Synchronization: Supports data synchronization and bumpless switchover under triple modular redundancy architecture.Diagnostic Functions: On-board self-test, communication link monitoring and real-time reporting of port status.
Product Advantages
Core Communication HubActing as the VME bus master, it connects main processors, I/O cards, expansion racks and redundant modules to ensure real-time data exchange across the system.
Highly Reliable Redundant DesignSupports simplex and triple modular redundancy configurations. Equipped with built-in self-diagnosis and automatic switchover functions to minimize downtime risks.
Industrial-Grade Anti-Interference PerformanceFeatures PCB with conformal coating and a wide operating temperature range of -40℃ to +70℃. It delivers excellent EMI/EMC compatibility and is well suited for complex environments such as power plants.
High-Speed Real-Time ProcessingPowered by TMS320C32 32-bit DSP and equipped with dual-port memory, it ensures deterministic and low-latency communication.
Easy Maintenance & ScalabilityAdopts standard 6U VME form factor and supports hot swapping. Front-panel LED indicators and reset button enable efficient troubleshooting.
Application Scenarios
Power & EnergyControl of gas turbines, steam turbines and wind turbine generator sets (standard configuration for Mark VI systems).
Industrial AutomationDistributed control for critical equipment including large compressors, pump sets and boilers.
Oil & Gas IndustryTurbine and unit control for offshore platforms and natural gas compressor stations.
Heavy Industry ManufacturingHigh-reliability real-time control systems for metallurgy, chemical and other sectors.
Comparison of Mark VI Series Products
| Model | Core Differences | Application Scenarios |
|---|---|---|
| IS215VCMIH2CC | Revised C version with optimized firmware, enhanced compatibility and improved anti-interference performance | Newly-built or upgraded Mark VI systems, scenarios requiring high redundancy |
| IS215VCMIH2C | Standard C version with basic performance | Standard Mark VI systems under non-harsh operating environments |
| IS215VCMIH2 | Original version (discontinued) with inferior performance | Spare part replacement for legacy systems |
| IS215UCVFH2AB | General-purpose I/O control board without VME bus master function | Ordinary I/O expansion, non-core communication applications |
FAQ
Q: Are IS215VCMIH2CC and IS215VCMIH2C compatible?A: Fully compatible. As an upgraded variant of Version C, IS215VCMIH2CC shares the same firmware and hardware interfaces, allowing direct replacement.
Q: What key parameters need to be confirmed before purchasing?A: Verify the system model (Mark VI), firmware version, redundancy configuration (simplex / triple modular redundancy) and production batch to avoid compatibility issues.
Q: Does this board support certifications for overseas projects?A: Yes. It complies with CE, UL and RoHS standards and meets international power industry requirements. Relevant certification documents are available.
Q: The Fail indicator stays on after power-on. How to troubleshoot?A: ① Check the power supply of the VME slot; ② Confirm the firmware version matches the system; ③ Inspect loose connections of IONet and serial ports; ④ Check for physical damage to the board.
Q: Data packet loss occurs during redundancy switchover. How to fix it?A: ① Reconfigure redundancy synchronization parameters and ensure the main and slave boards run the same firmware version; ② Check IONet network bandwidth to prevent congestion; ③ Clean connector contacts and replace aged network cables.
Q: What does a flashing Run indicator mean during operation?A: A flashing Run light indicates abnormal data communication. First check VME bus connections, status of I/O cards and system load. Restart the board or upgrade the firmware if necessary.
Q: What is the routine maintenance cycle and required operations?A: Monthly inspection and quarterly cleaning are recommended. During inspection, check LED status and all connections. Use an anti-static brush to remove dust during cleaning. Update to the latest firmware once a year.
