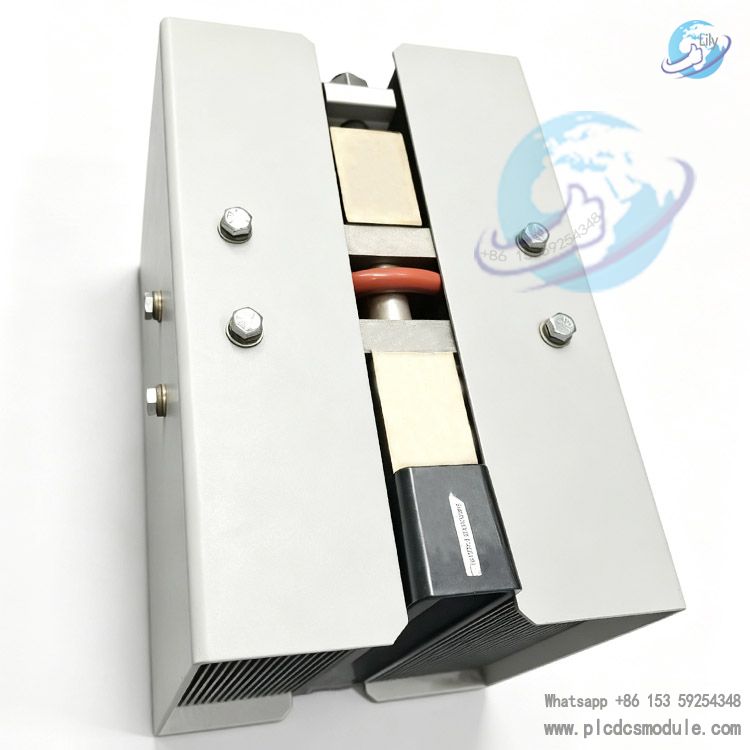

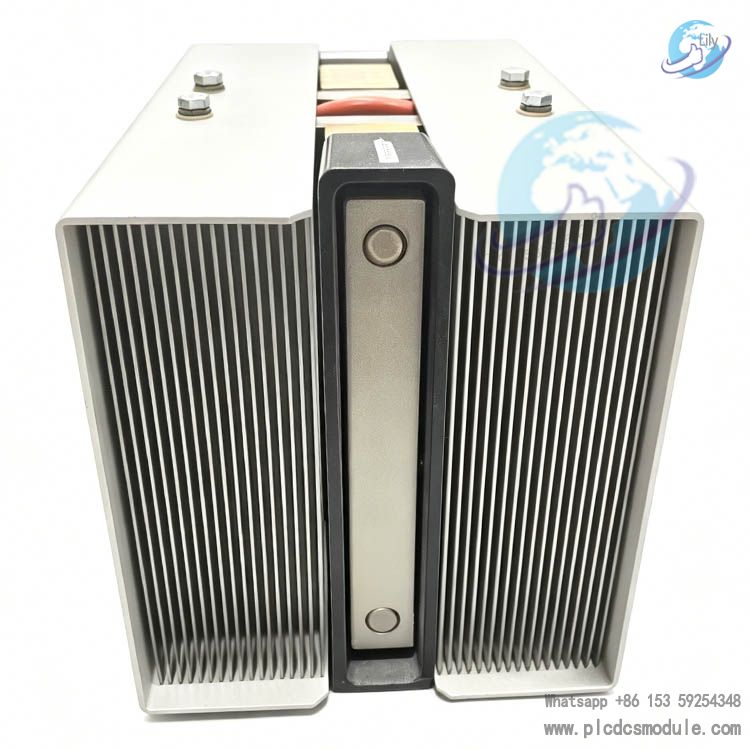

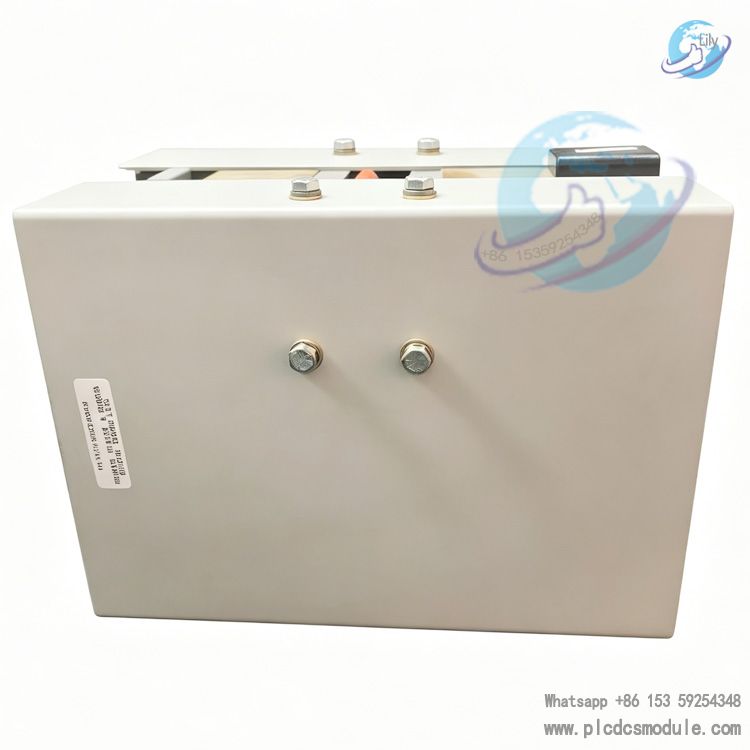

GE 151X1215DC29SA01 is a core power semiconductor component for the LS2100 Load Commutated Inverter (LCI) static start system under GE Vernova. It is a 100mm silicon controlled rectifier (SCR) module engineered for the start-up control of gas turbine generators. Serving as the key unit for rectification and inversion, it converts power from line frequency to variable frequency. The module enables the generator to operate as a synchronous motor to drive gas turbines, and is an essential spare part for heavy-duty gas turbines including 7FA, 9FA and 9H series.
Product Features
Electrical Parameters: 24VDC input, rated current 15A. It supports high-voltage and high-current switching, and is compatible with 6-pulse / 12-pulse LCI topologies.
Communication Interfaces: Integrated with Ethernet/IP and Modbus TCP protocols. It enables point-to-point communication with Mark VIe system, and supports remote monitoring and parameter configuration.
Diagnostic Functions: Built-in self-diagnostic circuits provide protection against overcurrent, overvoltage, overheating and short circuit. Fault codes can be read via GE Toolbox software.
Physical Specifications: Dimensions: 150×120×50mm. Adopts standard DIN rail mounting and matches original GE heat dissipation kits for reliable heat dissipation.
Material & Certifications: The housing is made of flame-retardant industrial plastic with gold-plated internal terminals. It complies with CE and RoHS standards and meets industrial safety requirements.
Product Advantages
Original Fit & High CompatibilityGenuine GE original part, a direct replacement for the older model 151X1215DC20SA01. It fits seamlessly with LS2100 static starter cabinets, Mark VI/VIe control systems and EX2100 excitation systems with no compatibility issues.
High Power Density & ReliabilityAdopts industrial-grade semiconductor chips with excellent overcurrent and overvoltage resistance. It operates stably in a wide temperature range from -20℃ to 60℃, and features strong vibration and electromagnetic interference resistance, ideal for harsh operating conditions of gas turbines.
Precise Control & Stable Start-upSupports accurate gate triggering and closed-loop current/voltage control. It ensures smooth speed and steady torque during gas turbine start-up, preventing equipment damage caused by impact loads.
Modular Design for Easy MaintenanceFeatures standard VME mounting dimensions and hot-swap capability. Equipped with status indicator LEDs for rapid fault location, effectively cutting downtime for maintenance.
Long Service Life & Low Power LossAdopts silicon-based four-layer PNPN structure with low forward voltage drop and power consumption. Its latching conduction characteristic extends service life and reduces operational costs.
Application Scenarios
Gas Turbine Static Start SystemPrimarily used in LS2100/LS2100e starter cabinets for GE 7FA/9FA/9H series heavy-duty gas turbines. As the core component of LCI inverters, it converts line-frequency AC to variable-frequency AC to drive the generator and start the gas turbine.
Generator Excitation ControlWorks with the EX2100 excitation system to precisely regulate excitation current and maintain stable voltage before generator grid connection.
Industrial Variable Frequency DrivesSuitable for high-power synchronous motor speed regulation, rolling mills, pump stations and other applications requiring highly reliable power conversion.
Standby Power SystemServes as a key rectifier device for uninterruptible power supply (UPS) systems to ensure continuous power supply for critical loads.
Product Comparison
| Model | 151X1215DC29SA01 | 151X1215DC20SA01 (Old Version) | 151X1235BC01SA41 |
|---|---|---|---|
| Version | Upgraded Version (SA01) | Standard Version (SA01) | Communication Board |
| Core Function | SCR power module (Rectification / Inversion) | SCR power module | System bus communication management |
| Compatibility | Compatible with LS2100e / Mark VIe | Compatible with LS2100 / Mark VI | Used in conjunction with 151X1215DC29SA01 |
| Advantages | Optimized heat dissipation, enhanced diagnosis and upgraded communication functions | Cost-effective and stable basic performance | Improves system data transmission efficiency |
| Application Scenarios | New units / Upgrade of existing units | Spare parts for legacy units | Replacement for system communication faults |
FAQ
- Q: Can this module be directly used to replace parts on legacy LS2100 (Mark VI) systems?A: It is a direct hardware replacement for 151X1215DC20SA01. Please upgrade the system firmware to the compatible version via GE Toolbox to prevent communication errors.
- Q: How to troubleshoot overheating alarms during module operation?A: ① Check if the cooling fan is stalled or the air duct is blocked;
- ② Clean dust on the module and reapply thermal grease;
- ③ Verify if the load current exceeds the rated value and troubleshoot short-circuit faults on the rear end.
- Q: What accessories are required when purchasing this module?A: GE original cooling base, insulated terminals, communication cables and fixing screws are needed. It is recommended to purchase spare gate trigger cables to avoid faults caused by wiring aging.
- Q: What causes module trigger failure and failure to start the gas turbine?A: ① Loose or damaged gate trigger cables;
- ② Incorrect configuration of trigger voltage or pulse width;
- ③ Damaged internal chips of the module;
- ④ Communication failure of Mark VIe system. Check items one by one and read fault codes via GE Toolbox.
- Q: Is this module applicable to gas turbines of different power ratings (7FA/9FA)?A: Yes. It fits all power levels of LS2100 ranging from 8.5 to 22MVA. Only adjust the current protection threshold in GE Toolbox according to unit power; no hardware replacement is required.
- Q: What inspections should be performed before restarting after long-term shutdown?A: ① Inspect the unit for moisture and corrosion;
- ② Measure insulation resistance (≥1MΩ);
- ③ Run the module under no load for 30 minutes and monitor temperature and voltage waveforms;
- ④ Back up system parameters to prevent configuration loss.
