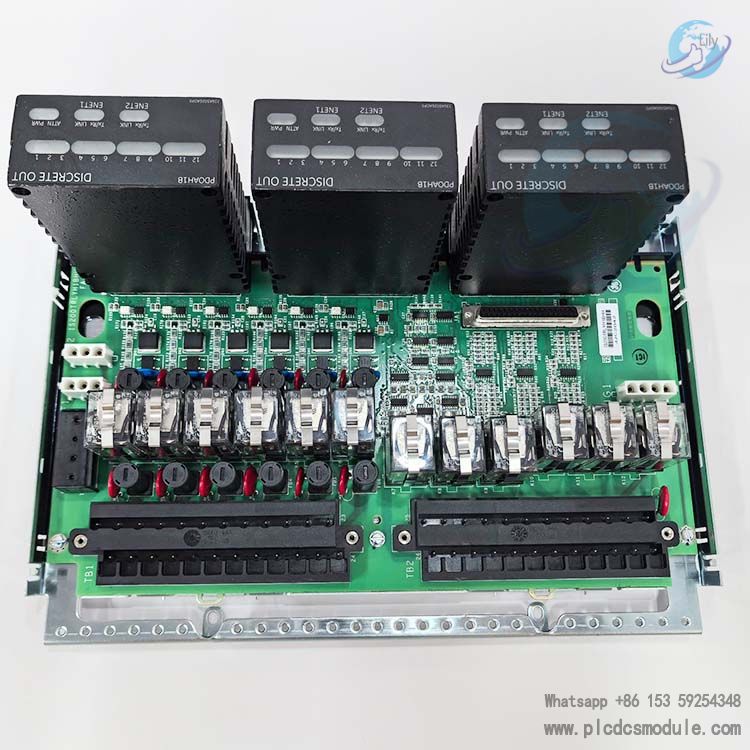

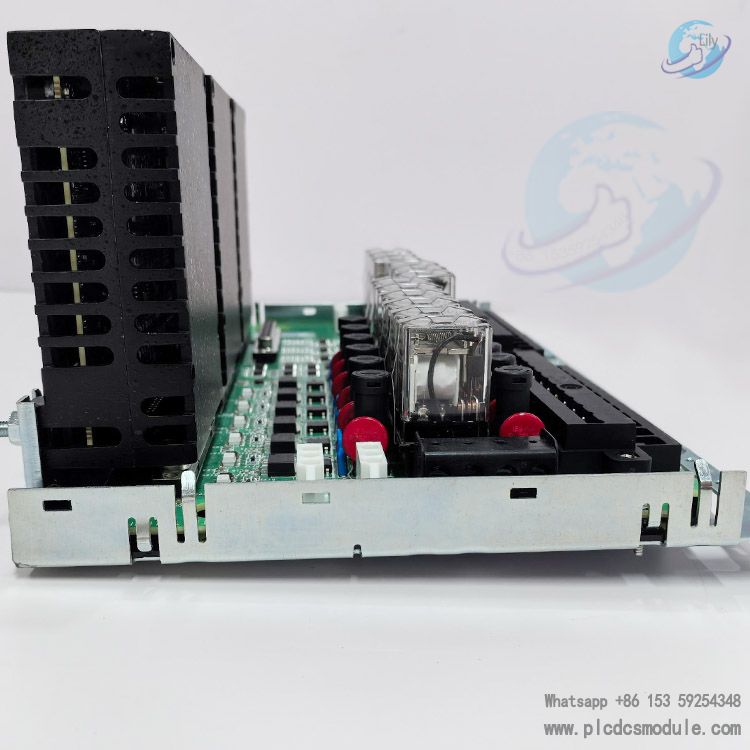

IS200TRLYH1B is a relay output terminal board produced by General Electric (GE) for the Mark VI turbine control system. This terminal board is equipped with 12 plug-in electromagnetic relays, which are versatile and can be configured either to drive external solenoid valves or serve as dry C-type contact outputs. It has strong power adaptability, supporting standard power supplies of 125V DC, 115/230V AC, with an optional 24V DC power supply. Compatible with simplex and Triple Modular Redundancy (TMR) applications, it features two black terminal blocks with a total of 48 numbered metal terminals, ensuring reliable wiring connections. With its fast response capability and stable performance, IS200TRLYH1B plays a key role in turbine control systems.
Functional Purpose: Its main function is to receive signals from the control system and control the operation of relays based on these signals to connect or disconnect the corresponding circuits, thereby achieving specific functions. It can be used in fields such as gas and steam turbine power generation, turbine control systems, and industrial automation, providing reliable relay control signals for various control scenarios within the GE Mark VI system.

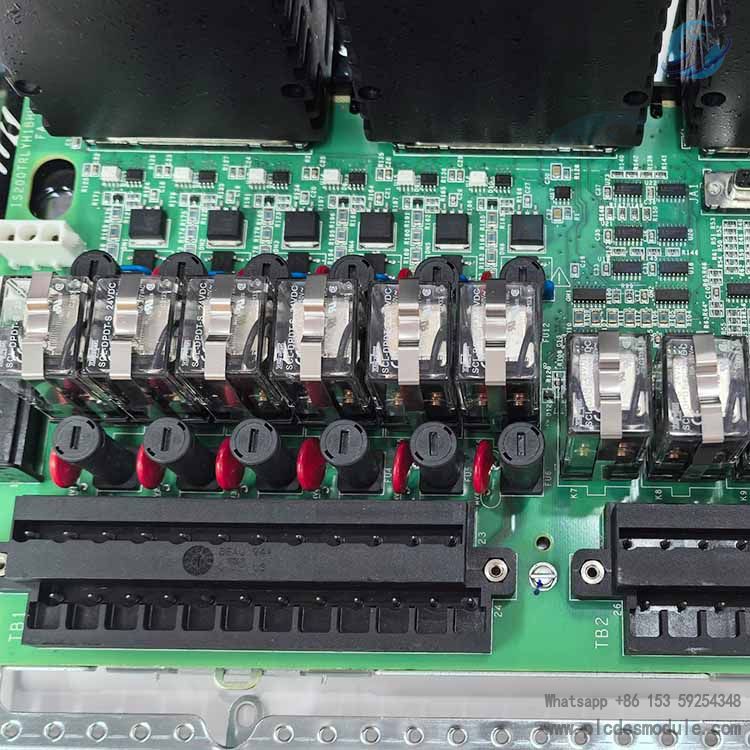

Relay Configuration: Equipped with 12 plug-in electromagnetic relays, which can be configured to drive external solenoid valves or serve as dry C-type contact outputs.
Power Supply Options: Supports standard 125V DC or 115/230V AC power supplies, with an optional 24V DC power supply.
System Compatibility: Compatible with simplex and Triple Modular Redundancy (TMR) applications.
Terminal Details: Features two black terminal blocks with a total of 48 numbered metal terminals, ensuring reliable wiring connections. Each terminal can accommodate wires up to #12 AWG.
Response Time: The maximum response time is 25ms, enabling fast and reliable switching.
Dimensions: Rectangular in shape, with approximate dimensions of 45x35x32 cm, suitable for stable installation in control panels.
Other Features: Includes functions such as voting coil drive feedback and MOV (Metal Oxide Varistor) suppression, which enhance the stability and reliability of the equipment during operation.

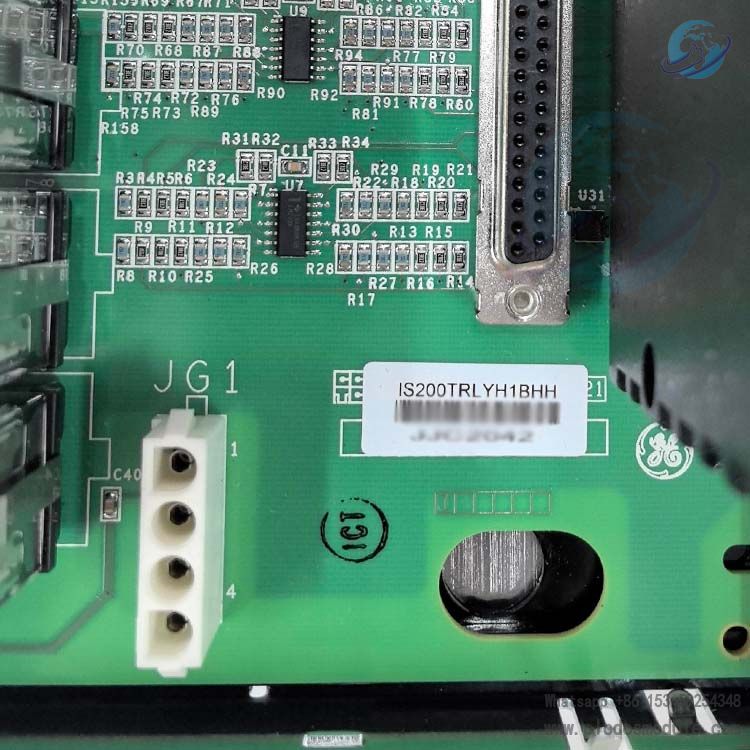

GE IS200TRLYH1BHH Mark Vie Relay Output Terminal Board IS200TRLYH1B
