GE IS220YSILS1B is a core safety protection I/O module exclusively for GE Mark VIe/VIeS systems. Developed for the Safety Instrumented Systems (SIS) of gas turbines, steam turbines and critical industrial equipment, it integrates safety circuits for emergency shutdown, solenoid valve control, as well as pressure, speed and flame detection. Complying with SIL 3 safety integrity level, it serves as a key safety component of the GE Speedtronic control system.
Product Advantages
High Safety ComplianceSIL 3 certified and compliant with IEC 61508/61511, ideal for safety interlock applications in high-risk environments.
High IntegrationA single module integrates multiple safety circuits including emergency stop, solenoid valve control, pressure, speed and flame detection, reducing hardware quantity and potential failure points.
Strong Anti-Interference CapabilityAdopts galvanic isolation and hardened circuits, suitable for industrial environments with high temperature, vibration and intensive electromagnetic interference.
Redundancy & Fault ToleranceSupports dual redundant configuration with seamless switchover upon faults to ensure uninterrupted safety functions.
Easy Integration & MaintenanceFeatures standard interfaces and hot-swap design. On-board online diagnosis and status monitoring help minimize downtime for maintenance.
Product Specifications
Model: IS220YSILS1B (Mark VIe/VIeS Series)Functions: Emergency stop (E-Stop) monitoring, solenoid valve driving, acquisition of pressure, speed, flame and temperature signals, as well as safety interlock output.Safety Level: SIL 3 (IEC 61508)Power Supply: 27.4–28.6 V DC, maximum current: 1 AChannels: Multi-channel digital input/output, compatible with dry contact and wet contact signals.Isolation: Galvanic isolation between channels, dielectric strength ≥ 500 V AC.Operating Temperature: -30℃ ~ +65℃Dimensions & Weight: Standard 19-inch rack mount, approx. 1.2 kg
Application Scenarios
Power IndustryControl of gas and steam turbines, generator set safety protection, boiler interlocks and emergency shutdown systems.
Oil & Gas IndustrySafety Instrumented Systems (SIS) for compressor units, oil transmission pipelines and refining facilities.
Chemical IndustrySafety interlocks and emergency shutdown for reactors, distillation columns and hazardous material conveying systems.
Industrial AutomationOverspeed, overtemperature and overpressure protection for high-speed rotating machinery and large transmission equipment.
FAQ
Q: Is IS220YSILS1B SIL 3 certified? Which standards does it comply with?A: Yes. It is SIL 3 certified and conforms to IEC 61508 and IEC 61511, applicable to SIS in high-risk industries.
Q: Does the module support redundant configuration? How to select matching units?A: It supports dual redundancy for R/C core. Please select modules compatible with your Mark VIe/VIeS system version, and two units are required for redundant setup.

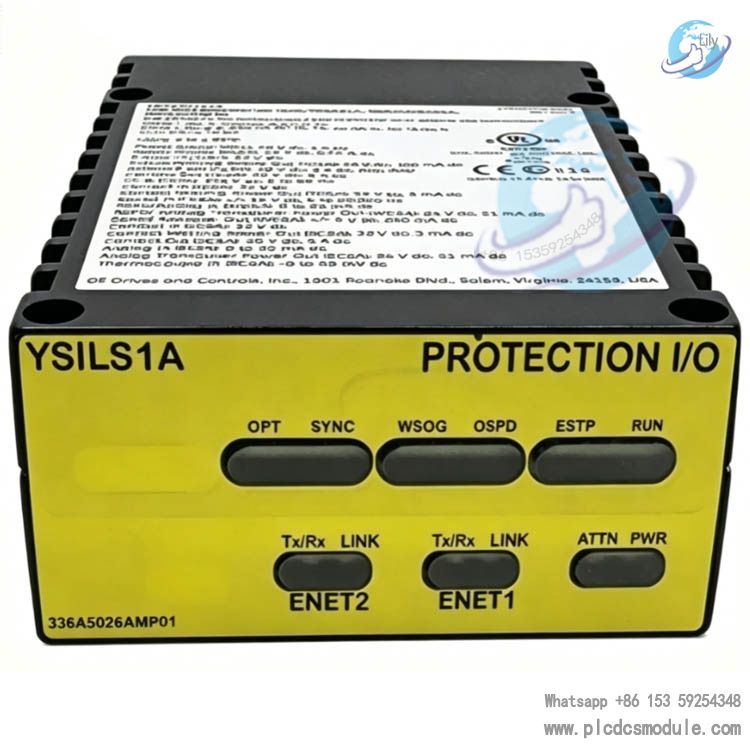

Q: What are the main differences between IS220YSILS1B and IS220YSILS1A?A: Model 1B is rated SIL 3 with enhanced isolation and fault tolerance. Model 1A is SIL 2 with basic functions and lower cost.
Q: The module fails to power up and all indicators are off.A: Verify the 27.4–28.6 V DC power voltage and polarity; check the connection of the backplane slot; replace with a new module to rule out hardware failure.
Q: Emergency stop signal triggers accidentally or does not respond.A: Inspect the wiring of emergency stop dry contacts; confirm correct channel configuration; test the input isolation circuit; update firmware to fix logic bugs.
Q: Redundancy switchover fails and the standby module cannot take over when the main unit malfunctions.A: Check connections of dual RJ45 Ethernet cables; verify correct redundancy parameter settings; align firmware versions of main and standby modules; test the backplane redundant bus.
Q: High temperature alarm occurs during operation.A: Check rack cooling fans and clean dust on the module surface; ensure ambient temperature does not exceed 65℃; avoid installing the module close to other heat-generating units.
