General Electric GE IS200WETAH1ADC Circuit Board Card
Overview

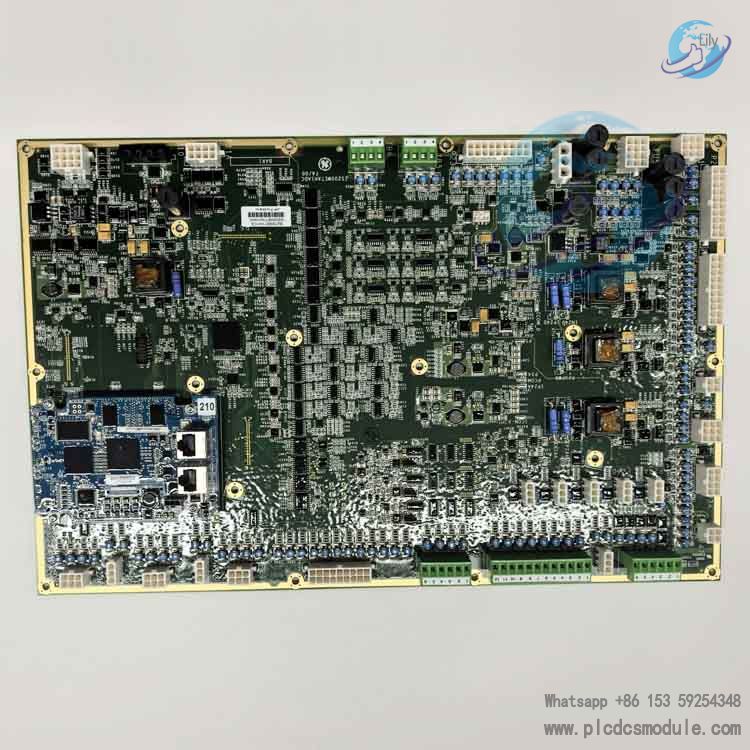

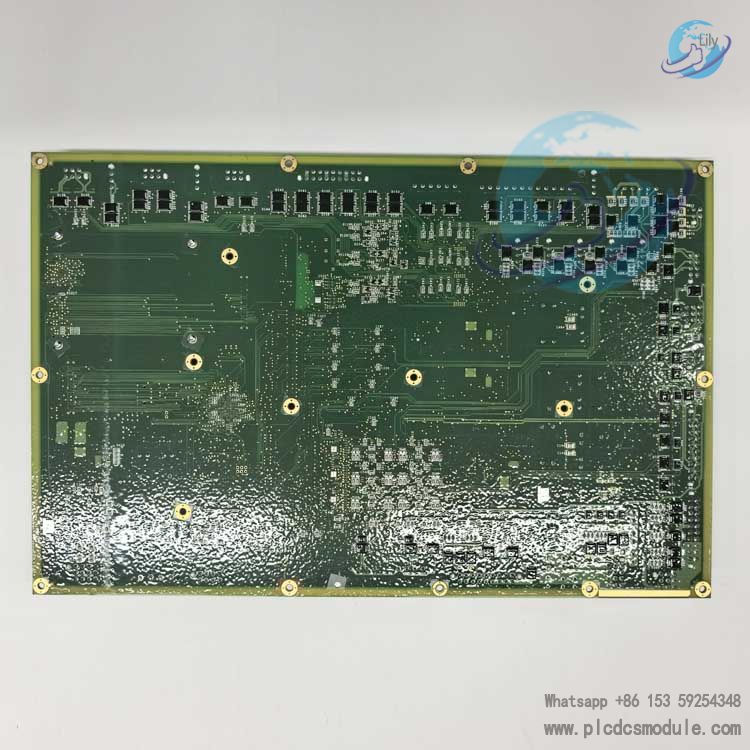

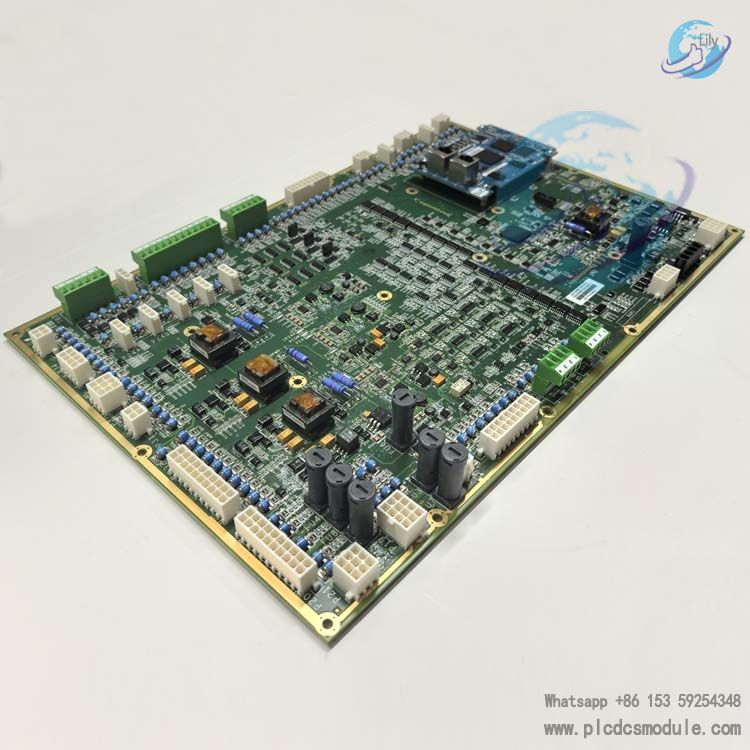

The GE IS200WETAH1ADC is a WETA‑series circuit board for the GE Mark VIe Speedtronic control system. It is primarily designed for signal acquisition and interface conversion of wind turbine units, and is also compatible with field signal interfacing for gas turbine and auxiliary control systems. Installed on the Mark VIe rack backplane bus, the IS200WETAH1ADC conditions, filters and forwards field sensor signals, transmitting analog and digital field signals to the main controller. It works with ControlST software for data monitoring, fault diagnosis and unit logic control. Supporting simplex, duplex and TMR triple‑modular‑redundancy architectures, the IS200WETAH1ADC is widely used for maintenance and replacement of legacy energy equipment, serving as a frequently‑deployed I/O interface board for wind power and turbine machinery.
Technical Specifications
| Part Number | IS200WETAH1ADC |
| Product Family | Mark VIe Speedtronic IS200 Series WETA Assembly |
| Board Type | Wind‑Power Application Interface Circuit Board |
| Backplane Bus | Mark VIe VME Backplane Bus |
| Power Supply | 28VDC, powered via rack backplane |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Weight | 0.84KG |
| Dimensions | 363mm×280mm×38mm |
| Signal Types | Analog: 4‑20mA, 0‑10V, ±10V; Digital: DI/DO |
| Vibration Resistance | 5g, 10‑500Hz |
| Compatible Software | ControlST Configuration & Monitoring Software |
| Ingress Protection | IP20 (for cabinet‑internal mounting) |
Core Advantages
- Supports multiple redundancy configurations of Mark VIe, directly applicable to TMR triple‑redundant units to reduce single‑point‑of‑failure risks for the whole system.
- Built‑in on‑board signal filtering circuits mitigate signal fluctuation caused by electromagnetic interference at wind‑farm sites and improve sampling stability.
- Standardized slot‑mount rack design enables fast installation and removal, shortening downtime for spare‑part replacement.
- Multiple reserved test points allow on‑site fault troubleshooting without board disassembly, facilitating commissioning and maintenance for the IS200WETAH1ADC.
Complies with strict industrial EMC standards for long‑term stable operation in high‑EMI environments of power plants and wind farms.
Product Features
- Integrated multi‑channel signal conditioning circuitry preprocesses signals from wind‑speed, rotational‑speed, temperature and pressure sensors.
- Jumper switches support on‑site adjustment of range and gain to adapt to various field transmitters.
- On‑board fuses provide overcurrent protection for input loops and prevent external faults from propagating inward.
- High‑speed data exchange with the main controller over the VME backplane ensures real‑time control cycle performance.
- Hardware backward‑compatible with select earlier WETA‑series versions for direct replacement and upgrade of legacy projects.
Application Fields
- Master control systems for wind turbine generators; signal acquisition interface for rotational‑speed and pitch‑control systems.
- Signal acquisition for BOP auxiliary systems of gas turbines and steam turbines.
- Field I/O interface expansion for oil & gas turbine equipment.
- Signal conversion units for auxiliary control cabinets in thermal and hydropower plants.
Field signal access units for distributed‑energy DCS systems.
Product Comparison
| Comparison Item | IS200WETAH1ADC | IS200WETAH1AEC | IS200WETBH1ABA |
|---|---|---|---|
| Primary Purpose | Wind‑power‑specific signal interface board | General‑purpose turbine WETA interface board | Analog output board |
| Focused Signals | Analog input + digital I/O acquisition | Water‑system control signal acquisition | Analog output driving |
| Preferred Scenarios | Wind‑farm turbine units | Gas‑turbine water injection / spray and water‑treatment control | Regulating valve and actuator drive output |
| Redundancy Support | TMR architecture supported | Duplex configuration supported | Simplex / Duplex |
Compatible Products
- IS200UCPAH1ABA Mark VIe Controller Main Board
- IS200TREGH1BDB Terminal Relay Board
- IS200ESELH1A Select Interface Board
- IS200PMCIH1ABA DLAN Communication Daughter Board
IS200JPDBG1A Rack Power Distribution Board
FAQ
Q: Can IS200WETAH1ADC work directly with Mark VI (non‑VIe) racks?
A: Direct mixing is not allowed. The IS200WETAH1ADC uses a hardware bus protocol designed for Mark VIe. Backplane definitions differ for older Mark VI racks; forced installation will result in communication failure. Verify full‑system hardware revisions before deployment.
Q: What key information should be confirmed when purchasing IS200WETAH1ADC?
A: Prioritize hardware revision, existing system version of the unit, rack slot definitions, and field signal ranges to avoid hardware incompatibility after delivery.
Q: Can a damaged IS200WETAH1ADC be repaired and reused on operational units?
A: Boards with minor component damage can be repaired and fully channel‑tested. If PCB inner‑layer traces are burned out, on‑site reuse is not recommended; spare‑part replacement is preferred.
Q: What should be checked first when IS200WETAH1ADC experiences signal fluctuation?
A: Verify grounding of external sensor wiring and cable shield termination, check board supply voltage, confirm jumper range settings, and inspect for oxidation at backplane slot contacts.
Q: Why cannot ControlST software detect IS200WETAH1ADC?
A: Inspect backplane bus connection and board power supply. Check hardware catalog configuration within the ControlST project and ensure the configured part number matches the physical hardware.
Q: Does IS200WETAH1ADC support hot‑swap operation?
A: Hot‑swap is not supported. Inserting or removing the board while the rack is energized may generate backplane bus surges and damage this module or other rack‑mounted modules. Cut rack power before any handling.
Q: Are WETA boards with different suffixes ADC/AEC/AHC directly interchangeable?
A: Suffixes denote hardware revisions. Pin layouts are similar, but channel definitions and on‑board components differ. Direct interchange is invalid; check hardware manuals for compatibility validation.
Q: What is the typical warranty period for IS200WETAH1ADC?
A: Warranty terms vary by supplier. The industry standard is 12‑month warranty. Perform power‑on channel testing upon receipt of goods.
Recommended GE Part Numbers
- IS200WETAH1AEC, WETA Wind‑Power Interface Circuit Board
- IS200WETAH1AHC, WETA Signal Processing Board
- IS200WETBH1ABA, Analog Output Circuit Board
- IS200UCPAH1ABA, Mark VIe Controller Main Board
- IS200TREGH1BDB, Relay Terminal Board
- IS200ESELH1A, Excitation Select Interface Board
- IS200PMCIH1ABA, DLAN Communication Daughter Board
- IS200JPDBG1A, AC Power Distribution Board
- IS200AEADH1ABA, I/O Grid Tap Board
- IS200DSPXH1D, DSP Digital Signal Processing Board
- IS200EMIOH1ACA, Main Excitation I/O Board
- IS200EPCTG1A, PT/CT Terminal Board
- IS200ADIIH1A, Input / Output Module
- IS200DAMEG1A, Gate Drive Amplifier Board
- IS200ICCAH1ADB, Drive Control Circuit Board
Notes
- Perform ESD discharge before installing the IS200WETAH1ADC. Static electricity may cause latent damage to board chips.
- Avoid excessive dust and condensation inside cabinets. Moisture and condensation accelerate copper‑foil corrosion and trigger channel failures.
- Store spare boards under controlled temperature and humidity. Do not stack bare PCBs; keep them in anti‑static packaging.
- After replacement, calibrate all acquired channels and confirm full‑I/O‑channel normal operation of the IS200WETAH1ADC before enabling automatic unit control.
- Do not alter factory‑set board jumpers. Unauthorized jumper modification will result in incorrect signal ranges and compromise unit protection logic.
Product Tags
IS200WETAH1ADC,GE IS200WETAH1ADC,Mark VIe circuit board,WETA wind energy assembly,GE turbine control board,IS200 series PCB,GE wind power interface board,turbine spare parts,Mark VIe I/O board
