Overview

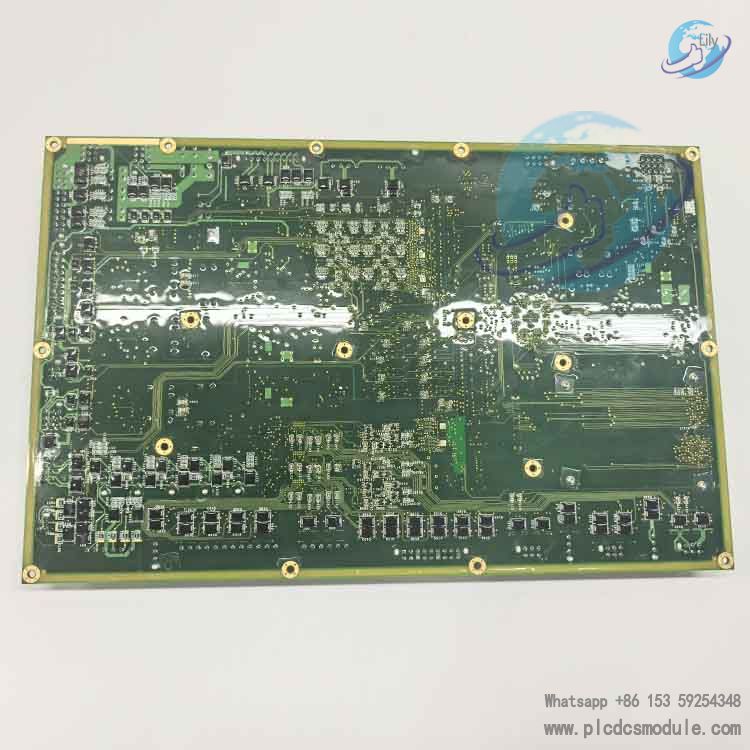

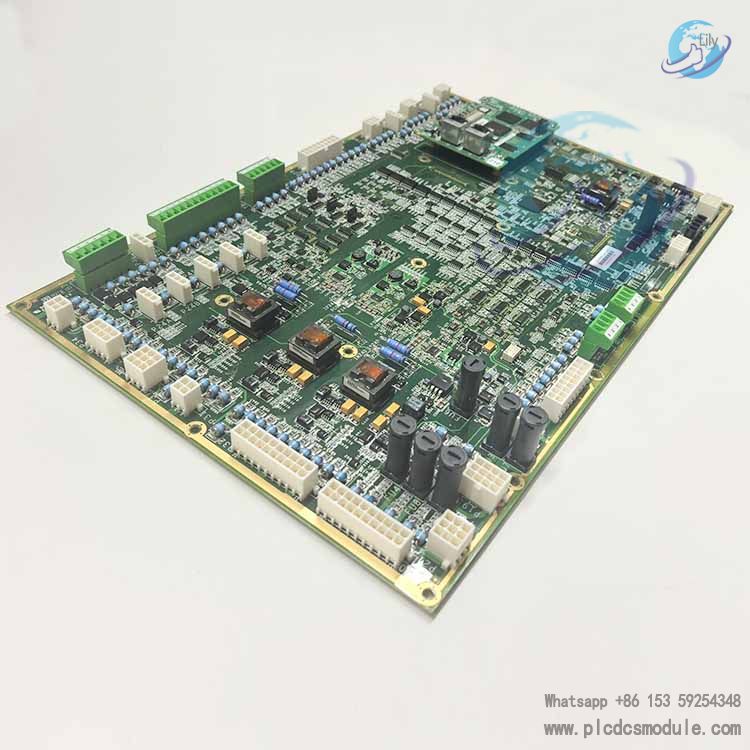

The IS215WETAH1C is a control board for the GE Speedtronic Mark VIe platform. It serves as a critical hardware unit combining communication forwarding and I/O signal processing within turbine unit control systems. The IS215WETAH1C performs field sensor signal acquisition, trip protection logic computation, and network data interaction. It is adapted for TMR triple‑modular‑redundancy operating scenarios of gas turbine and steam turbine units. Installed directly into the Mark VIe system rack, the board interfaces between the main controller and field I/O packs. It converts field signals such as temperature, pressure, vibration and rotating speed into system‑recognizable data, and outputs interlock protection commands to prevent unplanned unit shutdowns. It is widely applied in spare‑part replacement and system retrofitting for heavy‑duty turbine equipment in power generation and petrochemical industries.
Technical Specifications
| Parameter Item | Specification |
|---|---|
| Part Number | IS215WETAH1C |
| Product Series | Speedtronic Mark VIe |
| Communication Ports | Dual isolated 10/100Base‑TX Ethernet RJ45 ports |
| Bus Type | VME backplane bus, Mark VIe dedicated system bus |
| Power Input | 28VDC backplane power supply; 5VDC for logic circuit |
| External Power Output | Isolated 28VDC output for peripheral I/O packs |
| Total Power Consumption | 15‑30W |
| Supported Protocols | Modbus‑TCP, Ethernet/IP; compatible with ToolboxST configuration software |
| Operating Environment | -30℃ ~ +65℃; conformal coating treatment for circuit board |
| Mounting Method | Standard rack slot‑mount installation |
| Hardware Architecture | Supports TMR triple‑modular‑redundant configuration |
| Physical Dimensions | 263 × 138 × 88 mm; Weight: 2.35 kg |
Functional Advantages
The IS215WETAH1C integrates signal conditioning, protection logic, network forwarding and auxiliary power supply capabilities, which simplifies internal wiring complexity inside Mark VIe system cabinets.
Built‑in hardware self‑diagnosis continuously monitors channel open‑circuit, short‑circuit and hardware faults. Front‑panel LED status indicators quickly locate fault points and reduce on‑site troubleshooting time.
Full‑channel galvanic isolation suppresses heavy electromagnetic interference inside power‑plant cabinets. Single‑channel faults will not propagate to other signal loops to guarantee continuous unit operation.
Supports triple‑modular‑redundant system configuration. Hot‑swap is available under redundant mode; spare‑part replacement does not require full‑system shutdown and improves uptime of power‑generation equipment.
Channel range, trip threshold and filtering parameters can be configured via ToolboxST to adapt to different sensor types of turbine units.
Dual‑Ethernet links realize communication redundancy. Data transmission remains intact upon single‑link failure, ensuring stable data exchange between upper‑level SCADA and Mark VIe controllers.
Product Features
The IS215WETAH1C adopts industrial wide‑temperature components and conformal‑coated circuit boards to withstand high temperature, dust and vibration in power‑plant control rooms.
Integrated passive heat‑dissipation fins eliminate the need for extra fans and reduce potential failure points inside cabinets.
High‑density connectors support multi‑channel analog and discrete signal access, compatible with RTD, thermocouple, 4‑20 mA and speed pulse signal acquisition.
Hardware‑based trip protection logic outputs interlock actions within milliseconds when hazardous conditions such as overspeed, low oil pressure and overtemperature occur.
On‑board over‑current and over‑voltage protection prevents surge back‑feed from field side from damaging Mark VIe main CPU.
Standard rack‑mount plug‑in design enables easy assembly and disassembly, suitable for upgrade and replacement of existing Mark VIe control systems.
Application Fields
- Combined‑cycle gas‑steam power plant Mark VIe turbine control systems
- Steam turbine protection and monitoring systems for thermal power stations
- Driver‑type gas turbine unit control in petrochemical industry
- Control systems for industrial compressors and large pump sets driven by turbines
- Signal acquisition and interlock units for auxiliary‑equipment lubrication and fuel‑supply systems in power plants
- Spare‑part replacement and hardware retrofitting projects for legacy Speedtronic Mark VIe control systems
Product Comparison
Compared with the same‑series IS215WETAH1BB: the IS215WETAH1C features optimized anti‑interference performance and expanded dual‑port Ethernet hardware, while retaining full trip‑protection logic. It is more suitable for remote distributed I/O cabinet deployment.
Compared with IS215WEPAH2 pressure‑acquisition board: the IS215WETAH1C focuses on comprehensive signal processing plus network forwarding, whereas the WEPAH2 specializes in high‑precision pressure‑point acquisition. These two models are frequently used together.
Compared with IS230TNCIH4C communication module: the TNCIH4C only performs network protocol conversion. The IS215WETAH1C delivers I/O signal processing, trip protection and external I/O power supply at the same time with higher functional integration.
Related Spare Parts
Main Controller: IS215UCCEH1A Mark VIe Controller Unit
Power Modules: IS200JPDAG1ABB AC Power Distribution Board, IS200JPDDG1AAA DC Power Distribution Board
I/O Terminal Base: IS215STBAH1A Terminal Base Assembly
Signal Acquisition Module: IS215WEPAH2B Pressure Measurement I/O Pack
Network Switch Hardware: IS420ESWBH2A Industrial Ethernet Switch Module
Configuration Software: ToolboxST (Mark VIe system configuration & diagnostic software)
Vibration‑Monitoring Interface: Supports buffered output signals from Bently Nevada 3500 series vibration monitoring systems
FAQ
Q: Can IS215WETAH1C directly replace IS215WETAH1BB?
A: Physical slot compatibility is available. Nevertheless, check the Mark VIe system firmware version. Some older firmware versions require ToolboxST project file upgrade and parameter download before commissioning.
Q: Can IS215WETAH1C work in non‑redundant standalone Mark VIe systems?
A: Yes. This board supports both standalone mode and TMR triple‑modular‑redundant mode. Note that standalone mode cannot realize on‑line fault switching and hot‑swap is not available.
Q: Communication LED stays off after installing IS215WETAH1C spare part. What should be checked first?
A: Verify 28VDC backplane power voltage; inspect bent or oxidized pins between board and rack backplane; check Ethernet cables and IP subnet settings; confirm that module model configured in project software matches physical hardware.
Q: Is a separate terminal base required for IS215WETAH1C?
A: Yes. The IS215WETAH1C itself does not include wiring terminal base. IS215STBAH1A terminal base assembly is required for field cable termination.
Q: What is the typical lead‑time for purchasing IS215WETAH1C?
A: Fast shipment is available for in‑stock units. If out of stock, factory lead‑time applies, subject to market spare‑part supply‑demand fluctuation. Confirm real‑time stock status before order placement.
Q: Which failures represent irreversible hardware damage for IS215WETAH1C?
A: High‑voltage surge breakdown, circuit‑board burning and massive broken connector pins cannot be repaired on‑site. Direct hardware replacement is required.
Q: Can IS215WETAH1C be used on legacy Mark V systems?
A: No. Its hardware bus architecture is designed exclusively for Mark VIe and offers no downward compatibility with Mark V control systems.
Q: Can the 28VDC external output of IS215WETAH1C directly drive solenoid‑valve loads?
A: This 28VDC output is dedicated to feeding matched I/O packs. Direct connection of high‑power solenoid valves is not recommended. High‑power actuators shall be powered via external terminal‑board loops.
Recommended GE Part Numbers
IS215UCCEH1A, Mark VIe Controller Unit
IS215WEPAH2B, Pressure Measurement I/O Pack
IS420ESWBH2A, Ethernet Switch Module
IS230TNCIH4C, Network Communication Module
IS200JPDAG1ABB, AC Power Distribution Board
IS200JPDDG1AAA, DC Power Distribution Board
IS215STBAH1A, Terminal Base Assembly
IS215WETAH1BB, Enhanced Trip Analog Module
IS200BCAAH1A, Analog Current Acquisition Board
IS200HSLAH1ADE, Serial Link Interface Board
IS230TSVCH1A, Servo Controller Terminal Board
IS200VTURG1B, VME Turbine Control Board
IS200SRLYH2A, Relay Output Board
IS215ACLIH1AP, Application Control Layer Module
IS200ADIIH1A, Dual Channel I/O Module
Notes
Electrostatic discharge (ESD) protection must be implemented during IS215WETAH1C installation. Static electricity may cause latent damage to on‑board components.
Before hot‑swap under redundant mode, confirm channel synchronization is completed. Do not perform plug‑and‑unplug during critical unit operating phases.
Cabinet grounding shall comply with turbine‑control‑system grounding specifications. Poor grounding will amplify electromagnetic interference and result in drifting acquisition readings from IS215WETAH1C.
Avoid long‑term operation beyond the‑30℃ ~ +65℃ environmental range. High temperature accelerates component aging.
Spare‑part storage shall maintain proper humidity to prevent circuit‑board moisture corrosion and contact‑pin degradation.
