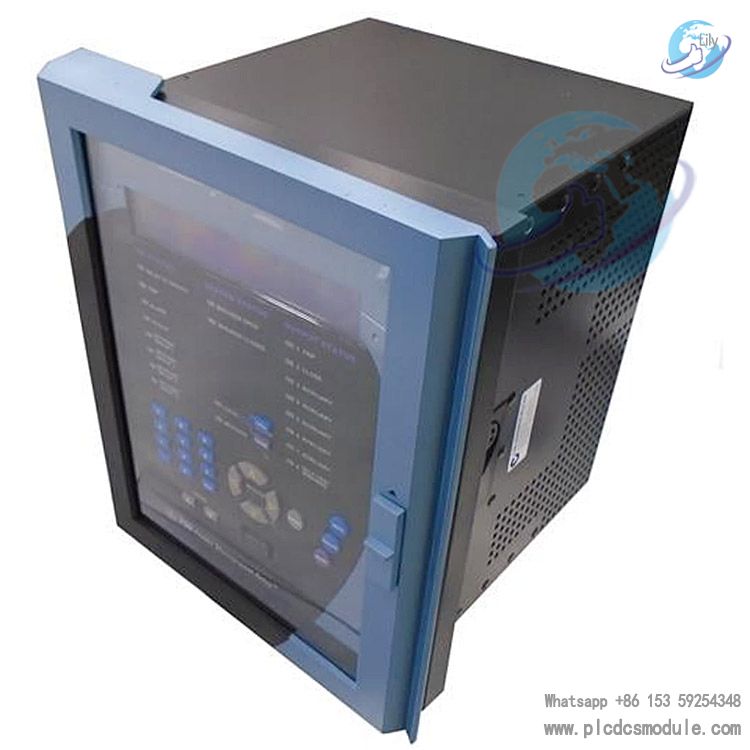

The GE Multilin SR489-P5-LO-A1-E is one of the core model in the Multilin 489 series generator management relays under GE Vernova. As an important member of the SR relay family, this product features a cost-effective design and industry-leading draw-out construction, delivering comprehensive protection, control, metering, and communication functions for small and medium-sized synchronous or induction generators. It is widely used for primary or backup protection in various power generation applications. With reliable performance and easy maintenance, it serves as a key safeguard for the safe and stable operation of industrial generators.
It should be noted that the 489 series has been discontinued, with the 889 relay as its replacement. Nevertheless, as a classic model of the series, the SR489-P5-LO-A1-E remains widely deployed in existing installations, with ongoing technical support and warranty services provided.
Download
Core Positioning and Design Philosophy
The SR489-P5-LO-A1-E is specifically designed for small and medium-sized synchronous or induction generators operating at 25Hz, 50Hz or 60Hz. Its core positioning is an economical and efficient integrated generator management solution, balancing comprehensive protection, convenient operation and efficient maintenance.

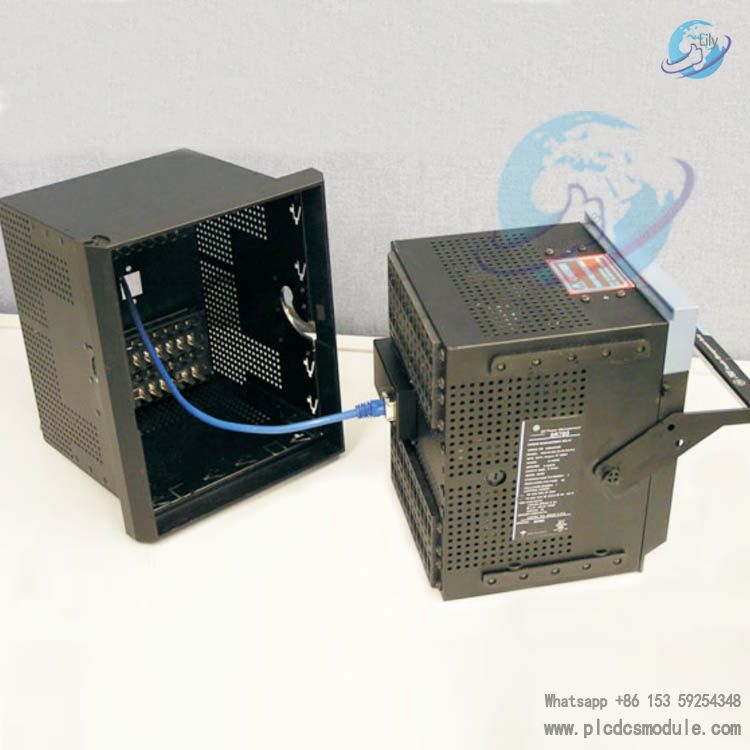

Its design philosophy centers on ensuring generator safety, simplifying operation and maintenance procedures, and reducing operating costs. It adopts a draw-out construction, allowing quick removal and installation without system shutdown, thus minimizing maintenance downtime. It is also equipped with a large, user-friendly front panel interface that ensures clear data visibility even in direct sunlight, enabling on-site personnel to easily perform parameter configuration, status monitoring and fault troubleshooting.

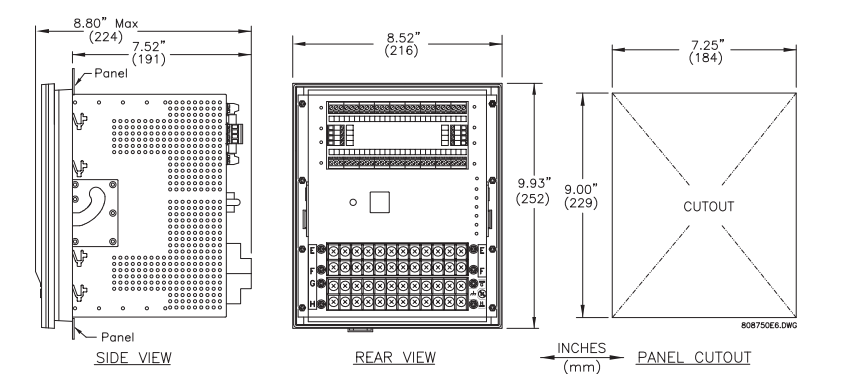

This model is a standard configuration variant within the 489 series. The marking “LO” corresponds to its control power supply rating, while “P5” represents its core functional module configuration. It features a compact mechanical design, weighing approximately 16.3 lbs (7.4 kg) and measuring 8.5 in × 8.5 in × 10 in, allowing flexible installation in generator control cabinets of various sizes. It also supports options for harsh chemical environments, enabling reliable operation in most severe industrial locations.
Detailed Functions
(I) Comprehensive Protection Functions
- Stator Protection: Equipped with high-speed dual-slope percentage differential and overcurrent elements to protect against stator phase faults during both normal operation and startup. Advanced CT saturation detection with directional checking ensures accurate fault discrimination and prevents maloperation caused by external interference. It also offers 100% stator earth fault protection using overvoltage elements and adaptive voltage differential functionality to respond to third-harmonic unbalance at the machine terminals and neutral, precisely distinguishing between internal and external ground faults to fully cover stator winding earth risks.
- Thermal Protection: Monitors stator and bearing temperatures via RTD inputs, supporting up to 12 RTD channels for stator thermal overload protection. RTD redundancy enhances protection reliability. Thermal model overload curves can be biased according to current unbalance and maximum stator temperature, with exponential decay to simulate machine cooling; it also supports startup protection for induction generators.
- Other Core Protections: Include loss-of-field protection (via impedance or reactive power detection), overexcitation protection, reverse power / low forward power protection (to prevent motoring damage to the prime mover), undervoltage / overvoltage protection, negative-sequence overcurrent protection, breaker failure protection, accidental energization protection, and directional earth fault protection. Alarm and trip parameters can be flexibly configured for actual applications, forming a full-range safety barrier for the generator.
(II) Accurate Monitoring and Metering Functions
- Electrical Parameter Metering: Accurately measures three-phase current (RMS and negative-sequence), voltage, power (active, reactive, apparent), frequency, power factor, and energy. Metering accuracy complies with industrial standards, supporting operational efficiency analysis and energy consumption statistics.

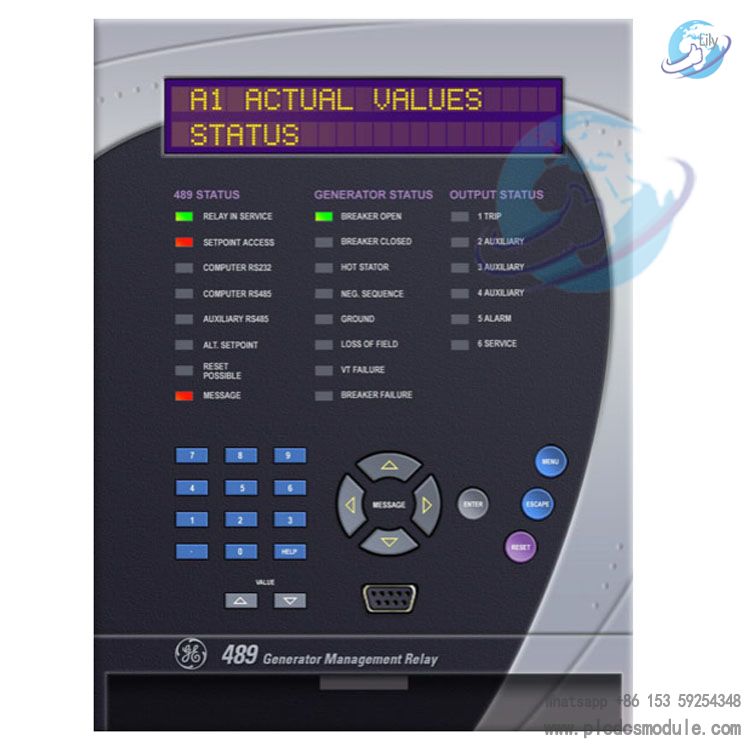

- Condition Monitoring: Supports 10 analog inputs for vibration monitoring (compatible with vibration sensors) and bearing temperature monitoring. Features 22 status indicators for real-time display of relay operation, fault alarms, and other information in an intuitive format.
- Data Logging: Built-in event recorder storing up to 40 events (expandable to 256 time-stamped events in certain versions). IRIG-B time synchronization ensures record accuracy. It also supports waveform capture of up to 64 cycles (extendable to 128 cycles in some versions) at 12 samples per cycle. Combined with data logging, this greatly shortens troubleshooting time and provides strong evidence for fault analysis.
(III) Flexible Control and Communication Functions
- Control Functions: Equipped with 6 output relays rated for 10A continuous and 30A for 0.2 seconds, used for generator start/stop control, fault tripping, and alarm signaling. Built-in waveform simulation simplifies setpoint verification testing and reduces maintenance complexity.
- Communication Functions: Includes one RS232 port and two rear RS485 ports, supporting industrial standard protocols such as Modbus RTU, Modbus TCP/IP, and DNP 3.0. Communication baud rate is adjustable from 300bps to 19200bps, enabling seamless integration into industrial control systems for remote monitoring, parameter configuration, and data retrieval. It is also compatible with EnerVista 489 Setup software for parameter programming, fault analysis, and data export, further improving O&M efficiency.
| Parameter | Specification |
|---|---|
| Model | SR489-P5-LO-A1-E (MPN: 489-P5-LO-A1-E) |
| Manufacturer | GE Multilin (a brand under GE Vernova) |
| Applicable Generator Types | Small and medium-sized synchronous or induction generators, operating at 25Hz, 50Hz, or 60Hz |
| CT Input | 5A phase secondary winding |

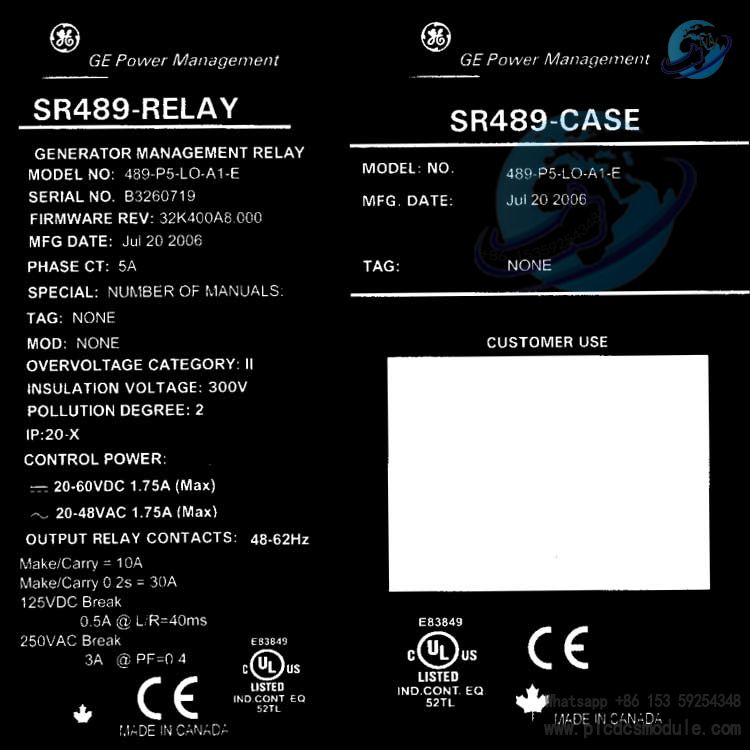

| Control Power Supply | 20–60VDC / 20–48VAC, maximum current 1.75A, frequency 48–62Hz |
| Analog I/O | Analog inputs: 10 channels Analog outputs: 0–1mA (expandable to 4–20mA in some versions) |
| Output Relays | 6 channels; interrupting current: 0.5A at 125VDC (L/R=40ms), 3A at 250VAC (PF=0.4) |
| Communication Ports | 1 RS232 serial port, 2 rear RS485 ports Supported protocols: Modbus, DNP 3.0 |
| Status Indicators | 22 indicators for real-time display of operating status and fault information |
| Mechanical Design | Draw-out construction, IP20 ingress protection, insulation voltage 300V, pollution degree 2 |
| Dimensions & Weight | Dimensions: 8.5 in × 8.5 in × 10 in (approx. 21.6cm × 21.6cm × 25.4cm) Weight: 16.3 lbs (approx. 7.4kg) |
| VT Configuration Support | Supports wye and delta VT configurations |
| Warranty & Status | 1-year warranty provided The 489 series to which this model belongs is discontinued; replacement model is the 889 relay |
Application Scenarios
With its comprehensive functionality and cost-effective features, the SR489-P5-LO-A1-E is widely used in various small and medium-sized power generation scenarios, mainly including:
- Industrial Sector: Serves as primary or backup protection for factory-owned power stations and small/medium-sized generator sets across manufacturing, chemical, metallurgical and other industries. It supports options for harsh chemical environments, making it suitable for extreme industrial conditions.
- Cogeneration Applications: Acts as the core protection device for generators in cogeneration systems, meeting both primary and backup protection requirements to ensure stable system operation.
- Standby Power Systems: Protects standby generators in commercial buildings, hospitals, data centers and other facilities, ensuring reliable startup and operation of standby power supplies during sudden power outages.
- Distributed Generation: Provides protection and management for small distributed power stations (e.g., PV-associated generators, small hydropower generators), enabling real-time monitoring and remote control of power generation data.
