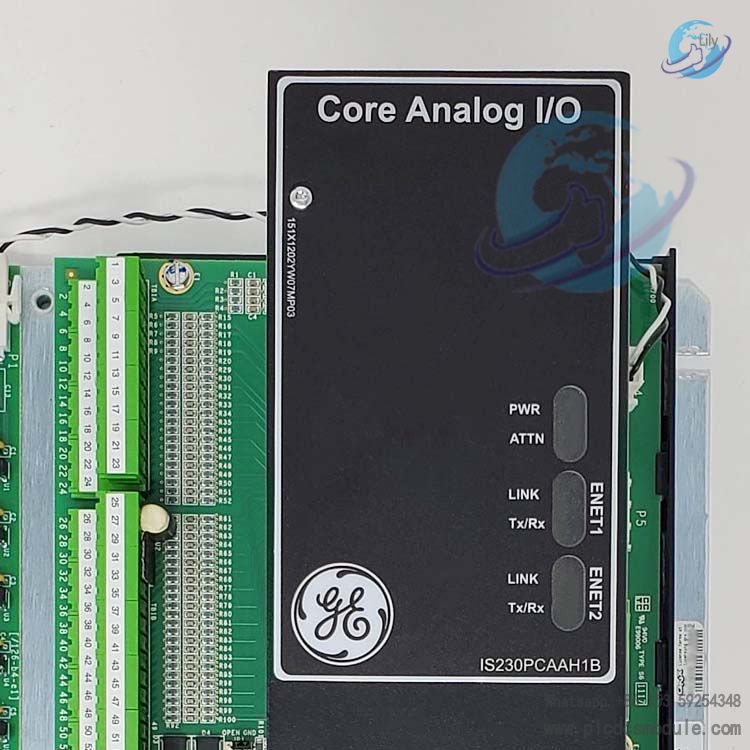

The GE IS230PCAAH1B is a core analog input/output (I/O) module designed by General Electric (GE) for the Mark VIe series distributed control system. Its primary function is to provide extensive analog signal processing capabilities for the efficient operation of heavy-duty gas turbines and other industrial equipment. Widely deployed in demanding industrial environments such as power plants and industrial automation systems, it serves as a critical component in gas turbine and steam turbine control due to its high reliability and high-precision signal processing. It operates in conjunction with core analog terminal boards (TCAS and TCAT) to enable comprehensive analog signal acquisition, conversion, and output control, supporting stable and precise operation of the entire control system.
Positioning and Application Scenarios
As part of the GE Mark VIe series, the IS230PCAAH1B is an industrial-grade core analog I/O module developed and manufactured in the United States by GE. It is primarily intended for heavy-duty gas turbine control systems and is also applicable to the automated control of steam turbines, generators, and other energy equipment, acting as key hardware for efficient analog signal processing in industrial automation. Its main application areas include:
- Energy Industry: Power generation plants (thermal, gas-fired, etc.), gas turbine and steam turbine control systems, where it collects and processes critical analog operating parameters to ensure stable power generation equipment performance.
- Industrial Automation: Various industrial process control scenarios, enabling real-time analog signal monitoring and precise control of field devices to improve process stability.
- Precision Manufacturing: Real-time acquisition and control of machine operating parameters in precision production lines to optimize efficiency and product quality.
- Harsh Industrial Environments: Featuring industrial-grade anti-interference design and a wide operating temperature range, it withstands high temperatures, vibration, and electromagnetic interference, safeguarding safe equipment operation.
The module supports Simplex, Dual, and Triple Modular Redundant (TMR) system architectures, offering flexible system compatibility to meet varying reliability requirements across industrial applications. It also forms a product series with the IS230PCAAH1A, serving the control needs of heavy-duty gas turbines and aero-derivative turbines respectively.
Functions and Operating Principles
Core Functions
The IS230PCAAH1B specializes in comprehensive processing of analog signals and works with the TCAT terminal board to deliver versatile I/O capabilities covering common industrial control signal types:
- Multi-Type Analog Input Processing: Supports thermocouple inputs, 4–20 mA current loop inputs, seismic inputs, LVDT excitation and inputs, and pulse rate inputs. It accurately captures raw data from field sensors and transmitters for the control system.
- Analog Output Control: Provides servo coil outputs to convert control system commands into analog signals and drive field actuators for precise equipment control.
- Signal Distribution and Redundancy Adaptation: Enables signal fan-out via the TCAT terminal board, where one TCAT board can connect 1, 2, or 3 linked IS230PCAAH1B modules to support redundant system designs and enhance fault tolerance.
- System Coordination and Diagnostics: As part of the Mark VIe distributed I/O system, it shares a common processor board and supports channel-level diagnostics for short circuits, open circuits, and self-testing. Status LEDs allow rapid fault identification and reduce maintenance costs.
- Signal Isolation and Anti-Interference: Delivers strong signal isolation to suppress electromagnetic interference in industrial environments, ensuring stable and accurate signal transmission even under harsh conditions.
Operating Principle
The IS230PCAAH1B consists of two application I/O boards, one terminal board, and a processor board shared across all Mark VIe distributed I/O modules. Components work together as follows:
- Signal Acquisition: Analog signals (temperature, pressure, vibration, displacement, etc.) from field sensors and transmitters enter the module through euro-style terminal blocks. Fan-out signals are routed via the TCAT terminal board, while dedicated signals connect directly to module terminals.
- Signal Conversion and Processing: The on-board application I/O boards perform high-precision analog-to-digital conversion, along with filtering and amplification to maintain signal accuracy.
- Data Transmission: Processed digital signals are transmitted to the Mark VIe controller over the redundant IONet Ethernet via dual RJ45 connectors for logical processing and command generation.
- Command Execution: Control commands from the controller are sent back to the module over Ethernet, converted from digital to analog signals, and output through servo coil interfaces to drive field actuators, enabling closed-loop control.
Fault Diagnosis and Feedback: The module performs continuous self-testing and channel diagnostics. If faults (short circuit, open circuit) are detected, status indicators alert operators, and fault data is sent to the controller for timely maintenance.
Key Technical Specifications
- Model: IS230PCAAH1B
- Manufacturer: GE
- Series: Mark VIe core analog I/O module
- Origin: USA
- Compatible Boards: TCAS, TCAT terminal boards
- Software Requirements: Compatible with specified versions of Control ST software; requires BPPC I/O Upgrade v05.01 for proper operation
Signal Accuracy
- 0–10 VDC analog input: ±0.50%
- LVDT excitation monitoring input: ±1.00%
- Servo driver output: ±3.50%
I/O Specifications
- 25 input interfaces
- Output: 4–20 mA current loop
- Supports thermocouple, 4–20 mA, seismic, LVDT, pulse rate, and servo coil output signals
Power Requirements
- 28 VDC ±5%
- Connector P4 supplies power to the JGPA board
Physical Dimensions
- Height: 33.02 cm
- Width: 17.8 cm
- 120 euro-style terminal blocks for field wiring
Environmental Ratings
- Operating temperature: -30°C to 65°C
- Surface-mount design with industrial-grade EMC immunity for harsh environments
Interfaces
- Dual RJ45 Ethernet for controller communication
- 28 VDC power connector (P5)
- Two 68-pin cables (P1, P2) for TCAT terminal board connection
Supports JGPA board connection with shield grounding and 24V field power connectors
Module Composition and Interface Description
Module Composition
The IS230PCAAH1B features an integrated design; internal components are not individually diagnosable or replaceable. The module is the minimum replaceable unit. Key components include:
- Processor Board: Shared across all Mark VIe distributed I/O modules, responsible for core computing, data processing, and communication coordination.
- Application I/O Boards: Two boards dedicated to analog input acquisition, conversion, and output control.

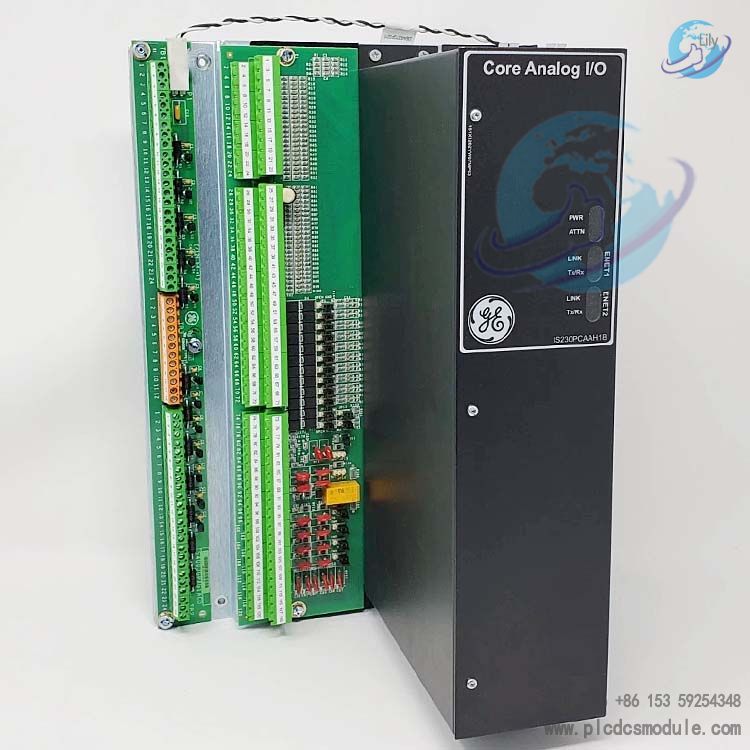

- Terminal Board: Integrates 120 euro-style pluggable terminal blocks for field device connections.

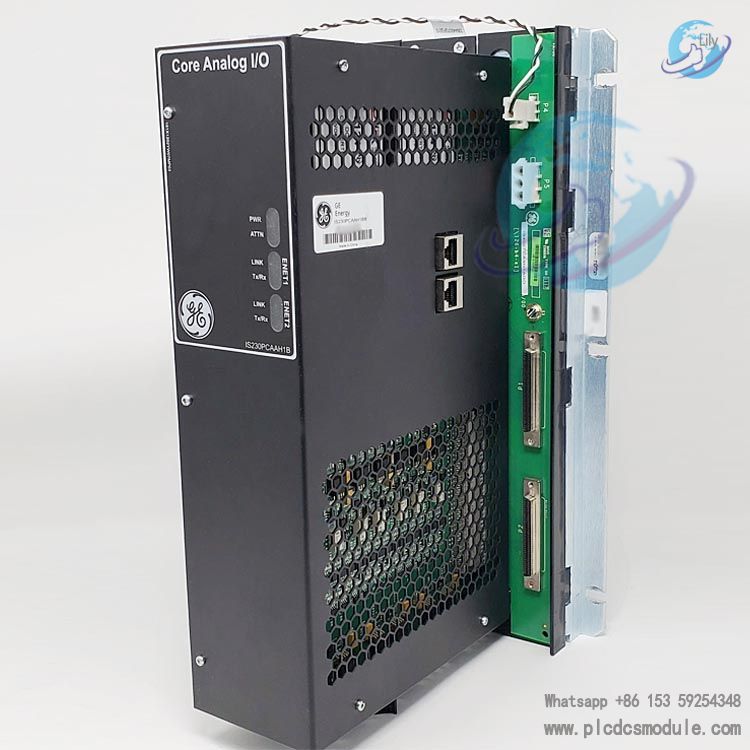

- Auxiliary Connections: Dual RJ45 Ethernet, power connectors, and TCAT link cables for stable external connectivity.
The module must be used with a JGPA board, which is mounted nearby to provide shield grounding and a 24V field power connector, improving signal stability and equipment safety.
Interface Description

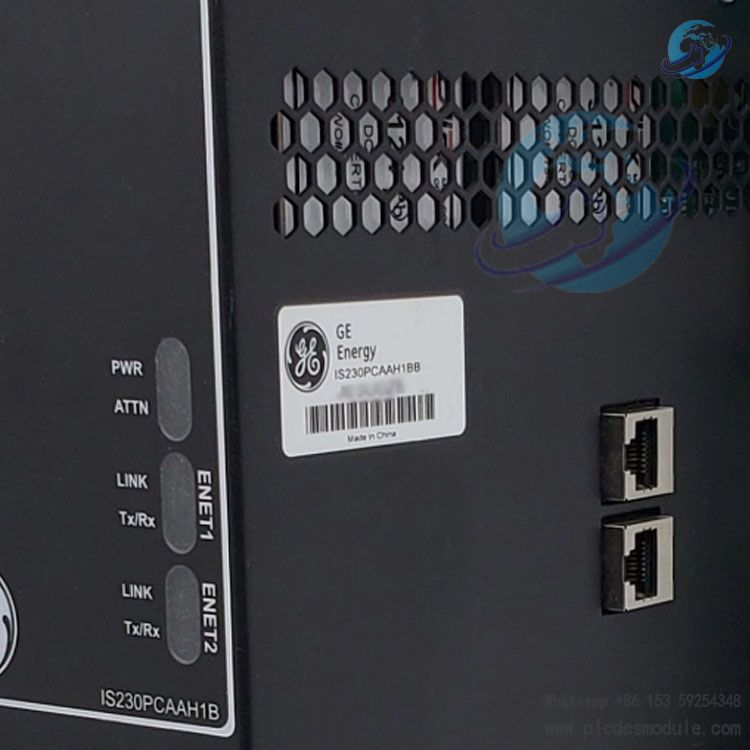

- Dual RJ45 Ethernet: Communicates with the Mark VIe controller at 10/100 Mbps with redundancy to ensure real-time, reliable data transmission.
- Power Connector (P5): Accepts 28 VDC input (±5% tolerance) for module operation.
- TCAT Connection (P1, P2): Two 68-pin cables interface with the TCAT terminal board for signal fan-out and redundancy.
- Field I/O Terminals: 120 euro-style terminals for connecting field sensors and actuators.
- JGPA Board Connector (P4): Supplies power to the JGPA board for signal shielding and field power distribution.
Product Advantages and Notes
Advantages
- High Reliability: Industrial-grade construction, wide temperature range (-30°C to 65°C), strong EMC immunity, and support for redundant configurations.
- High Precision: Signal accuracy within ±0.50% to ±3.50% ensures reliable acquisition and control.
- Comprehensive Functionality: Supports a full range of industrial analog I/O types, reducing additional module requirements.
- Easy Maintenance: Channel-level diagnostics with LED indicators, integrated design for straightforward replacement, and readily available inventory to minimize downtime.
- Strong Compatibility: Fully compatible with the GE Mark VIe DCS, works seamlessly with TCAT, JGPA, and supports Simplex, Dual, and TMR architectures.
Notes
- Software Compatibility: Must use the specified version of Control ST software and install BPPC I/O Upgrade v05.01 to avoid operational issues.
- Wiring Standards: Field wiring must comply with GE official documentation (GEH-6721 L) to prevent short circuits, open circuits, or signal errors.
- Replacement Policy: Internal components cannot be repaired or replaced individually; faulty modules must be replaced as a complete unit.
- Environmental Protection: Although rugged, avoid prolonged exposure to extreme heat, moisture, or intense electromagnetic interference to extend service life.
- Redundancy Configuration: For high-reliability applications, use with a TCAT terminal board to maintain system operation during single-module failure.
