GE IS200EBRGH2A / IS200HSLAH2ADE PCB Circuit Board Module
Product Description
IS200EBRGH2A and IS200HSLAH2ADE are original multi-layer PCB circuit board modules for GE Speedtronic Mark VI turbine control system and EX2100e generator excitation control platform. They are widely applied in heavy-duty gas turbines, steam turbines and hydroelectric generator sets in power generation industry. As core hardware within Mark VI distributed control architecture, the two boards work in coordination to complete excitation bridge signal driving, real-time fault monitoring and high-speed serial communication between modules. They support simplex or triple redundant control configuration for key control loops of power stations and meet GE design specifications and factory reliability test standards for critical power equipment.
IS200EBRGH2A is the EX2100e excitation system Exciter Bridge Interface Board (EBRG), serving as the electrical signal interface between the main processor and thyristor power bridge. This module converts low-voltage trigger gate commands issued by the controller into three-phase rectifier thyristor drive pulses. Meanwhile, it collects power bridge feedback signals to monitor excitation current, temperature and thyristor operating conditions in real time. It integrates overvoltage and overtemperature fault detection circuits, supports thyristor assemblies of 42mm, 52mm and 77mm specifications, and realizes generator excitation regulation, V/Hz protection and field vector control to guarantee stable generator terminal voltage and safe operation of the excitation circuit.

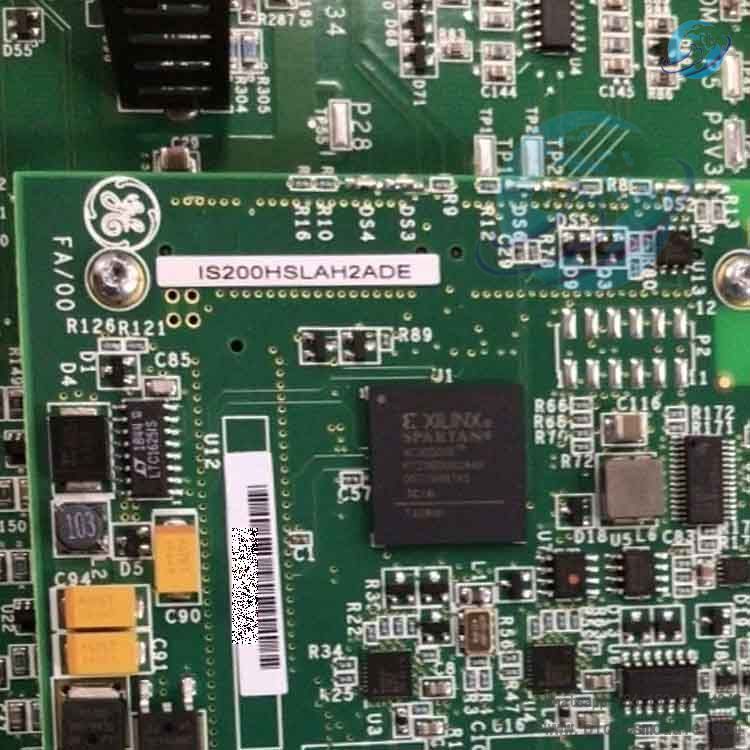

IS200HSLAH2ADE is the HS SLR LNK high-speed serial link interface PCB board for Mark VI system. Equipped with FPGA and voltage protection circuits, it adopts GE proprietary HS SLR LNK serial protocol to realize bidirectional low-latency data interaction between Mark VI rack controllers, I/O modules and EX2100e excitation system. It undertakes high-speed transmission of turbine control commands, field sensor collected data, excitation system operating parameters and fault alarm signals, forming the high-speed communication backbone inside Mark VI control cabinet. The board adopts double-sided component layout and integrates signal isolation and anti-interference circuits to adapt to strong electromagnetic interference working conditions in power plant control rooms.
In the complete system, IS200HSLAH2ADE transmits the excitation setpoint and control commands issued by the turbine main controller to the EX2100e excitation rack, and sends the excitation operating status and fault information collected by IS200EBRGH2A back to the Mark VI main control unit. This set of PCB boards realizes closed-loop coordination between turbine main control and generator excitation regulation, which is the key hardware combination for grid connection, load regulation and fault protection of gas / steam turbine generator sets.
Main Features
- GE Mark VI series PCB hardware with conformal-coated multi-layer circuit board, capable of long-term continuous operation under industrial wide temperature and strong electromagnetic environment, with shock resistance and dust-proof capacity.
- Coordinated function division: IS200EBRGH2A is responsible for power bridge gate driving, excitation side signal acquisition and protection; IS200HSLAH2ADE takes charge of high-speed serial communication between turbine controller and excitation subsystem.
- Built-in complete self-diagnosis circuit for real-time board-level and loop fault detection and fault code reporting, convenient for on-site troubleshooting and predictive maintenance.
- Modular rack mounting design with standard backplane connection, easy for in-cabinet integration, field replacement and old unit retrofit.
- Supports Mark VI TMR triple redundant control system, suitable for high-reliability scenarios requiring uninterrupted power generation.
Application Scenarios
- Mark VI control system for heavy-duty gas turbines and turbo generators in thermal power plants
- EX2100e excitation control cabinet for hydroelectric generators
- Combined heat and power stations, offshore power generation, captive generator sets in refineries
- Unit control system upgrade, spare parts replacement and old unit renovation projects
Operating Environment & General Parameters
| Operating Temperature | 0 ~ 60℃ |
| Power Supply | DC low voltage supplied by Mark VI rack backplane |
| Hardware Structure | Multi-layer PCB, FPGA, isolation transformer, protection diodes, filter components and SMD electronic components |
| Installation Method | Standard Mark VI rack slot mounting, backplane bus connection |
| Compliance Standard | GE Speedtronic Mark VI and EX2100e system design & test specifications, power industry EMC standards |
Product Notes
Both PCB modules are electrostatic sensitive devices. ESD electrostatic protection must be adopted during handling, testing and installation. The storage environment needs humidity control and anti-static protection. They are dedicated spare parts for GE legacy turbine control system and used for unit maintenance and replacement.
FAQ
Q1: What products are compatible with GE IS200EBRGH2A / IS200HSLAH2ADE?
A: This board set matches GE Speedtronic Mark VI control system and EX2100e excitation system. Supporting hardware includes Mark VI system rack, system backplane, TMR redundant controllers, various Mark VI I/O boards, thyristor power rectifier bridges, power supply modules and signal terminal modules, used for closed-loop excitation control of gas turbine, steam turbine and hydroelectric generator sets.
Q2: Can this board set only be used with EX2100e excitation cabinet?
A: Yes. IS200EBRGH2A is the Exciter Bridge Interface Board for EX2100e, and IS200HSLAH2ADE is responsible for high-speed communication between Mark VI main controller and EX2100e. The two are used in pairs and adapted to EX2100e excitation control cabinet, and are not compatible with other excitation system models.
Q3: Does this module support Mark VI TMR triple redundant architecture? Are additional boards required?
A: It supports Mark VI TMR triple redundant system. For redundant application scenarios, 3 sets of controllers, redundant power supply modules and corresponding redundant I/O boards are required to meet the high-reliability operation requirements of power plant units.
Q4: Can I purchase only IS200EBRGH2A or only IS200HSLAH2ADE separately for use?
A: Separate use is not recommended. The complete excitation control closed loop requires coordinated work of the two boards. IS200HSLAH2ADE transmits main control commands and IS200EBRGH2A drives the excitation power bridge. A single board cannot realize complete excitation regulation function. In some spare parts replacement scenarios, a single spare part of the same model can be purchased individually for replacement.
Q5: Are there any requirements for Mark VI system software version when used together?
A: It needs to match the corresponding version of Mark VI system firmware and EX2100e excitation software. Mismatched versions will cause communication abnormality, failure to issue excitation commands and board fault codes. It is recommended to check the existing system software version before replacing spare parts.
Q6: Are there specification restrictions for the power thyristors matched with this board set?
A: IS200EBRGH2A can be matched with thyristor power bridges of 42mm, 52mm and 77mm specifications. During model selection and replacement, it is necessary to confirm the thyristor specification of the original on-site equipment to ensure matching of drive pulse signals.
Q7: What auxiliary materials need to be prepared for installation and matching?
A: Auxiliary materials include anti-static wristband, ESD packaging, backplane connecting wires, terminal blocks and fixing screws. The installation environment needs a control cabinet with good grounding to meet the EMC electromagnetic compatibility requirements of power plants.
Q8: This board set can replace spare parts of old version Mark VI / EX2100. What commissioning work needs to be completed?
A: The hardware is compatible with the same series of old racks. After replacement, it is necessary to complete system power-on self-test, communication link test and excitation loop linkage commissioning, check protection setting values, and confirm no faults in board self-diagnosis before putting into unit operation.
