Product Overview

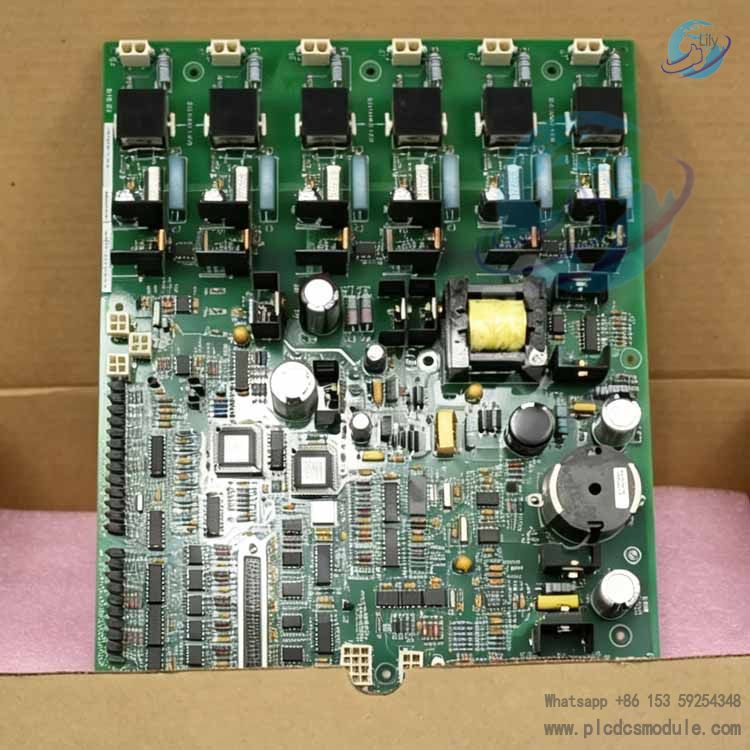

GE IS200EGPAG1B / IS200EGPAG1BEC is the exciter gate pulse amplifier board for the EX2100 excitation control system, referred to as EGPA. IS200EGPAG1B receives low-level trigger commands issued by the upper control board, amplifies and shapes the signals, then outputs six SCR gate drive pulses to realize synchronous control of the excitation power bridge. IS200EGPAG1B also collects feedback signals of power bridge temperature, cooling airflow and SCR conduction status, and transmits bridge operating status to the Mark VI control system, forming a monitoring and protection link for the excitation power unit. IS200EGPAG1BEC is the revised version of this board. Its hardware layout, interface definition and basic functions remain consistent, and it is compatible with cabinet installation of the same series.
Product Parameters and Physical Specifications
| Model: | IS200EGPAG1B, Revised Model IS200EGPAG1BEC |
| Short Name: | EGPA Exciter Gate Pulse Amplifier |
| Compatible System: | GE EX2100, EX2100e, Mark VI |
| Pulse Channel: | 6 independent SCR gate trigger pulses |
| Monitoring Input: | Dual thermal switch temperature detection, cooling airflow monitoring, conduction current feedback |
| Temperature Threshold: | 170°F for overheat alarm, 190°F for protection trip |
| On-board Configuration: | 5 configurable jumpers, red and green LED status indicators |
| Operating Temperature: | -40℃ ~ +85℃ |
| Power Supply: | Powered by matching EPDM module |
| Mounting Type: | Cabinet rail embedded installation |
| Weight: | Approx. 0.85kg |
| Dimension: | 263 × 58 × 28mm |
Core Advantages
- IS200EGPAG1B features high-fidelity pulse amplification and stable pulse timing synchronization to ensure accurate triggering of SCR power bridge.
- Integrated multi-dimensional hardware monitoring loop. It quickly uploads alarm signals when abnormalities occur in the power bridge and reduces the risk of escalation of excitation system faults.
- On-board jumpers support field configuration, compatible with excitation bridge schemes of different capacities and suitable for power station renovation projects.
- Red and green LEDs intuitively reflect operation and fault status, shortening on-site maintenance and troubleshooting time.
- The circuit is coated with protective coating for long-term stable operation in power plant environments with high dust and temperature fluctuations.
- The IS200EGPAG1BEC version optimizes circuit details and improves anti-interference capability for long-term operation.
Product Features
- Six independent pulse outputs to synchronously drive six silicon controlled rectifier devices inside the rectifier bridge.
- Independent temperature monitoring circuit with two-level protection logic to distinguish alarm and trip.
- Airflow monitoring interface collects real-time status of heat dissipation air path to prevent overheating damage of power bridge.
- Conduction feedback signal returns to main controller to identify SCR open circuit and short circuit faults.
- Hardware configuration can be switched via on-board jumpers without modifying underlying programs to adapt to different sites.
- LED indicators display board power supply, pulse output and fault status in real time.
- Electrostatic sensitive PCB. ESD operation specifications are required during disassembly and installation.
- Natively compatible with the full EX2100 excitation hardware architecture with standardized interface definition.
Application Scenarios
- EX2100 excitation system renovation and spare parts replacement for gas turbine power plants.
- Excitation power bridge control unit for large thermal power steam turbine generator sets.
- Synchronous generator excitation control cabinet in nuclear power conventional island.
- Excitation system of pumped storage power stations and synchronous condensers.
- Self-owned power station on offshore platforms and generator excitation units of industrial self-owned power plants.
Same Brand Product Comparison
- IS200EGPAG1B (EGPA) is responsible for SCR gate pulse amplification and power bridge status collection. It belongs to power drive interface board and does not execute excitation regulation algorithm calculation.
- IS200ESEL board serves as command issuing board, outputting original gate control signals to IS200EGPAG1B. The two boards must be used together.
- IS200EPDM module supplies power for the whole bridge unit and is the power source of IS200EGPAG1B.
- Compared with other IO boards of EX2100 series, IS200EGPAG1B focuses on high-power pulse drive and hardware protection of power bridge. Ordinary digital IO boards do not have SCR pulse amplification capability and cannot be substituted.
Related Matching Products
- IS200ESEL: Exciter gate command board, outputs original trigger signal to IS200EGPAG1B
- IS200EPDM: Power drive module, provides operating power for IS200EGPAG1B
- IS200EACTC: Excitation control regulation board, completes excitation closed-loop calculation
- IS200EFCMA: Excitation feedback acquisition board, collects generator voltage and current signals
- IS200ERIOH: EX2100 system relay output board
Frequently Asked Questions
Q:What is the difference between IS200EGPAG1B and IS200EGPAG1BEC?
A:IS200EGPAG1BEC is a hardware revised version of IS200EGPAG1B. It has identical functions, interfaces and installation dimensions, only PCB circuit details are optimized, and it can be directly interchanged on site.
Q:Can IS200EGPAG1B be powered on and run alone?
A:The board can be powered on at low voltage separately to check indicators, but complete excitation operation requires matching ESEL, EPDM and other supporting boards to form a full bridge control unit.
Q:What is the main function of IS200EGPAG1B?
A:It receives control commands, amplifies and generates six SCR trigger pulses, collects power bridge temperature, airflow and conduction feedback signals, and provides hardware protection.
Q:What on-site phenomena will occur if IS200EGPAG1B is damaged?
A:Excitation fails to build up, SCR cannot be triggered, power bridge overheat alarm, and the control system continuously reports EGPA board fault.
Q:Which units is IS200EGPAG1B applicable to?
A:It is suitable for gas turbines, steam turbine generators and synchronous condensers equipped with GE EX2100 excitation system.
Q:Do I need to re-download the program after replacing IS200EGPAG1B?
A:No program download required. Only verify the 5 groups of on-board jumpers to match the original configuration.
Q:Are there any special requirements for transportation of IS200EGPAG1B board?
A:It is electrostatic sensitive PCB. Use anti-static bag packaging throughout, bare board transportation is prohibited.
Q:Can IS200EGPAG1B be replaced by pulse amplifiers of other brands?
A:Direct replacement is not recommended. Timing sequence, interface and protection logic are deeply bound with EX2100 system. Replacement will cause failure of excitation protection logic.
Same Brand Product Models
- IS200ESELAA Exciter Gate Command Board
- IS200EPDMA Power Drive Module
- IS200EACTCBA Excitation Control Board
- IS200EFCMA Feedback Module
- IS200ERIOH Relay Output Board
- IS200EPSCA Power Supply Board
- IS200EGPAG1BCA Exciter Gate Pulse Amplifier
- IS200EAIHA Analog Input Board
- IS200EDCFG Digital Control Board
- IS200EBTUH Turbine Control Board
- IS200ECPMA Communication Processor Board
- IS200EFSMA Field Signal Module
- IS200ETAGB Terminal Board
Notes
- Wear anti-static wristband and operate on anti-static workbench when disassembling and installing IS200EGPAG1B.
- Power off before installation and confirm high voltage inside cabinet is fully discharged before plugging and unplugging board connectors.
- Record original jumper positions before modification, then power on after adjustment.
- The board cannot be stored for a long time in humid and corrosive gas environment.
- Check connector pins for bending and oxidation before each power-up.
- After replacement of IS200EGPAG1BEC, perform low-voltage test step by step before putting into excitation system with load.
