GE 531X304IBDASG1 F31X304IBDAMG1-00609 Base Driver Card

The 531X304IBDASG1 is an industrial-grade basic drive card launched by General Electric (GE) of the United States, belonging to the 531X series. Specifically designed for GE AC2000 automation control system, it is core-positioned as the signal conversion and drive center between controllers and actuators. Adopting a modular architecture and industrial-grade components, this card integrates motor drive, signal acquisition, and multiple safety protection functions, while supporting various control modes and communication protocols. Leveraging its precise drive control, reliable safety protection, and wide scenario adaptability, it has become a core drive component in the field of industrial automation. Widely used in industrial scenarios such as automotive manufacturing, electronic production, and logistics automation, it provides accurate and reliable drive control for actuators like motors and valves. Its deep compatibility with the GE AC2000 system, modular maintenance design, and comprehensive protection functions not only meet the efficient deployment needs of new projects but also offer convenient solutions for upgrading old equipment. It is a key component for building and upgrading GE automation systems, with significant application value in industrial control scenarios across multiple industries.

Core Functions and Technical Features

Centered on "precision drive + stable transmission", the GE 531X304IBDASG1 covers key requirements for industrial drive control with the following technical features:

1. Multi-mode Drive and Signal ProcessingActing as a bridge between controllers and actuators, it enables bidirectional conversion of digital and analog signals to precisely drive the operation of actuators such as motors and valves.It supports multiple modes including PID control, position control, and speed control, with parameters flexibly configurable via software to adapt to control needs in different application scenarios.Integrated with signal acquisition functionality, it captures real-time feedback signals such as motor position and speed, providing data support for closed-loop control and ensuring control accuracy.

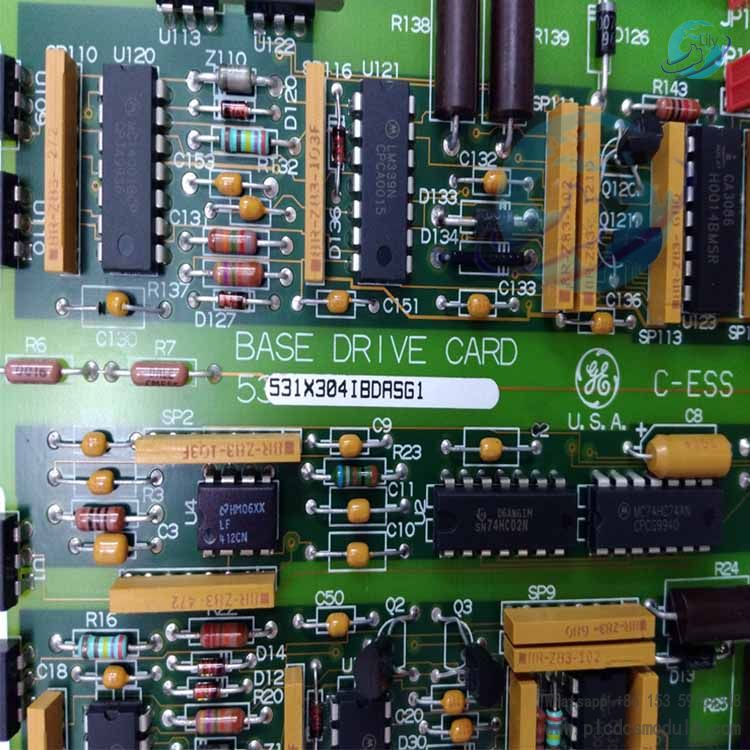

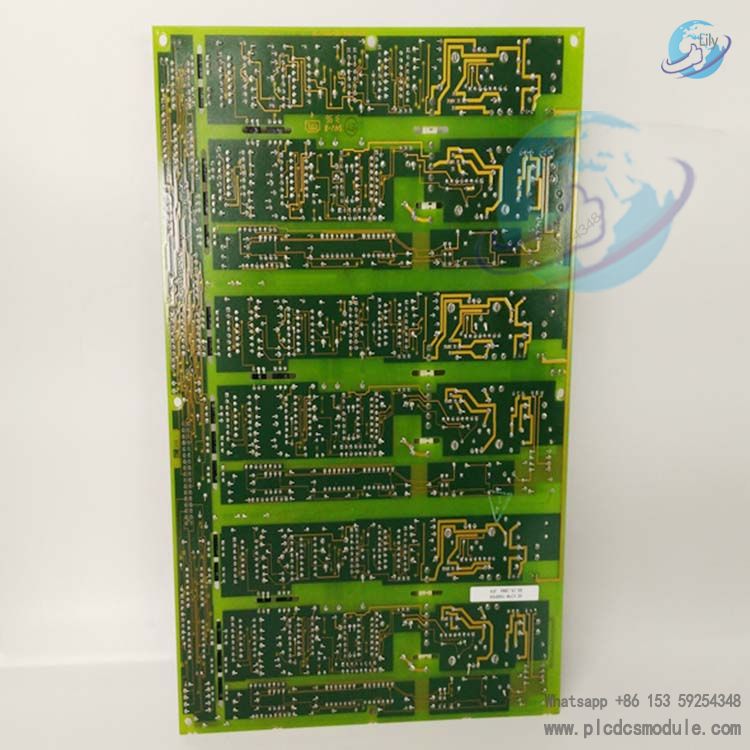

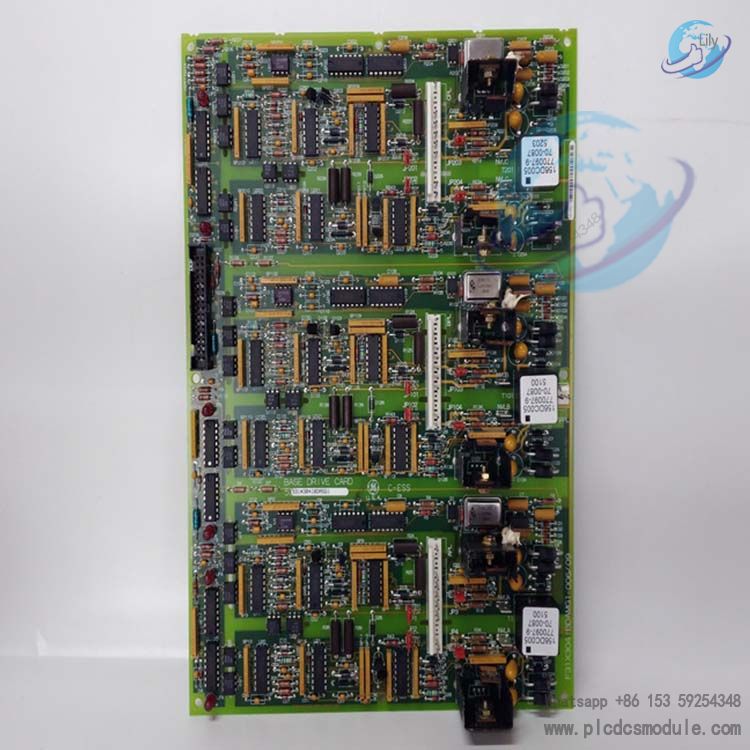

2. Modular and High-reliability DesignAdopting a modular structure with corner drilling and built-in slots, it allows easy installation and disassembly, facilitating maintenance and system expansion.The board is divided into three core areas with similar structures, each equipped with transformers, vertical pin connectors, dual parallel radiators, and various electronic components to enhance operational stability.Industrial-grade components are selected, featuring excellent anti-electromagnetic interference capability, adaptability to harsh industrial environments, and low failure rates during long-term operation.
3. Comprehensive Safety Protection MechanismsBuilt-in protection functions against overload, short circuit, undervoltage, and overheating. When equipment malfunctions, it automatically cuts off the drive or limits output to prevent damage to core components.Some circuits integrate surge protection and high-frequency noise filtering designs to reduce the impact of industrial on-site interference on drive signals, ensuring precise execution of control commands.

Application Scenarios and System Compatibility

1. Core Application Fields
• Automotive Manufacturing: Used for motor drive control in automobile production lines, such as assembly line conveying equipment and robotic arm joint drive.
• Electronic Manufacturing Manufacturing: Adapted to automated equipment in electronic product production lines, enabling control of precision component handling and assembly.
• Packaging Industry: Controls the transmission system of packaging machinery to ensure synchronization and stability of the packaging process.
• Logistics Industry: Drives logistics handling equipment (e.g., conveyor belts, sorting robots) to achieve efficient material flow.
• Process Industry: Used for driving actuators such as valves and pumps in process control systems, adapting to process control needs in chemical, energy, and other fields.
2. System Adaptation Features
• Deeply compatible with the GE AC2000 automation system, it can be directly integrated into existing control architectures without additional adaptation accessories.
• Supports collaborative operation with GE's own PLCs, controllers, and third-party industrial equipment; flexible access is possible as long as voltage and current parameters match.
• The board surface is marked with identification codes such as 006/09 and C-ESS, and is partially compatible with related components of the F31X series, facilitating quick identification of adaptability during equipment maintenance.
